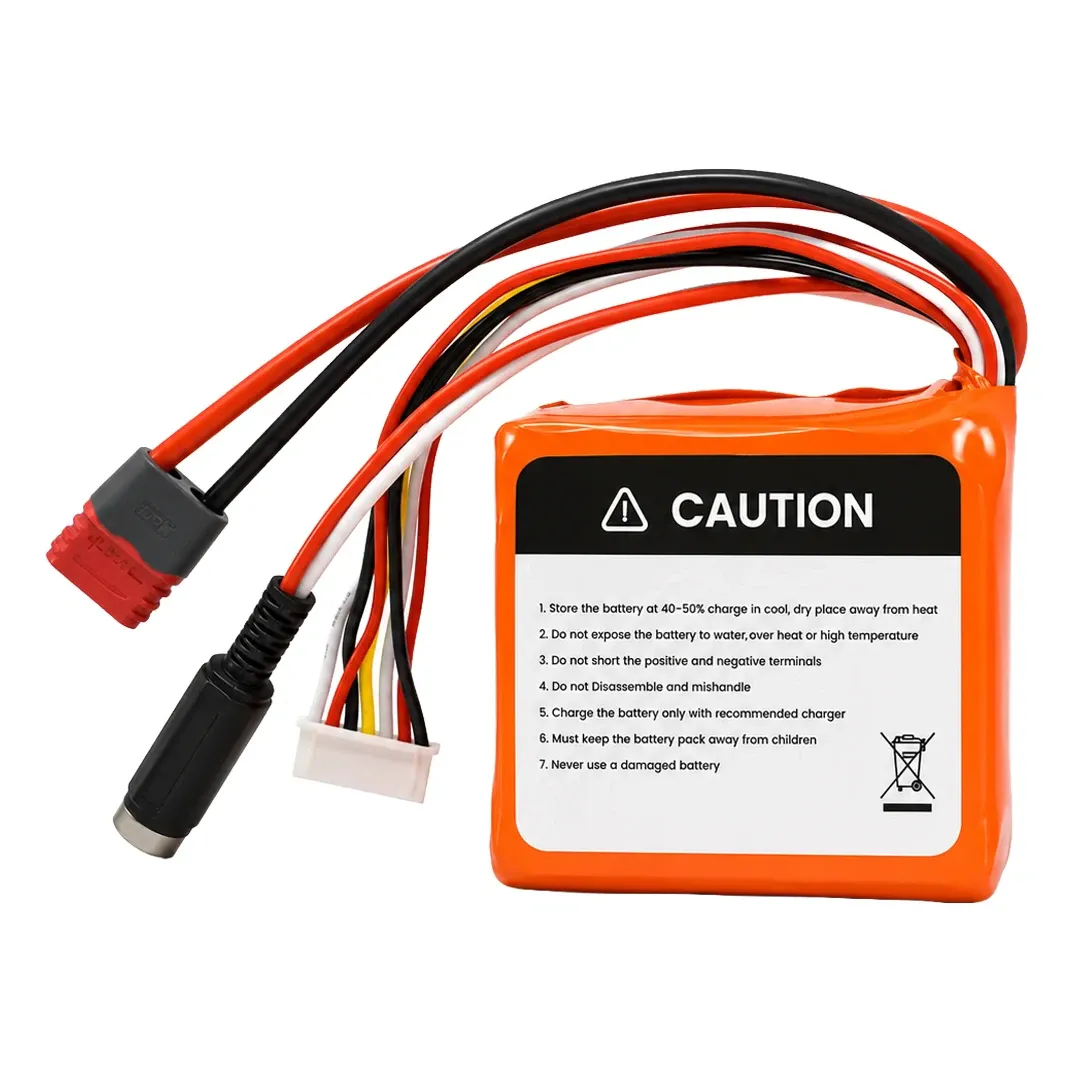

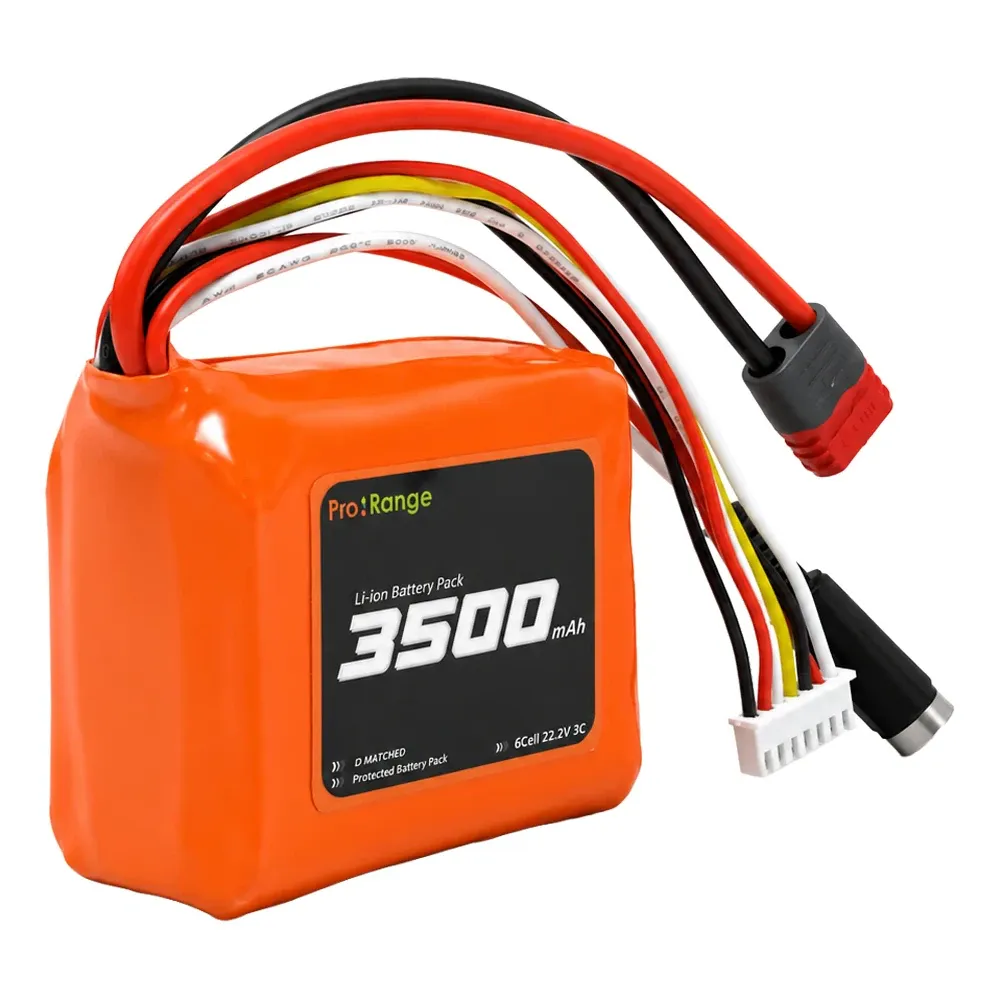

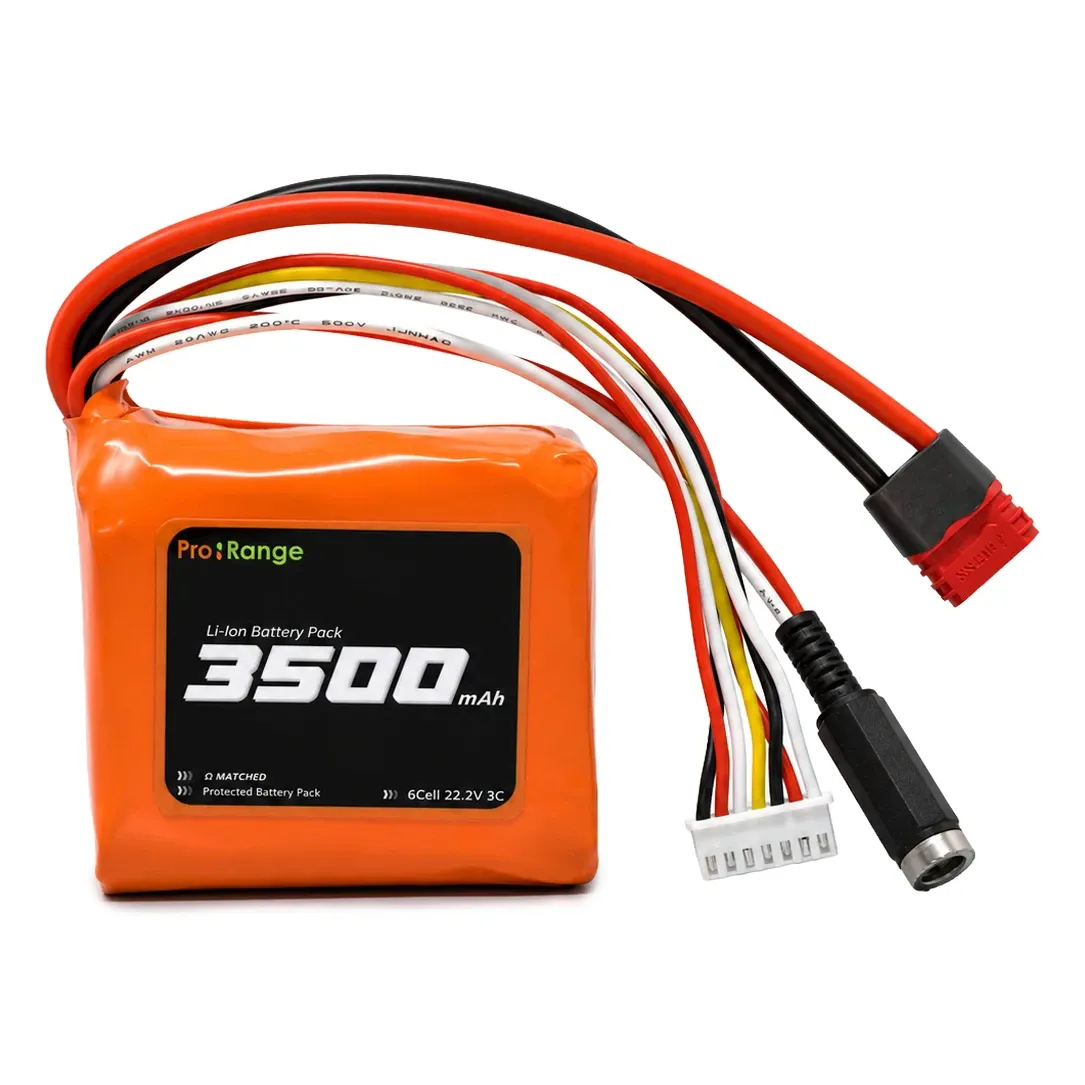

Pro-Range NMC N18650CP 6S1P 22.2V 3500mAh 3C Li-Ion Battery Pack

Compact 6S1P Li-ion pack from Pro-Range, built from six N18650CP NMC 18650 cells for 22.2 V nominal and 3500 mAh. With a 10.5 A maximum discharge it suits loads that draw under that figure, such as long-endurance cruisers, ground stations, antenna trackers and robotics, rather than high-draw FPV quads.

Key features

• 77.7 Wh of stored energy (22.2 V × 3.5 Ah) in a 338 g pack
• 3C rating: up to 10.5 A discharge, and charging at up to 5.25 A
• Amass nylon T-plug discharge lead
• Separate female DC jack for charging, plus a 7-pin JST-XH balance lead
• Compact 67 × 56 × 35 mm block for tight bays

Specifications

• Configuration: 6S1P
• Cells: N18650CP (NMC, 18650 format)
• Nominal voltage: 22.2 V (25.2 V fully charged)
• Capacity: 3500 mAh
• Energy: 77.7 Wh
• Max discharge current: 10.5 A (3C)
• Max charge current: 5.25 A
• Discharge connector: Amass nylon T-plug
• Charge connector: DC jack (female)
• Balance connector: JST-XH 7-pin
• Dimensions: 67 × 56 × 35 mm
• Weight: 338 g

Charge it on a Li-ion profile (4.2 V per cell) through the balance lead to keep cell voltages even. If your ESC or power module uses an XT60 or another plug, fit a matching lead or adapter to the T-plug.
