Molicel P42A 1S Li-Ion Battery Pack (4200/8400/12600/16800mAh)

A 1S lithium-ion pack assembled to order from genuine Molicel INR-21700-P42A cells, in your choice of 1P to 4P: 1 cell groups in series at 3.6V nominal, with 1 to 4 cells in parallel per group for 4200–16800mAh and 45–180A of continuous discharge. It suits receivers, ground stations, GPS trackers, camera rigs and other low-voltage electronics.

Pick your pack

• 1S1P: 1 cells · 4200mAh · 15.1Wh · 45A continuous · approx. 96 g
• 1S2P: 2 cells · 8400mAh · 30.2Wh · 90A continuous · approx. 171 g
• 1S3P: 3 cells · 12600mAh · 45.4Wh · 135A continuous · approx. 247 g
• 1S4P: 4 cells · 16800mAh · 60.5Wh · 180A continuous · approx. 322 g

Specifications

• Cells: Molicel P42A 21700, 4200mAh and 45A continuous each
• Voltage: 3.6V nominal · 4.2V fully charged · 2.5V cutoff

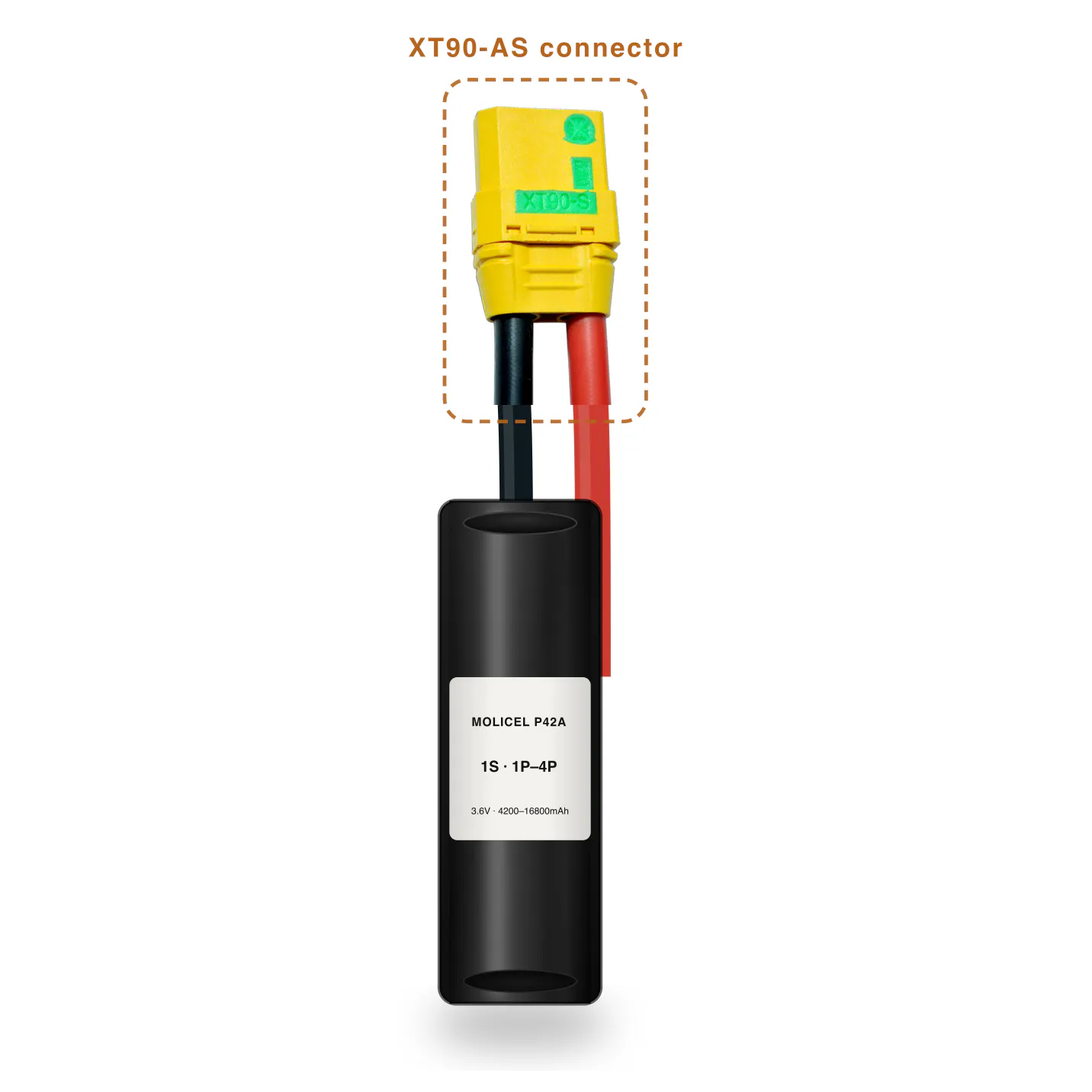

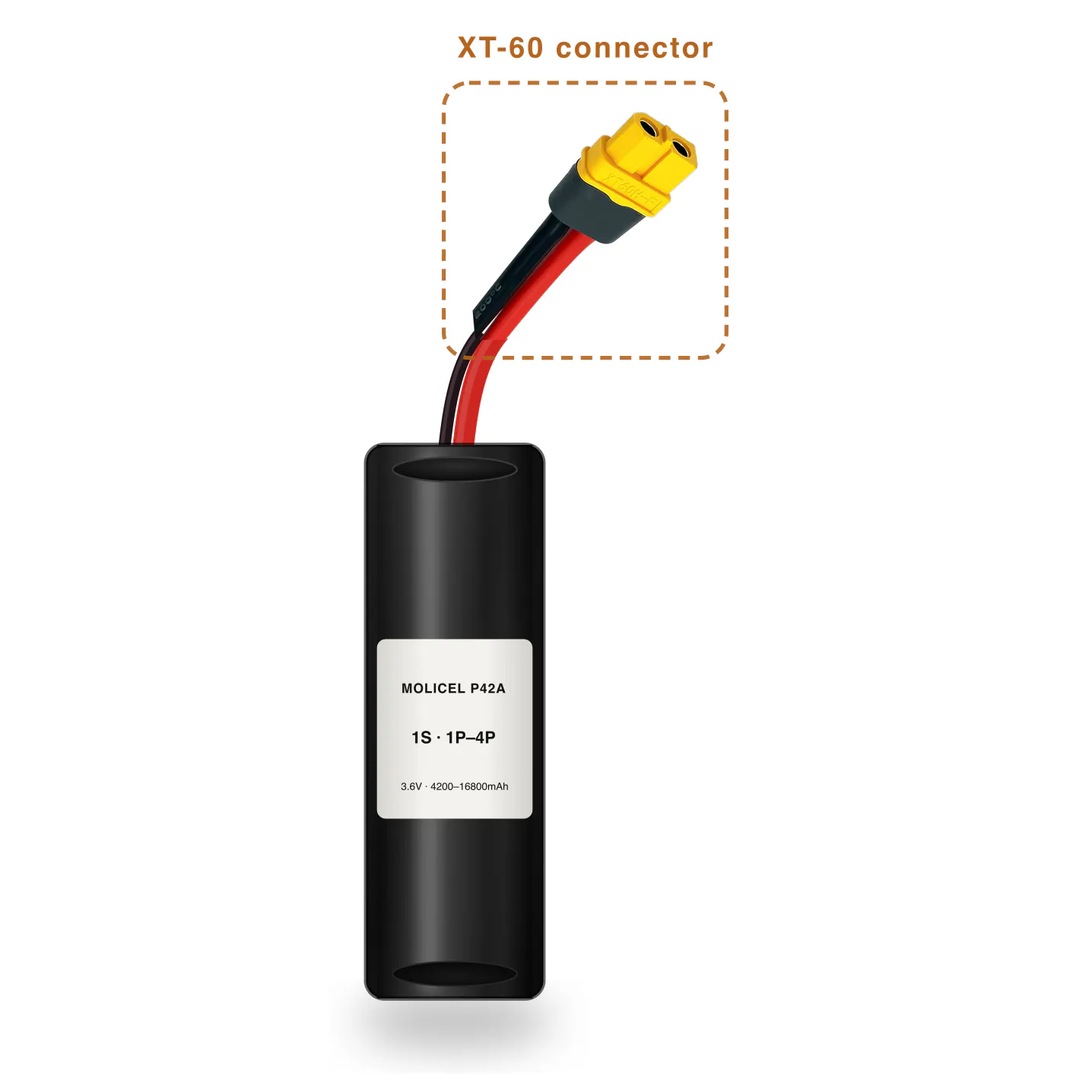

• Main connector: your choice of XT-60 / XT90-AS (XT-30 also on the 1P pack) — pick it above
• Balance lead fitted for standard balance chargers

Build

Every pack is built in Gurugram from matched, capacity-tested cells with spot-welded nickel busbars, silicone main leads and a heat-shrink wrap, then load-tested before dispatch. Packs are assembled after payment and dispatch within 3–4 business days. Need a different connector, wire length or layout? Ask us on WhatsApp before ordering.

Charging and care

Charge in Li-Ion mode at 4.20V per cell (never LiHV) at up to 1C — 4.2A for 1P, 8.4A for 2P, 12.6A for 3P, 16.8A for 4P. Do not discharge below 2.5V per cell; land at around 3.3V per cell for the longest cycle life. Store at 3.6–3.7V per cell.
