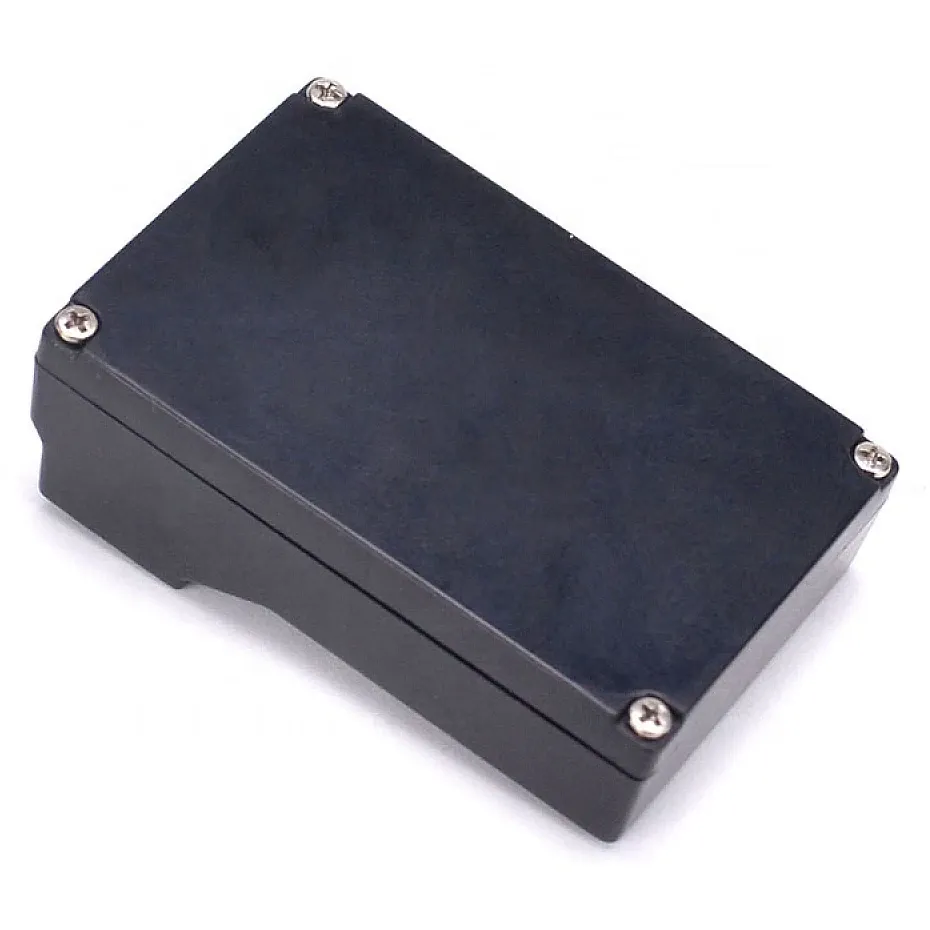

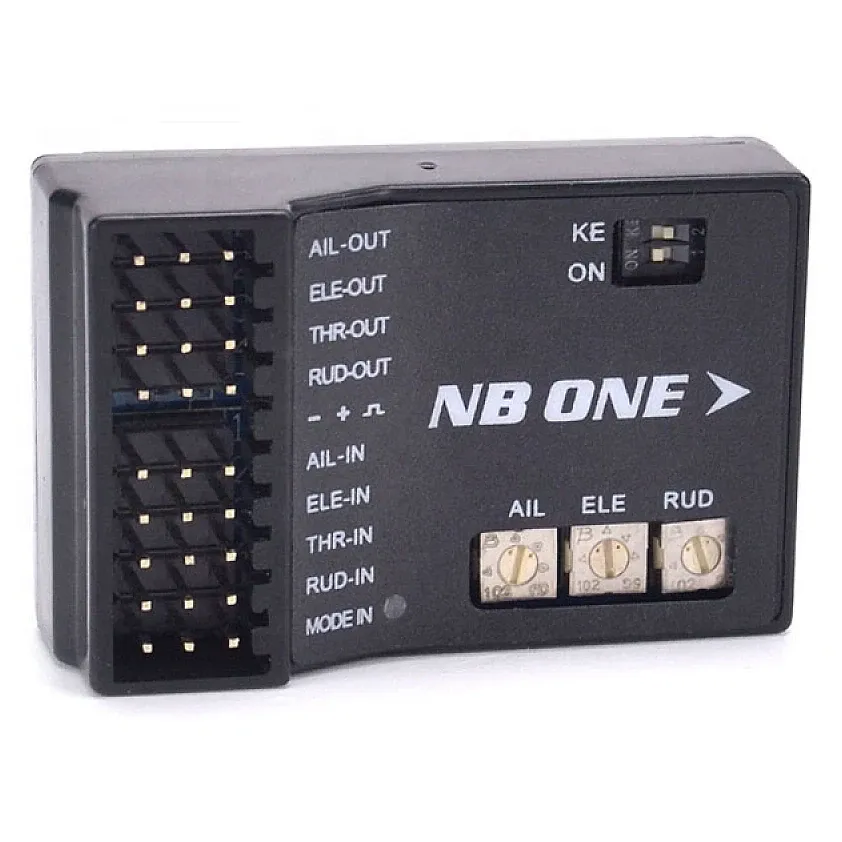

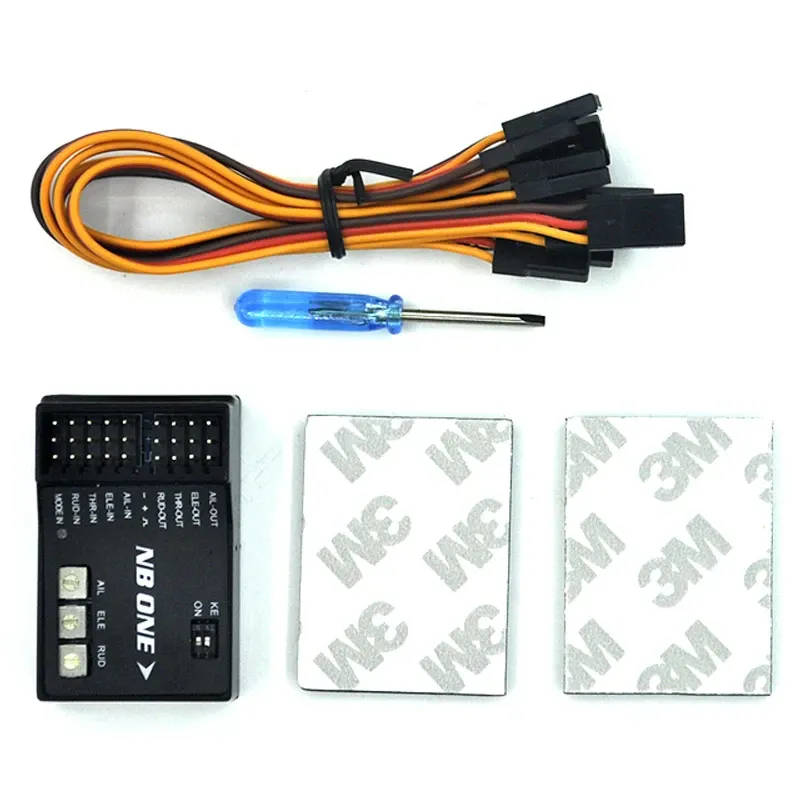

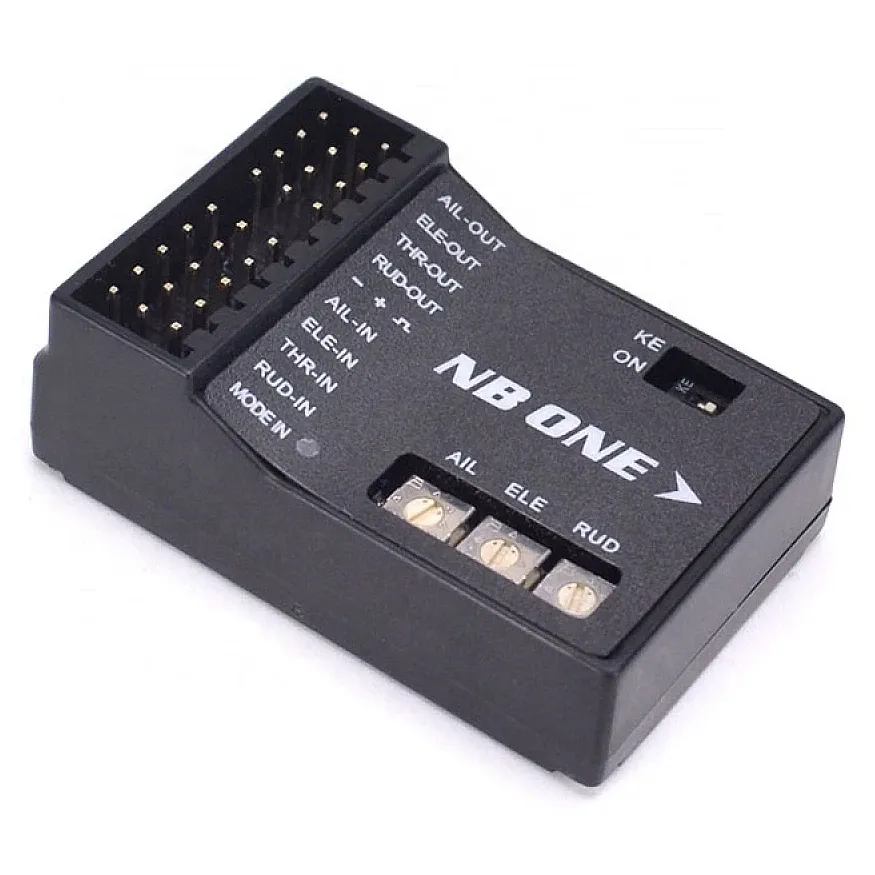

NB One 32-Bit Fixed-Wing Flight Controller with Altitude Hold

The NB One is a 32-bit flight stabiliser for RC fixed-wing aircraft with a built-in barometer, so the model can hold altitude as well as level itself. It is aimed at beginners and trainer planes that need a safety net while learning.

Key features

• Three flight modes: self-stabilising, manual and barometric altitude hold
• Supports conventional (T-tail), V-tail and delta-wing airframes
• 32-bit processor with a 6-axis gyro/accelerometer and a high-precision barometer
• Works with PPM, PCM and 2.4GHz receivers
• Draws only 20 mA across a 5–16 V working range

Specifications

• Processor: 32-bit
• Sensors: 6-axis IMU, barometer
• Working voltage: 5–16 V
• Working current: 20 mA
• Operating temperature: −15 °C to 65 °C
• Dimensions: 43 × 28 × 15 mm
• Receiver compatibility: PPM, PCM, 2.4GHz

Learn on the self-stabilising mode first, then switch to altitude hold to free your attention for orientation and landing practice; manual mode hands full control back once you are confident. If you want a GPS module in the box, choose the NB One+ version.
