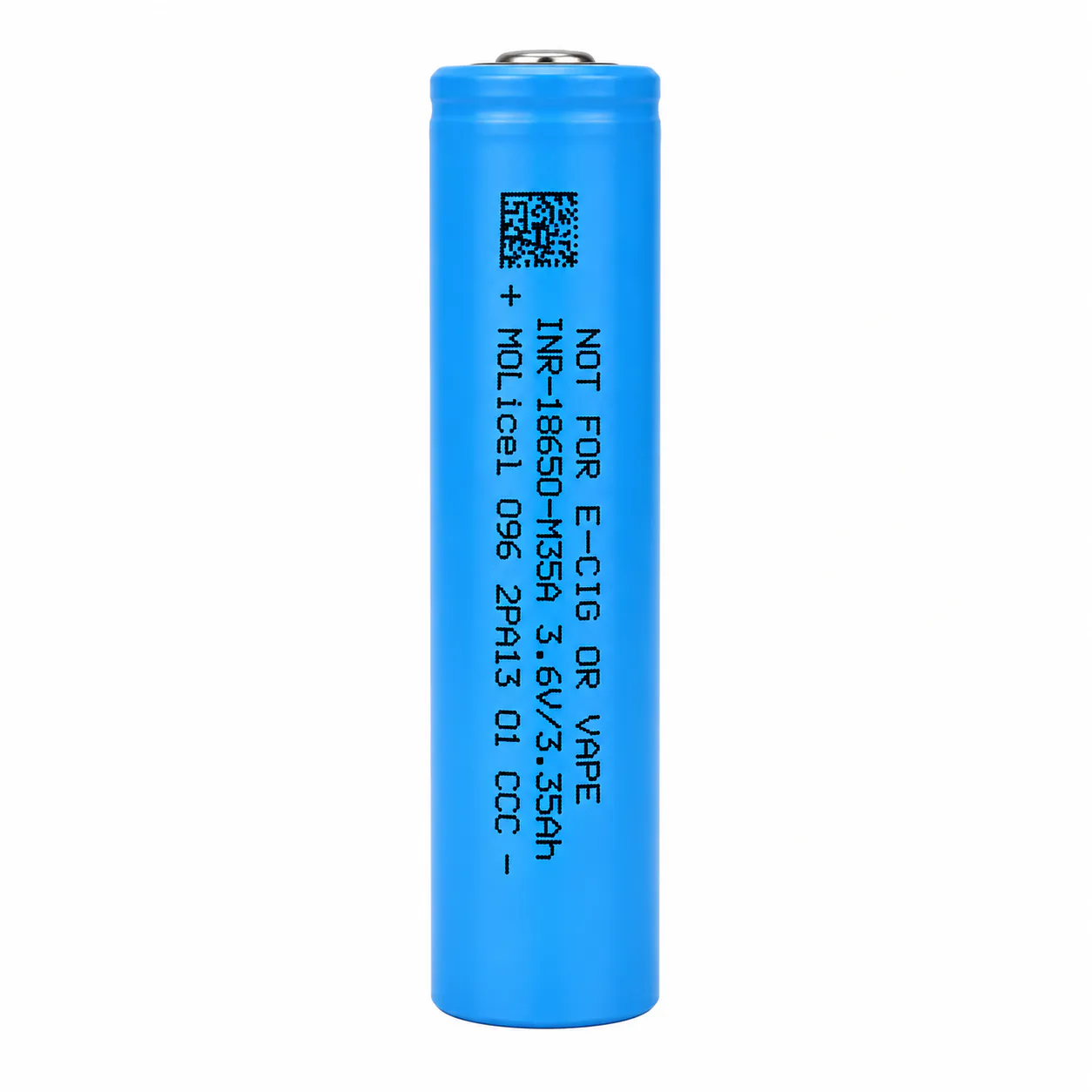

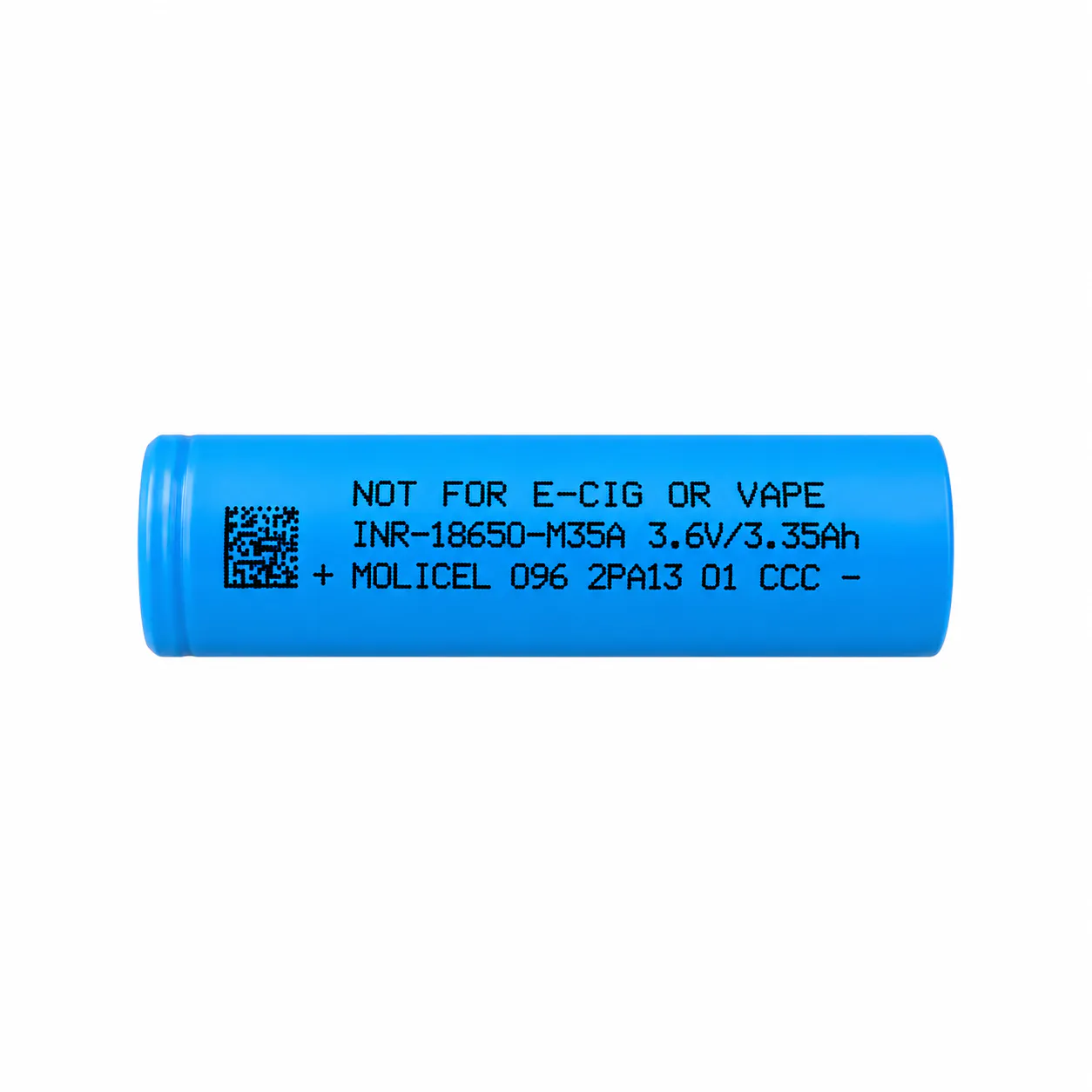

Molicel INR18650-M35A 3500mAh Li-Ion Cell

The Molicel INR18650-M35A is a high-energy-density lithium-ion cell designed to maximize flight time in sub-250g micro long-range FPV cruisers, fixed-wing UAVs, and radio transmitters. Striking an optimal balance between capacity and current delivery, it provides a genuine 3500mAh alongside a 10A continuous discharge rating. This makes it highly suited for custom 4S or 6S endurance packs where sustained low-amp draw takes priority over aggressive punch-outs.

Key features

• 10A maximum continuous discharge rating supports the steady current demands of efficient long-range powertrains.

• Authentic A-grade Molicel cell, ensuring tight internal resistance matching and consistent cycle life across custom packs.

• Unprotected flat-top terminal design ready for spot-welding with standard nickel strip.

• Direct drop-in compatibility for 18650 radio controller bays, including popular Radiomaster and Jumper transmitters.

Specifications

• Format: 18650

• Nominal Capacity: 3500mAh

• Nominal Voltage: 3.6V

• Charge Voltage: 4.2V

• Discharge Cut-off Voltage: 2.5V

• Max Continuous Discharge: 10A

• Max Charge Current: 1.7A (about 2.5 hours for a standard charge)

• Operating Temperature: 0-60°C charging, -40-60°C discharging

• Weight: 48g

When assembling custom flight packs, ensure all cells are perfectly voltage-matched before spot-welding. For maximum overall cell lifespan, avoid routinely discharging below 3.0V per cell under load.
