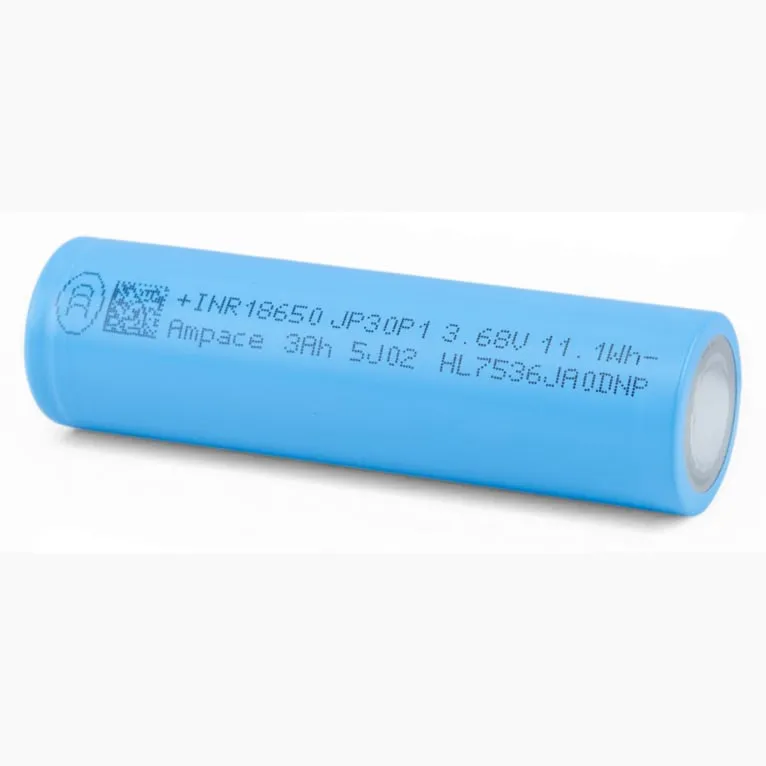

Ampace JP30 3000mAh 18650 Li-Ion Cell
SKU AMPACE-JP30-18650-3000
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Ampace JP30 is a high-power 18650 lithium-ion cell rated at 3000mAh, made for packs that need strong current from a compact cell: long-range FPV packs, UAV batteries and power-tool style builds. It is sold as one bare cell for assembly into protected packs.
Key features
- 36A continuous discharge and 140A pulse discharge for up to 5 seconds, as rated by Ampace
- 3.0Ah capacity, 20% more than Ampace's earlier 2.5Ah high-power cell
- Rated for more than 600 cycles at 30A discharge and more than 1000 cycles at 20A
- Standard 18650 format fits common cell holders and pack layouts
Specifications
- Format: 18650 cylindrical Li-ion
- Rated capacity: 3000mAh
- Nominal voltage: 3.68 V
- Rated energy: 11.04 Wh
- Max continuous discharge: 36 A
- Pulse discharge: 140 A for 5 s
- Cycle life: 600+ cycles at 30 A, 1000+ cycles at 20 A
A bare cell has no built-in protection, so the finished pack needs a BMS or a low-voltage alarm, cells matched for capacity and resistance, and nickel strip spot-welded rather than soldered to the cell. Charge only with a charger set for Li-ion chemistry.
| Cell Count | 1S |
|---|---|
| Chemistry | Li-ion |
| Capacity | 3000 mAh |
| C-Rating | 12 C |
| Cell Format | 18650 |
| Made in India | No |
| Brand | Ampace |
