Mini HDMI Right Angle (L Bend) Plug for DIY HDMI Cables
SKU GEN-DIY-MINI-HDMI-PLUG-L
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

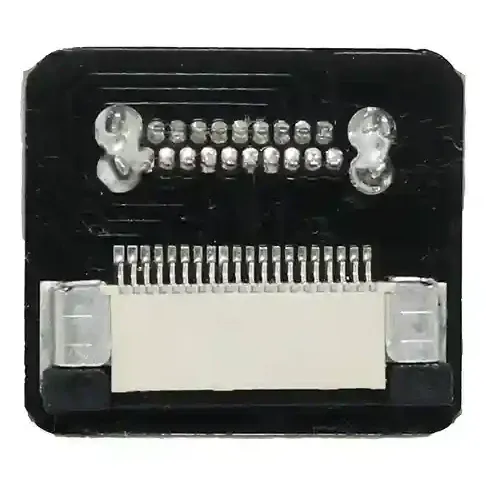

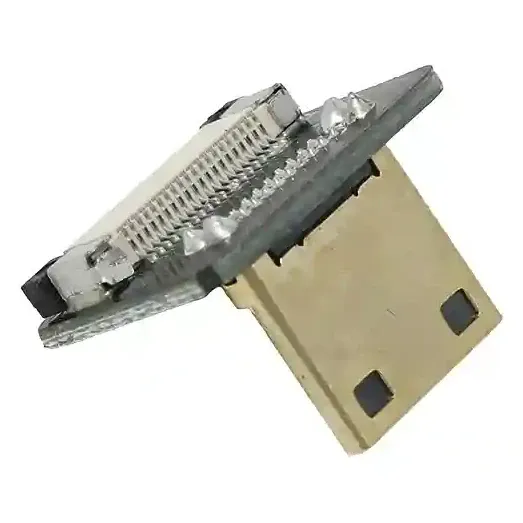

A right-angle mini HDMI plug (L bend) for the modular DIY HDMI cable system. Clip it onto a flat HDMI ribbon cable, fit a matching plug at the other end, and you get a lead of exactly the length and exit angle your build needs — handy for ground stations, cameras and single-board computers where a stiff moulded cable would strain a port or crowd a tight bay.
Key features
- Mini HDMI (Type C) plug — fits devices with a mini HDMI port, such as the Raspberry Pi Zero.
- Right-angle body — the cable leaves at 90 degrees and runs along the device instead of sticking straight out.
- Clip-on ribbon termination — attaches to a DIY HDMI ribbon cable without soldering.
- Compact housing — 17.3 × 14.5 × 14.0mm.
Specifications
- Connector: Mini HDMI (Type C) plug
- Orientation: right angle, L bend
- Cable interface: clip-on, DIY HDMI ribbon cable
- Dimensions: 17.3 × 14.5 × 14.0mm
The ribbon cable and the connector for the other end are not included. Choose the opposite plug to suit the second device, and check the L-bend exit direction against your port layout before ordering.
| Made in India | No |
|---|---|
| Brand | Generic |
| Connector Type | Mini HDMI |
