KDE DPA-ML-M4 Dual-Edition Propeller Adapter
₹3,199Incl. GST
SKU KDE-DPA-ML-M4
Prop Mount: AdaptorMaterial: AluminumMade in India: NoBrand: KDE
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

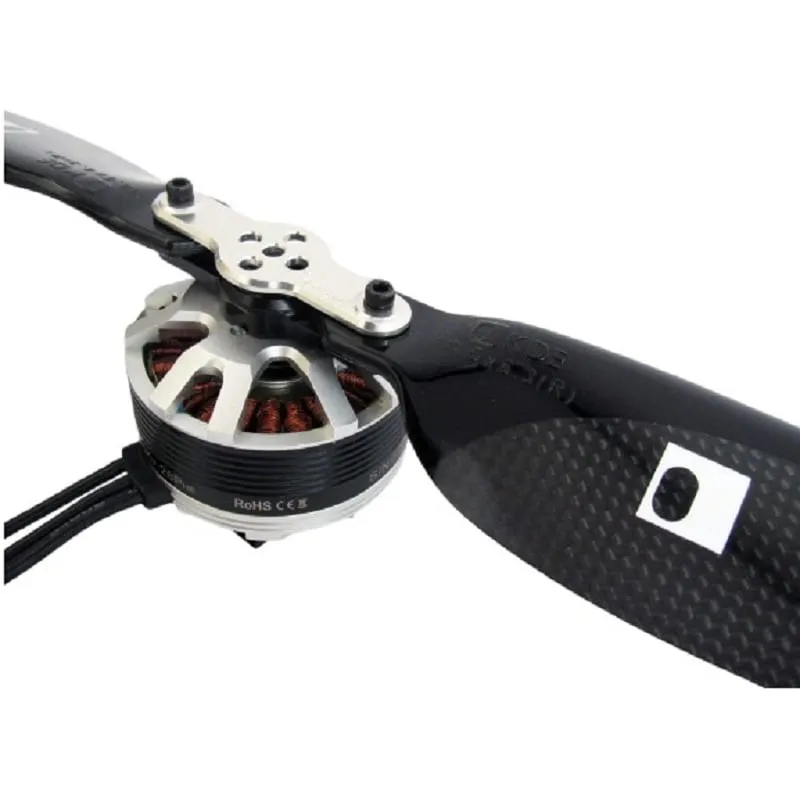

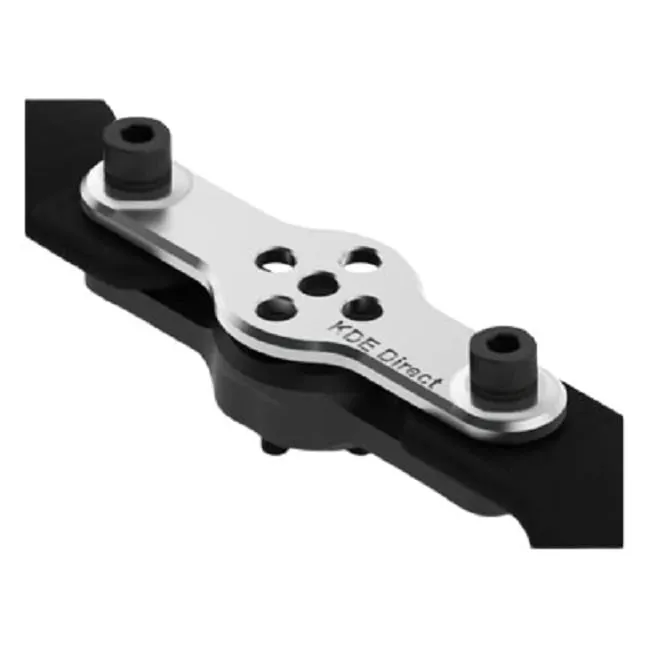

The KDE DPA-ML-M4 is the upgraded, M4-bolt version of KDE's Dual-Edition propeller blade adapter, built for KDE Direct UAS motors carrying the larger CF155-DP, CF185-DP and CF215-DP carbon-fibre blades on heavy-lift multirotor platforms.
Key features
- Propeller screw size steps up from M3 to M4 for extra strength on larger folding blades.
- Machined from aerospace-grade AL7075-T6 aluminium alloy for a durable, lightweight adapter.
- Mechanical Lock design uses M4 hex jam-nuts and Belleville spring lock washers to keep the blade bolts secure between flights.
- CNC-balanced folding-propeller assembly reduces vibration transfer to the airframe.
- Class 12.9 hardware and custom CNC-machined shoulder screws are included for a repeatable fit.
Specifications
- Material: AL7075-T6 aluminium alloy
- Bolt size: M4
- Hardware grade: Class 12.9
- Motor mounting: dual- or quad-M3 threads on a 12 mm circle
- In the box: lower base, upper plate, 3 x M4 x 17.5 mm shoulder screws, 4 x M3 x 8 mm cap screws, 3 x M4 Belleville spring lock washers, 3 x M4 hex jam-nuts
Fits KDE Direct UAS brushless motors from the KDE3510XF up to the KDE6815XF, paired with KDE's Dual-Edition CF155-DP, CF185-DP or CF215-DP carbon-fibre propeller blades.
| Prop Mount | Adaptor |
|---|---|
| Material | Aluminum |
| Made in India | No |
| Brand | KDE |
