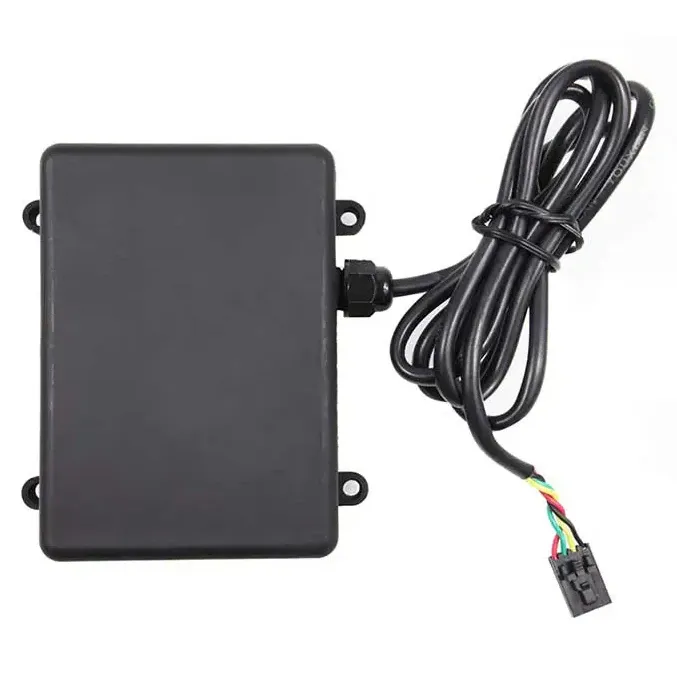

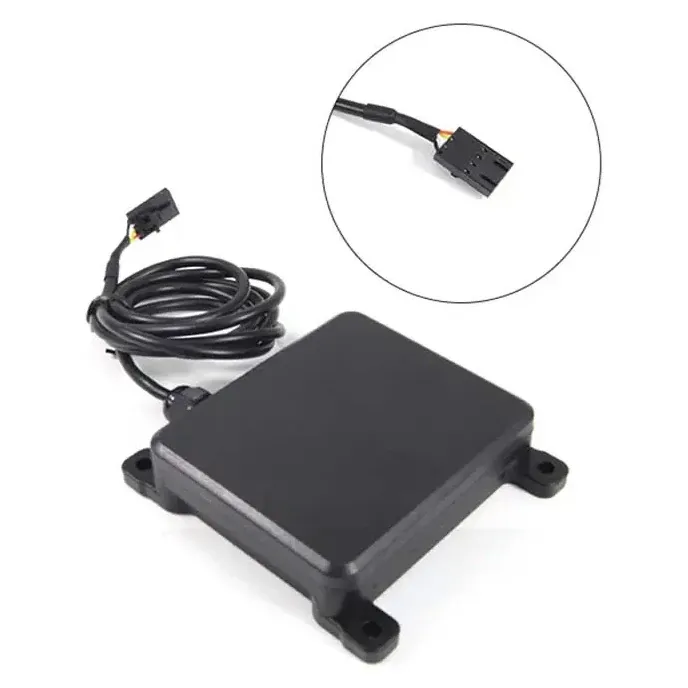

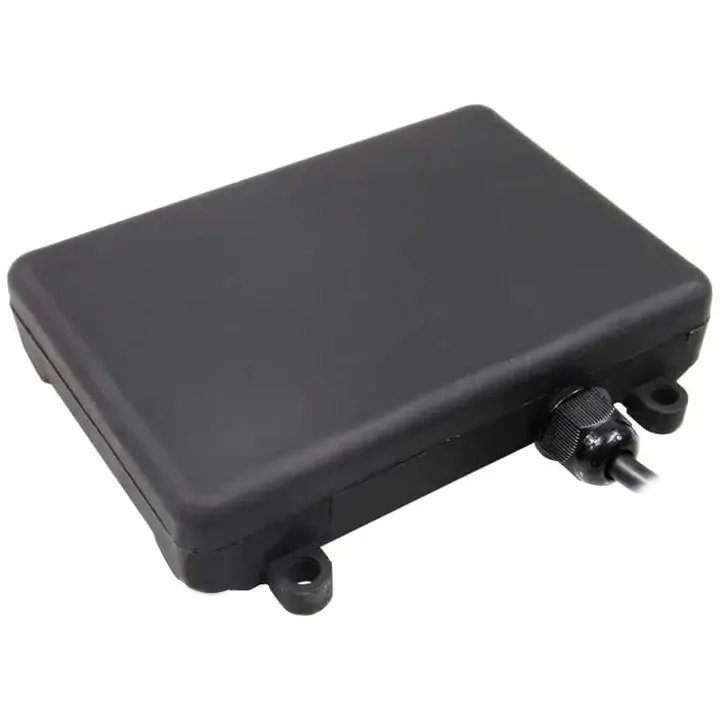

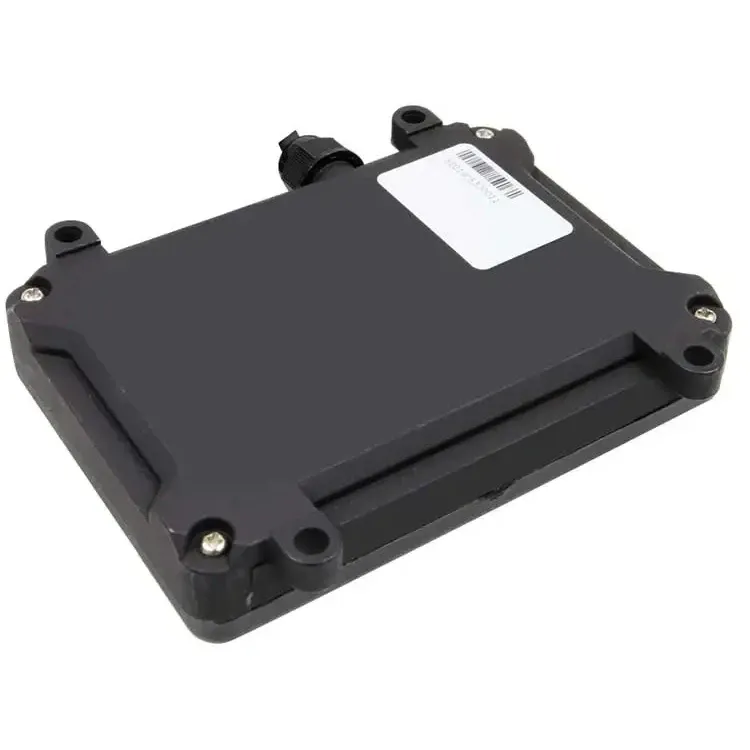

JIYI Terrain Radar Sensor for K3A Pro Agriculture Drones

This JIYI terrain radar is a 24 GHz millimetre-wave height sensor for agricultural spray drones flying the JIYI K3A Pro flight controller. It scans the ground ahead continuously so the drone can follow changes in terrain and crop height, keeping the nozzles at a constant height for even coverage across the field.

Key features

• FMCW millimetre-wave radar at 24.125 GHz, unaffected by light, for day and night operation
• Measures height from 0.3 to 15 m above ground with 0.05 m accuracy
• 50 Hz output for real-time height correction over slopes and uneven crop canopy
• Wide 6–28 V supply range with a low 1.5 W draw
• Rated for -20 °C to +85 °C with an IP67 housing for field use

Specifications

• Centre frequency: 24.125 GHz
• Modulation: FMCW
• Altimetry range: 0.3–15 m above ground
• Altimetry accuracy: 0.05 m
• Output rate: 50 Hz
• Power consumption: 1.5 W at 25 °C
• Operating voltage: 6–28 V
• Operating temperature: -20 °C to +85 °C
• Dimensions: 82.4 × 74.2 × 20 mm
• Ingress protection: IP67

The radar cannot work on its own: it connects to the K3A Pro flight controller's EXT port. Mount it facing the ground with nothing obstructing its view and away from the spray mist, which affects readings.
