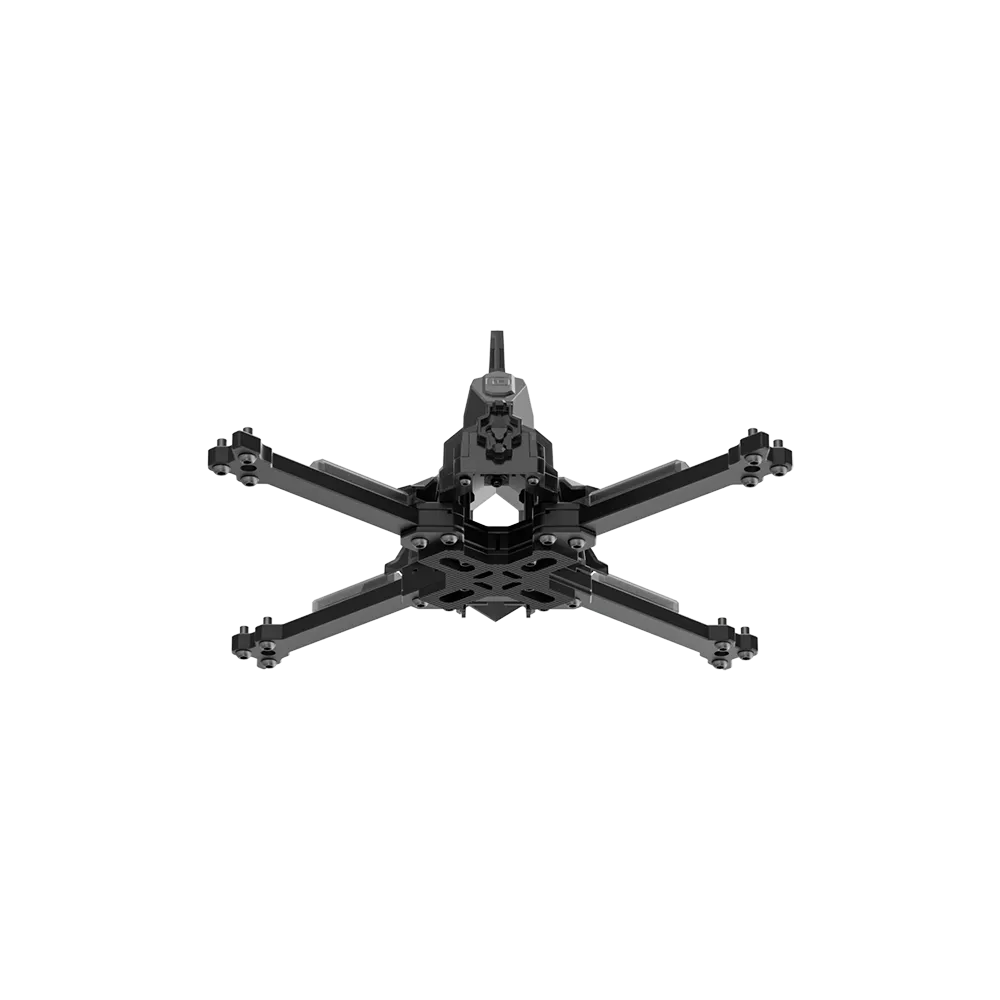

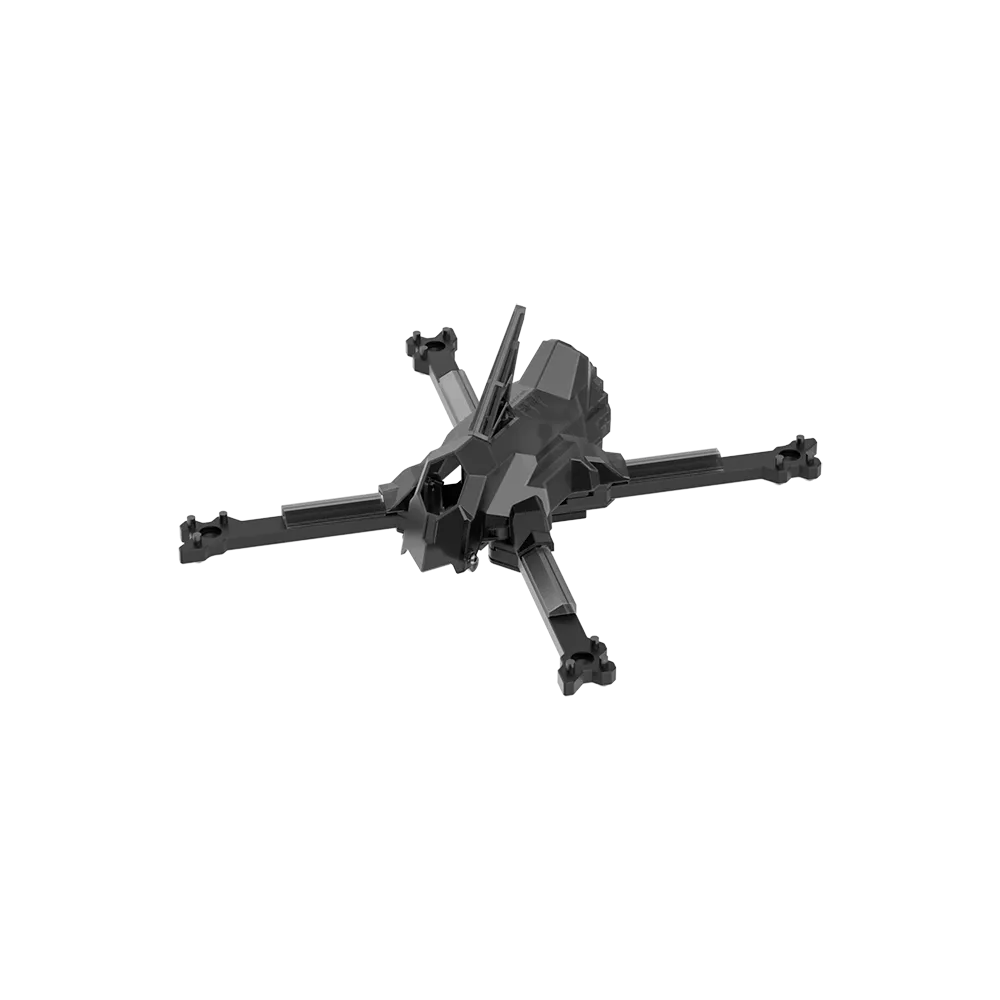

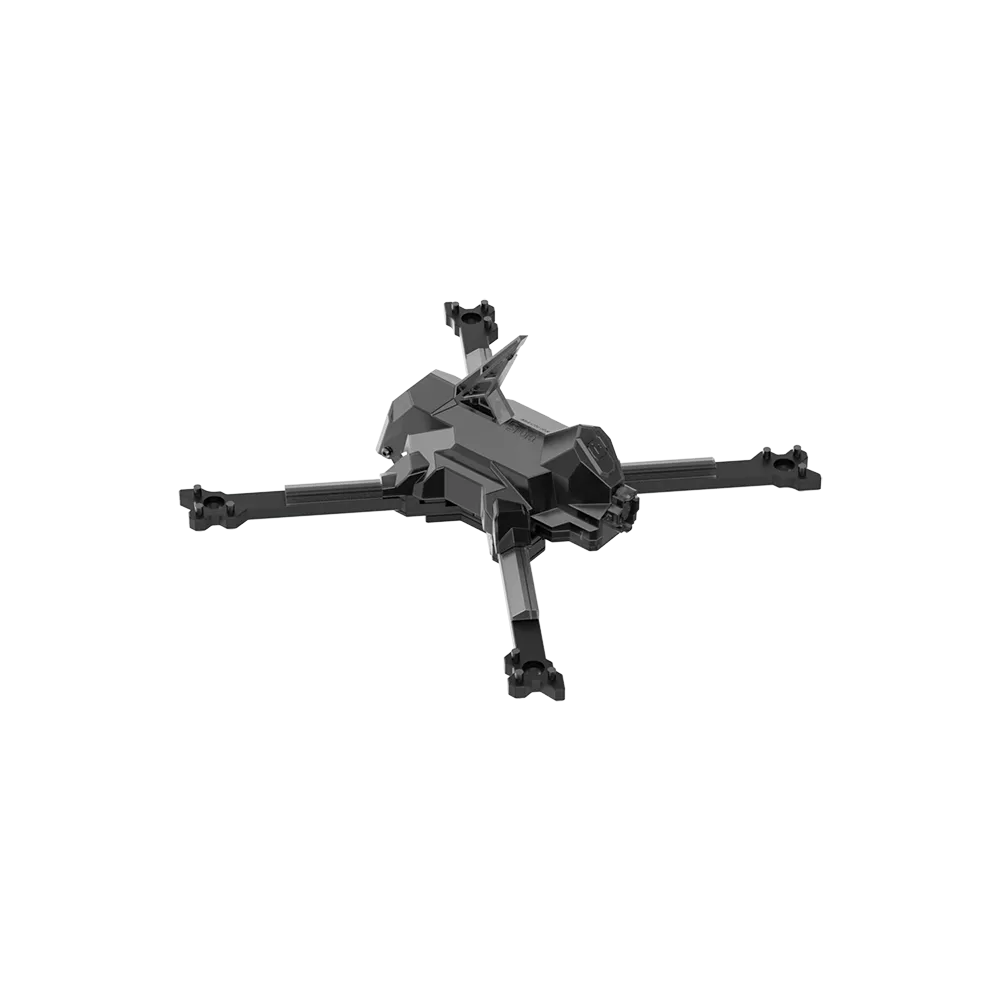

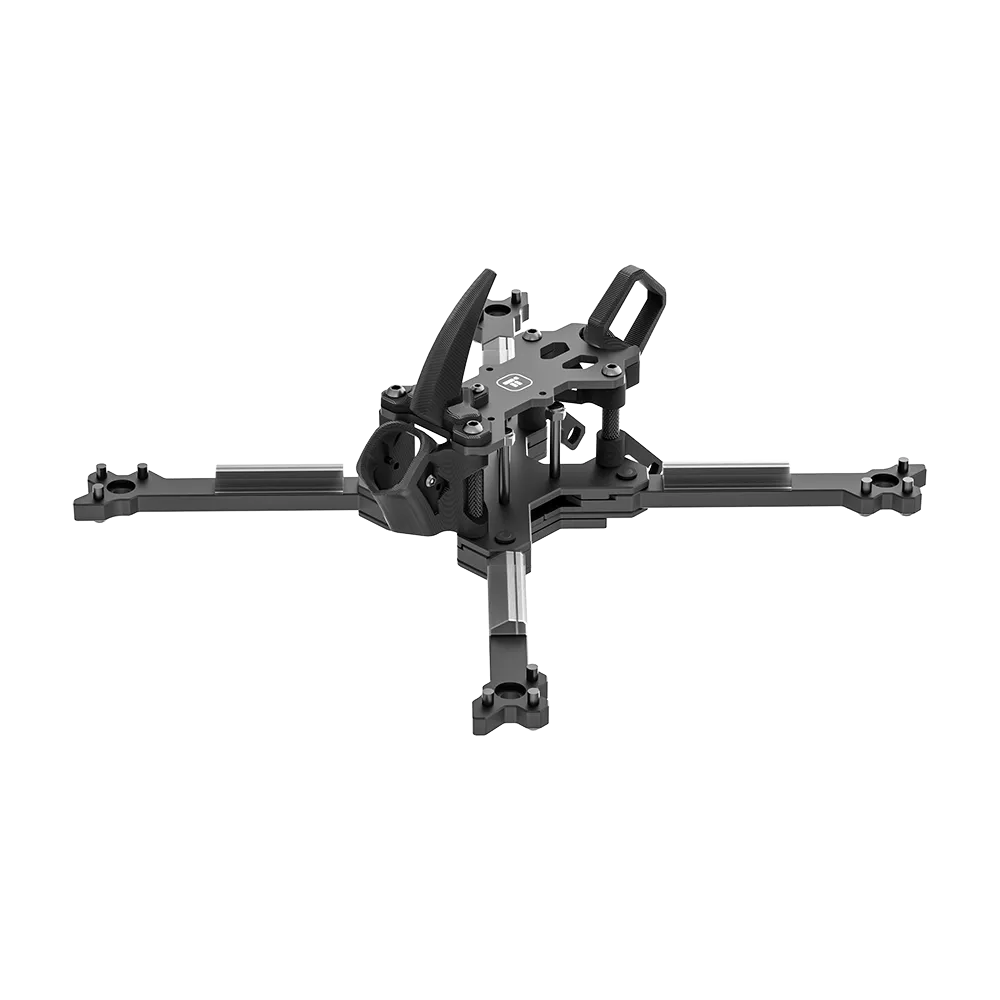

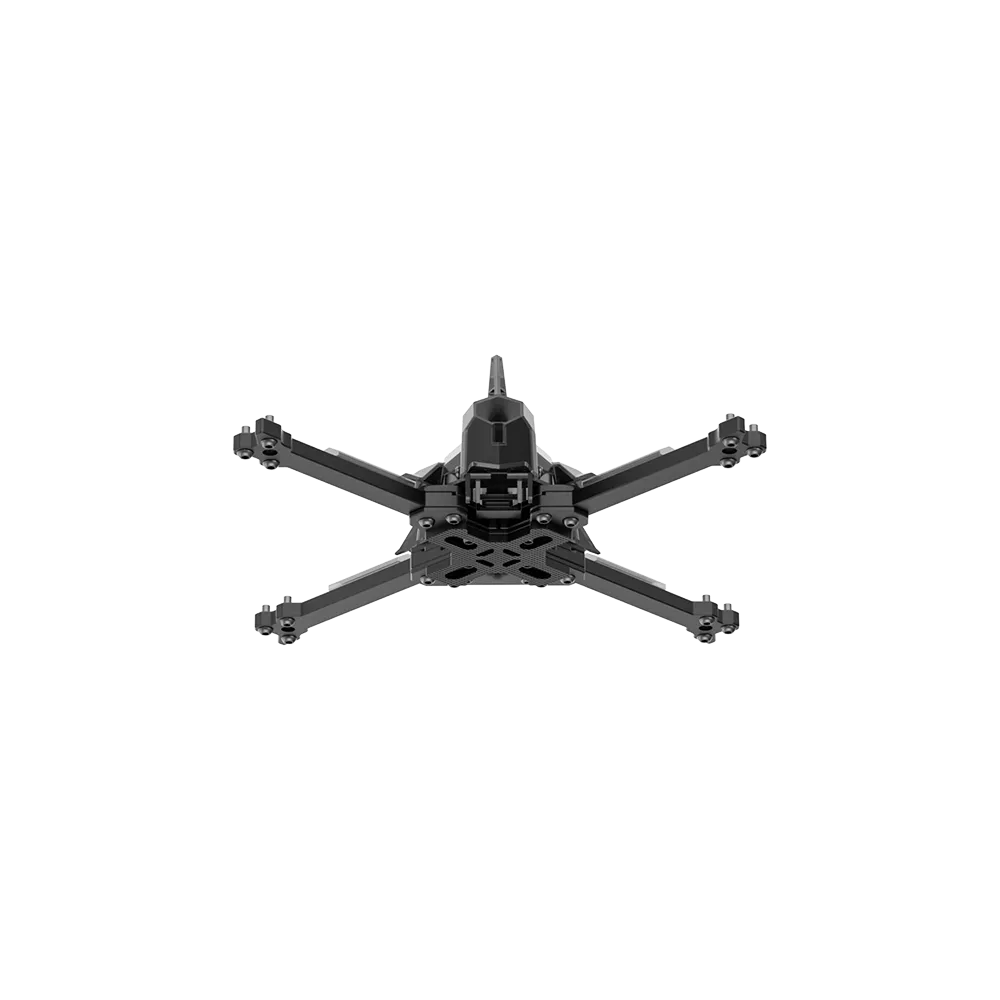

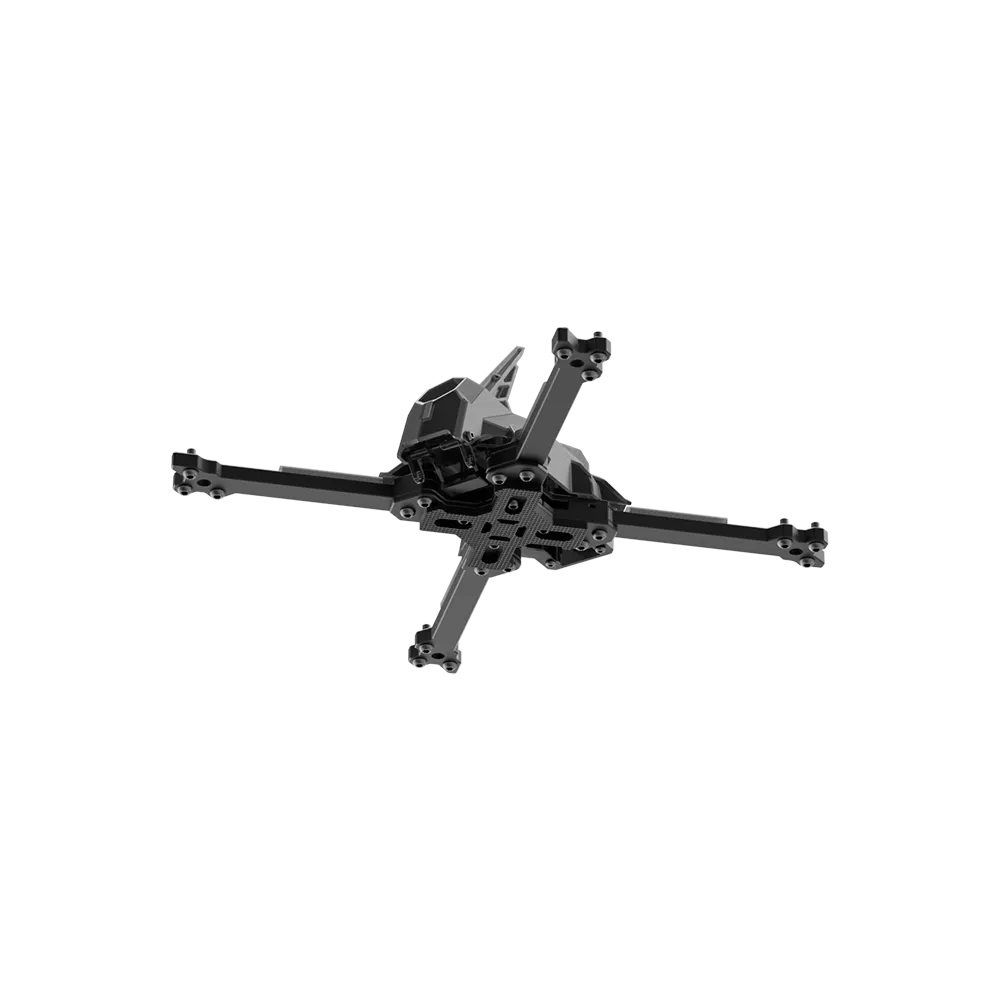

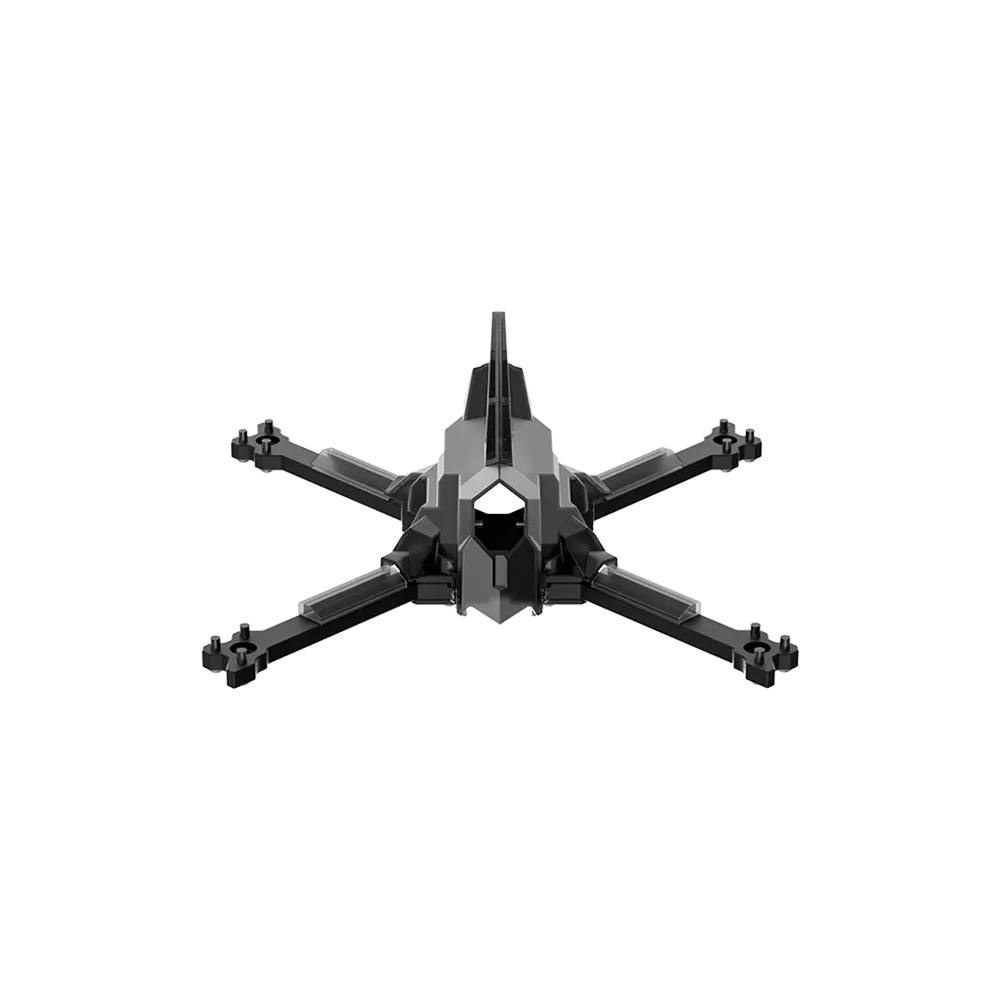

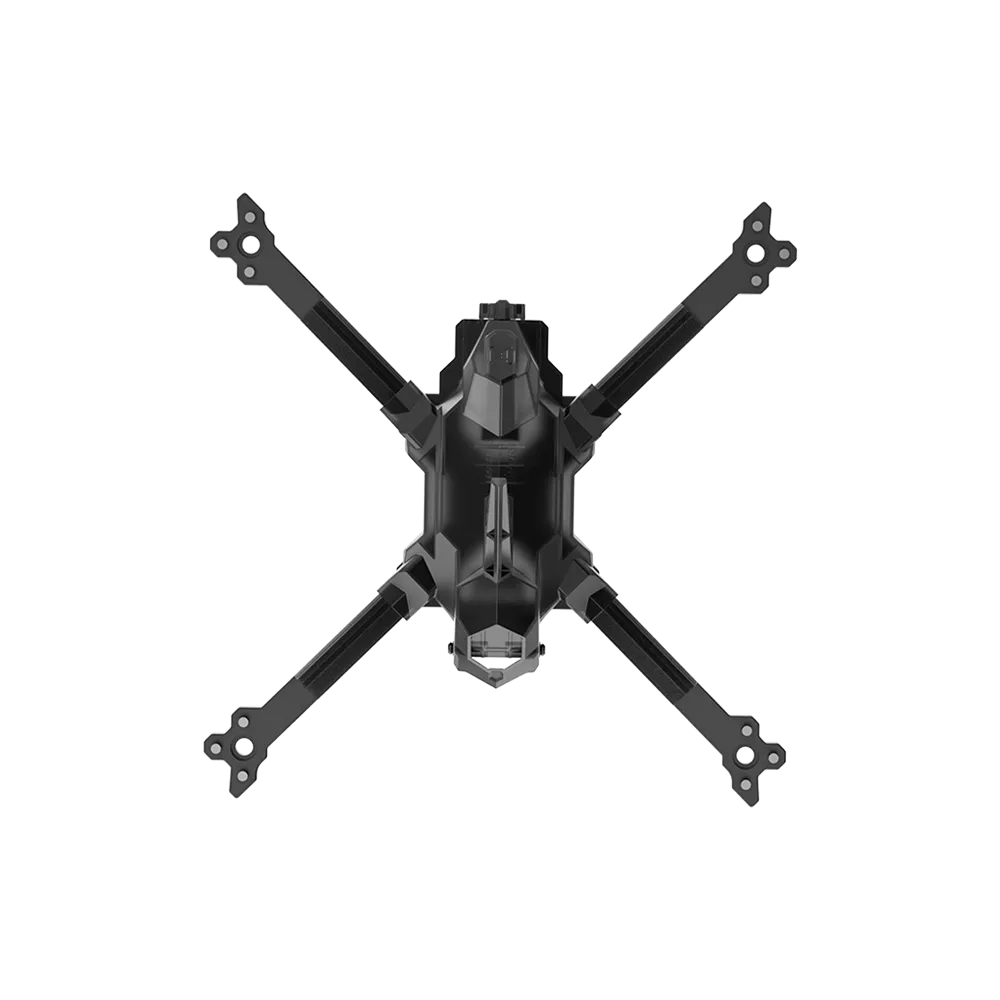

iFlight Mach R5 Sport Race Frame Kit

The iFlight Mach R5 Sport is a 210mm racing frame built for raw speed and durability on the track. Featuring an integrated quick-swap arm design and an aerodynamic injection-moulded canopy, it minimises air resistance while actively protecting your FPV camera and flight stack from harsh impacts. Designed specifically for competitive 5-inch racing, this frame balances rigid carbon geometry with a low overall weight to maximise forward acceleration and cornering precision.

Key features

• Aerodynamic injection-moulded canopy reduces drag and shields internal electronics
• Quick-swap arm design allows rapid pit repairs without dismantling the central stack
• 20x20mm flight stack and VTX mounting, with room for a stack and VTX up to 25mm tall
• Optimised clearance for aggressive 5-inch and 5.1-inch racing propellers

Specifications

• Wheelbase: 210mm
• Frame dimensions: 148 x 148 x 51mm
• Weight: 107g (canopy version, excluding TPU parts)
• Plate Thickness: 5.5mm arms, 2mm bottom plate, 4mm upper plate
• Stack Mounting: 20x20mm (M3)
• VTX Mounting: 20x20mm (M3)
• Max stack / VTX height: 25mm
• Motor Mounting: 16x16mm
• Recommended motors: 22xx to 25xx series
• Camera Spacing: 14mm (Nano)
• In the box: frame kit (unassembled), TPU set, 2 battery straps (20 x 250mm), 2 anti-slip battery pads

This frame is ideal for a dedicated 6S racing build. Pair it with high-kV 2207 motors and a nano-sized FPV camera for a highly responsive track setup that handles high-speed crashes and rapid rebuilds.
