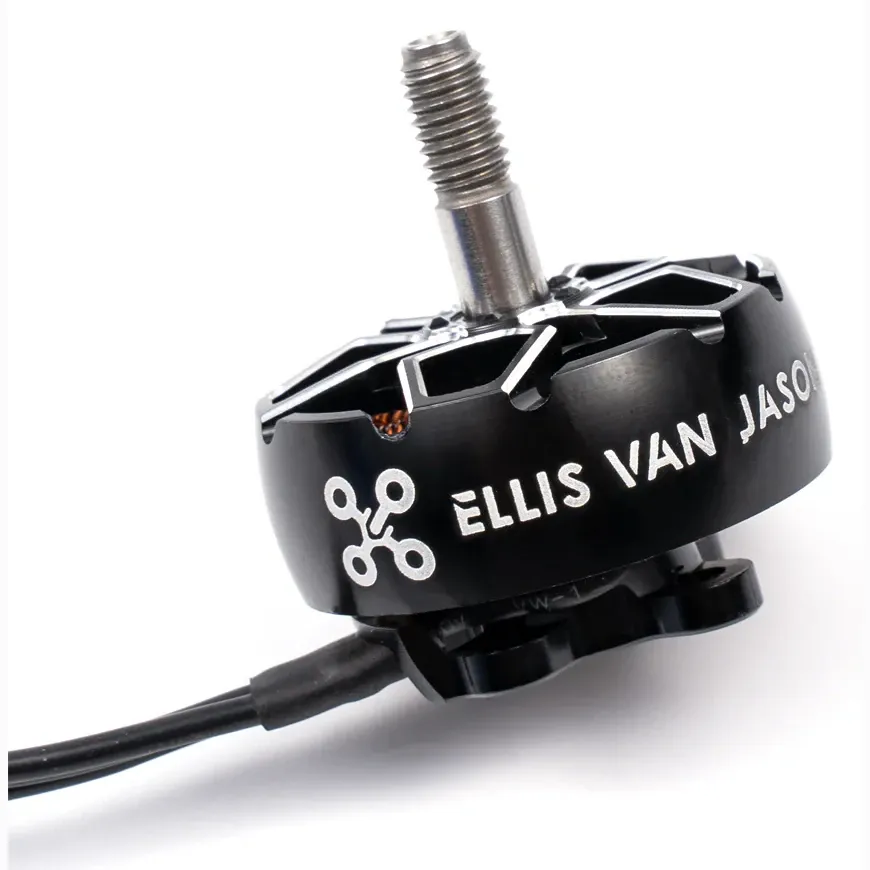

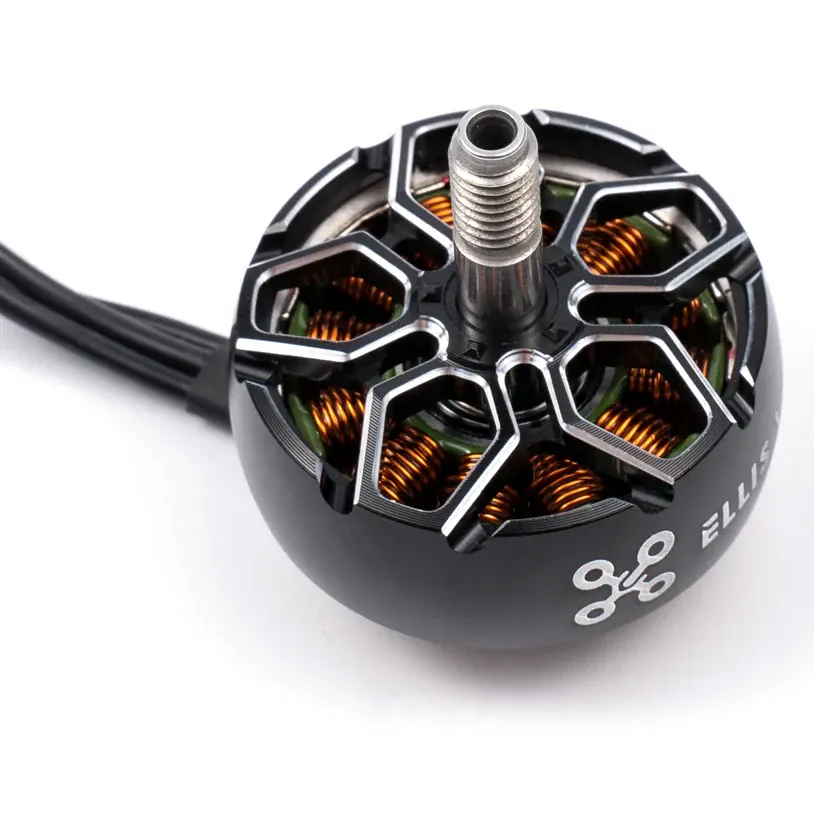

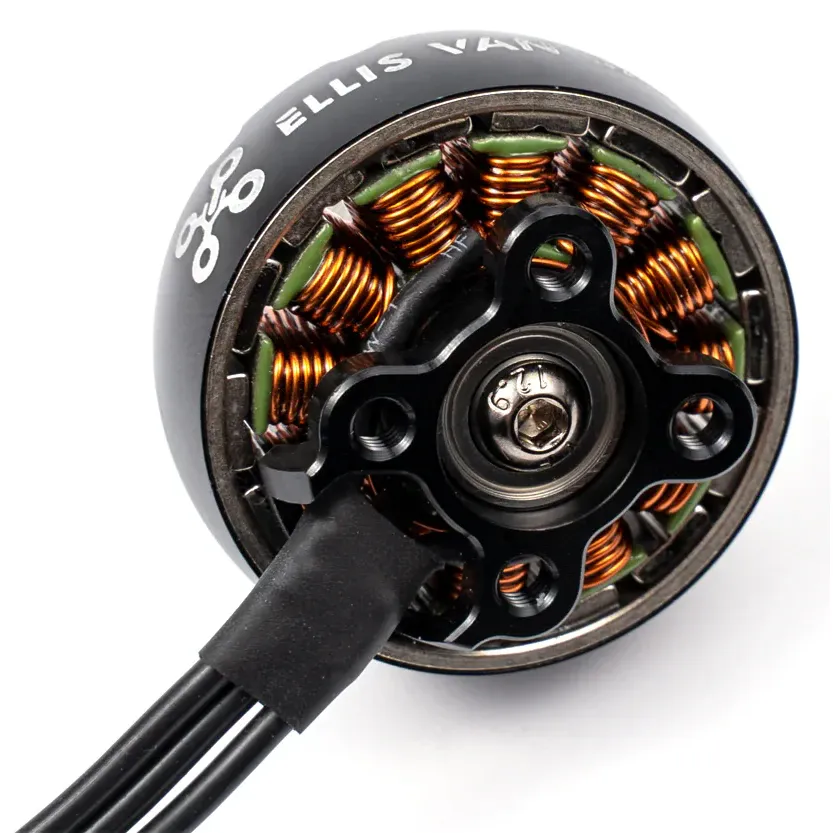

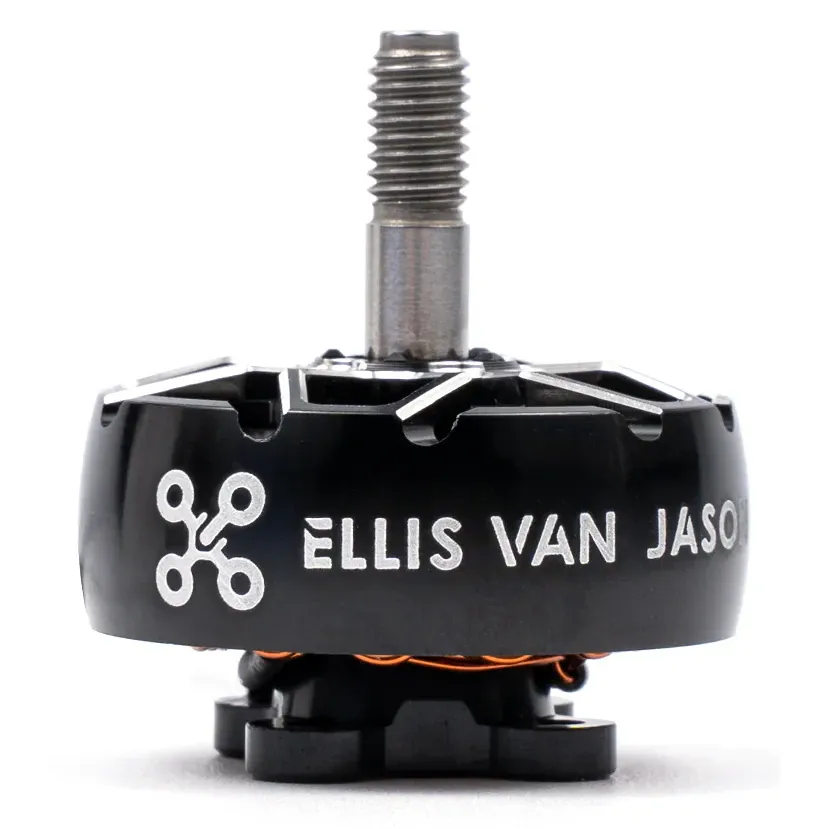

iFlight BOB57 2506 1500KV Motor

The iFlight BOB57 2506 1500KV motor is a high-torque power plant engineered specifically for the BOB57 6-inch cinematic freestyle frame. Developed to carry full-size HD action cameras on 6S battery setups, this motor bridges the gap between traditional 5-inch freestyle components and heavy-duty 7-inch cruisers. It delivers the fast throttle response required for aggressive flying while maintaining the efficiency needed for long-range cinematic cruising.

Key features

• Over-sized stator volume generates the mechanical torque needed to cleanly drive heavier 6-inch cinematic propellers

• Optimised for 6S LiPo setups to balance heavy-lift punch with extended mid-range flight times

• Durable unibell housing featuring high-temperature N52H magnets for consistent, fade-free power

• Industry-standard 5mm prop shaft accommodates all common freestyle and cruising props

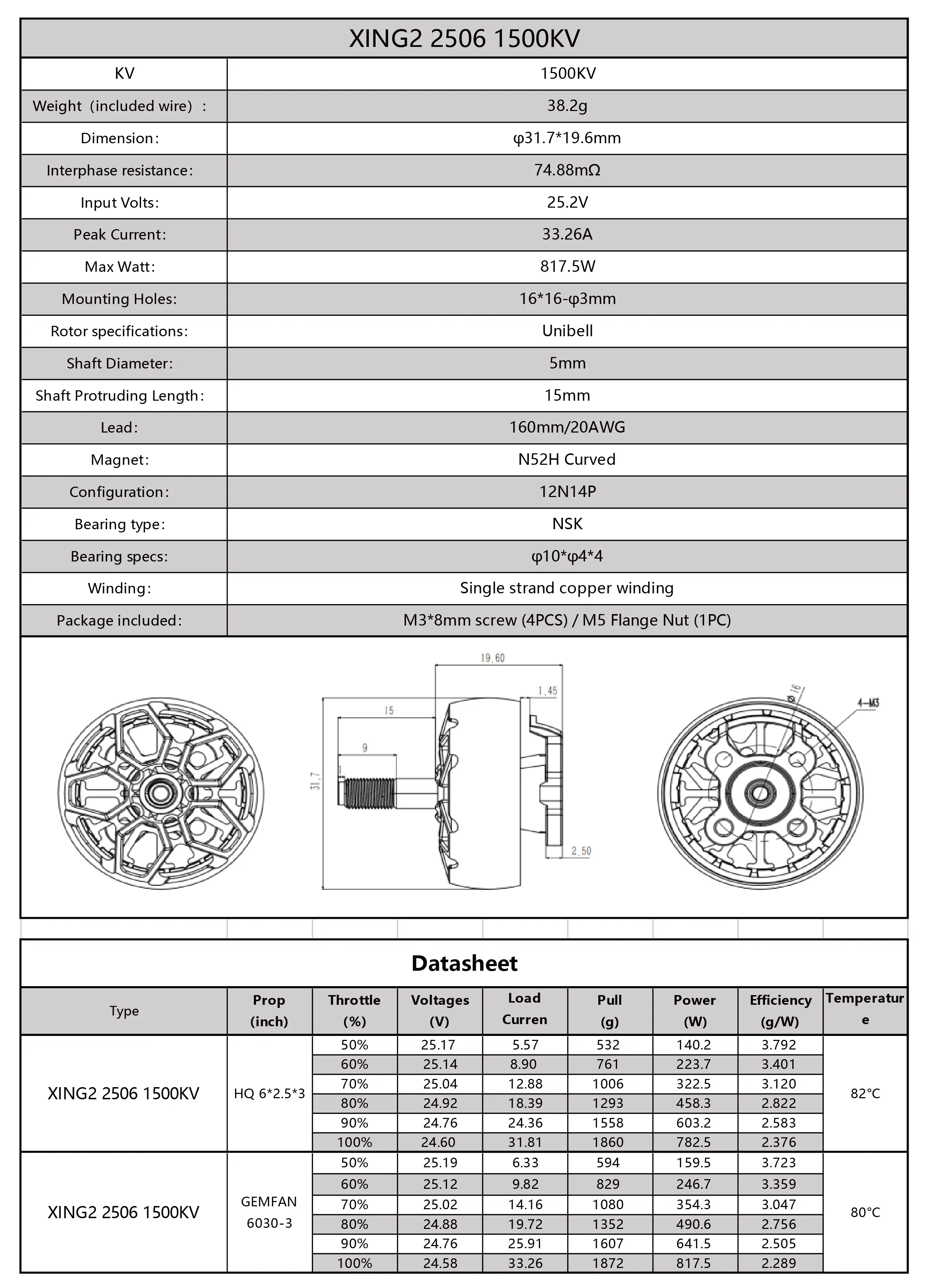

Specifications

• Stator Size: 2506

• Motor KV: 1500

• Configuration: 12N14P

• Input Voltage: 6S LiPo

• Prop Shaft Diameter: 5mm (titanium alloy)

• Bearings: NSK 10 x 4 x 4 mm

• Mounting: 16x16mm (M3)

• Dimensions: 31.7 x 19.6 mm

• Leads: 20AWG, 160 mm

• Weight: 38.2 g (with leads)

• In the box: 1 x motor, 1 x M5 flanged nylon-insert lock nut, 4 x M3 x 8 mm screws

This motor serves as an exact replacement for the iFlight BOB57 BNF drone, and is highly recommended for custom 6-inch cinematic or mid-range frames requiring a smooth, efficient 6S power delivery.
