iFlight BLITZ Split GPS Module
₹3,999Incl. GST
SKU IFL-BLITZ-SPLIT-GPS
Compass Included: NoMade in India: NoBrand: iFlightRTK Support: No
Dispatched within 3–4 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

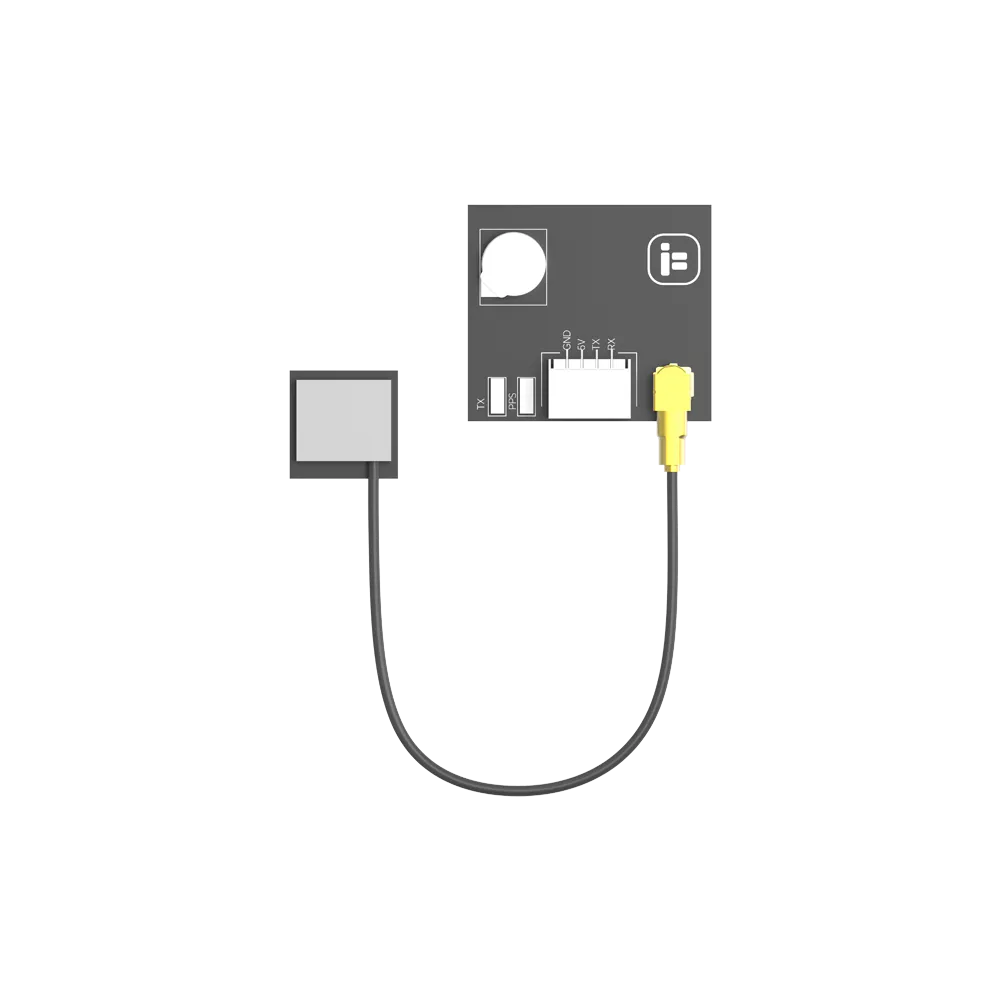

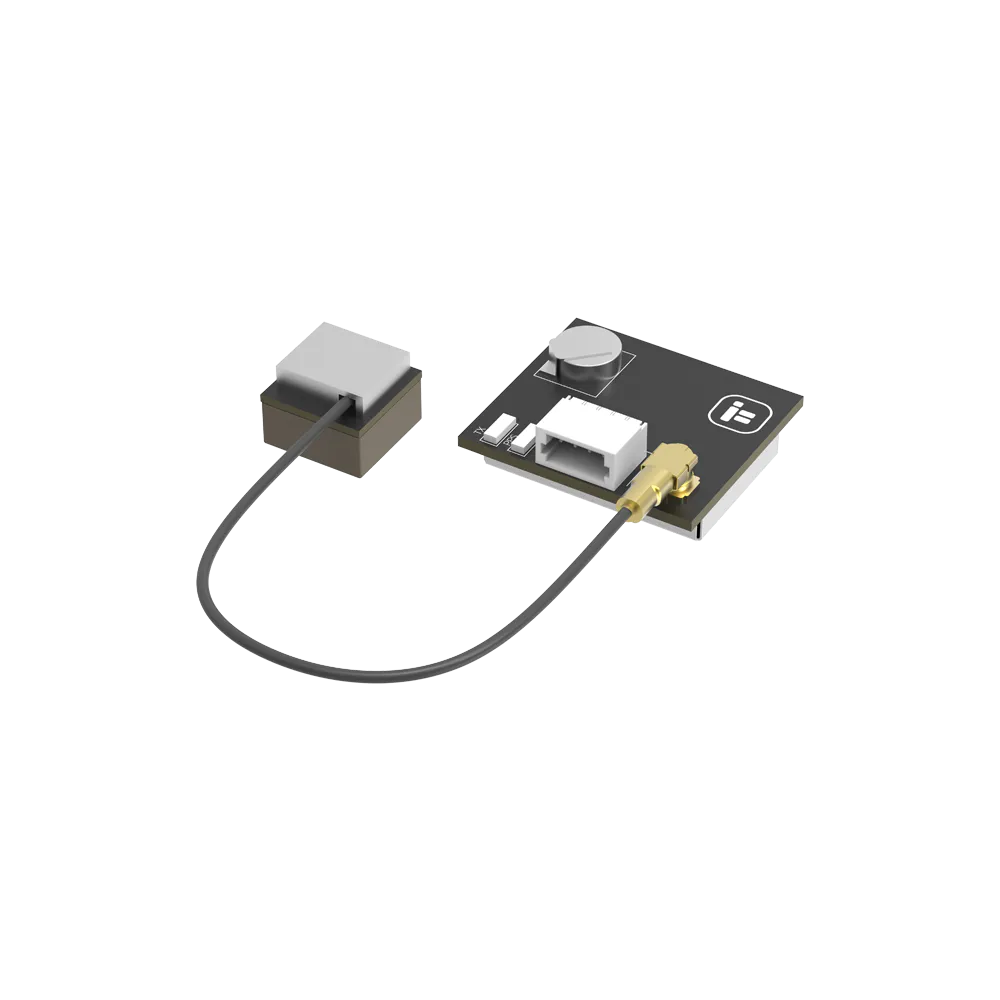

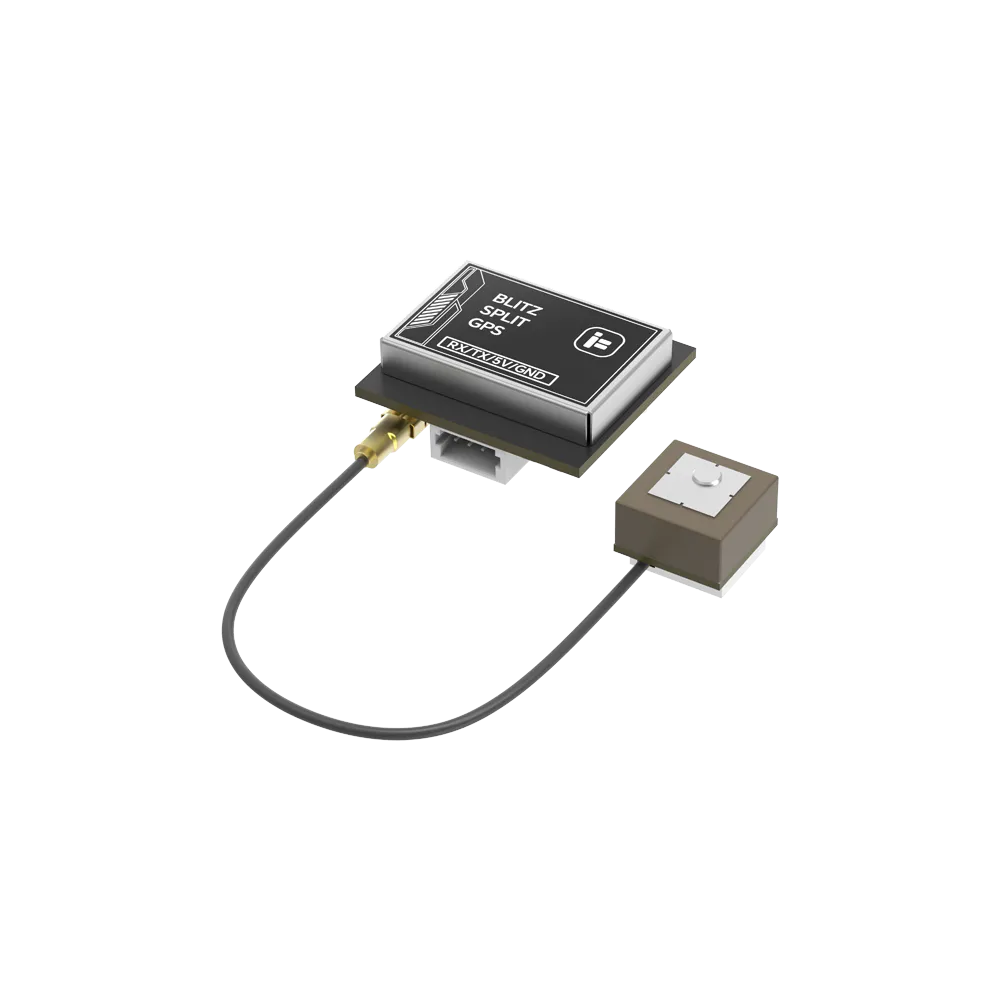

The iFlight BLITZ Split GPS module pairs a u-blox M10 receiver with a split antenna design that lets the antenna hide inside the frame, keeping it well away from ESC and VTX noise while feeding GPS Rescue and navigation data to a BLITZ-based flight stack.
Key features
- u-blox M10 receiver with an onboard LNA and built-in farad capacitor for fast hot starts.
- 10Hz refresh rate keeps position updates current during fast manoeuvres.
- Built-in flash retains configuration through power cycles.
- Cold start around 60 seconds, hot start around 1 second once a fix has been established.
- Tiny 18 x 16 x 7mm, 1.8g footprint mounts cleanly on TPU tail pieces or frame arms.
Specifications
- GNSS chipset: u-blox M10
- Refresh rate: 10Hz
- Tracking sensitivity: -167dBm
- Input voltage: 3.3–5.5V
- Current draw: 40mA
- Dimensions: 18 x 16 x 7mm
- Weight: 1.8g
- Interface: UART (RX/TX)
- Baud rate: 4800-115200 bps (115200 default)
- Designed for: iFlight Defender 25
- In the box: GPS module, cable set
Mount the antenna face upward and as far from the VTX and RC receiver antennas as your wiring allows for the fastest, most consistent satellite locks.
| Compass Included | No |
|---|---|
| Made in India | No |
| Brand | iFlight |
| RTK Support | No |
| GNSS Chipset | u-blox M10 |
| Weight | 1.8 g |
| Barometer | No |
