Holybro PMW3901 Optical Flow Sensor

₹2,029Incl. GST

SKU HOLYBRO-PMW3901-OPTFLOW

Brand: HolybroMade in India: NoSupported Firmware: ArduPilot, PX4Weight: 0.6 g

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

Product details

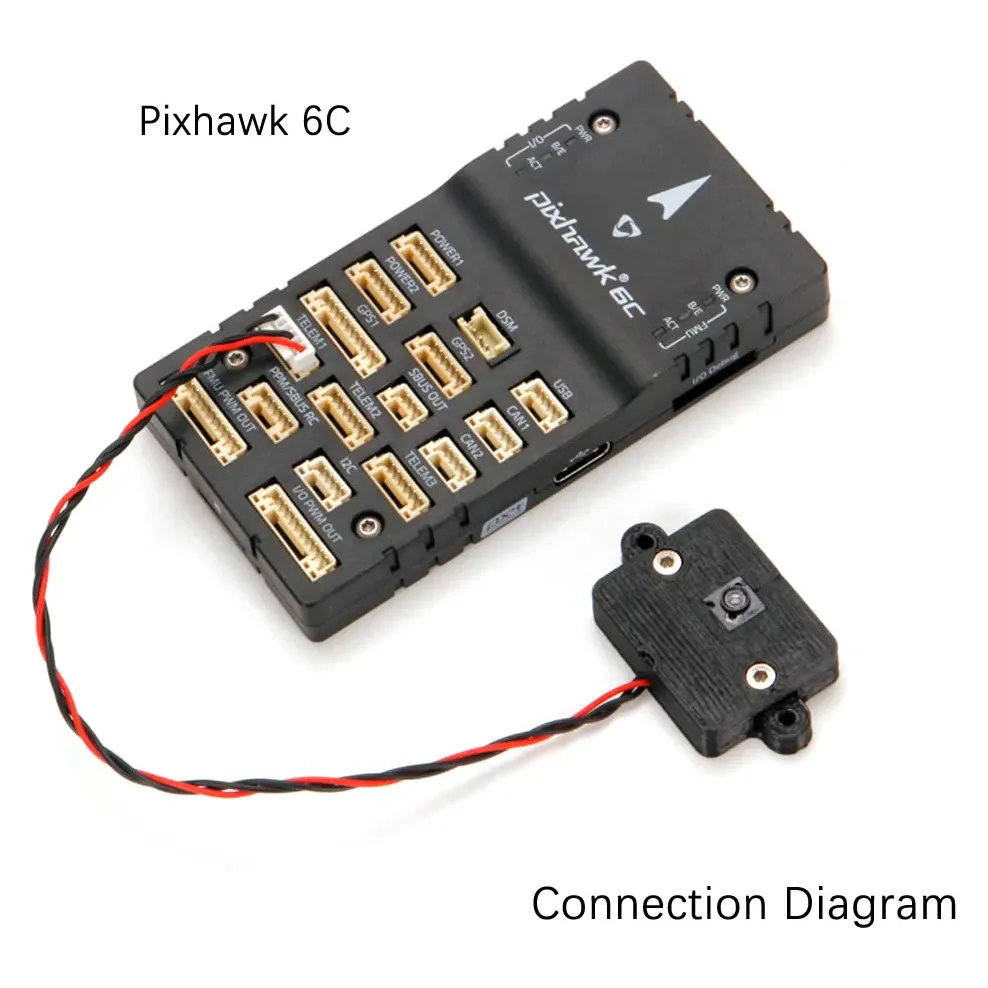

Holybro's PMW3901 optical flow sensor tracks ground texture to measure how the drone is drifting, giving PX4 and ArduPilot multirotors position hold without GPS — indoors, under cover or close to the ground. It talks UART and plugs straight into a flight controller TELEM port.

Key features

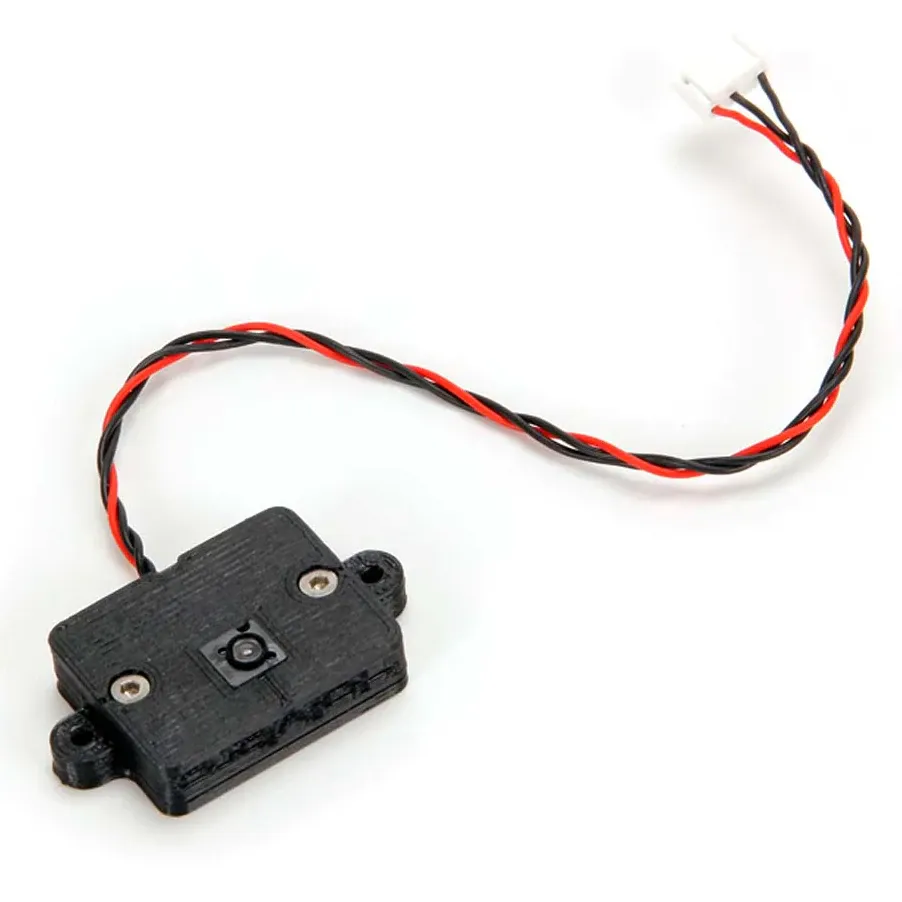

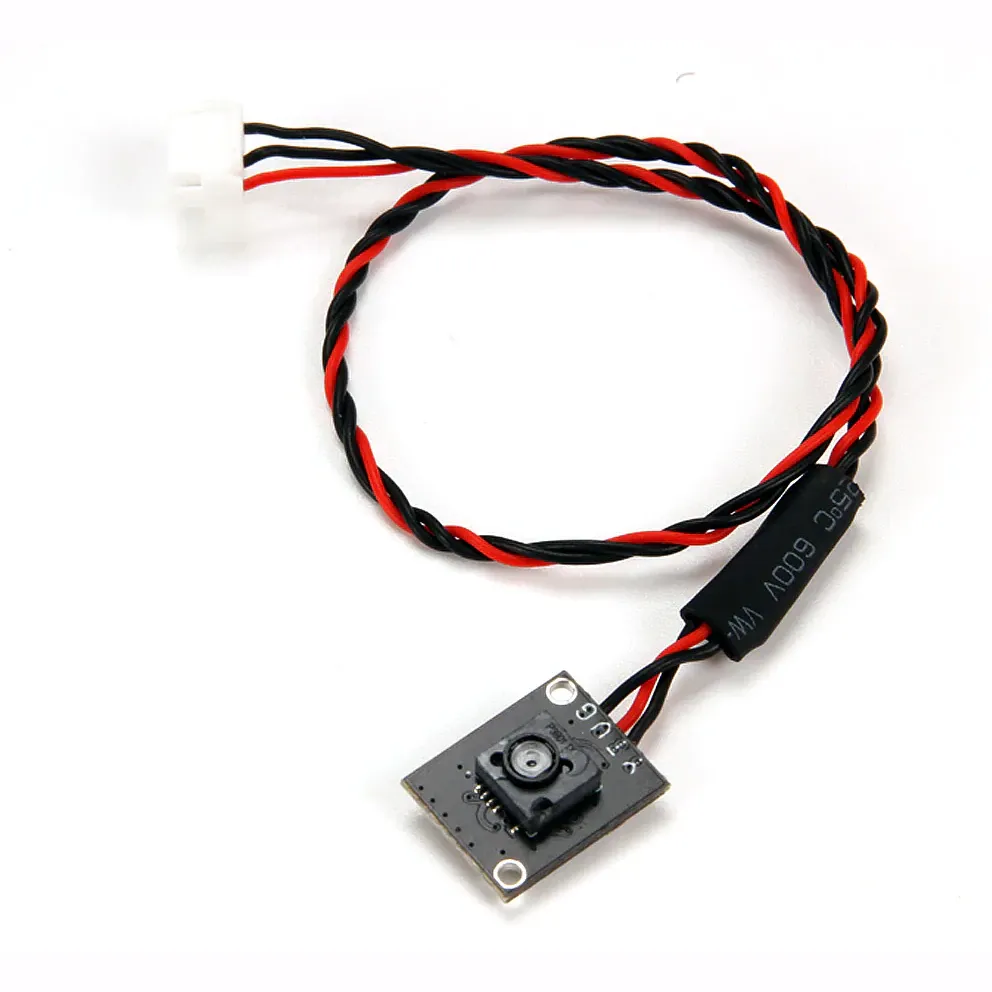

  • Plug-in wiring — pre-soldered 6-pin JST-GH cable (170mm) for a standard TELEM port.
  • Onboard regulator — accepts 3.3–5.2V and draws about 10mA.
  • 95Hz updates of X/Y motion plus a surface-quality value for the autopilot's estimator.

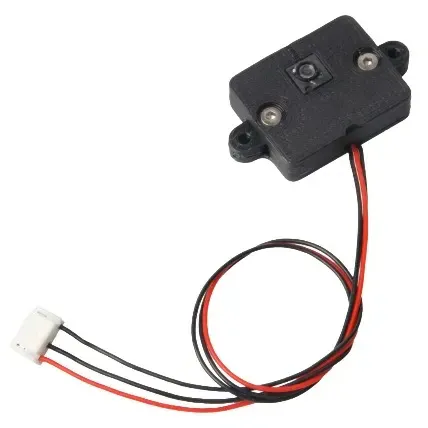

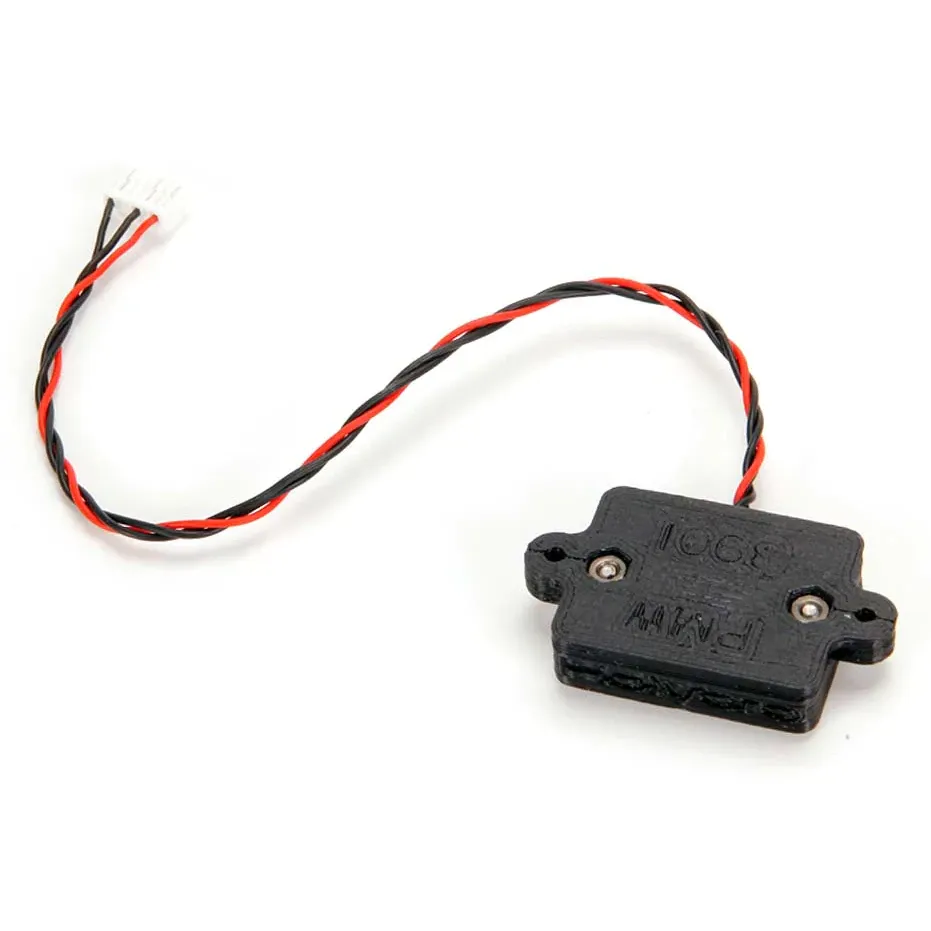

  • Tiny footprint — 14 x 11 x 5mm and 0.6g, with a TPU case included.
  • CX-OF data format — the same protocol as the discontinued CX-OF sensor, so the existing PX4 and ArduPilot drivers handle it.

Specifications

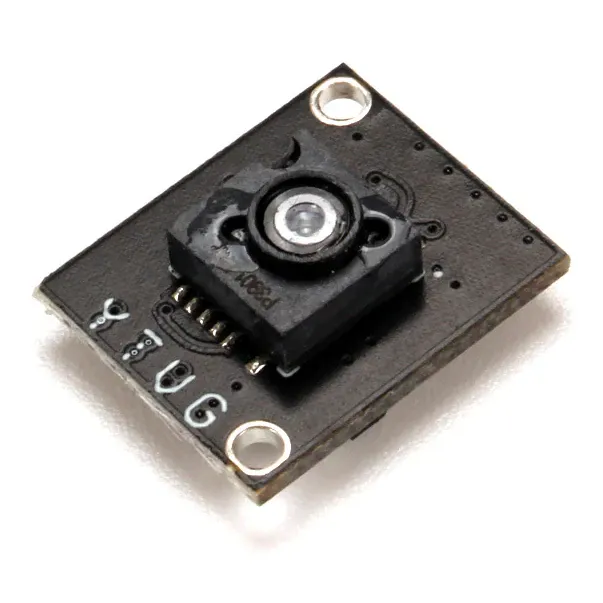

  • Sensor: PixArt PMW3901
  • Interface: UART, 19200 baud
  • Input voltage: 3.3–5.2V
  • Current draw: 10mA
  • Update rate: 95Hz
  • Dimensions: 14 x 11 x 5mm
  • Weight: 0.6g
  • Connector: JST-GH 6-pin, 170mm cable
  • In the box: sensor, GH 6-pin cable, TPU case

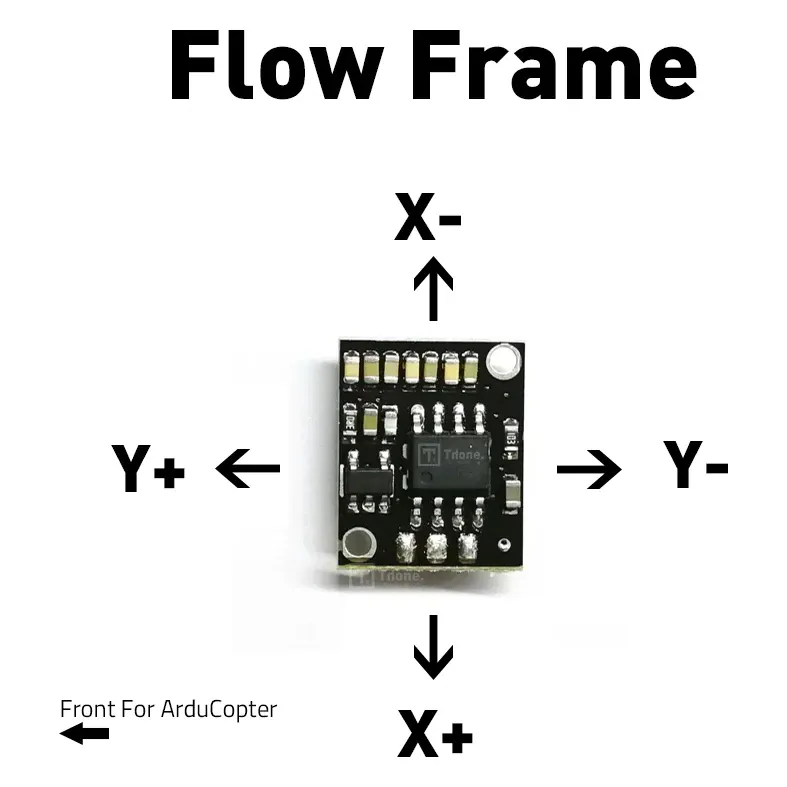

Optical flow needs height above ground to turn image motion into speed, so pair it with a downward-facing rangefinder. Mount it pointing straight down with a clear view, away from props and landing gear, and fly over textured, well-lit surfaces — plain glossy floors give poor readings.
