Hobbywing XRotor X9 Plus 110KV Motor & 36190 Folding Prop Combo

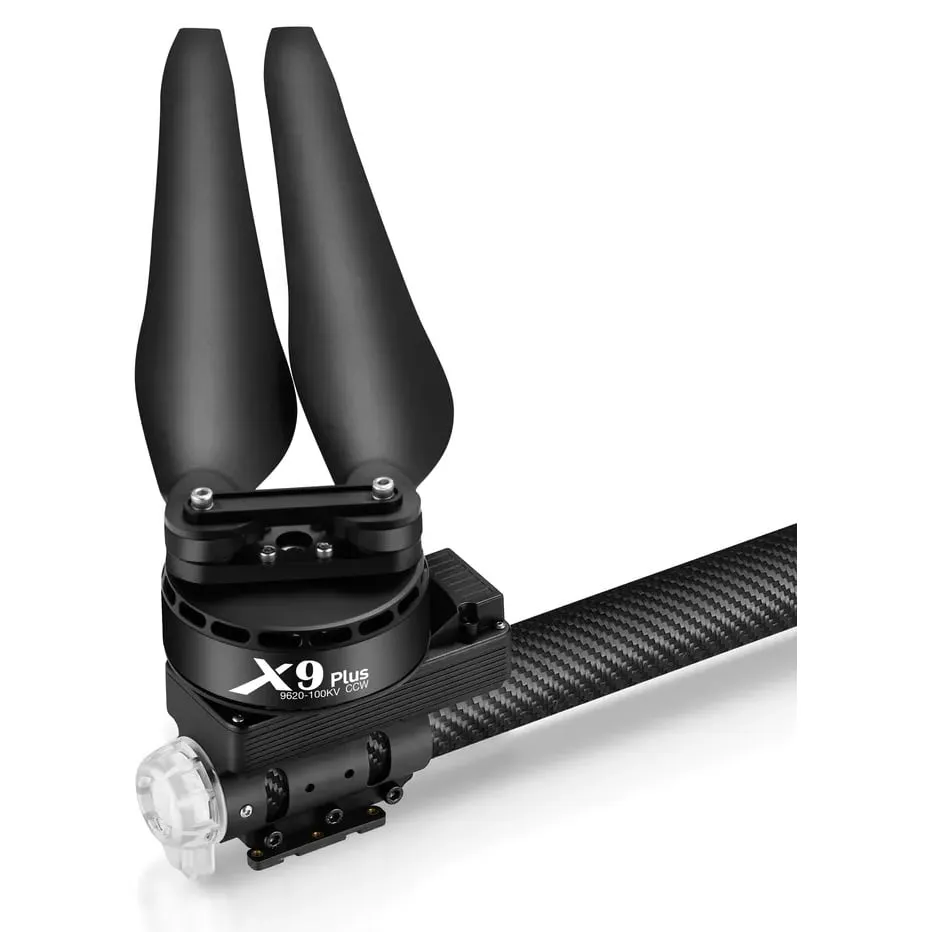

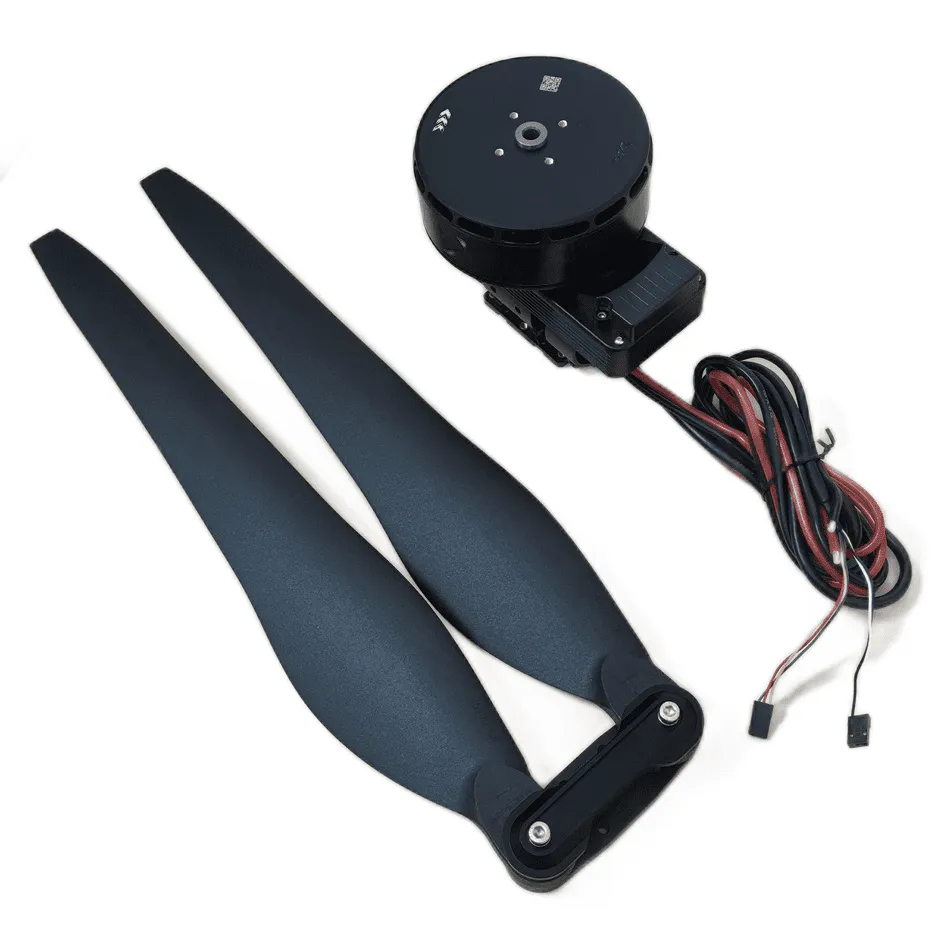

The Hobbywing XRotor X9 Plus is a heavy-duty power system combo engineered for agricultural drones, industrial multirotors, and large-scale cargo lifters. Integrating a massive 9616 110KV brushless motor, an FOC ESC, and a 36-inch folding propeller into a single 40mm tube-mountable unit, this kit minimises wiring complexity while delivering consistent thrust.

Key features

• Integrated motor, 120A ESC, and propeller design reduces installation time and wiring.

• Delivers up to 26.5 kg of peak thrust per axis, targeting 9–11 kg payloads per arm.

• IPX6-rated construction protects the system against dust, rain, and liquid agricultural sprays.

• Built-in Field-Oriented Control (FOC) ESC provides smooth acceleration and active braking.

• Clamps directly onto standard 40mm outer-diameter carbon fibre arm tubes.

Specifications

• Input voltage: 12–14S LiPo

• Motor KV: 110KV

• Stator size: 9616

• Propeller: 36190 (36x19.0) folding, 2-blade

• Maximum thrust: 26.5 kg

• Recommended payload: 9–11 kg per axis

• Arm tube compatibility: 40mm

• System weight: 1774 g

Designed for harsh environments and continuous heavy-lift operations, the X9 Plus combo requires high-capacity 12S to 14S LiPo power and pairs natively with standard industrial and agricultural flight controllers.
