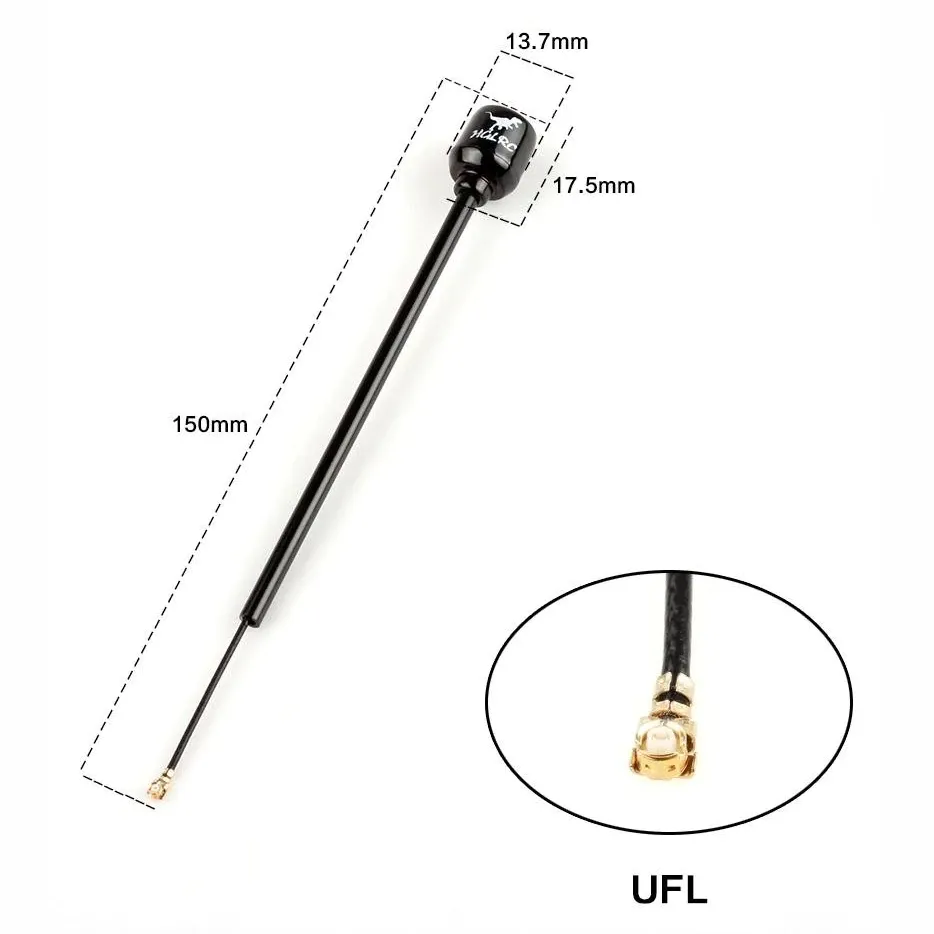

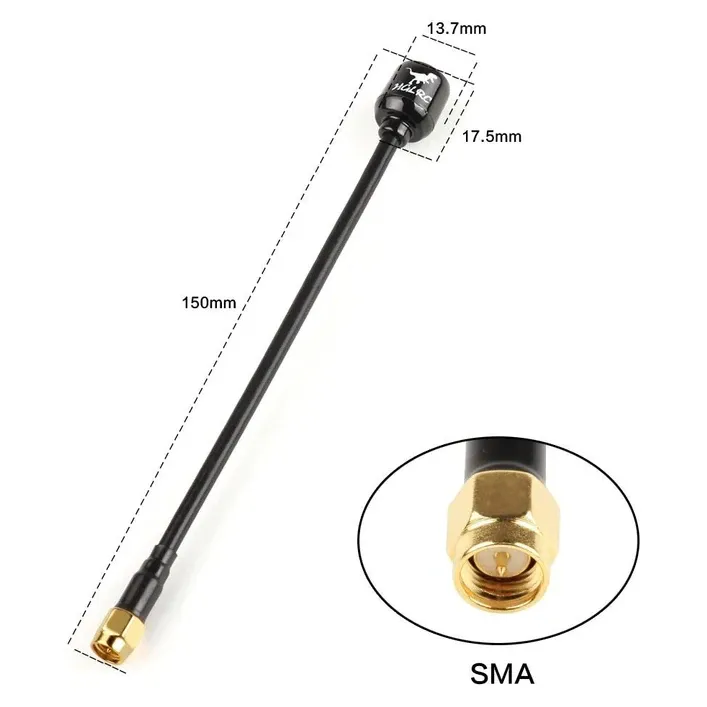

HGLRC Long Range Hammer Mini 5.8GHz 2.5dBi Antenna (LHCP)

HGLRC Long Range Hammer Mini 5.8GHz 2.5dBi Antenna (LHCP)

Name: HGLRC Long Range Hammer Mini 5.8GHz 2.5dBi Antenna (LHCP)
Brand: HGLRC
SKU: HGLRC-HMR-MINI-LHCP-MMCX
Price: 849 INR
Availability: InStock

₹849

SKU HGLRC-HMR-MINI-LHCP-MMCX

Choose variant

Polarization: LHCPAntenna Connector: SMA, MMCXFrequency Band: 5.8GHzMade in India: No

Free shipping. Pan India delivery from Gurugram, Haryana.

Sourced on demand — most orders ship within 3–4 days

100% genuine parts
GST invoice with every order
Secure UPI & bank transfer
7-day returns on wrong or damaged items

The HGLRC Long Range Hammer Mini is a compact, high-efficiency 5.8GHz omnidirectional antenna designed for long-range and freestyle FPV builds. Tuned for a 2.5dBi gain, it provides a consistent, spherical radiation pattern for reliable video coverage at varying quad attitudes. This LHCP variant is an ideal match for digital HD ecosystems like DJI and Walksnail, or any analogue VTX configured for a left-hand circularly polarised setup.

Key features

Tuned for a 2.5dBi gain to balance extended range with close-quarters omnidirectional coverage.

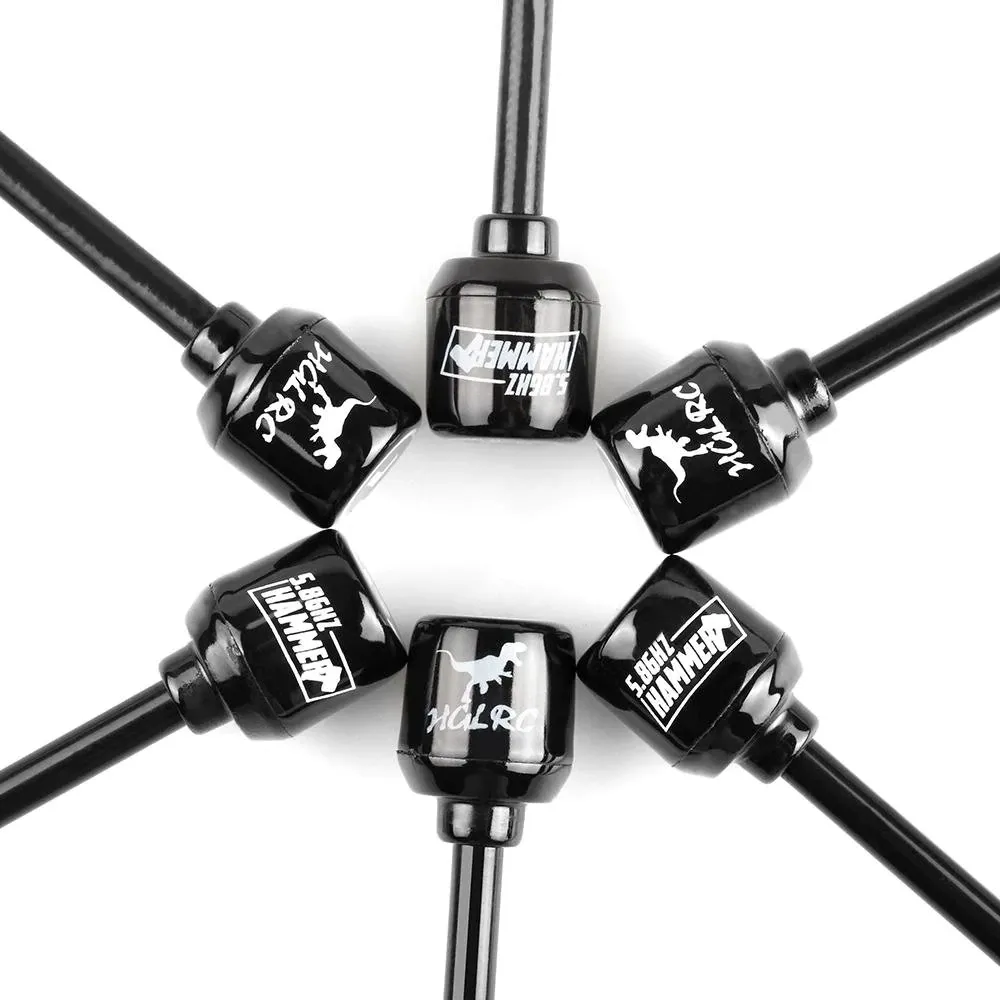

Housed in a rugged, crash-resistant polycarbonate radome to protect the internal lobe elements during heavy impacts.
High transmission efficiency with a voltage standing wave ratio (VSWR) of under 1.5 across the 5.8GHz spectrum.

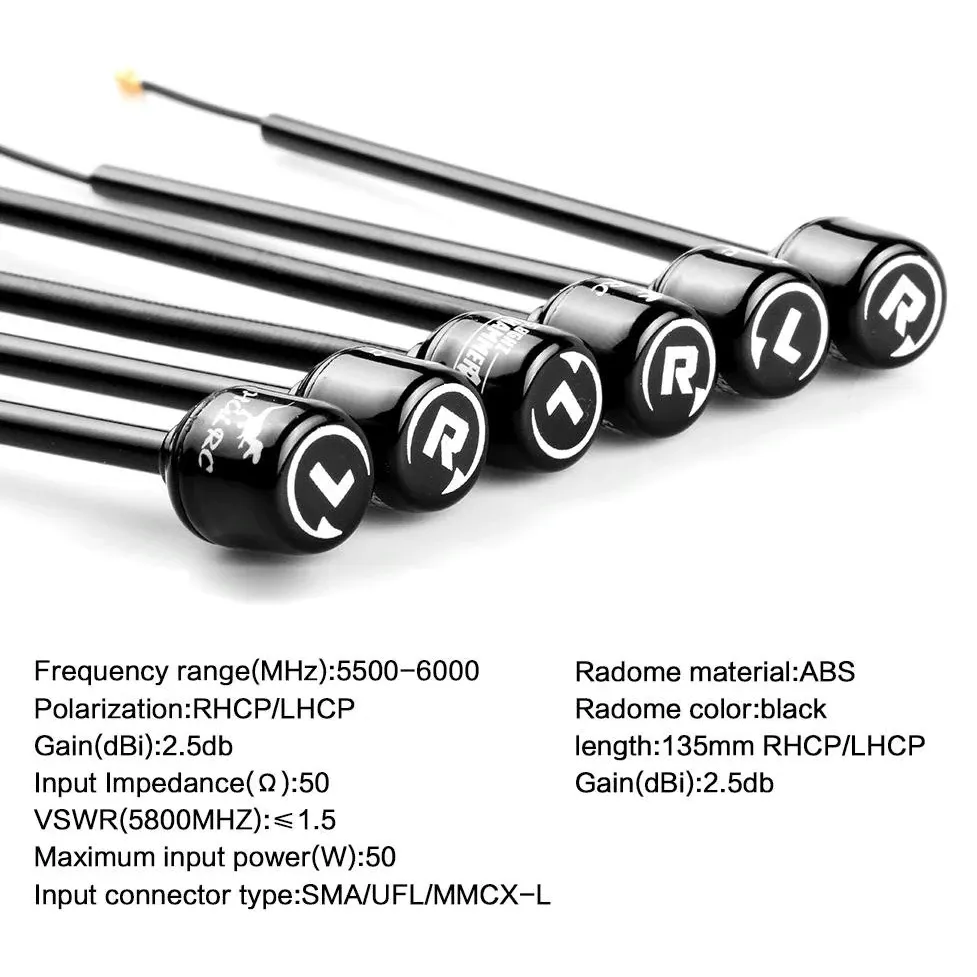

Specifications

Frequency band: 5500-6000MHz (5.8GHz)
Gain: 2.5dBi
Polarization: LHCP
VSWR: < 1.5
Radiation efficiency: 98%

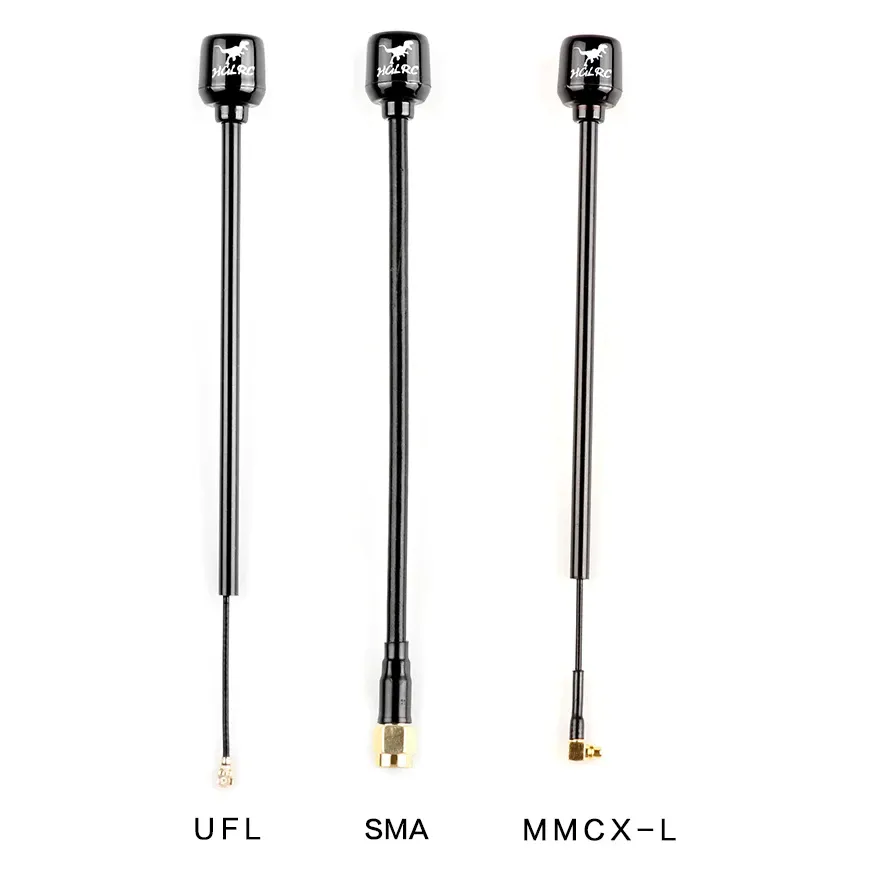

Connectors: MMCX, SMA (select via variants)

Always ensure your receiving goggle antennas are also LHCP; mixing polarisations will cause severe signal degradation and drastically reduce your flyable range.
