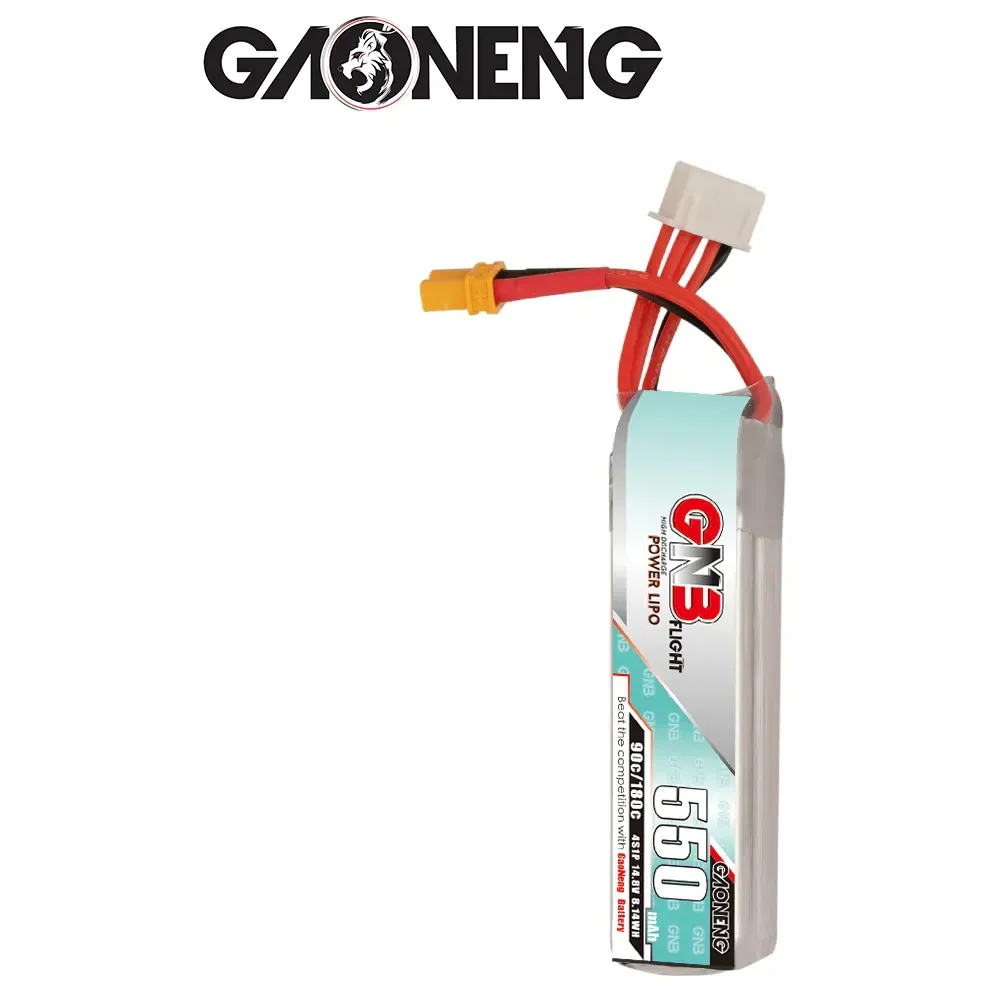

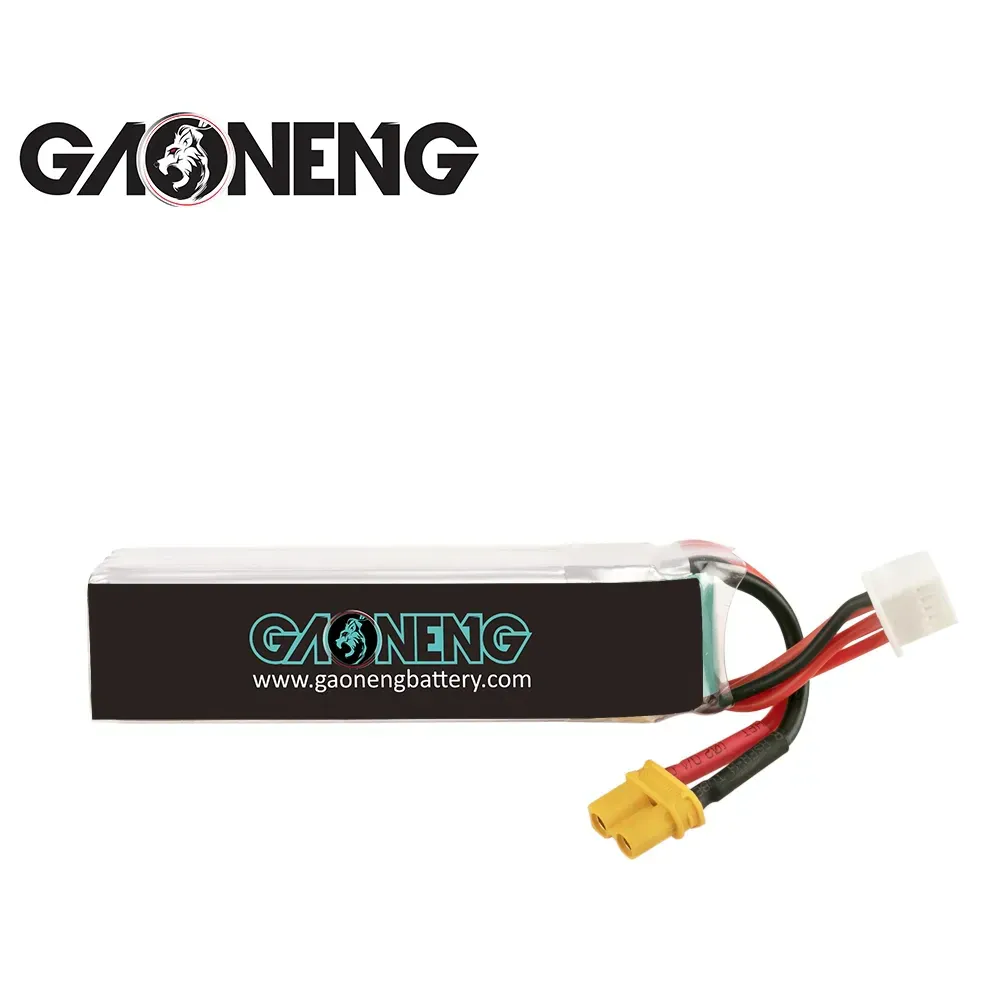

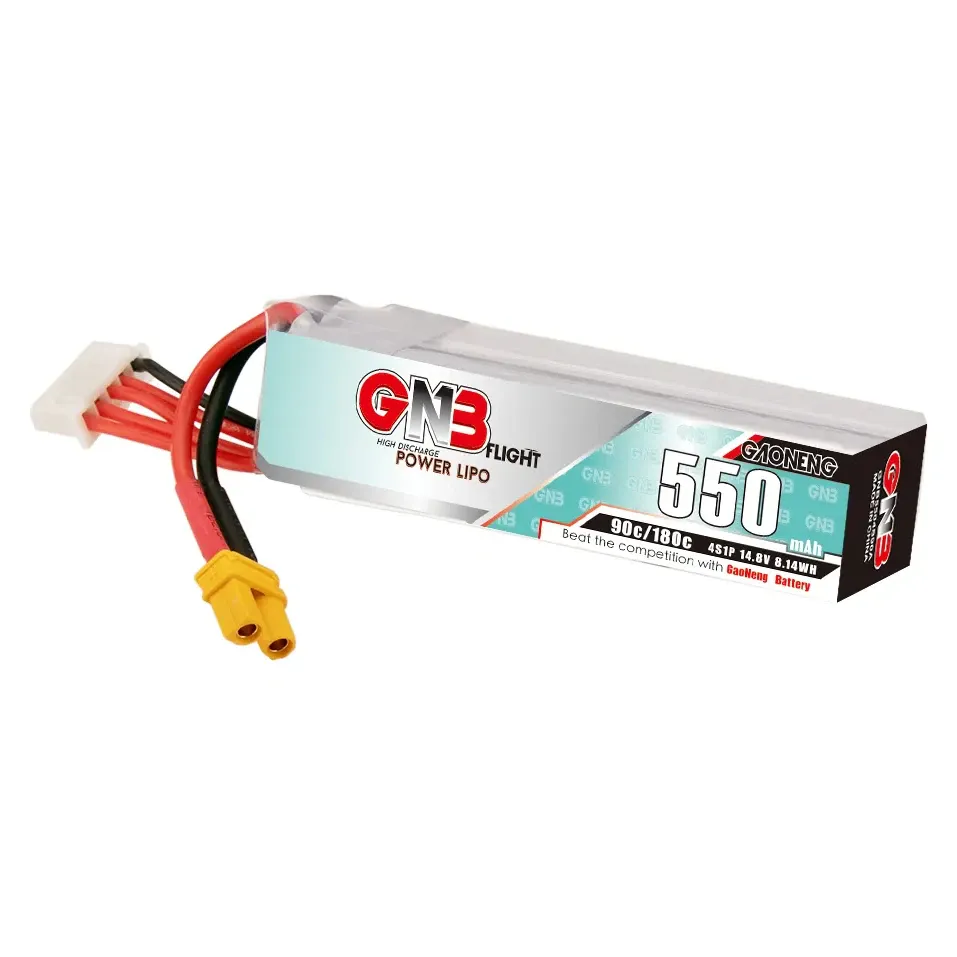

GNB 550mAh 4S 90C LiPo Battery Long (XT30)

The GNB 550mAh 4S 90C battery features an elongated "Long" form factor engineered specifically for 3-inch toothpick builds, micro freestyle quads, and lightweight cinewhoops where a slim, narrow profile is required to fit along thin frame plates and optimise the pitch axis centre of gravity. Utilising high-voltage LiHV cell chemistry with a 15.2 V nominal rating, this pack delivers high energy density while keeping overall takeoff weight minimal for demanding sub-250 g builds.

Key features

• Elongated geometry easily mounts onto narrow top plates and fits under low-profile micro canopies without widening the aerodynamic cross-section.
• High-voltage LiHV chemistry allows charging up to 4.35 V per cell (17.4 V fully charged), providing higher initial RPM and reduced voltage sag under load compared to standard 4.20 V cells.
• Delivers up to 180C burst discharge currents to sustain aggressive throttle punches, sharp cornering, and rapid freestyle recoveries.
• Pre-soldered with a high-conductivity XT30 discharge plug and a durable silicone-sheathed JST-XH balance lead.

Specifications

• Nominal Voltage: 15.2 V (4S LiHV)
• Capacity: 550 mAh
• Discharge Rate: 90C Continuous / 180C Burst
• Dimensions: 71 × 18 × 18 mm
• Weight: 52 g
• Discharge Connector: XT30
• Balance Connector: JST-XH

Set your battery charger to LiHV mode (4.35 V per cell cutoff) to safely unlock the maximum capacity and flight time of this pack. Always verify that your frame length and battery strap placement can securely accommodate the 71 mm elongated profile prior to flight.
