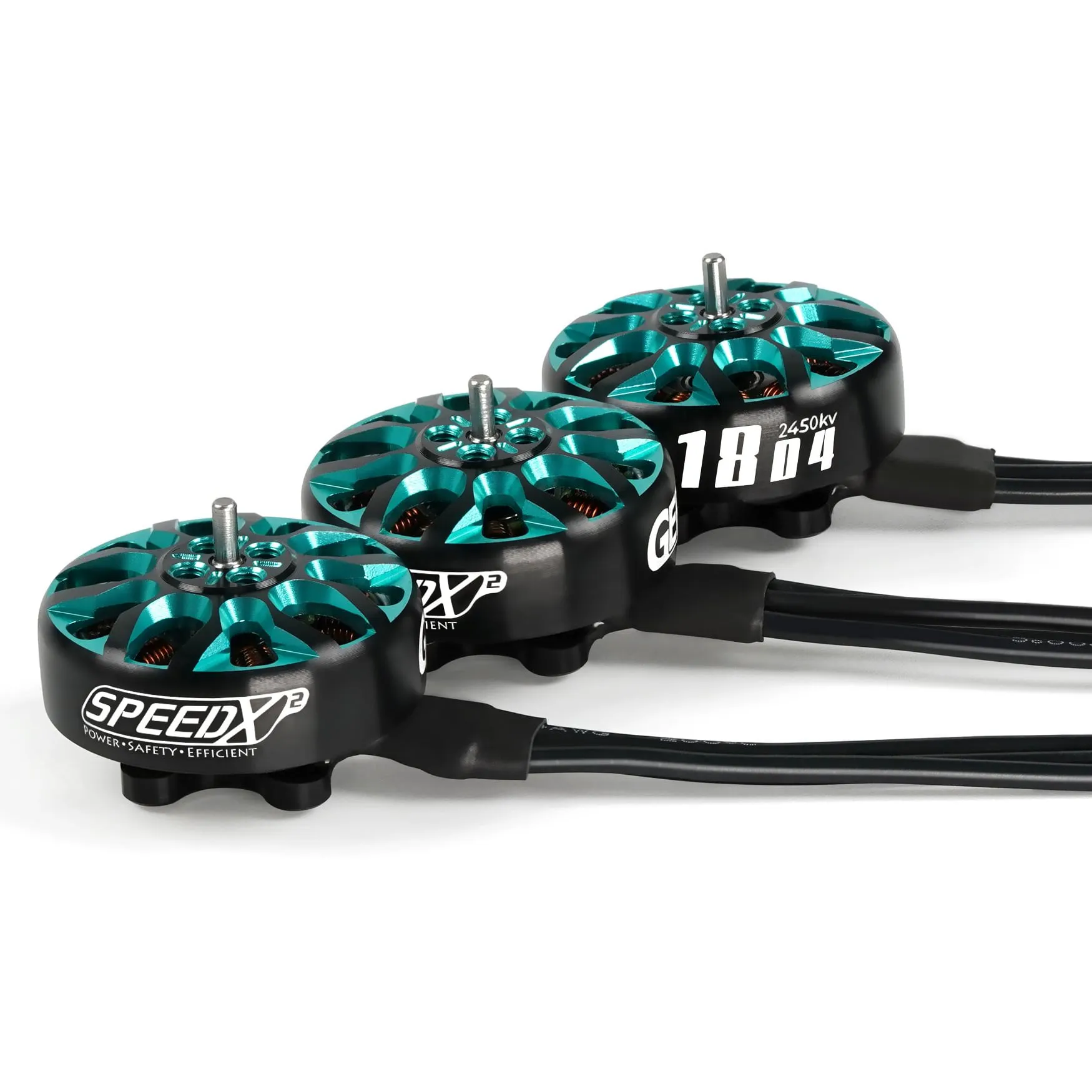

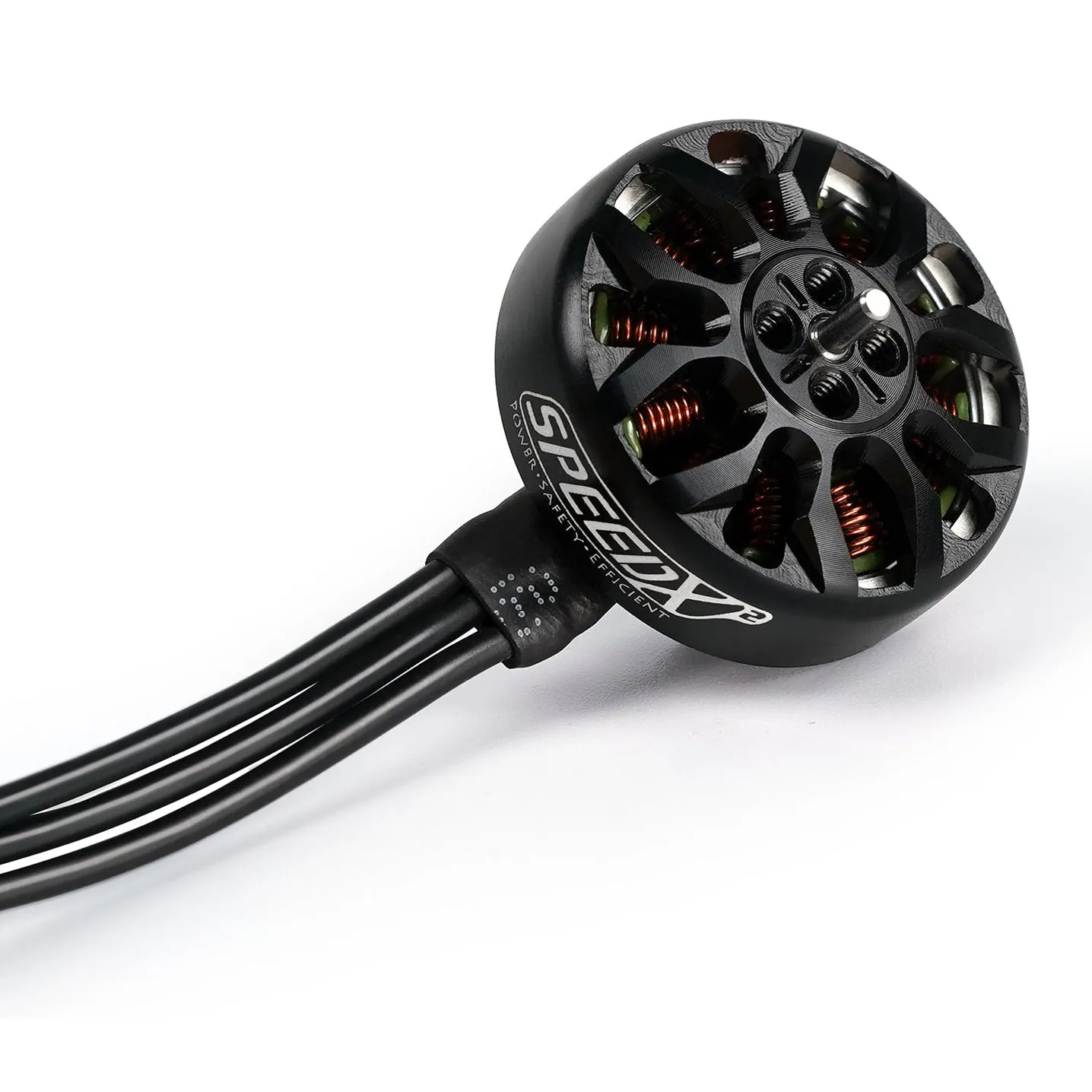

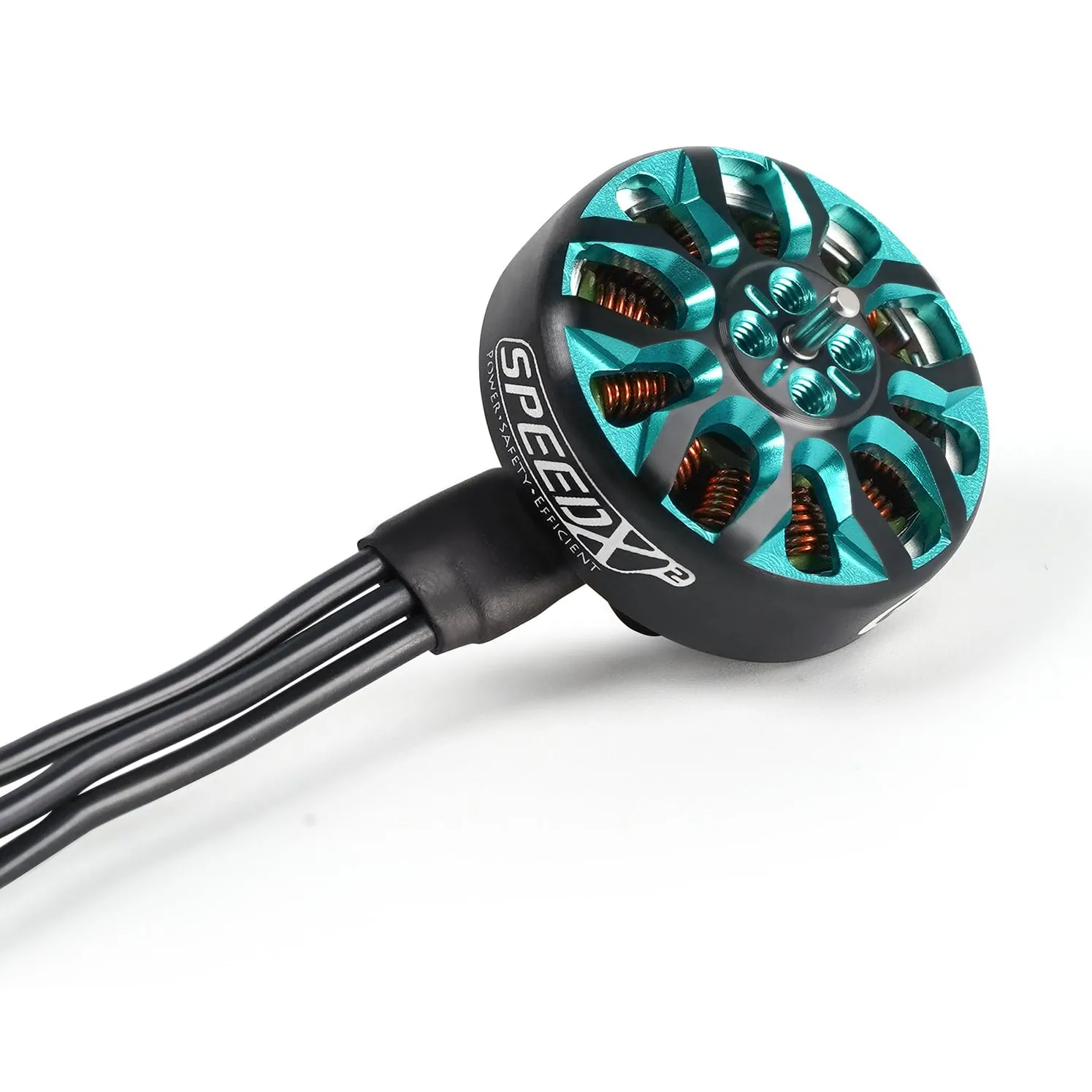

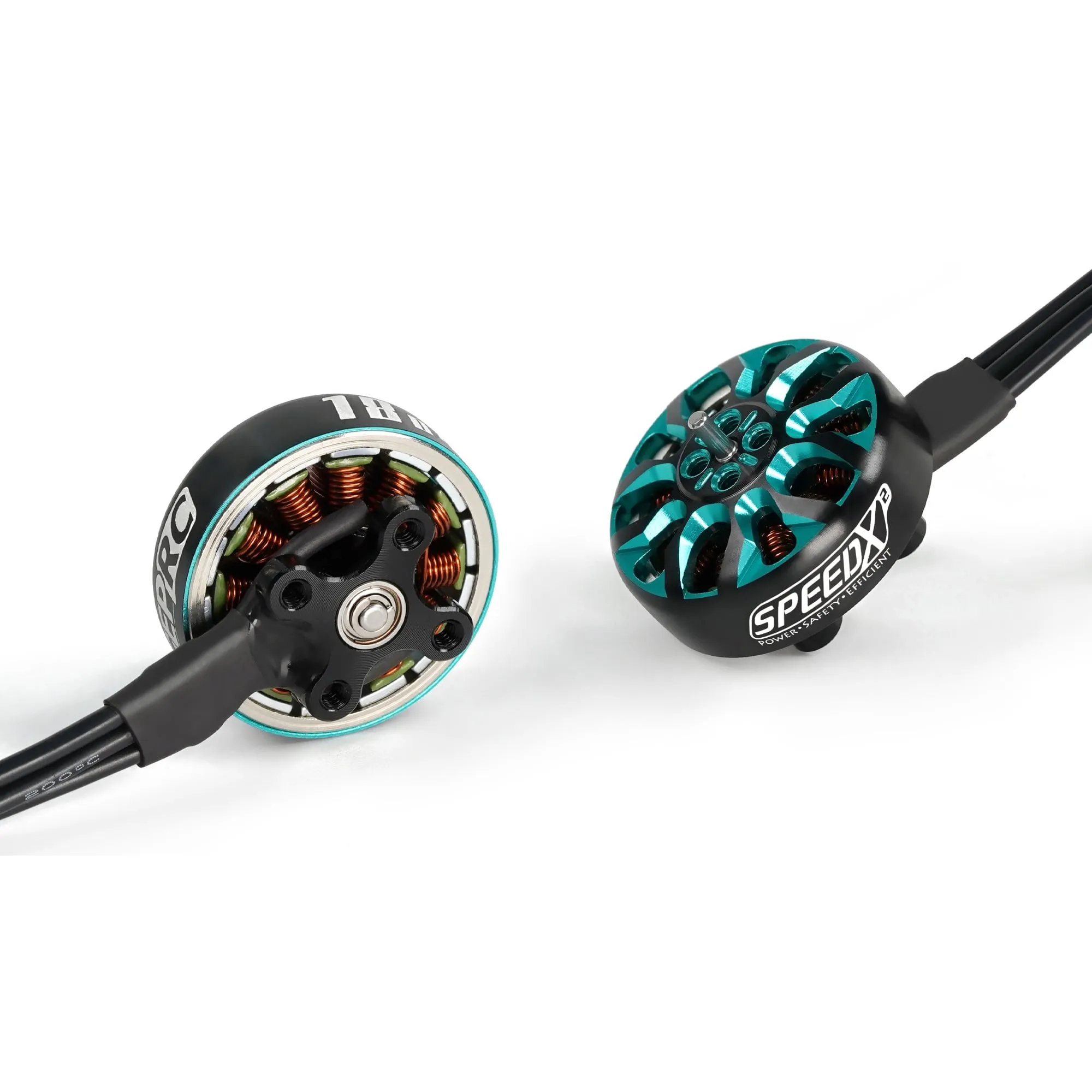

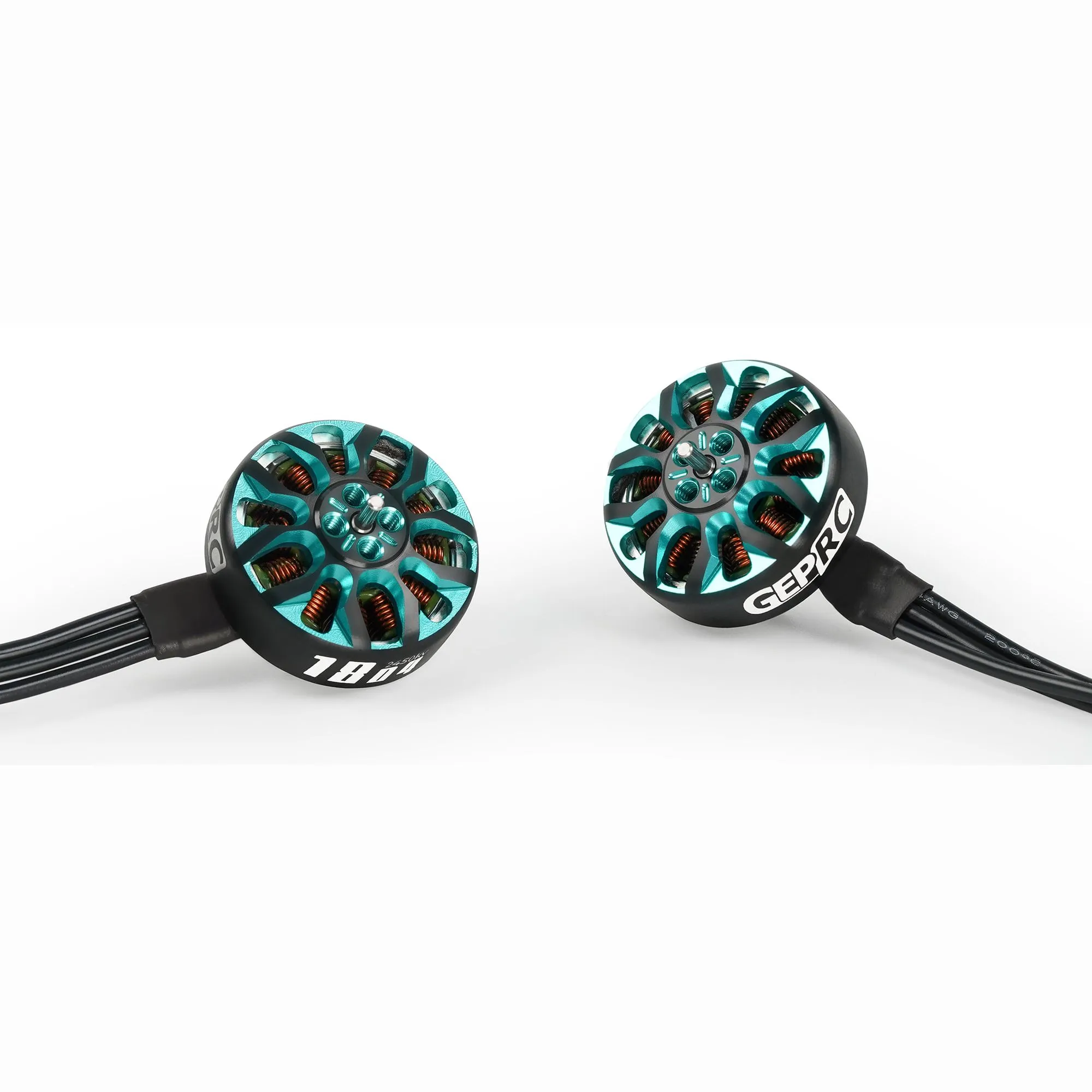

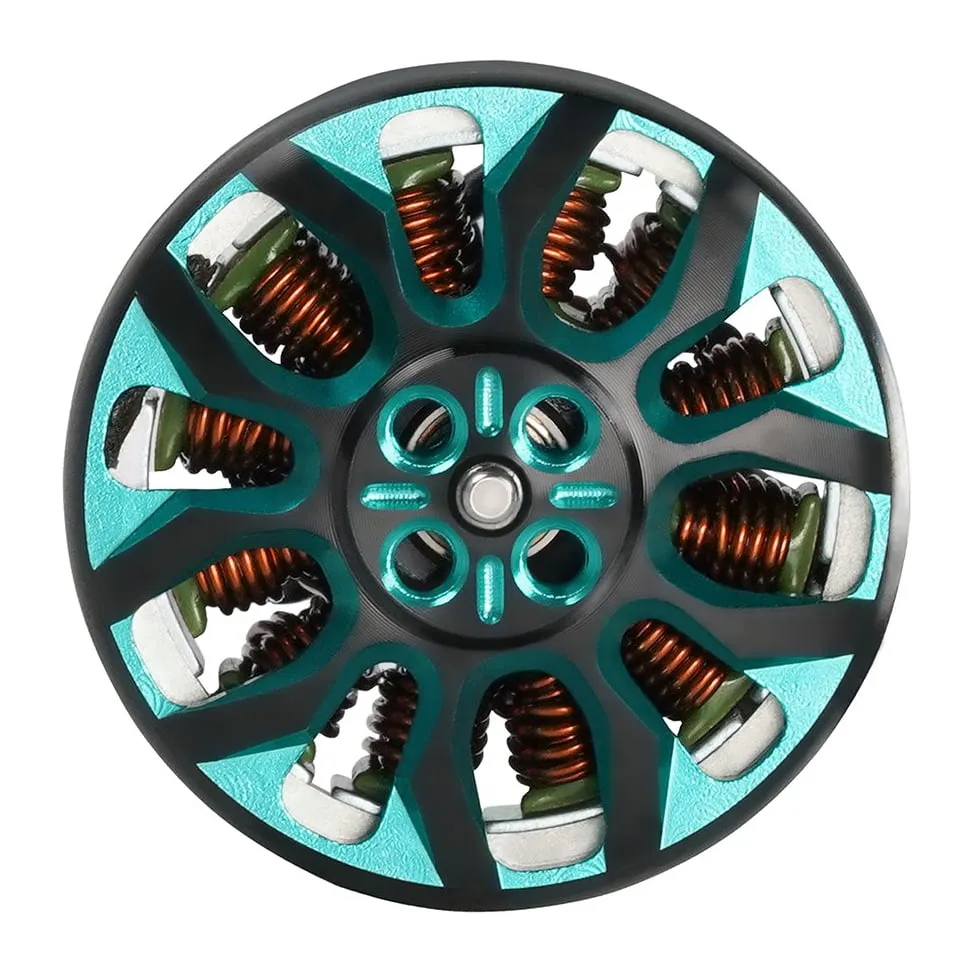

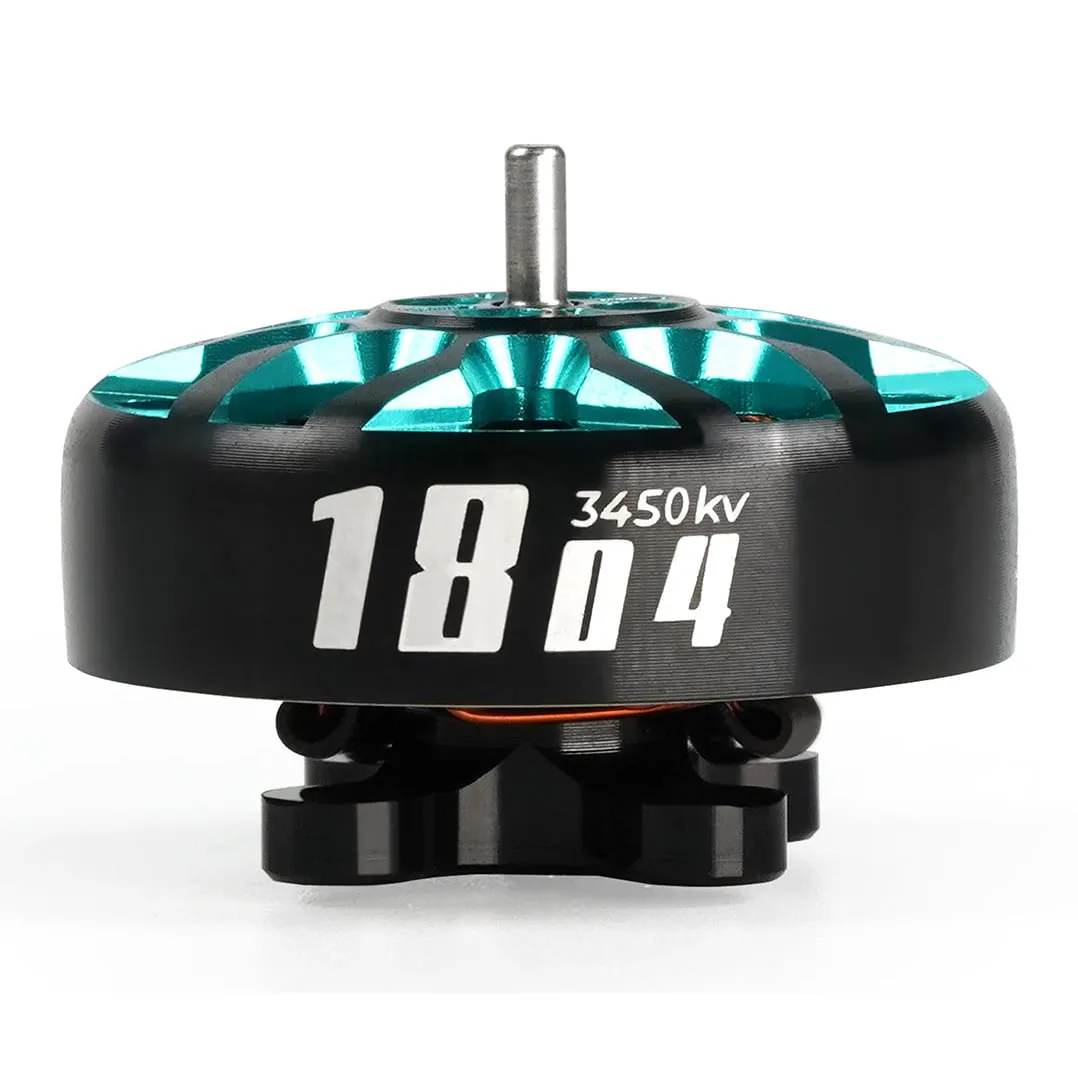

GEPRC SpeedX2 1804 Motor (2450KV/3450KV)

The GEPRC SpeedX2 1804 brushless motor is engineered specifically for 3-inch and 4-inch FPV drones, including heavy-duty cinewhoops like the Cinebot30 and lightweight freestyle builds. Available in two KV options, it allows builders to pair the 2450KV version with 6S batteries or the 3450KV version with 4S packs to match their preferred power delivery and flight characteristics.

Key features

• Optimised for 3-inch to 4-inch cinewhoops and sub-250g freestyle quads
• Constructed with high-temperature N52H arc magnets in a 12N14P configuration
• Weighs only 13.2g (including wires) to minimise total build weight
• Uses a standard 1.5mm shaft for wide compatibility with T-mount propellers

Specifications

• KV: 2450KV / 3450KV
• Configuration: 12N14P
• Stator size: 1804
• Input voltage: 4S (3450KV) / 6S (2450KV)
• Shaft diameter: 1.5mm
• Mounting pattern: 12x12mm (M2)
• Weight: 13.2g (with wire)

When installing these motors, match them with T-mount propellers featuring a 1.5mm centre hole and pair with a flight controller stack or AIO running a 30A to 35A ESC.
