GEPRC Peano 5.8GHz Antenna — LHCP, MMCX, 110mm

FPV Antennas

GEPRC Peano 5.8GHz Antenna — LHCP, MMCX, 110mm

Name: GEPRC Peano 5.8GHz Antenna — LHCP, MMCX, 110mm
Brand: GEPRC
SKU: GEPRC-PEANO-LHCP-MMCX-110
Price: 1899 INR
Availability: InStock

₹1,899

SKU GEPRC-PEANO-LHCP-MMCX-110

Polarization: LHCPAntenna Connector: MMCXFrequency Band: 5.8GHzMade in India: No

Free shipping. Pan India delivery from Gurugram, Haryana.

Sourced on demand — most orders ship within 3–4 days

100% genuine parts
GST invoice with every order
Secure UPI & bank transfer
7-day returns on wrong or damaged items

The GEPRC Peano is a 5.8GHz omnidirectional FPV antenna engineered for consistent video transmission in freestyle and racing builds. At 110mm in length, its flexible coaxial cable provides enough clearance to elevate the radiating element above your carbon fibre frame, minimizing RF blockage and multipathing during flight.

Key features

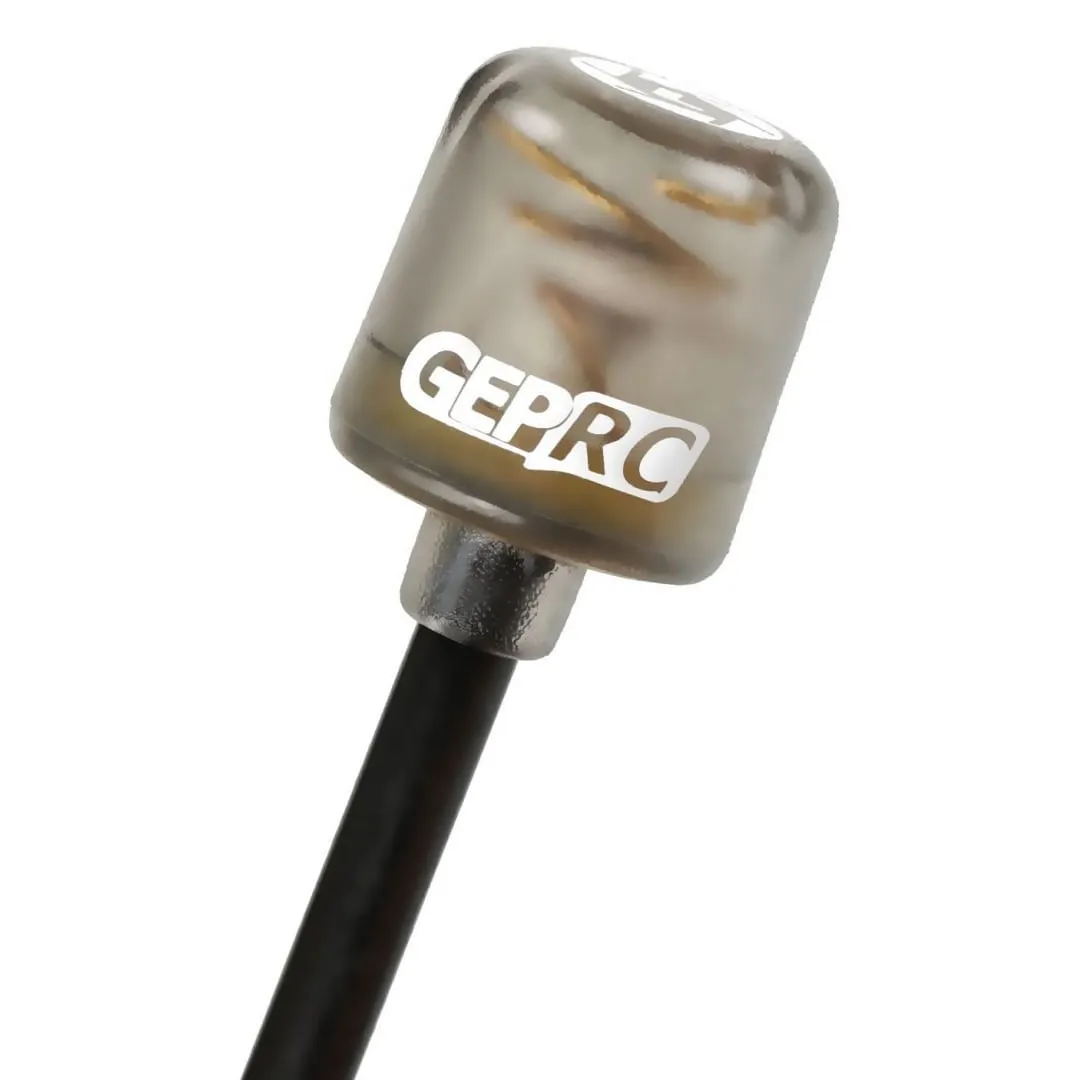

Tuned specifically for the 5.8GHz FPV band with a highly efficient radiating element for clean video penetration.
110mm semi-rigid stem holds its angle easily but yields during crashes to prevent snapping or connector damage.

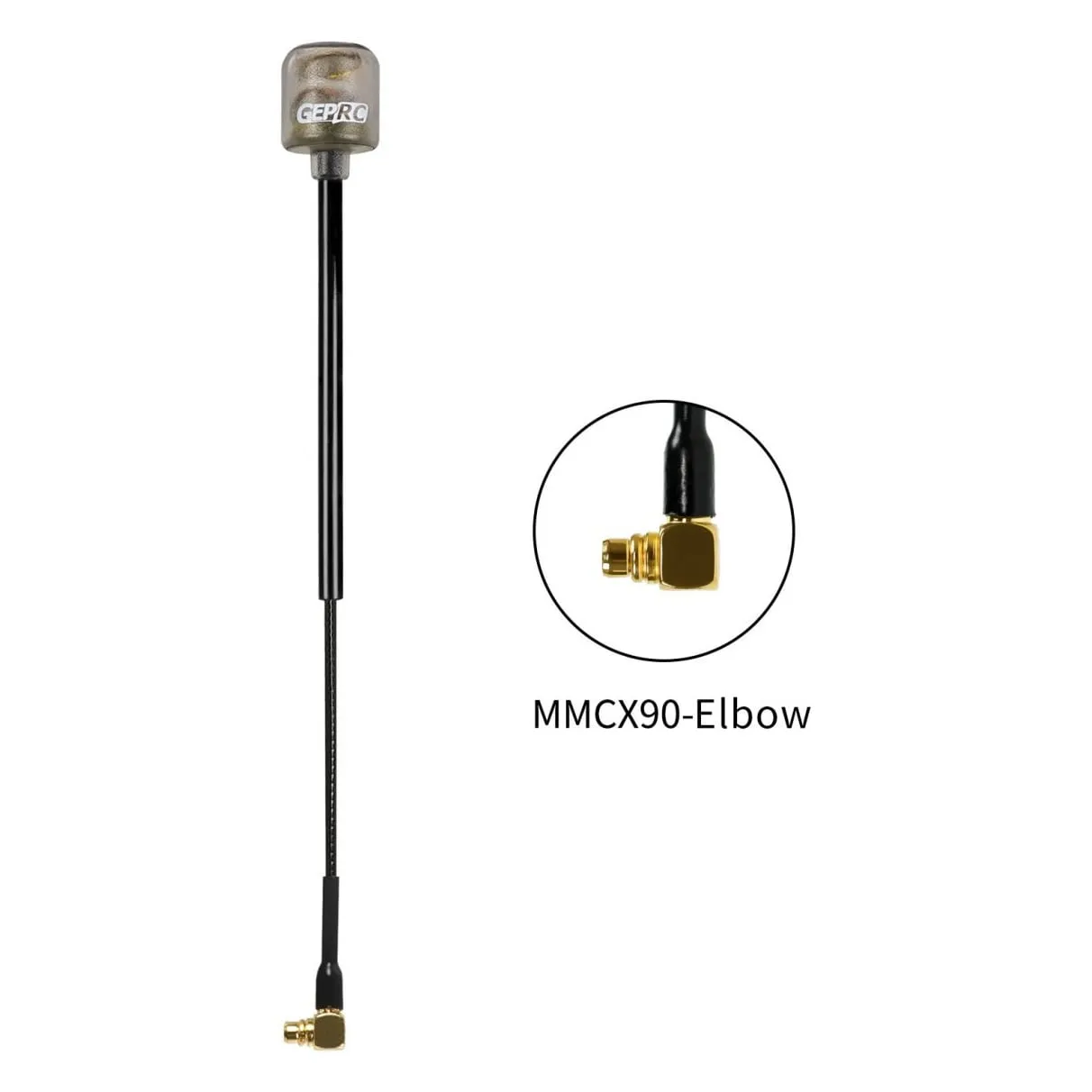

Terminated with a straight MMCX connector to plug directly into compatible VTX units, eliminating the weight and signal loss of pigtail adapters.

Specifications

Frequency band: 5.8GHz (5600–5950MHz)
Polarization: LHCP
Connector: MMCX

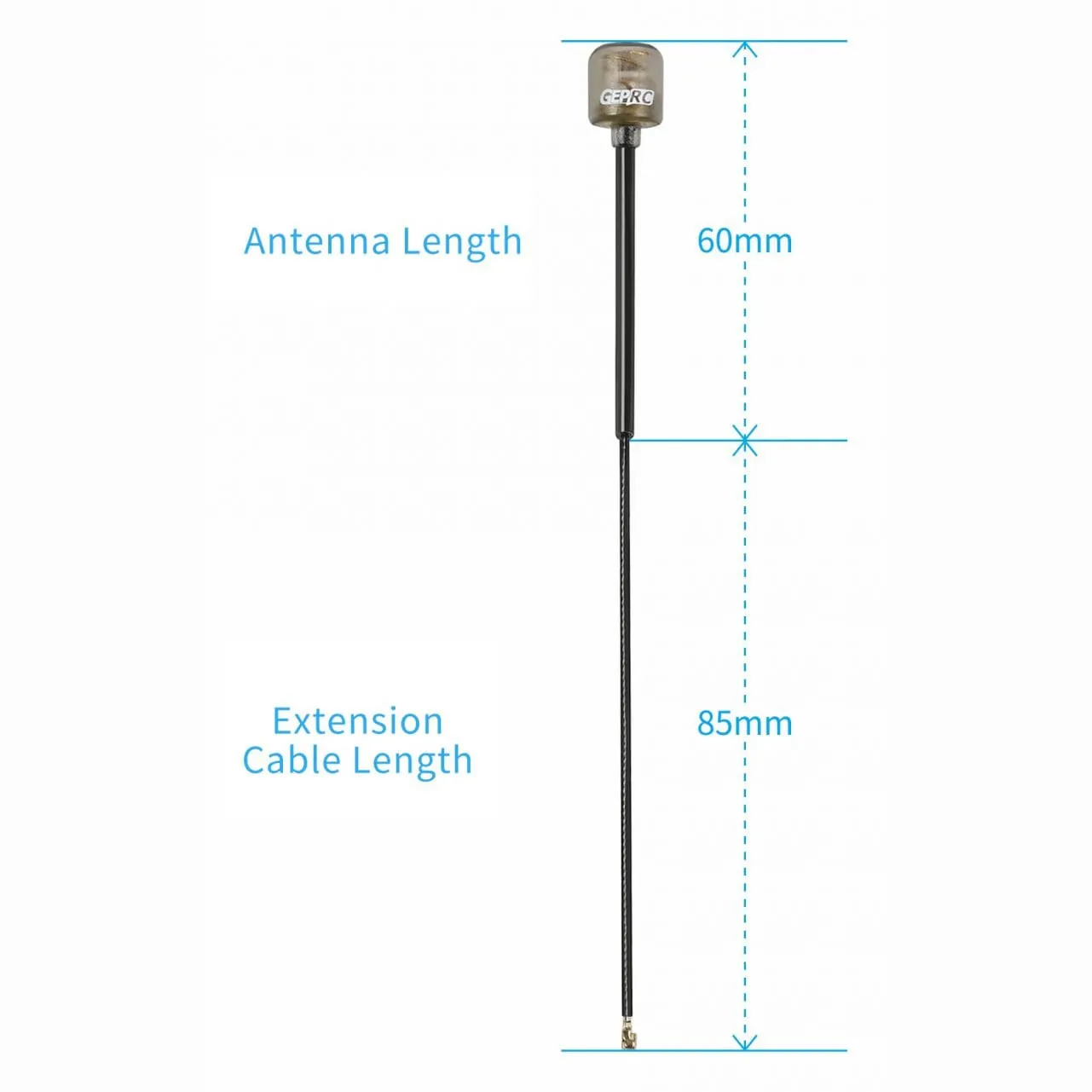

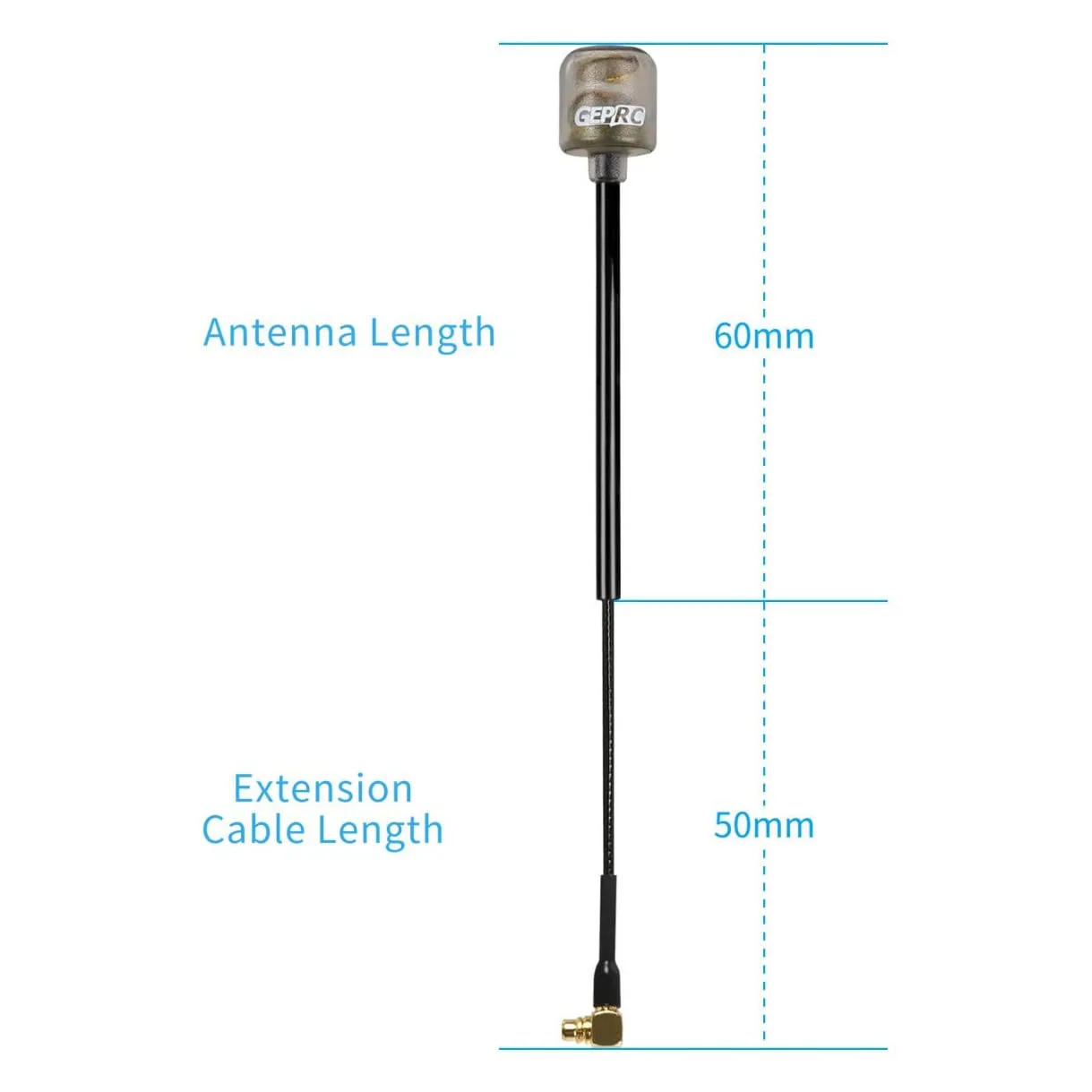

Length: 110mm
Gain: 2.5 dBi
VSWR: ≤1.5

This antenna features Left-Hand Circular Polarization (LHCP), the standard format for digital video systems including DJI FPV, Caddx Vista, and Walksnail Avatar. Ensure your receiving goggles are also equipped with LHCP antennas to avoid severe cross-polarization signal degradation.
