Flywoo GOKU G45M 45A 2–6S 32Bit 128K ESC (20×20)
₹4,899Incl. GST
SKU FW-GOKU-G45M-45A-20
Mounting Size: 20x20ESC Current: 45 AInput Voltage: 2–6SESC Firmware: AM32
Dispatched within 5–7 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

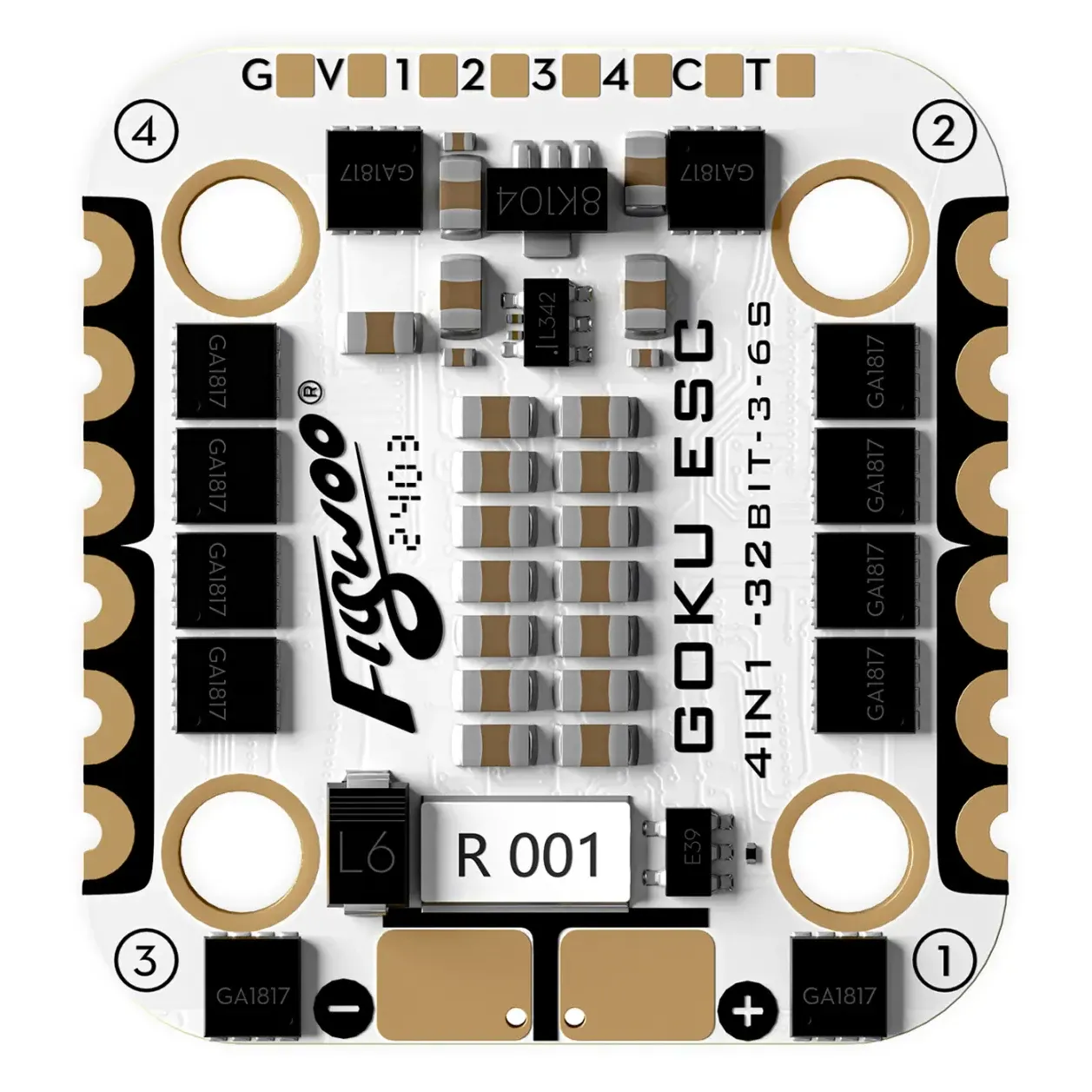

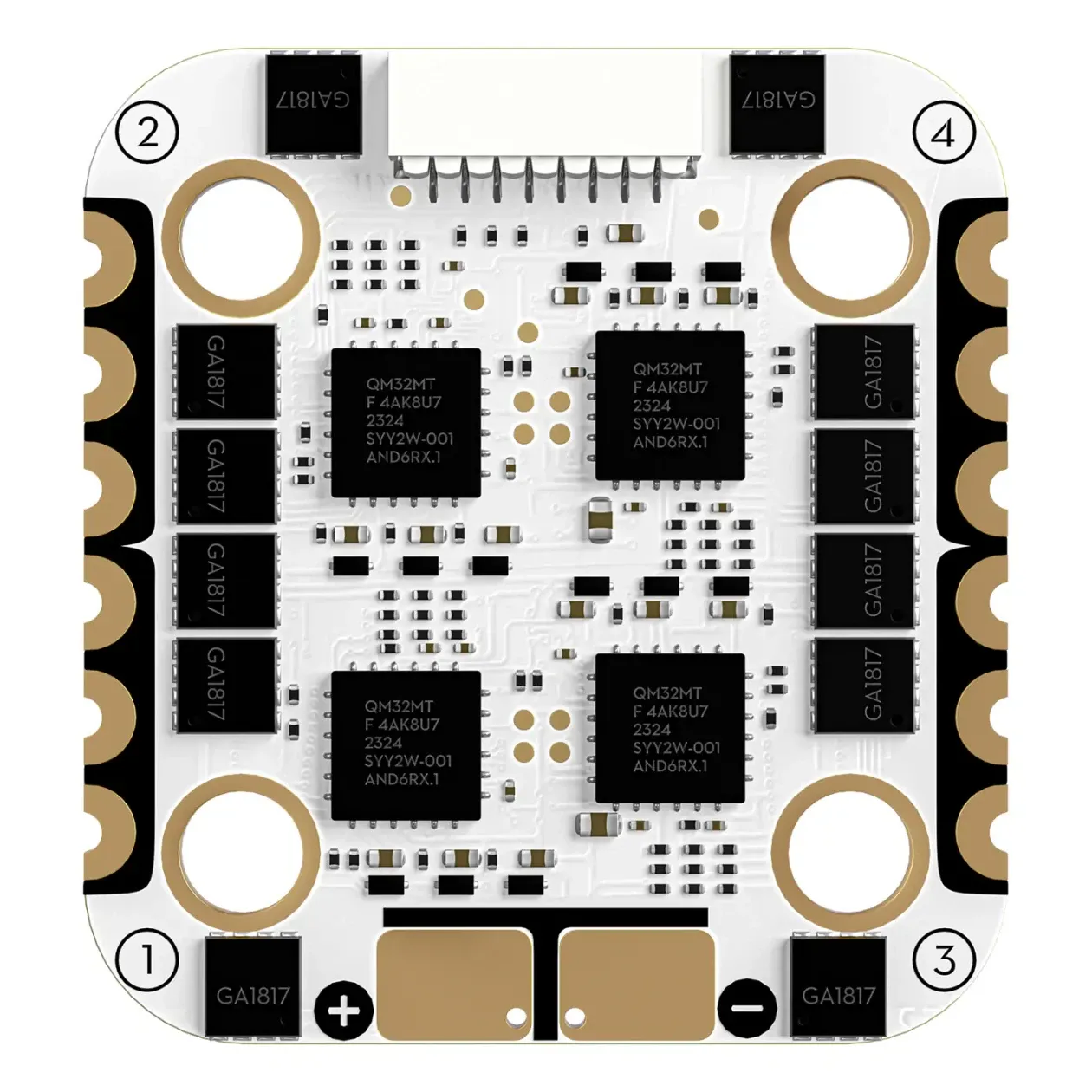

The Flywoo GOKU G45M is a 32-bit 45A 4-in-1 ESC on a 20x20mm mount, built for compact freestyle and long-range stacks that need proven AM32 performance without extra bulk.
Key features
- Pre-flashed with the widely used AM32 firmware, with bidirectional DShot and telemetry support.
- Runs DShot150/300/600/1200 with a PWM switching frequency up to 128kHz for smooth, quiet motors.
- XT30/60-compatible power pads and a 6-layer PCB help manage heat under sustained load.

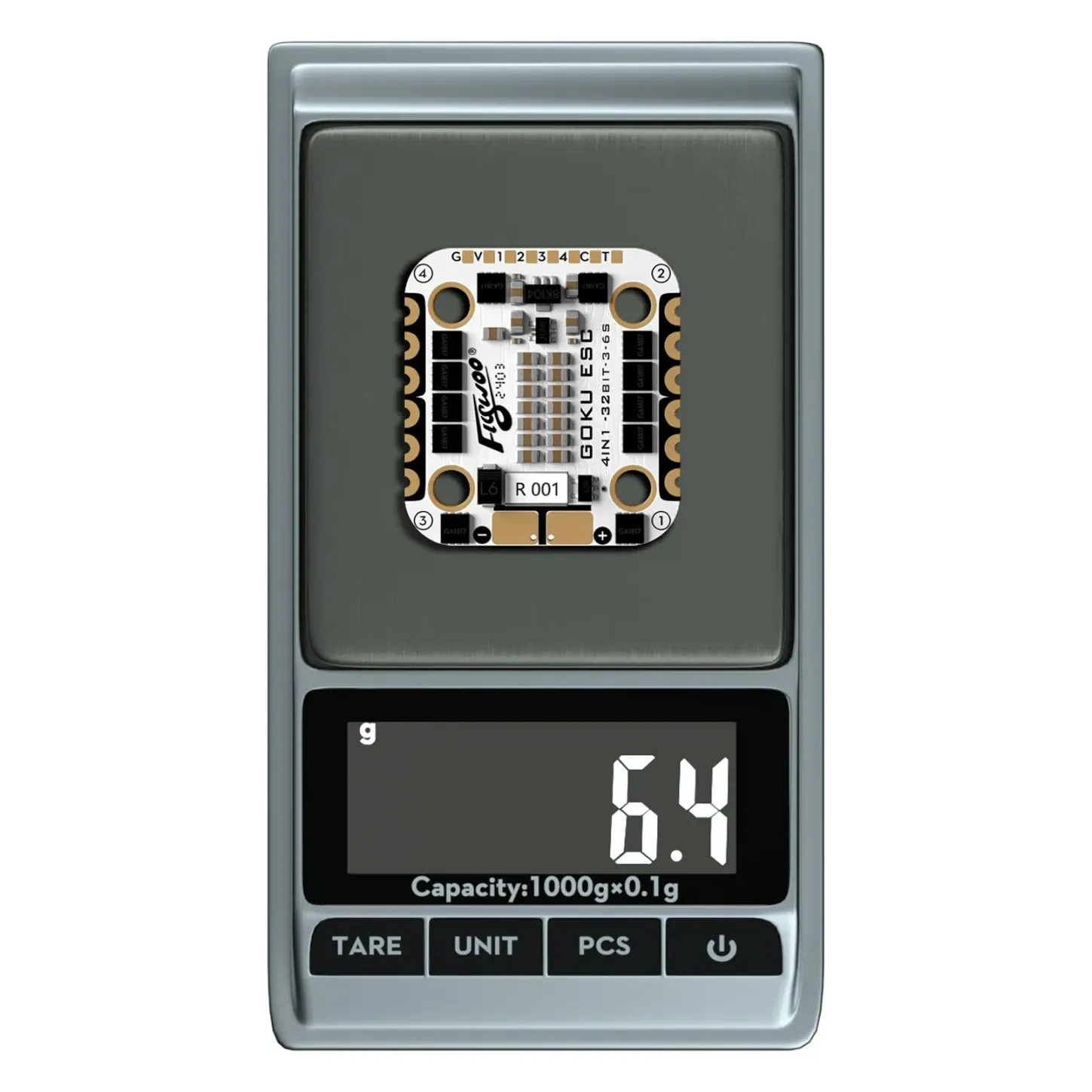

- Weighs just 6.4g and measures 33 x 30 x 6.1mm, so it barely adds to an existing stack.
- Supports PWM, Oneshot and Multishot throttle signals alongside DShot, so it drops into most existing flight-controller setups.
Specifications
- Continuous current: 45A per motor
- Peak current: 50A per motor (10s)
- Input voltage: 2-6S LiPo
- Firmware: AM32 (GOKU_F4A32_PRO)
- PWM frequency: 24-128kHz
- Mounting pattern: 20x20mm
- Weight: 6.4 g

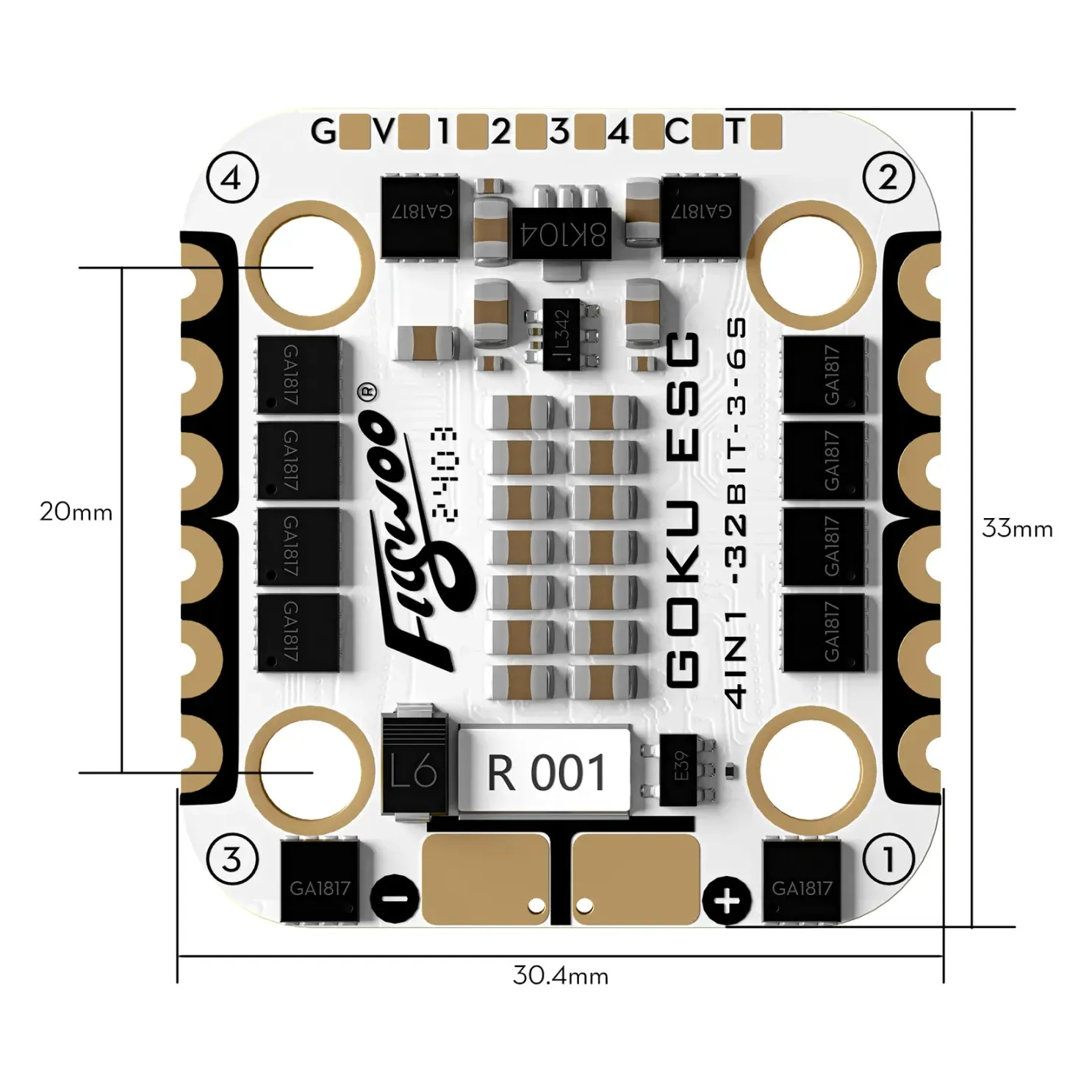

- Dimensions: 33 x 30 x 6.1 mm

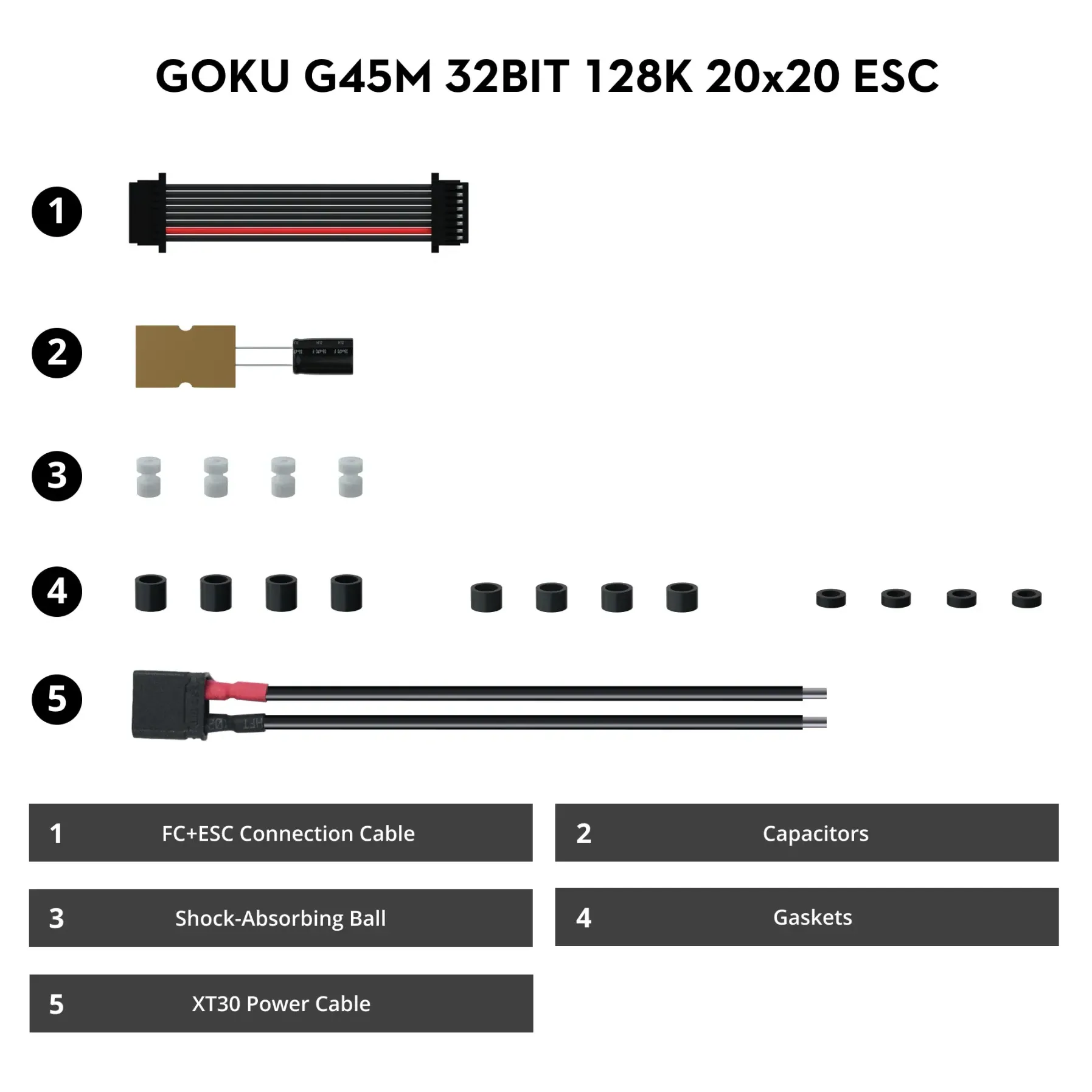

It ships with an FC-to-ESC connecting cable, a capacitor, four M2 shock-absorbing balls and an XT30 cable, so it drops straight into a 20x20mm stack.
| Mounting Size | 20x20 |
|---|---|
| ESC Current | 45 A |
| Input Voltage | 2–6S |
| ESC Firmware | AM32 |
| Made in India | No |
| Brand | Flywoo |
| Weight | 6.4 g |
| Battery Connector | XT-30 |
