Flywoo Bipolar Dual-Band 5.8GHz/
₹989Incl. GST
SKU FLYWOO-BIPOLAR-DB-UFL-O3-150MM
Length: 150mm
Polarization: LinearAntenna Connector: U.FLFrequency: 2.4GHz/5.8GHzMade in India: No
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

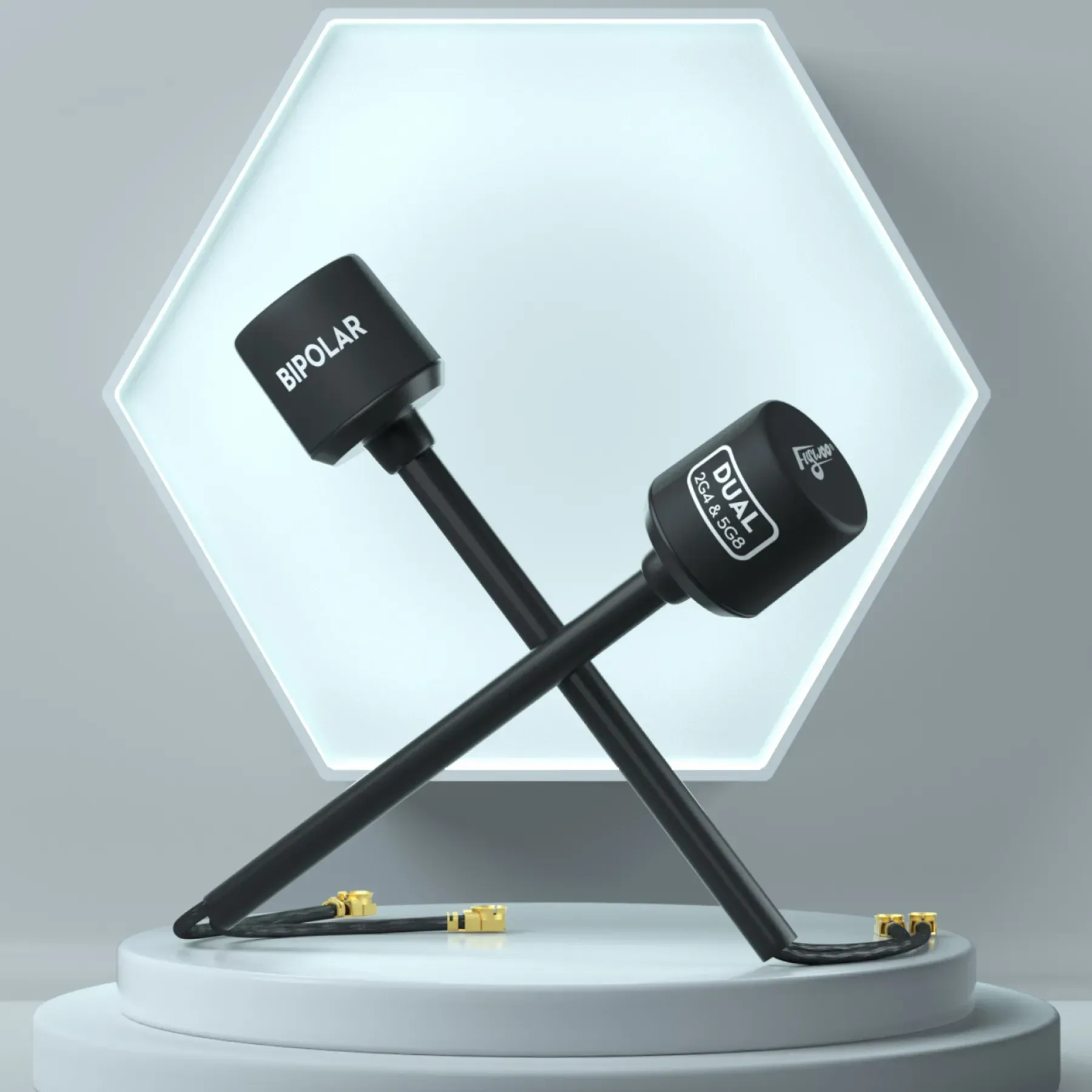

The Flywoo Bipolar Dual-Band antenna is a matched pair of U.FL-connector antennas built for the DJI O3 air unit, replacing the stock antennas with a lower-profile dual-band design that covers the 5.8GHz video link and the 2.4GHz control link on one mount.
Key features
- Covers 2400–2500MHz and 5700–5900MHz simultaneously, so one antenna pair handles both the DJI control link and the HD video downlink

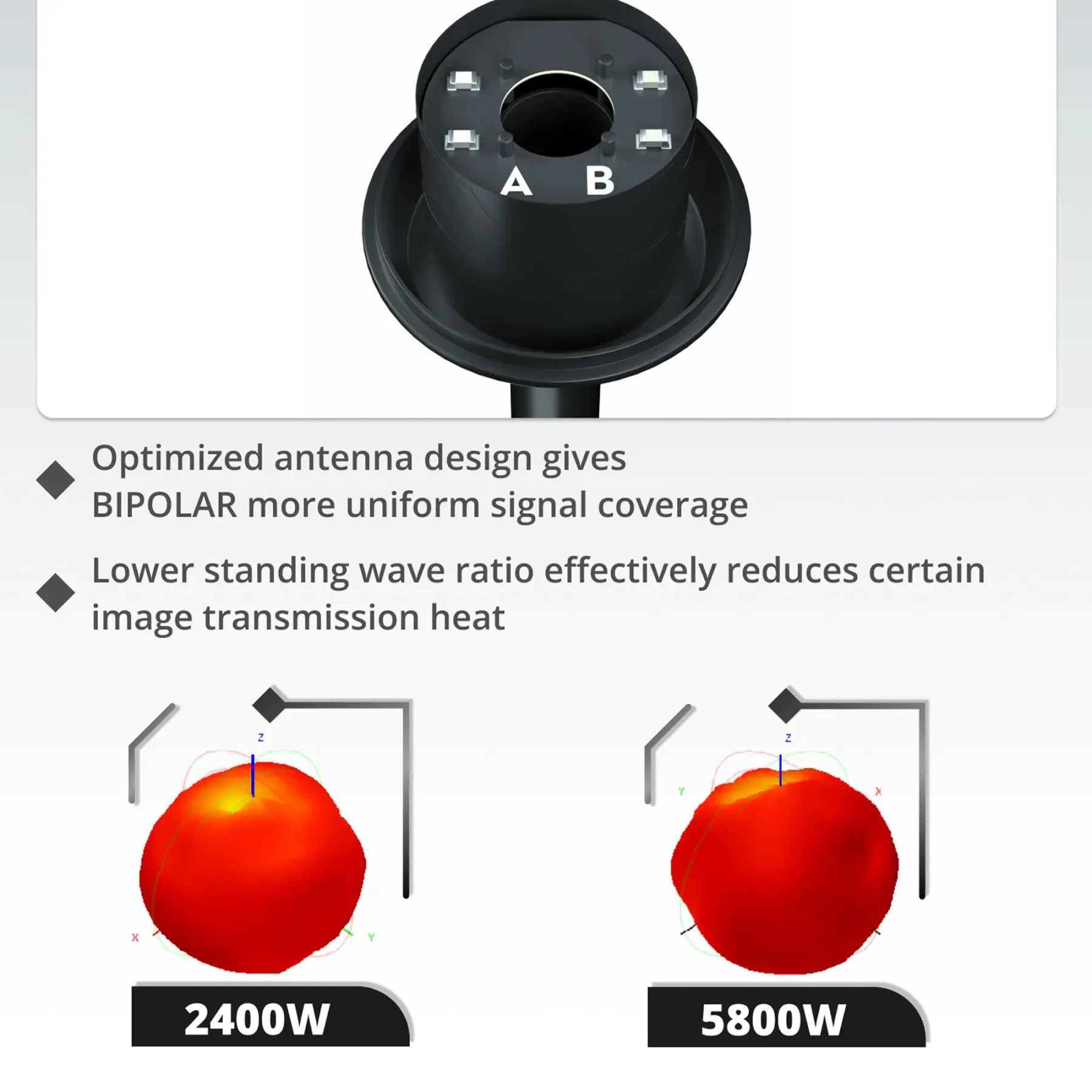

- Linear polarisation with 2.5dBi gain on the 2.4GHz band and 3.8dBi on the 5.8GHz band, and VSWR ≤1.6 across both bands
- Terminates in 2x U.FL (IPEX1) connectors on RF1.13 pigtail cable for a direct snap-fit to the O3 air unit's RF ports
- Compact Φ16x17mm antenna body keeps the build light and low-profile on whoop, cinewhoop and freestyle frames
Specifications
- Frequency range: 2400–2500MHz / 5700–5900MHz
- Gain: 2.5dBi (2.4GHz) / 3.8dBi (5.8GHz)
- VSWR: ≤1.6
- Polarisation: Linear
- Impedance: 50Ω
- Connector: 2x U.FL (IPEX1)
- Cable: RF1.13
- Weight: 5.3g

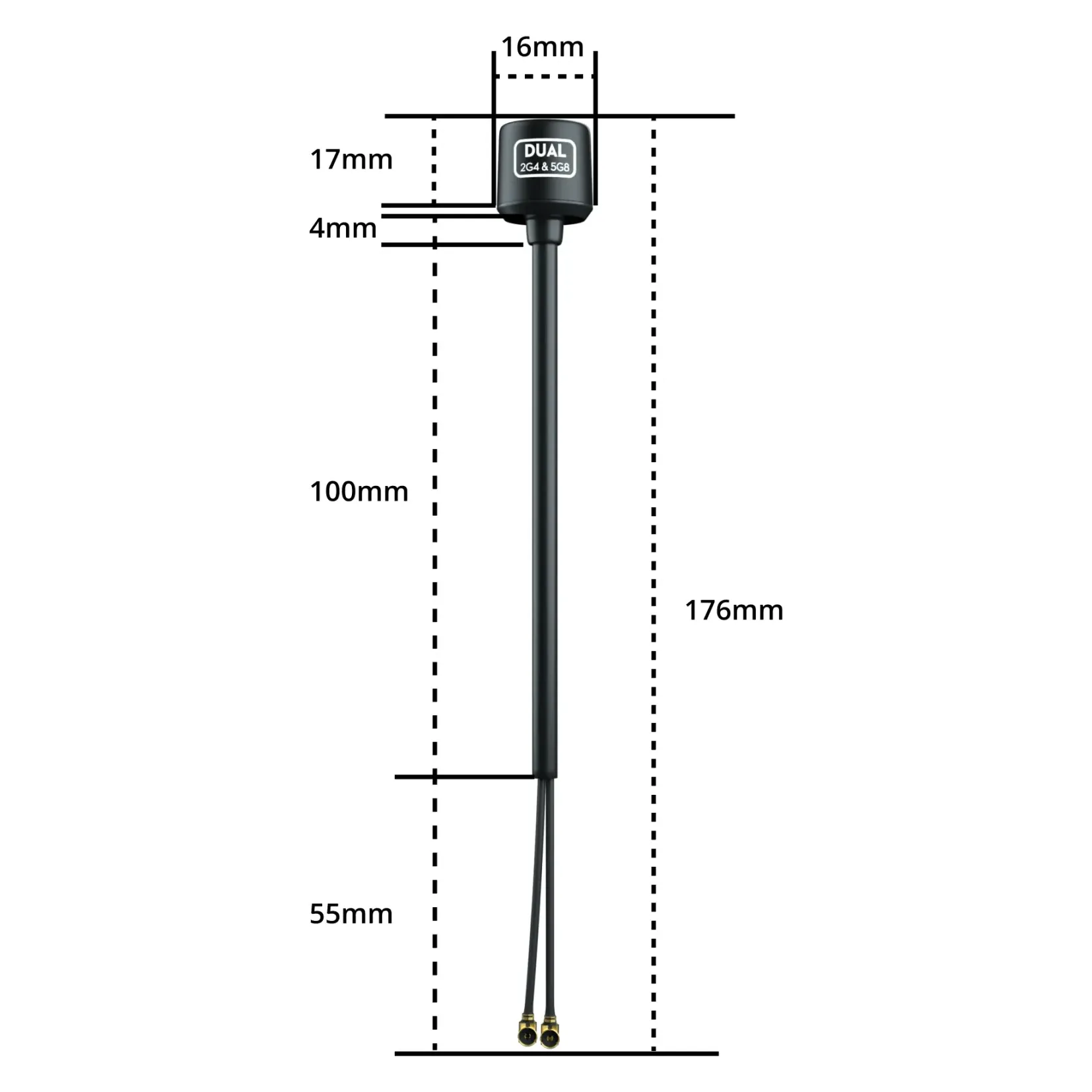

- Size: Φ16x17mm
Mount the antenna clear of carbon fibre plates so the active element has a clean line of sight, and seat the U.FL connectors firmly on the air unit before closing up the canopy.
| Polarization | Linear |
|---|---|
| Antenna Connector | U.FL |
| Frequency | 2.4GHz/5.8GHz |
| Made in India | No |
| Brand | Flywoo |
| Gain | 3.8 dBi |
| Antenna Type | Omni |
