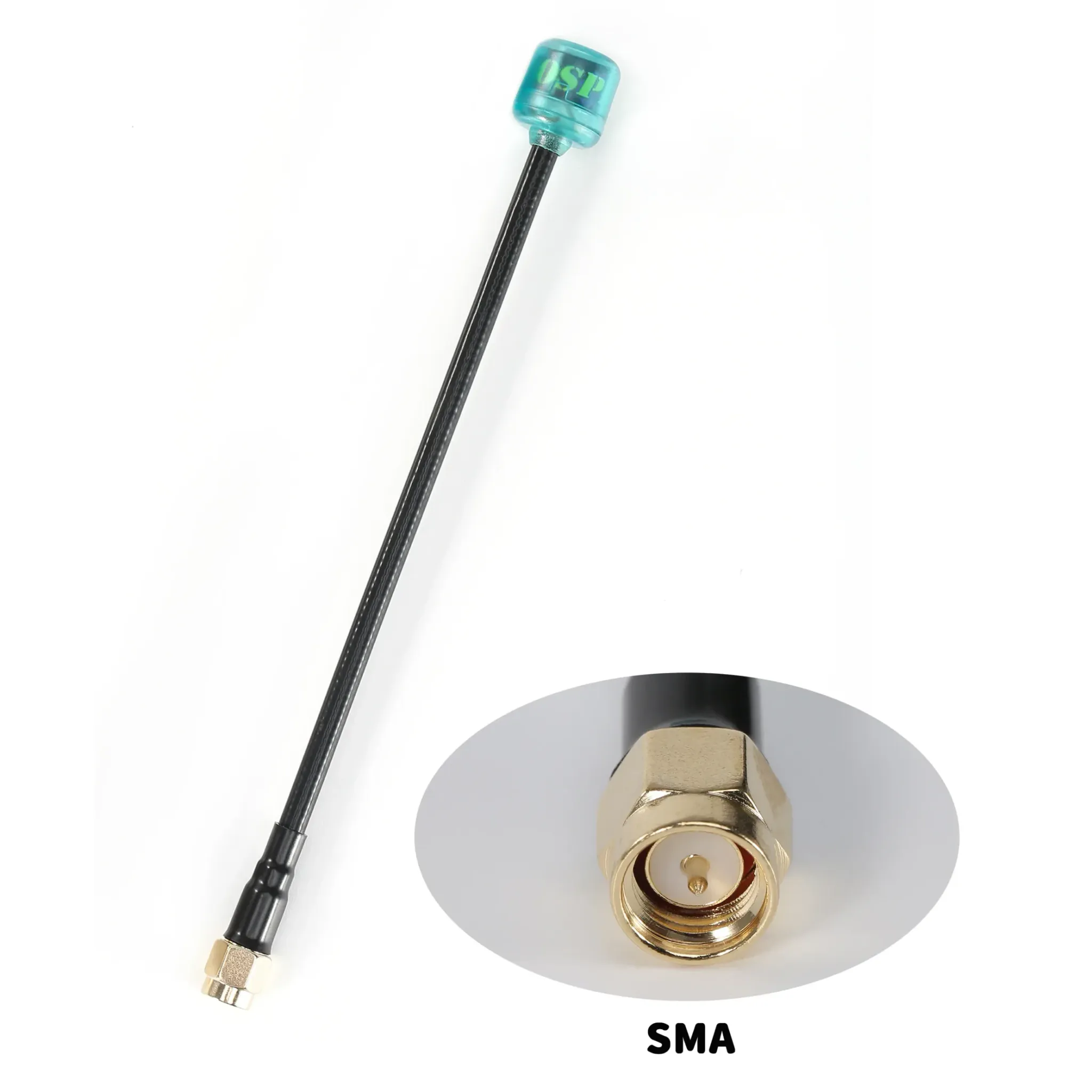

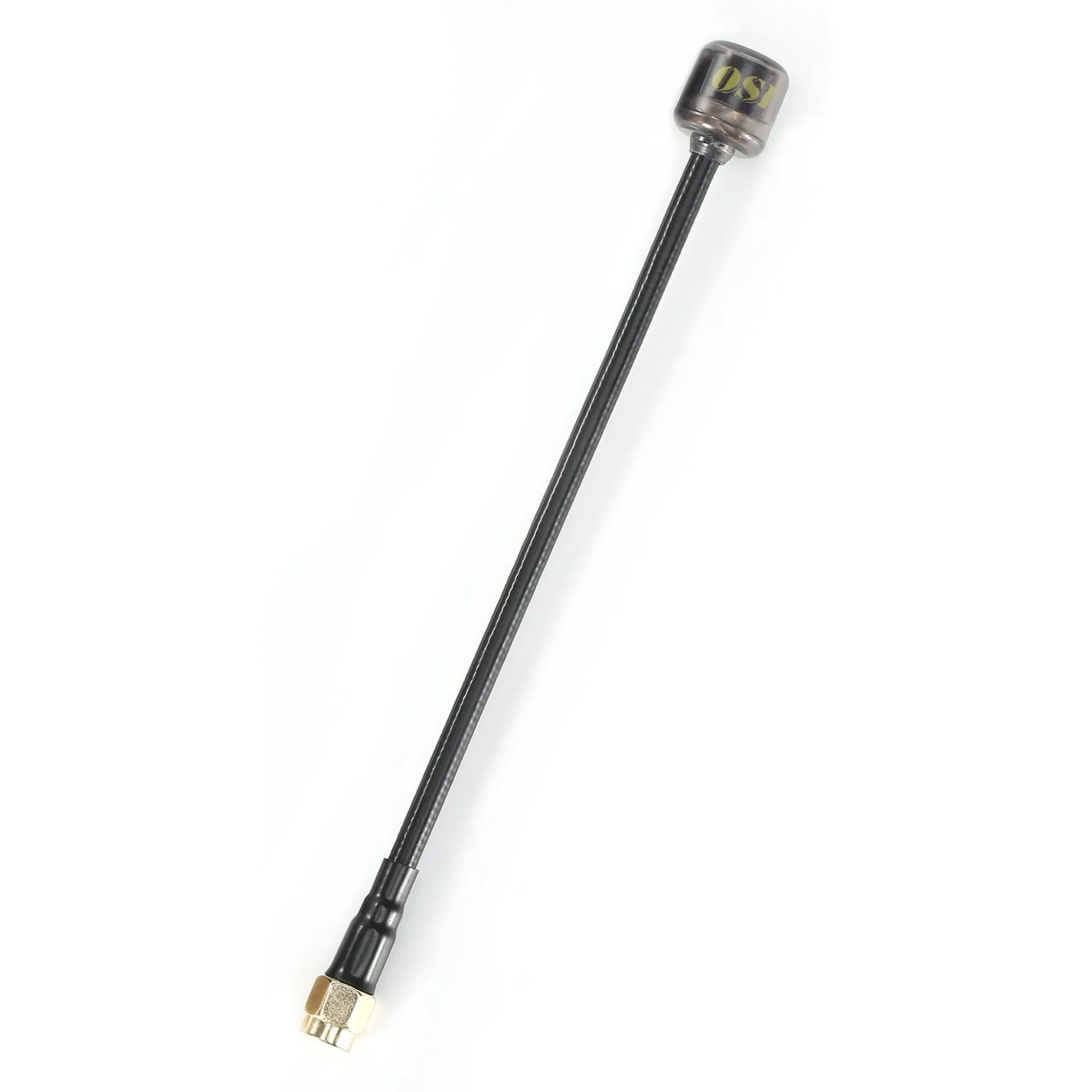

FlyFishRC Osprey 5.8GHz 150mm RHCP SMA Antenna

The FlyFishRC Osprey is a high-performance 5.8GHz FPV antenna built to deliver reliable video transmission for both goggles and video transmitters. At 150mm in length, this extended SMA antenna is specifically sized to clear bulky carbon frames on long-range builds or sit comfortably above the pilot's head when mounted on FPV receiver modules, preventing line-of-sight signal blockages.

Key features

• High-impact polycarbonate housing protects the internal elements against harsh freestyle crashes.
• Sturdy, semi-rigid coaxial cable easily holds your desired bend angle without drooping mid-flight.
• Extended 150mm reach minimizes dead zones caused by carbon fibre plates or human bodies blocking the RF signal path.

Specifications

• Center frequency: 5.8GHz (5500–6000MHz bandwidth)
• Gain: 2.82dBi
• Polarization: RHCP
• Connector: SMA
• VSWR: <1.2
• Radiation efficiency: 98%

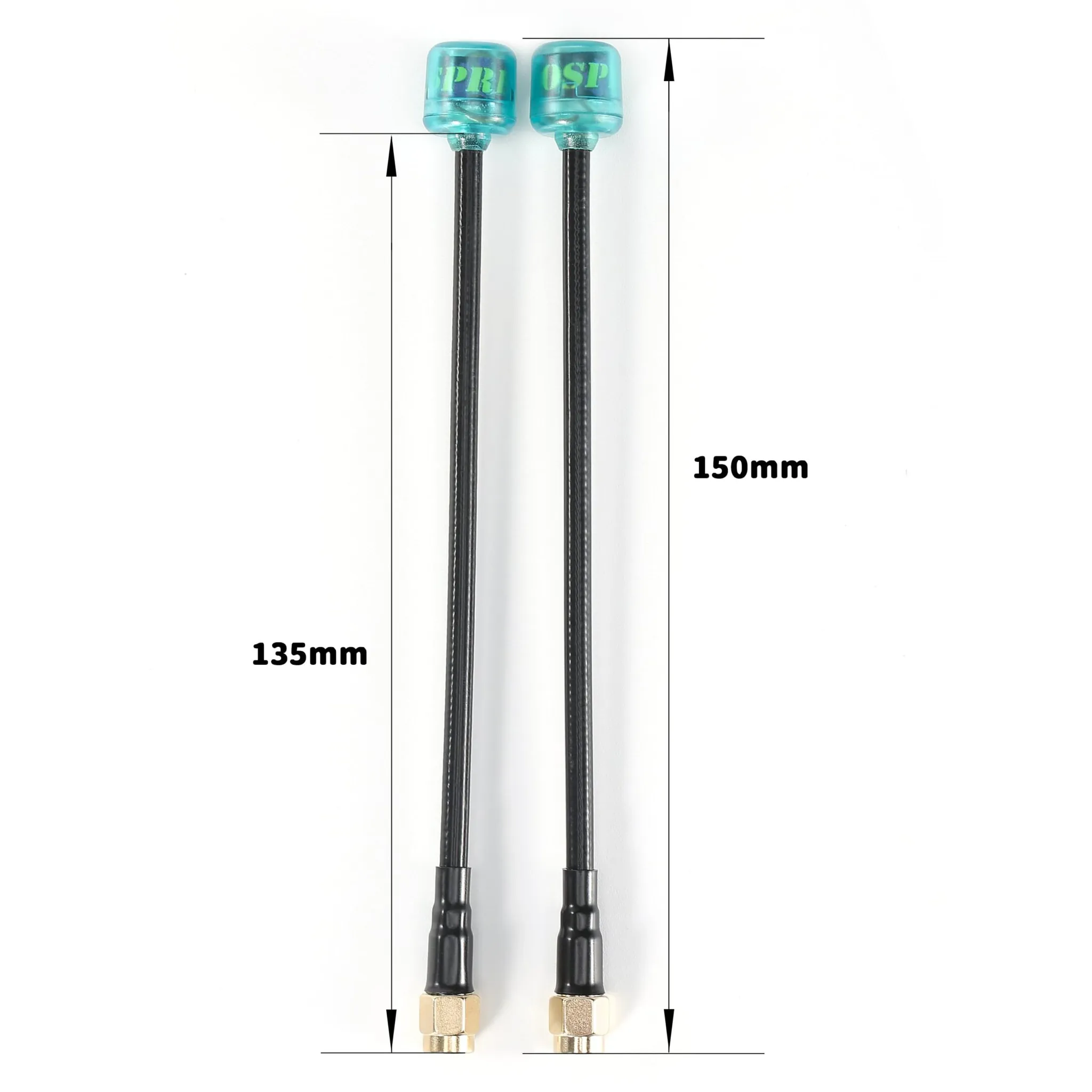

• Length: 150mm

Ensure your VTX antenna is also RHCP before flying to avoid severe signal degradation and to maximize the multi-path rejection of your video link.
