F450/F550 Landing Gear Skid

This F450/F550 landing gear skid is a plastic support part for matching quadcopter frames. It suits repairs, replacements and simple frame builds that need a lightweight landing support under the frame.

Key features

• High-quality ABS plastic construction for a lightweight, skid-proof landing point.
• Gives around 200mm of ground clearance, enough to mount a gimbal or battery underneath while keeping the centre of the frame unobstructed.
• 68mm hole spacing at the top centre for mounting to the frame.
• Useful when an original landing part is damaged or missing.

Specifications

• Material: ABS plastic with glass-fibre tubes
• Ground clearance: Approx. 200 mm
• Top mounting-hole spacing: 68 mm
• Weight: 150 g
• Compatibility: F450, F550 and similar large frames

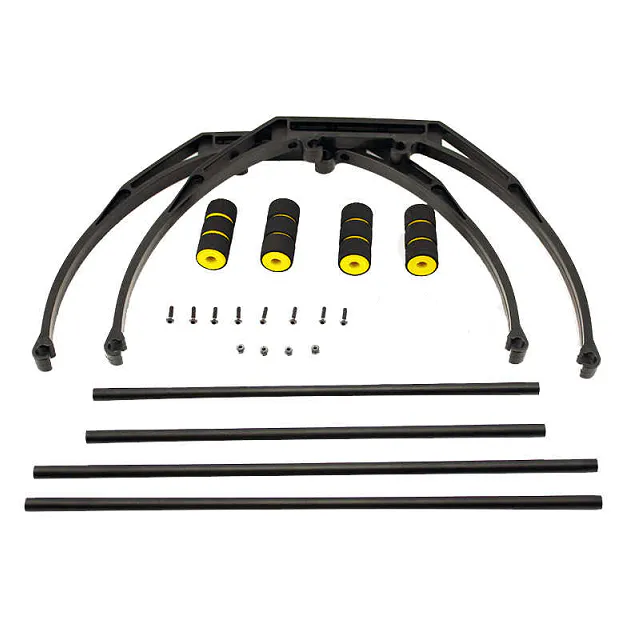

• Assembly parts: 4 x M3 x 12 mm and 4 x M2.5 x 12 mm hex socket screws, 4 x M3 cap nuts, 4 x glass-fibre tubes (8 x 5 x 330 mm), 4 x D8 foot cushions, 4 x D8 end caps

Check the 68mm mounting-hole spacing and the ground clearance you need against your F450 or F550-style frame before ordering.
