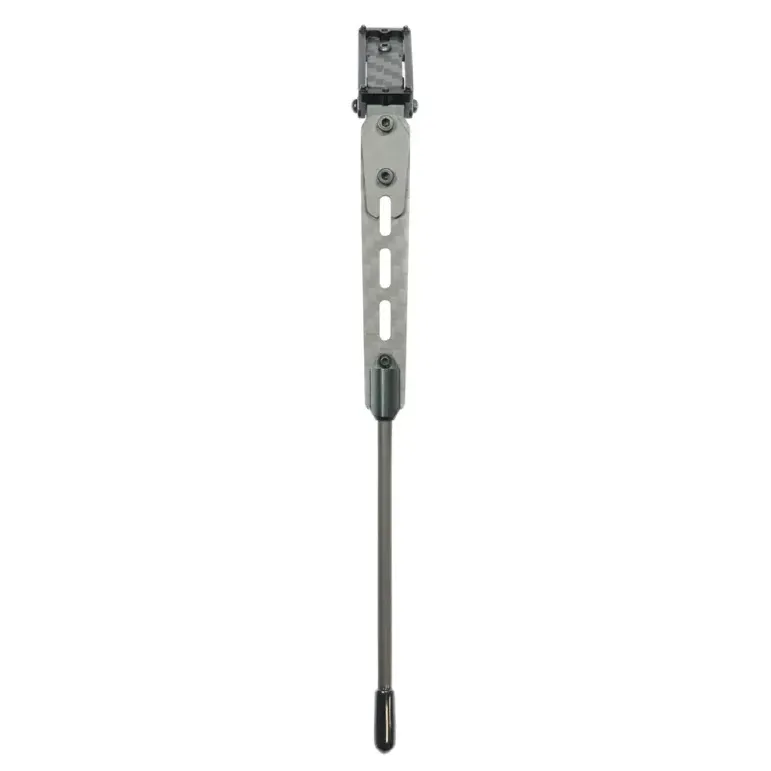

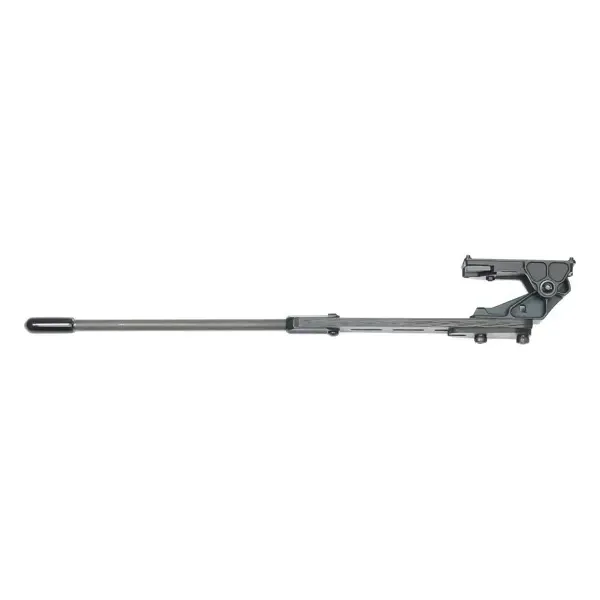

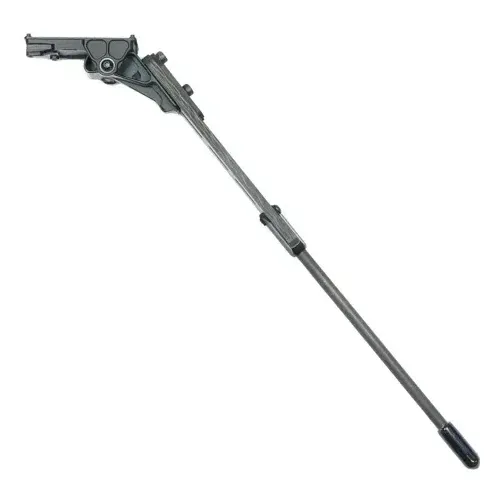

Tarot Peeper I Folding Landing Gear TL750SD3

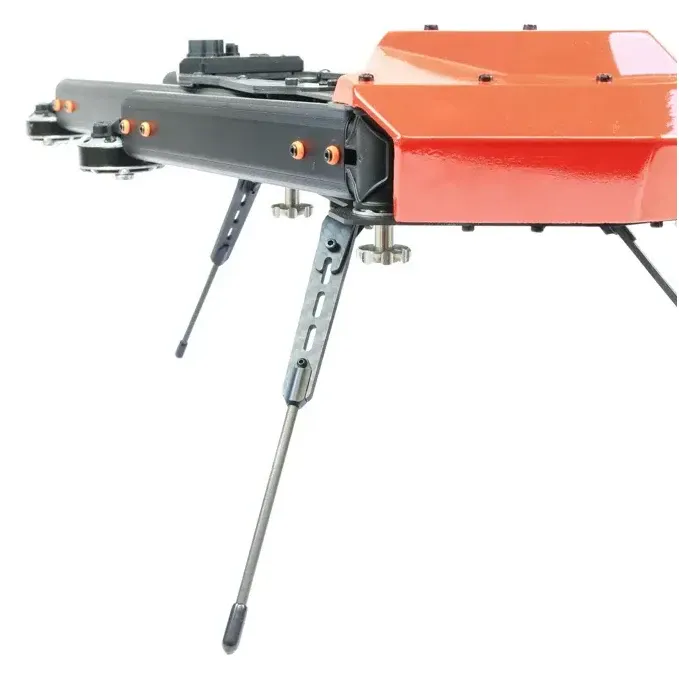

Fast-folding landing gear from Tarot for the Peeper I, combining CNC-machined 6061-T6 aluminium hardware with carbon fibre legs. Each leg folds flat on a locking cam for compact storage and transport, then deploys to give 140 mm of ground clearance for a camera, gimbal or payload.

Key features

• Locking-cam fold: legs fold flat for transport and lock firmly when deployed.
• 140 mm ground clearance keeps an underslung camera or payload off the ground.
• Light build: about 15 g per leg assembly.
• Carbon fibre legs: Ø4 × 100 mm rods with silicone foot covers.

Specifications

• Ground clearance: 140 mm
• Weight: Approx. 15 g per leg
• Metal base: 37 × 15 × 12.5 mm
• Metal component: 33 × 18 × 10 mm
• Carbon fibre plate: 79 × 13 × 3 mm
• Carbon fibre rod: Ø4 × 100 mm
• Silicone foot cover: Ø4 × 17 mm
• Hardware: 8 × M2 hex socket screws
• Material: 6061-T6 aluminium and carbon fibre

If you are fitting it to a frame other than the Peeper I, check your mounting points against the 37 × 15 mm metal base and the M2 screws before ordering.
