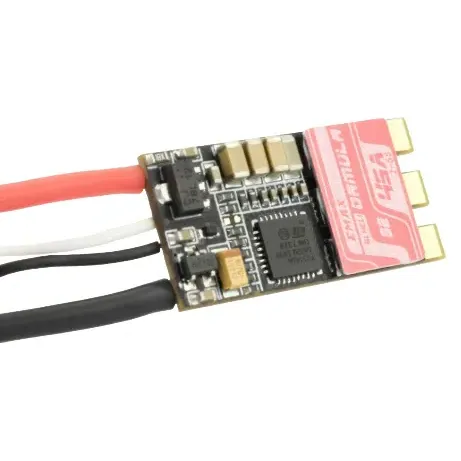

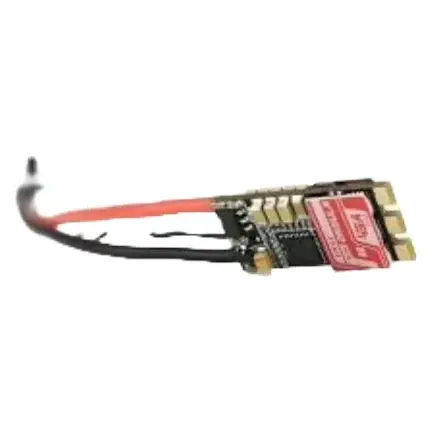

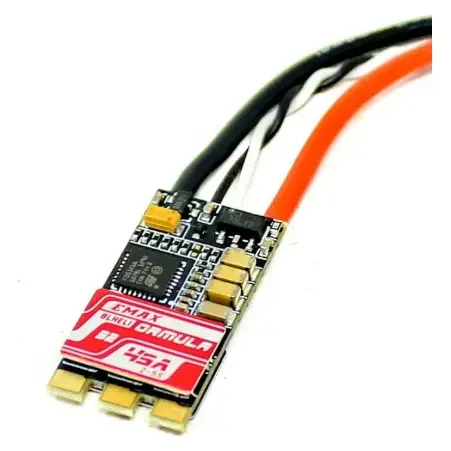

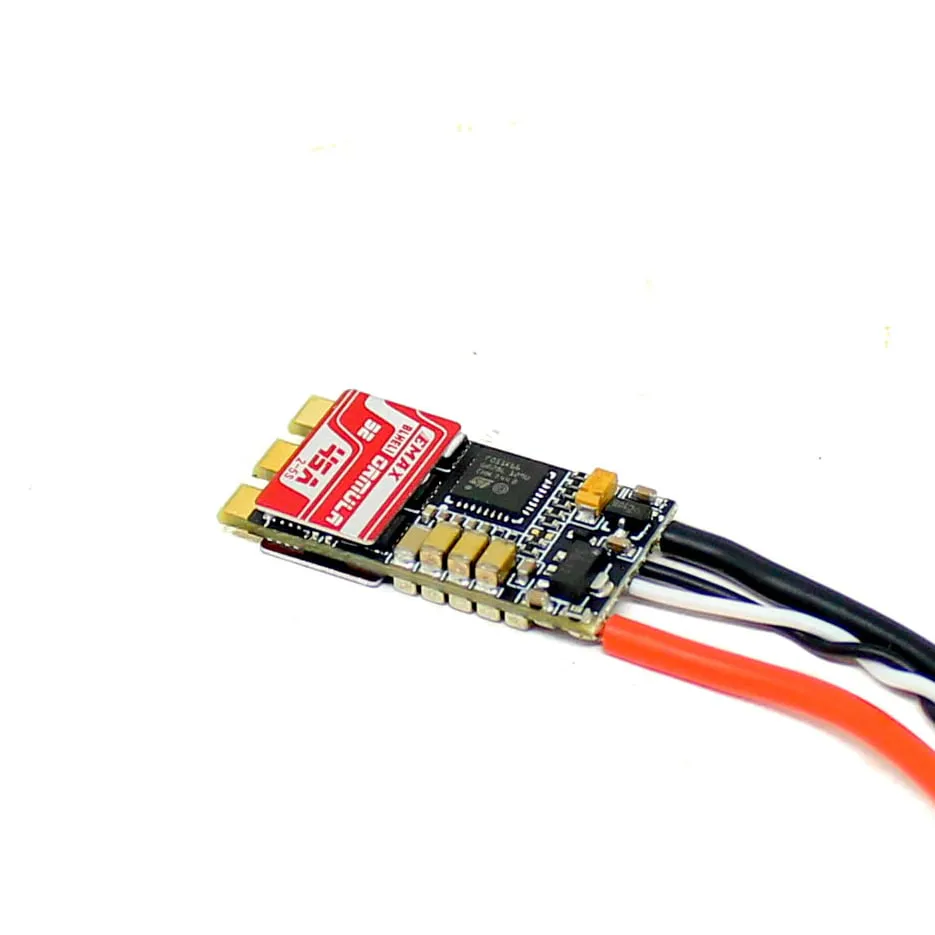

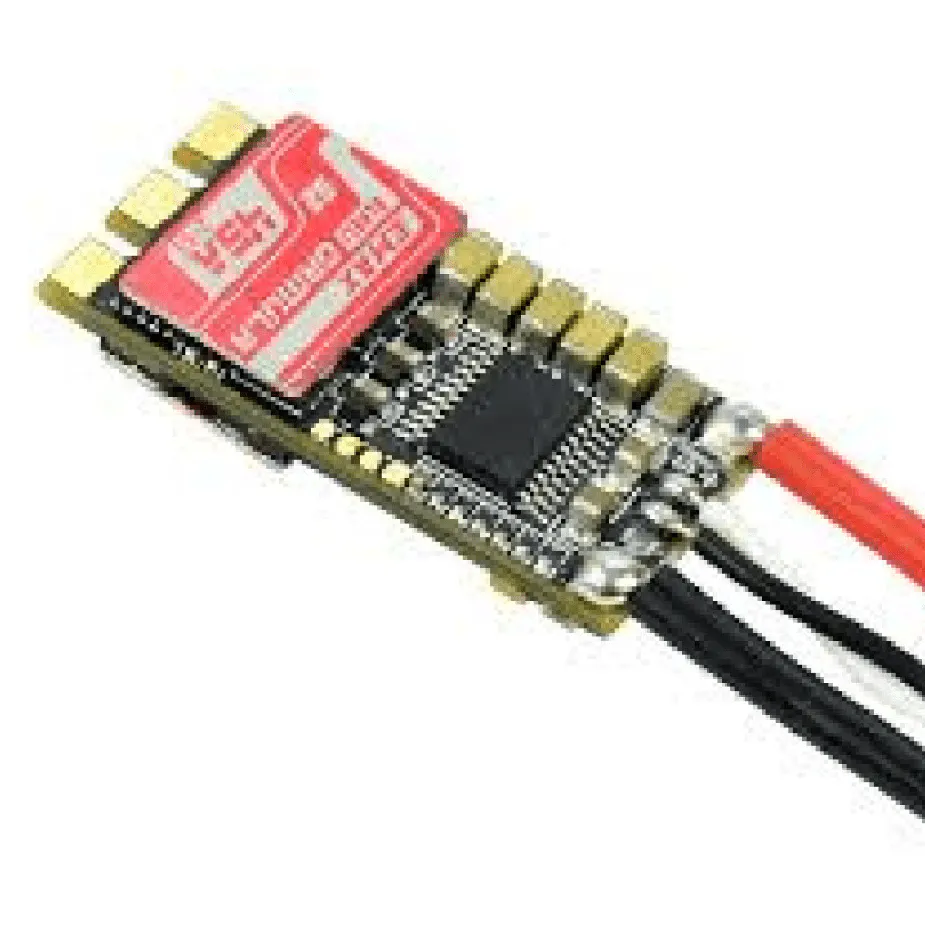

EMAX Formula Series 45A 2-5S BLHeli_32 ESC (DShot1200)

The EMAX Formula Series 45A is a single BLHeli_32 ESC, the first of EMAX's Formula32 line, for multirotors that run one ESC per motor on 2–5S LiPo. Its narrow 13.7 mm body sits neatly on the arms of racing and freestyle frames, and the 45 A rating leaves headroom for high-current motor and prop combinations.

Key features

• 45 A continuous, 55 A burst current
• BLHeli_32 firmware with DShot signalling up to DShot1200
• Made to pair with F3–F7 flight controllers running 32 kHz loop rates
• 2–5S LiPo input; no BEC, so the flight controller and accessories need their own regulated supply

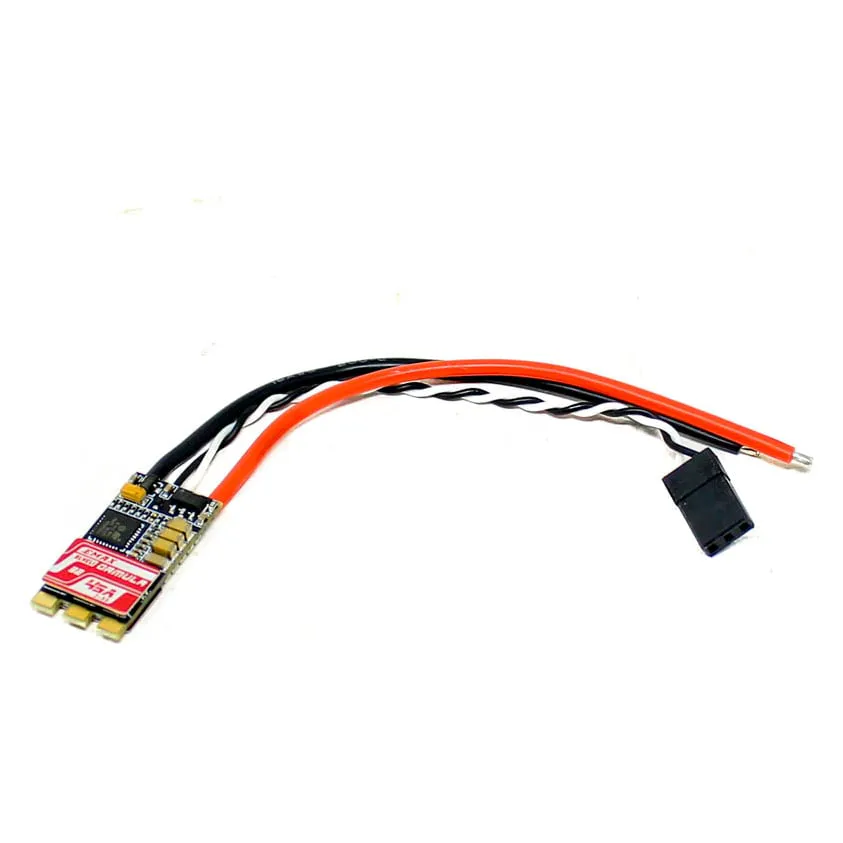

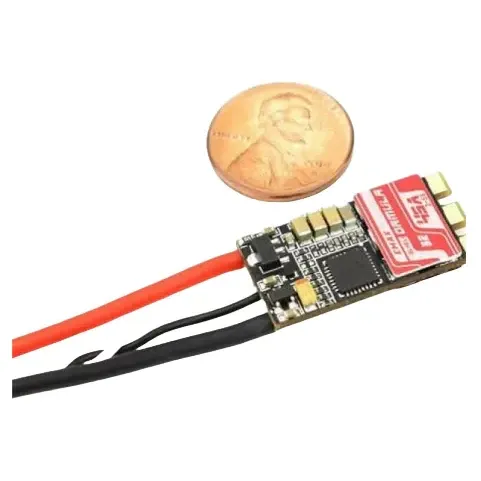

• Compact 28 x 13.7 x 5 mm board with leads of roughly 10 cm

Specifications

• Continuous current: 45 A
• Burst current: 55 A
• Input: 2–5S LiPo (up to 18.5 V nominal)
• Firmware: BLHeli_32
• Protocol: DShot up to 1200
• BEC: None
• Dimensions: 28 x 13.7 x 5 mm
• Cable length: approx. 10 cm
• Weight: 12 g

Order four for a quad and configure motor direction, timing and other settings through BLHeli_32 Suite or Betaflight passthrough.
