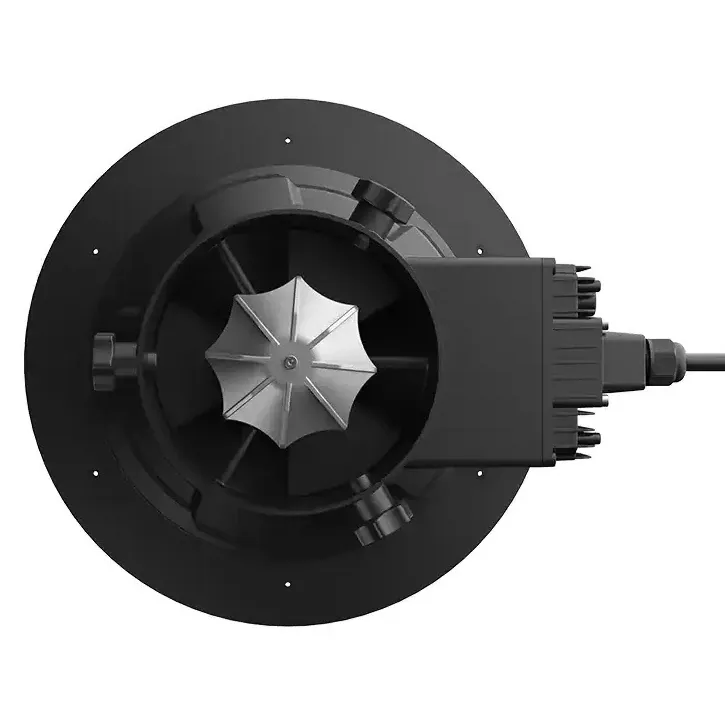

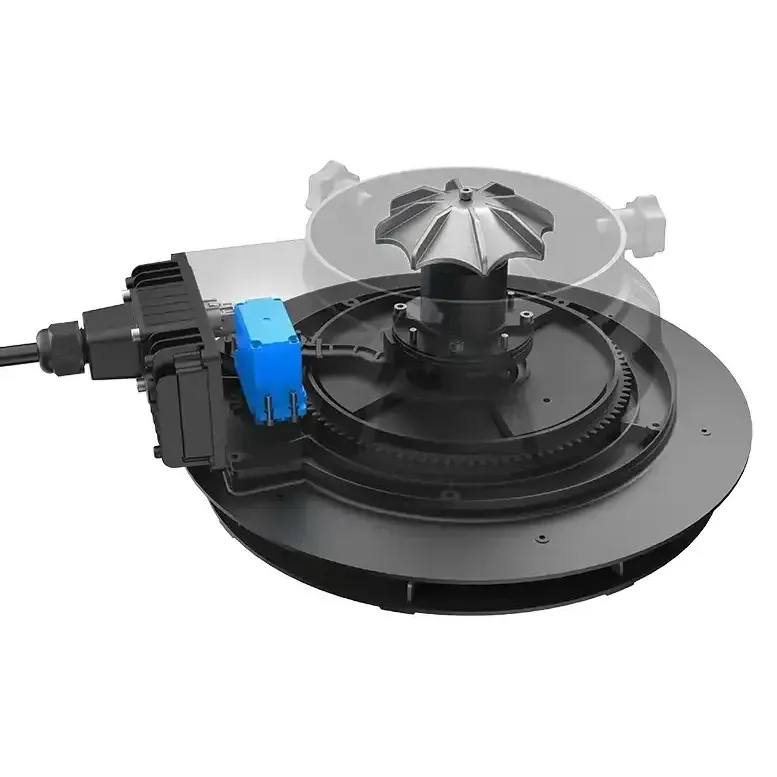

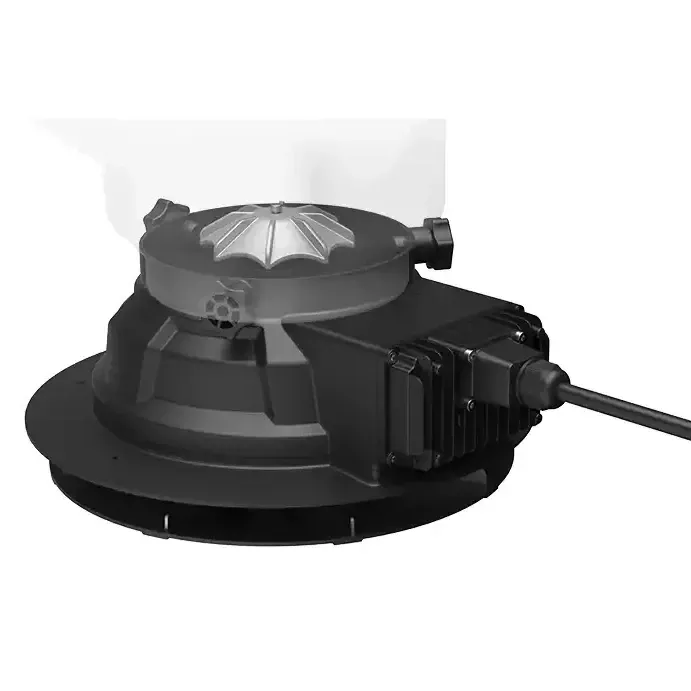

EFT EPS200 Pro Seed & Fertilizer Spreader for Agri Drones

The EFT EPS200 Pro turns an agricultural drone into a granule spreader, broadcasting seed, fertilizer, feed and bait instead of liquid. A 360° centrifugal system throws dry granules across a swath up to 12 m wide, and PWM or CAN control lets it integrate with compatible agricultural drone control systems.

Key features

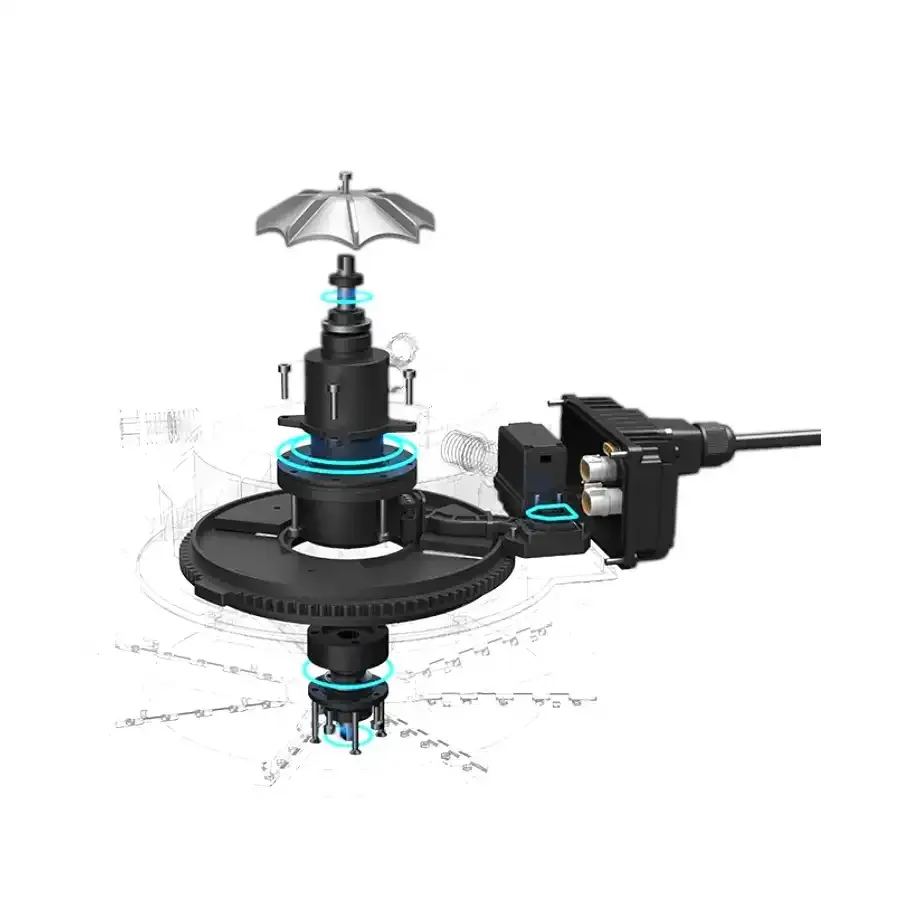

• Umbrella-shaped metal stirring plate keeps granules feeding evenly and limits clogging
• Handles dry granules from 0.5 to 6.0 mm, with the valve opening adjustable from 0 to 60°

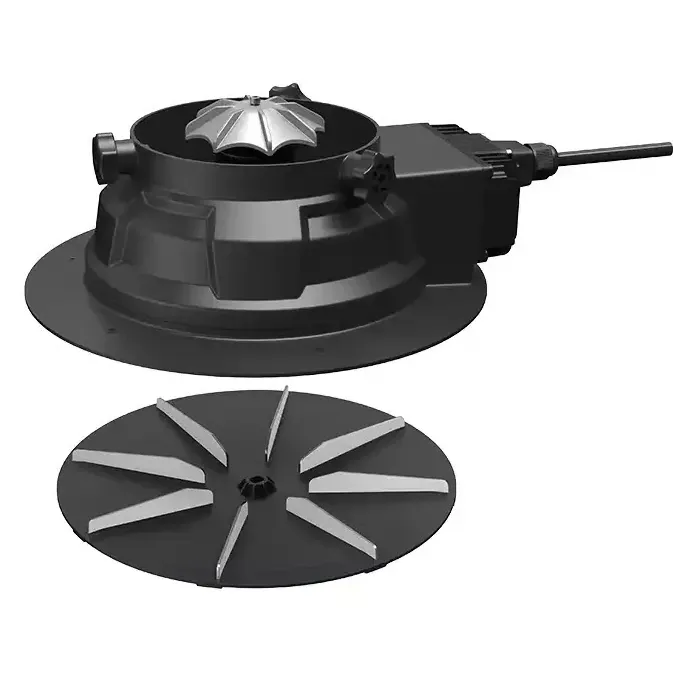

• Metal turntable and reinforced metal blades for wear resistance, spinning at up to 1100 rpm
• Material-level signal (0 V empty, 5 V full) plus fault feedback to the control system
• Fully sealed to IP67, with a quick-release design for cleaning and maintenance
• Wide DC 24–80 V supply range and 180 W maximum draw

Specifications

• Model: EPS200 Pro
• Supply voltage: DC 24–80 V
• Maximum power: 180 W
• Spread width: up to 12 m
• Granule size: 0.5–6.0 mm (dry)
• Valve angle: 0–60°
• Maximum speed: 1100 rpm
• Control: PWM 1000–2000 µs or CAN
• Material-level signal: 0 V empty, 5 V full
• Protection: IP67
• Working temperature: 0–40 °C
• Dimensions: 300 × 250 × 145 mm
• Weight: 1.98 kg

Before ordering, check that your flight or spray controller has a free PWM or CAN output for the spreader, and allow for its 1.98 kg in the payload budget.
