EFT 5L Spraying System Set with 12-14S Brushless Pump

The EFT 5L Spraying System Set is a complete liquid-spraying kit for agricultural drones: a brushless water pump rated at 5 L/min, four extension-rod high-pressure nozzles, and the tubing and fittings to plumb them. It gives you the full spray-side parts list for building or refitting a spray drone.

Key features

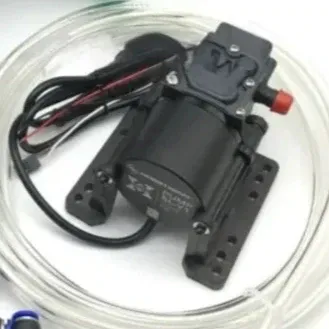

• Pump delivers 5 L/min at 0.35 MPa working pressure; the brushless design runs quieter and lasts longer than a brushed pump
• Runs directly from the drone's main pack (DC 44–60.9 V), so no separate regulator is needed
• Fixed PWM throttle range of 1050–1950 µs for flow control from the flight or spray controller
• IP67-sealed pump with 150 W maximum power
• Nylon-bodied extension-rod nozzles with quick-release joints for fine, even atomisation

Specifications

• Operating voltage: DC 44–60.9 V (12–14S)
• Maximum power: 150 W
• Flow rate: 5 L/min
• Working pressure: 0.35 MPa
• PWM throttle range: 1050–1950 µs
• Protection: IP67
• Pump dimensions: 123 × 76 × 52 mm
• Pump weight: approx. 388 g (338 g without wire)

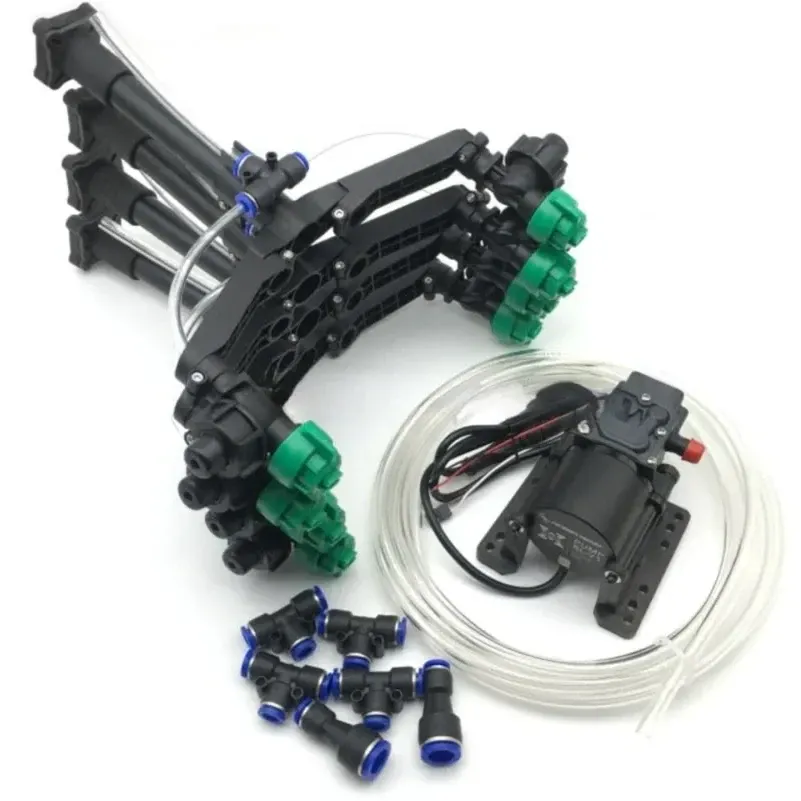

In the box: one 5 L/min brushless pump, four EFT extension-rod high-pressure nozzles, a 4 m tube, two 0.5 m tubes of different diameters, six pneumatic tube connectors and a power-connector accessory set. Replacement nozzles are available individually.
