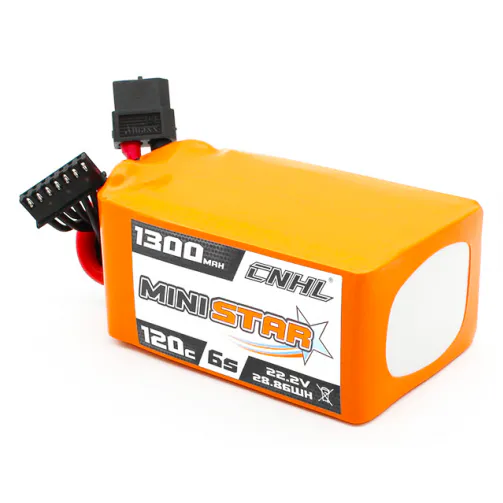

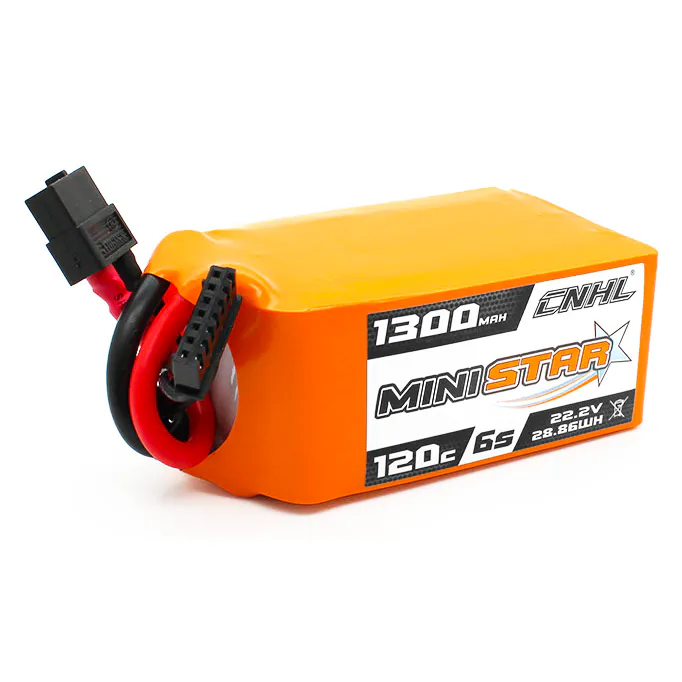

CNHL MiniStar 1300mAh 6S 22.2V 120C LiPo Battery (XT60)

The CNHL MiniStar 1300mAh 6S is a compact 22.2 V pack for 5-inch racing and lightweight freestyle quads where low all-up weight matters more than flight time. At 246 g it is about 37 g lighter than the 1500mAh MiniStar, trading some flight time for a lighter, more agile quad.

Key features

• 120C continuous and 240C burst discharge rating for hard punch-outs on 6S power systems
• 246 g including leads and plug, in a 50 x 34 x 78 mm pack
• 12AWG leads to an XT60 plug, plus a JST-XH balance lead for standard balance chargers
• Accepts up to 5C charge (6.5 A); 1C (1.3 A) is the gentler everyday rate for longer cycle life
• 28.9 Wh nominal energy (22.2 V x 1.3 Ah)

Specifications

• Capacity: 1300mAh
• Voltage: 22.2 V nominal (6S1P), 25.2 V fully charged
• Discharge rate: 120C continuous / 240C burst
• Charge rate: 5C max
• Energy: 28.9 Wh
• Dimensions: 50 x 34 x 78 mm
• Weight: 246 g (with wire and connector)
• Discharge connector: XT60
• Balance connector: JST-XH
• Wire gauge: 12AWG

Between sessions, store the pack at about 3.8 V per cell (22.8 V), and always charge it on a LiPo balance charger inside a LiPo safe bag.
