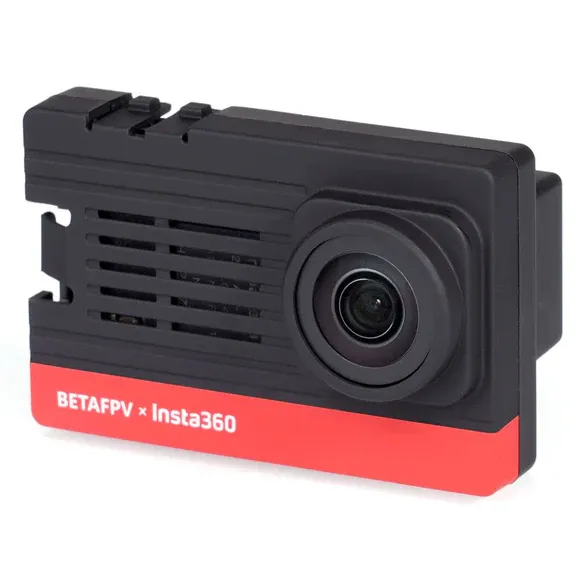

BetaFPV SMO 4K Camera

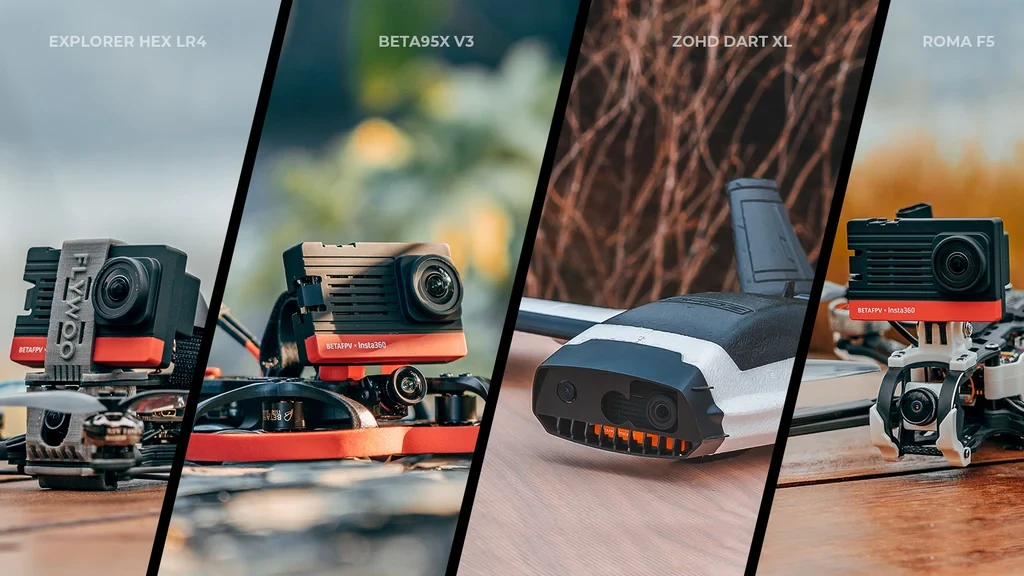

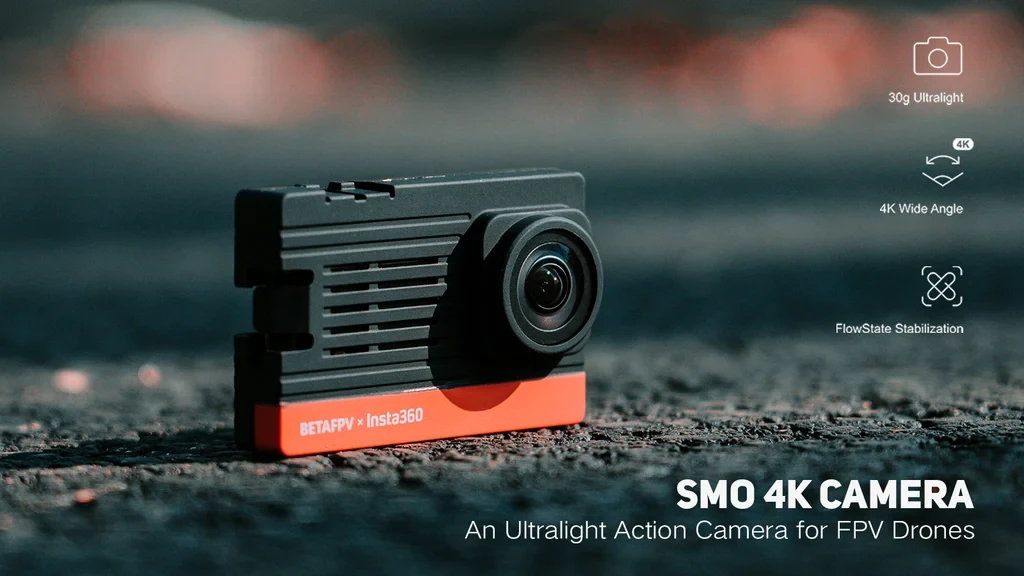

Developed in partnership with Insta360, the BetaFPV SMO 4K is an ultra-lightweight action camera engineered specifically for FPV drones. Stripped of heavy screens and internal batteries, it provides high-quality 4K wide-angle footage for micro cinewhoops, sub-250g builds, and long-range explorers that cannot carry a full-sized action camera.

Key features

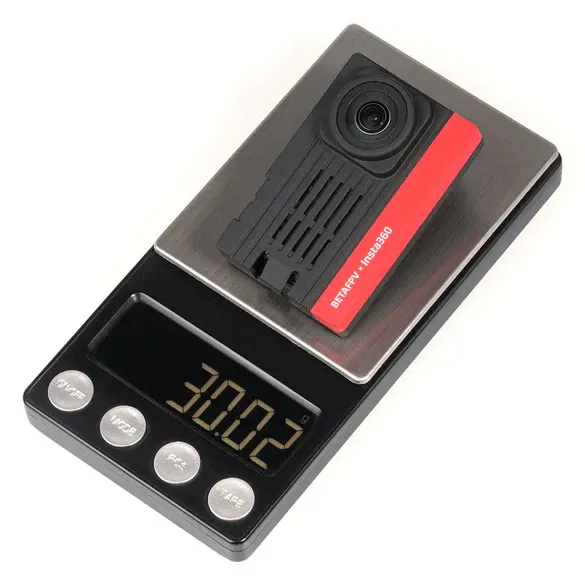

• Ultra-light 30g footprint to maintain drone flight performance and battery efficiency.

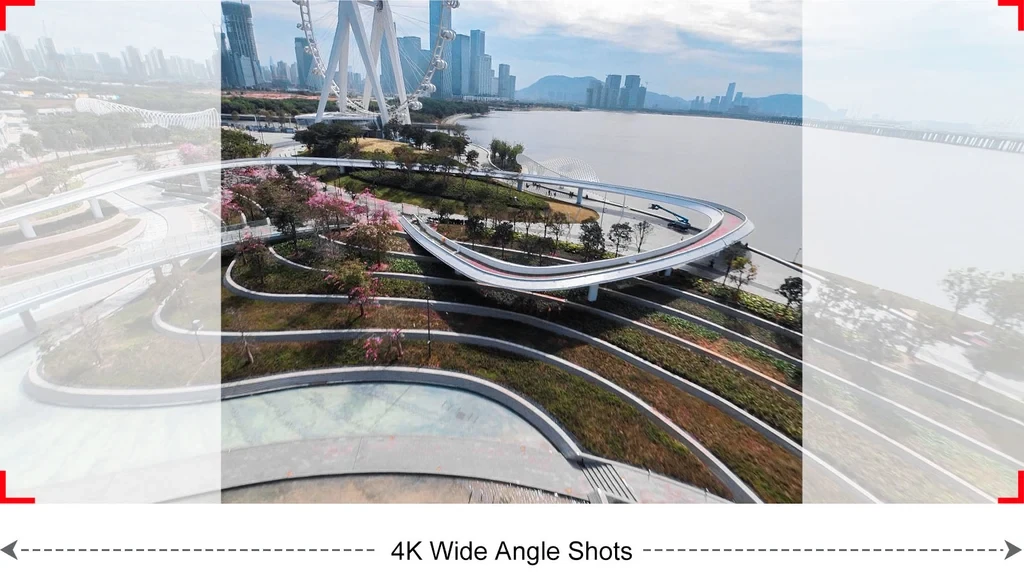

• Records 4K video at 60fps or 2.7K at 100fps with an expansive 153-degree field of view.

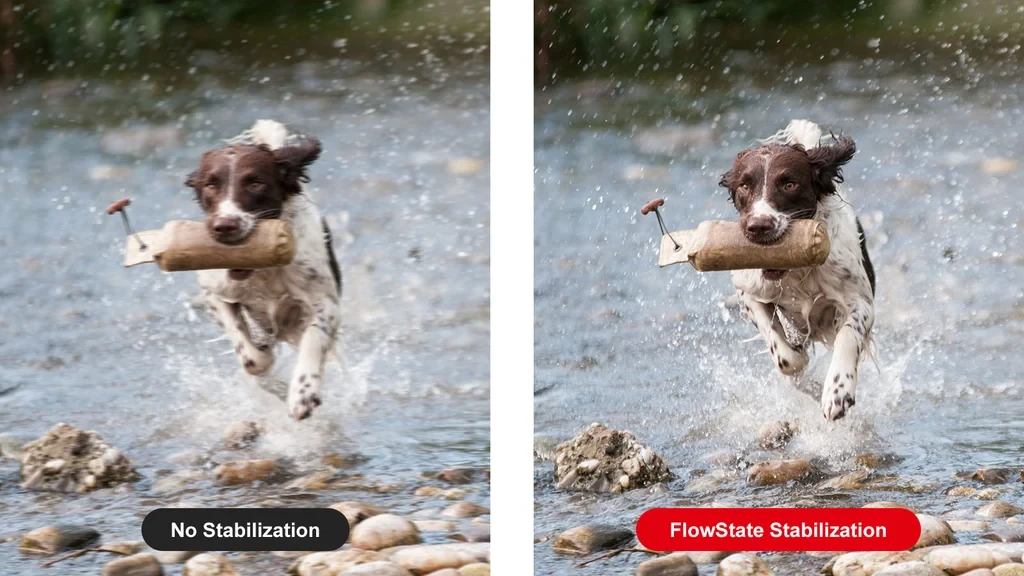

• Insta360 FlowState stabilisation applied via Insta360 Studio for exceptionally smooth cinematic flights.

• Powered directly from the flight battery via a 2-6S (6V-27V) input voltage range.

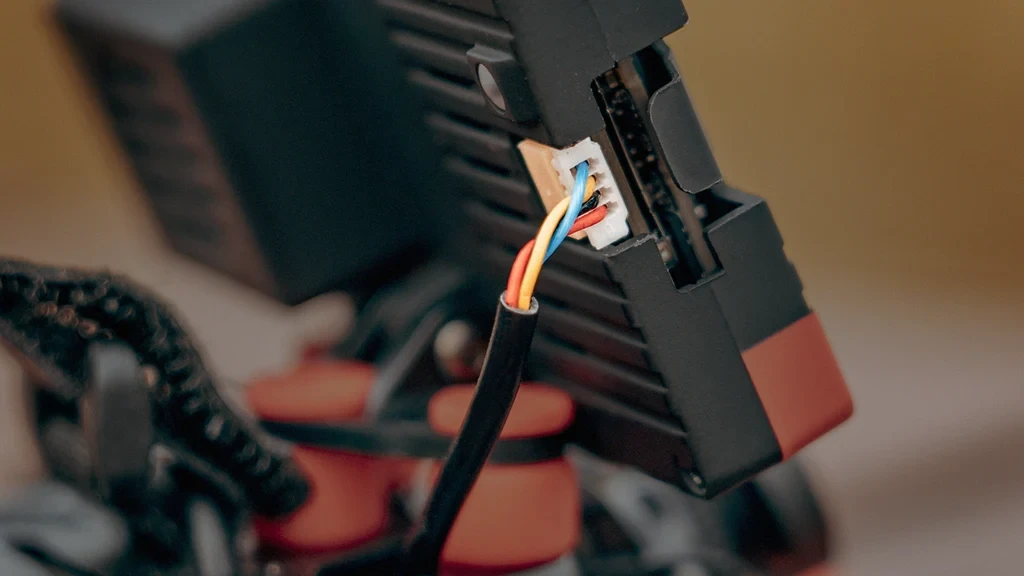

• Includes an SH1.0 4-pin connector to allow remote recording triggers directly through a flight controller UART.

Specifications

• Weight: 30g

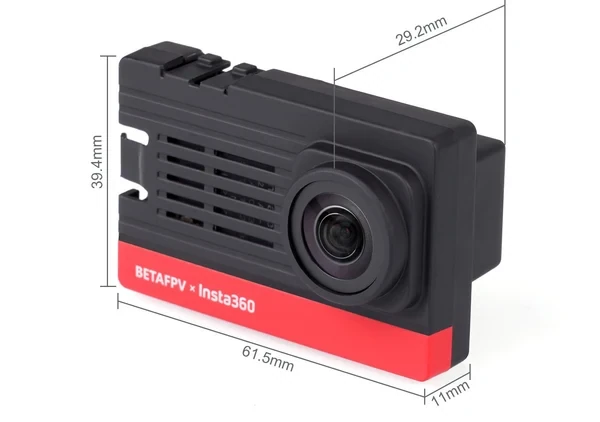

• Dimensions: 61.5x39.4x29.2mm

• Input Voltage: 2-6S LiPo (6-27V)

• Video Resolution: 4K@60fps, 2.7K@100fps, 1080p@200fps

• Video Format: MP4 (H.264 / H.265)

• Max Bitrate: 100Mbps

• Lens: F2.8, 153 deg FOV

• Connector: SH1.0 4-Pin

• 4:3 mode: 4000x3000@30fps

• Storage: microSD, UHS-I V30 or faster, exFAT, up to 1TB

• Wireless: Bluetooth 4.0, 5GHz Wi-Fi

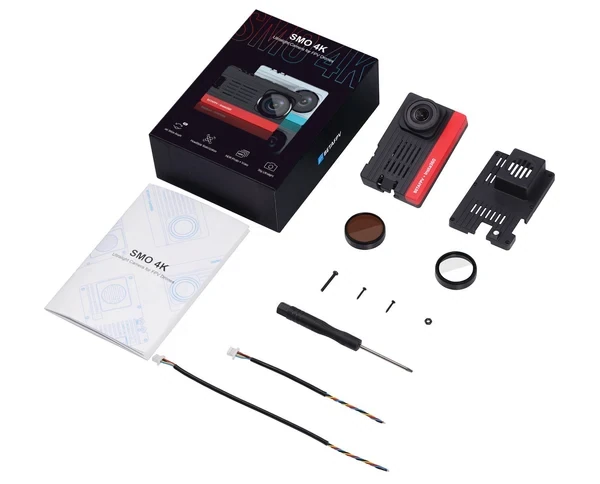

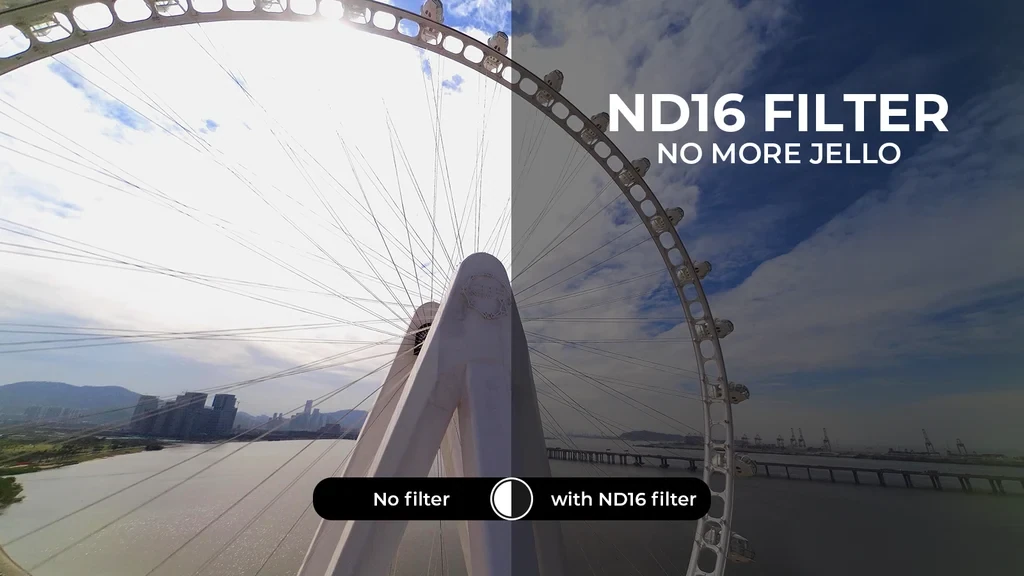

• In the box: UV filter and ND16 filter

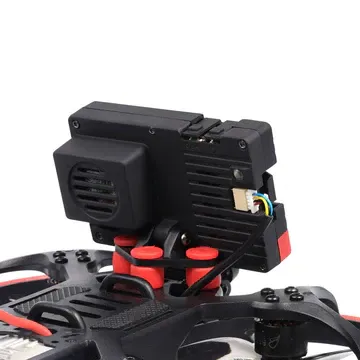

The camera mounts natively to standard FPV action camera bases or custom TPU prints. To control recording via a radio transmitter switch, wire the SMO 4K control pin to an available UART on your flight controller and configure the camera control protocol within Betaflight.

Firmware note: do not install Insta360's v1.3.8 firmware (released November 2021) on this camera. It is not compatible with the SMO 4K and cannot be rolled back.
