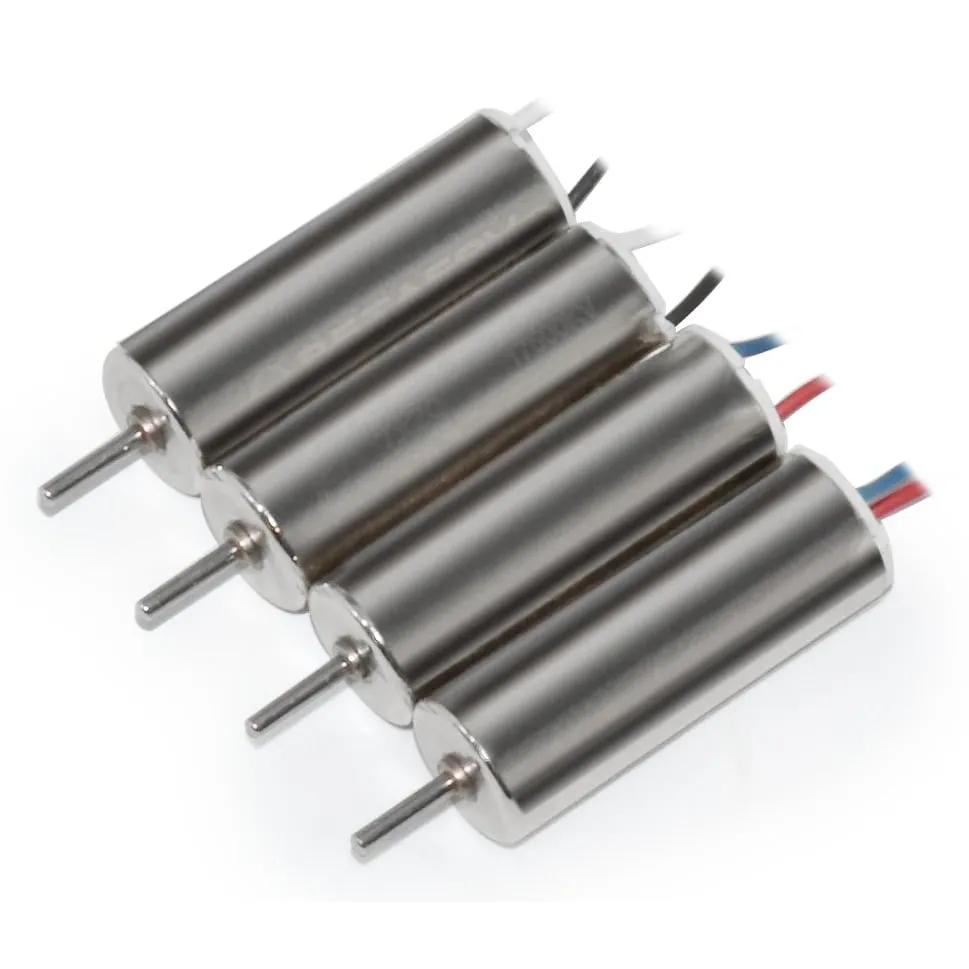

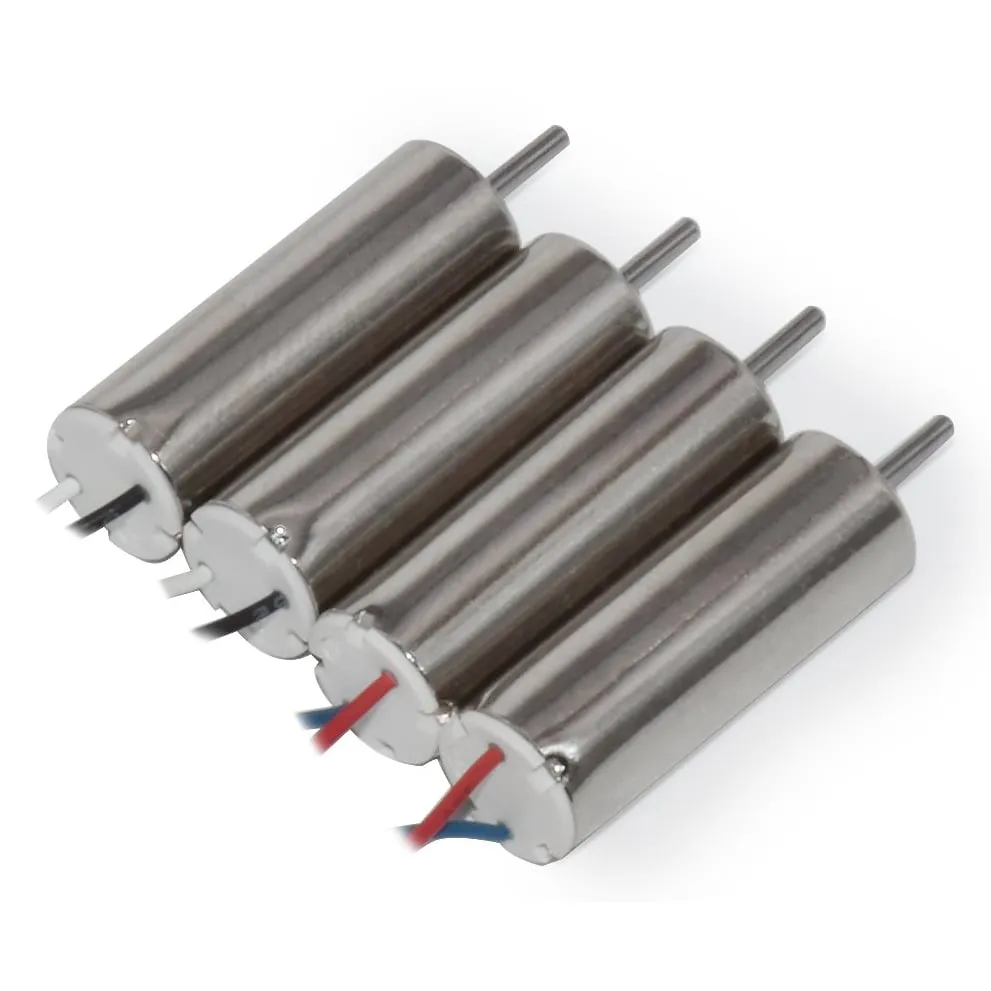

BetaFPV 7x20mm 17500KV Brushed Motors (2CW+2CCW)
₹1,149Incl. GST
SKU BFPV-0720-17500KV-4PCS
Stator Size: 0720KV: 17500 KVShaft: 1.0mmInput Voltage: 1S
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
Coreless 7x20mm brushed motors from BetaFPV for 75mm-class 1S micro quads such as the Beta75, KingKong Tiny 7 and Cheerson CX-95S. The set covers a whole quad, two clockwise and two counter-clockwise motors, each fitted with a JST 1.25mm plug for plug-in replacement on boards that use it.
Key features
- About 60,000 RPM at 3.4V for lively 1S micro flying
- 1.0mm shaft for 1mm-bore micro props

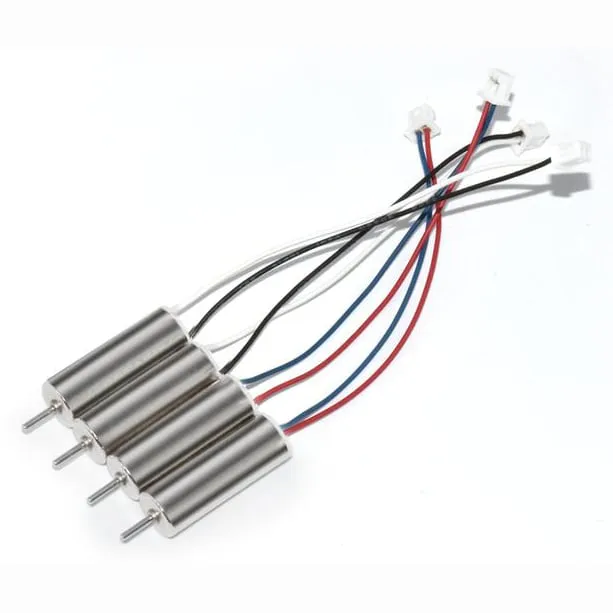

- Colour-coded leads: red/blue on CW motors, black/white on CCW motors
- About 3.5g per motor, with 56mm leads
- 1S only, not designed for 2S
Specifications
- Size: 7mm diameter x 20mm length
- KV: 17500KV
- No-load speed: 60,000 RPM at 3.4V
- Voltage: 1S LiPo
- Shaft: 1.0mm
- Weight: approx. 3.5g each
- Lead length: 56mm
- Connector: JST 1.25mm
- Quantity: 4 (2 CW + 2 CCW)
These are not for the Blade Inductrix, Tiny Whoop or Nano QX, which take different motors. Never drive a brushed motor in reverse, as it wears the brushes, and break new motors in at low throttle before the first full-power flight.
| Stator Size | 0720 |
|---|---|
| KV | 17500 KV |
| Shaft | 1.0mm |
| Input Voltage | 1S |
| Weight | 3.5 g |
| Brand | BetaFPV |
| Made in India | No |
