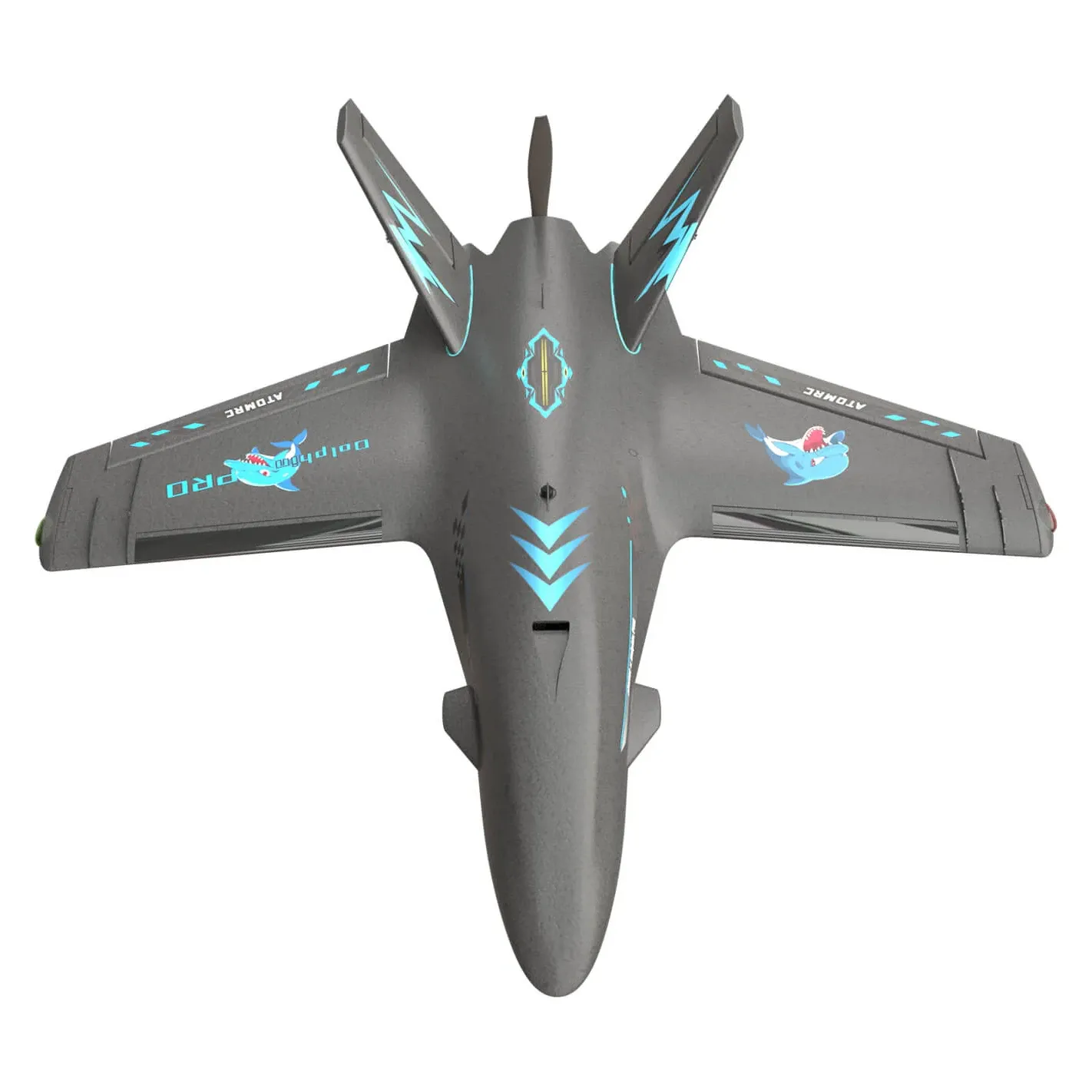

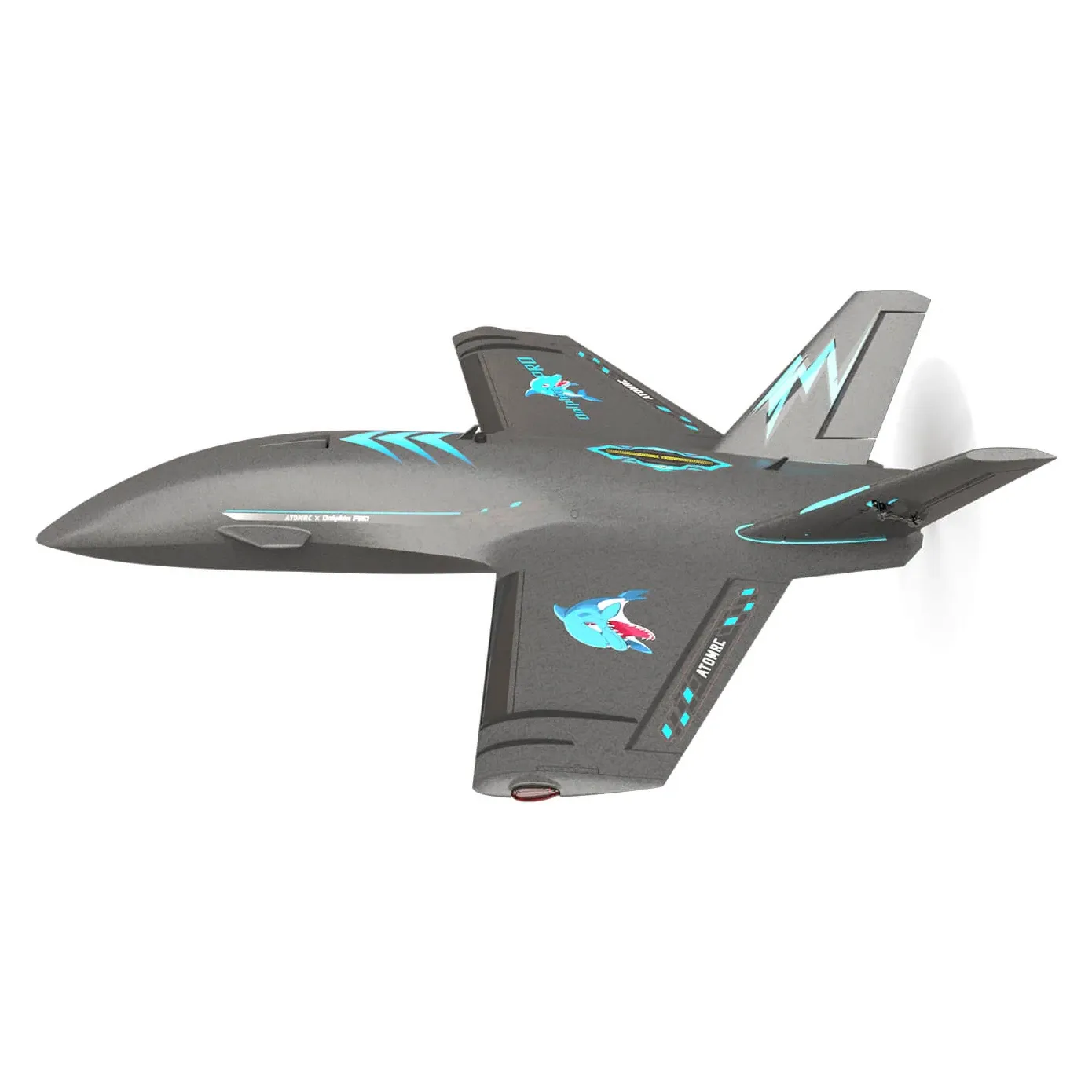

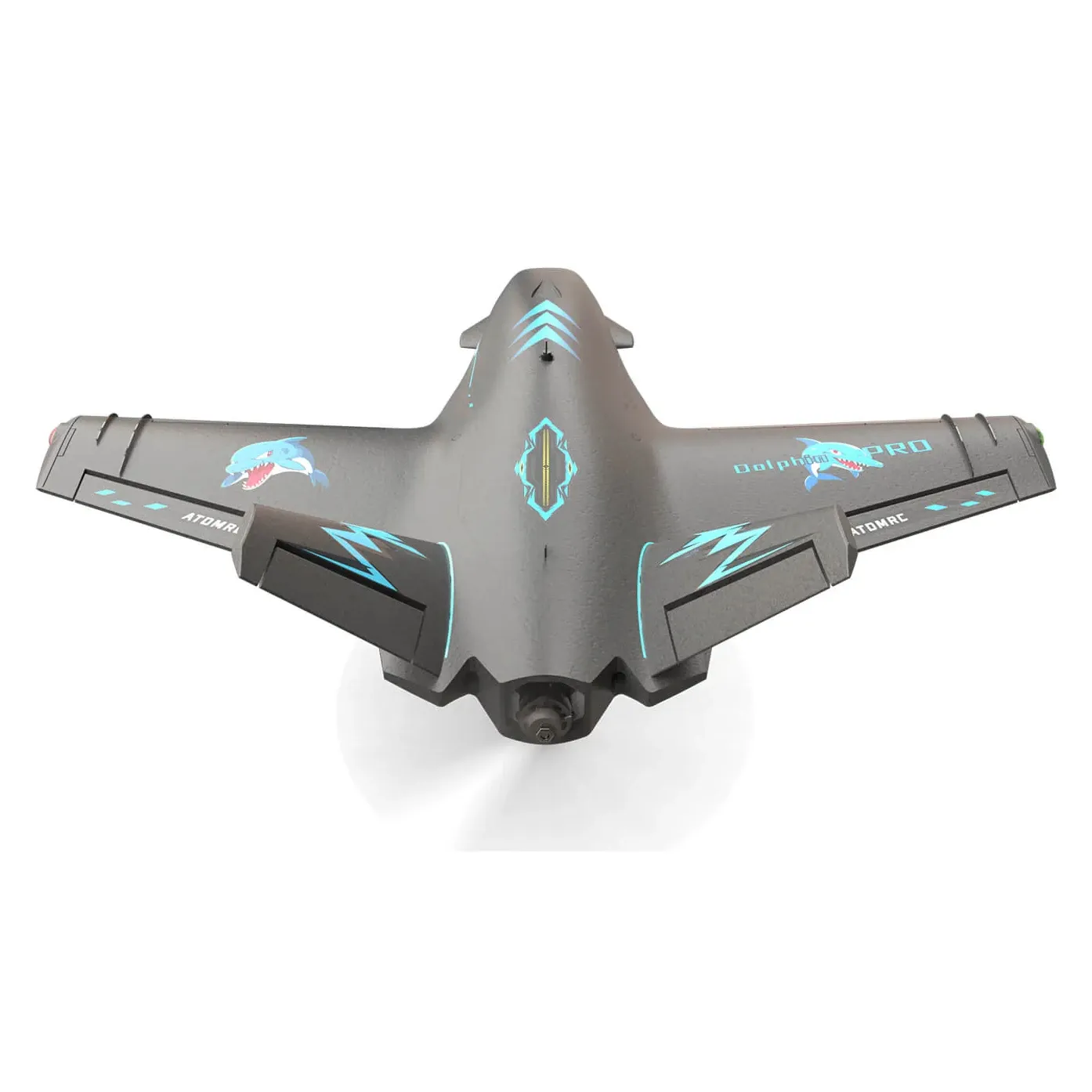

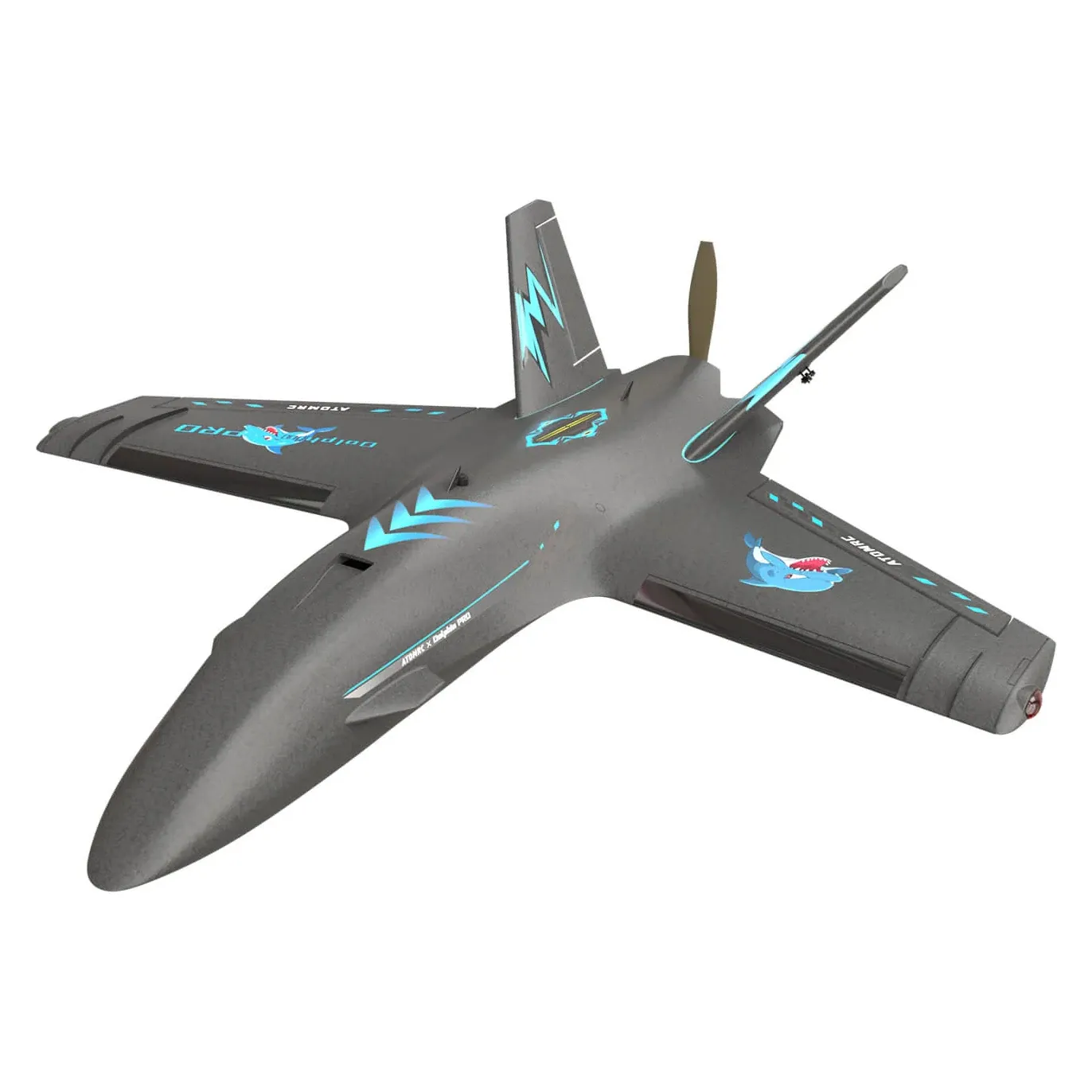

AtomRC Dolphin Pro 800mm FPV Fixed Wing (PNP+S)

The AtomRC Dolphin Pro is an 800mm EPP foam fixed-wing FPV aircraft with a movable V-tail and forward-swept wings tuned for stable low-speed flight, sold here in PNP+S trim with the motor, ESC and servos pre-installed.

Key features

• Ships with a 2807 1100KV motor and a 6S 50A BEC-equipped ESC, giving a 1.3–1.4:1 thrust-to-weight ratio and 2081g of full-load static thrust
• 862mm fuselage length and a 16.96dm² wing area leave room for a flight controller, GPS and a larger battery
• Front bay accepts the DJI O4 Pro or O3 digital FPV system
• Full-aircraft quick-release structure breaks down for transport and rebuilds without tools
• Wing-tip and belly LED navigation lights aid orientation in low light

Specifications

• Wingspan: 800mm
• Length: 862mm
• Wing area: 16.96dm²
• Material: EPP foam
• Recommended motor: 2807 1100KV
• Recommended ESC: 6S 50A (with BEC)
• Recommended propeller: 8040-2
• Recommended battery: 6S1P 21700 Li-ion
• Build level: PNP+S (motor, ESC, servos installed)
• Servos: 4 x 9 g metal-gear servos (S09M), installed
• In the box: pre-assembled airframe and wings with motor, ESC, servos and navigation lights installed, 2 x 8040 propellers, linkages, screws and mounting hardware

Add a receiver, a 6S battery and your FPV video system to fly; an INAV-compatible flight controller is recommended for GPS-assisted flight and return-to-home on longer sorties.
