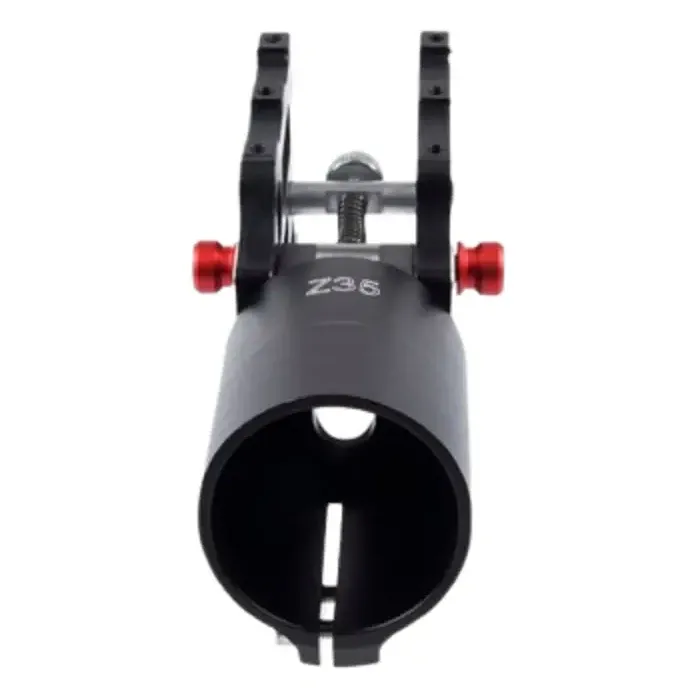

Z35 V3 Aluminium Folding Arm Tube Joint (35mm)

The Z35 V3 is a heavy-duty CNC aluminium folding joint for 35 mm arm tubes on large multirotors: hexacopters, octocopters and agricultural, survey and inspection frames. The arms fold for transport and lock rigidly for flight without taking the frame apart.

Key features

• Square, lengthened backrest in thick CNC-machined aluminium resists bending and holds the arm without play once locked
• Stainless-steel pivot shaft in place of the older copper shaft, so it does not bend with use
• 5° up-tilt built into the arm seat for added flight stability
• Screw-clamped lock closes the seat tightly around the tube

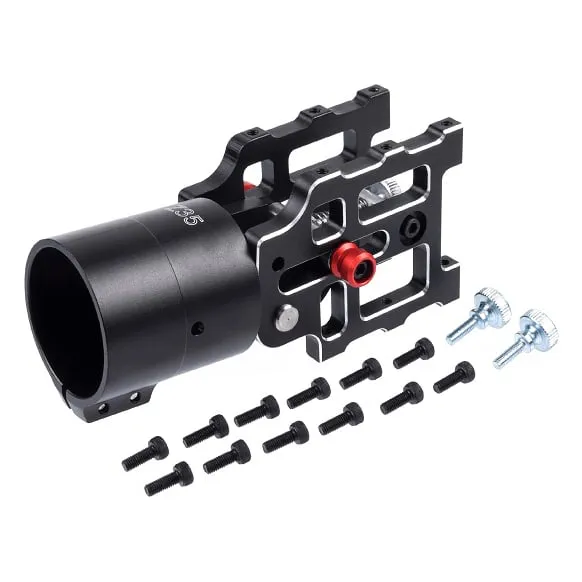

• Mounting screws included for fixing the joint to the centre plate

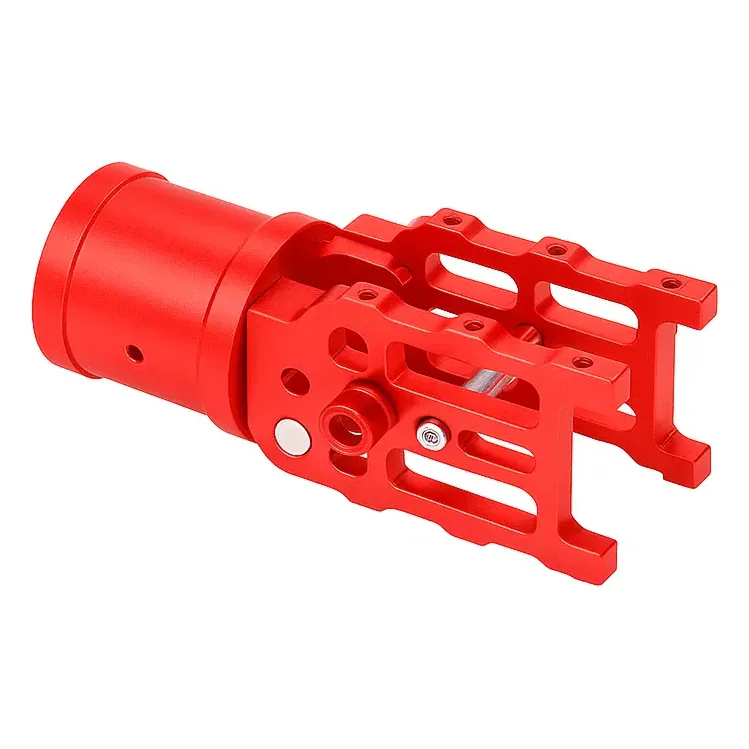

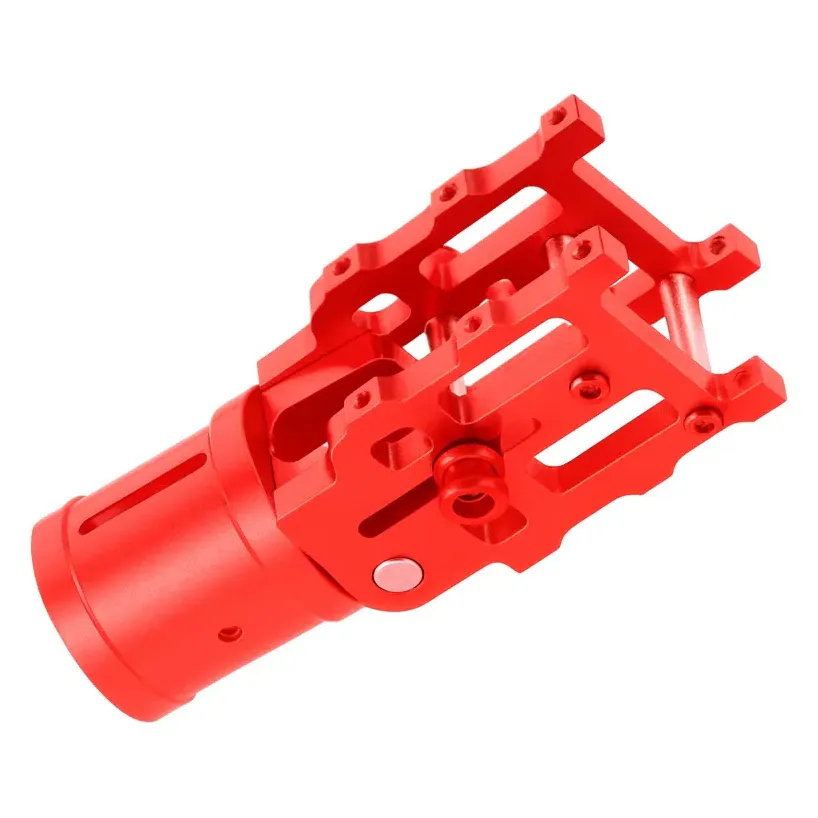

• Choose a black or red anodised finish

Specifications

• Tube size: 35 mm (joint ID 35 mm, OD 38 mm)
• Length: about 110 mm
• Up-tilt: 5°
• Material: CNC aluminium alloy with stainless-steel shaft

Sold singly: order one per arm, so four for a quad, six for a hexa and eight for an octo. This joint takes 35 mm outside-diameter tube only, so measure your arms before ordering.
