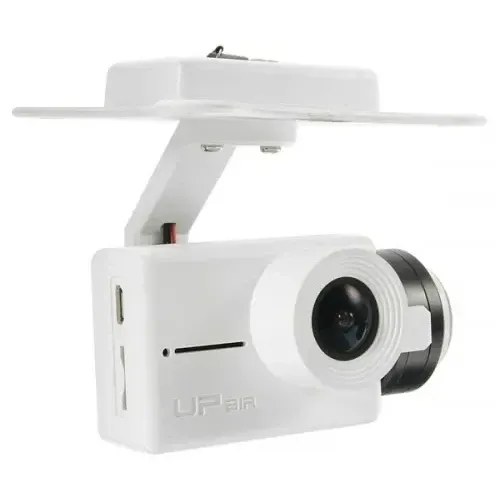

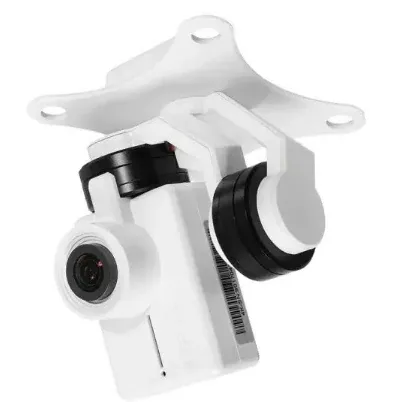

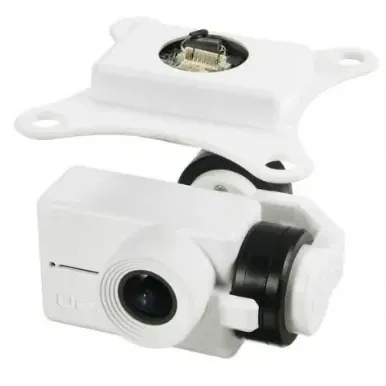

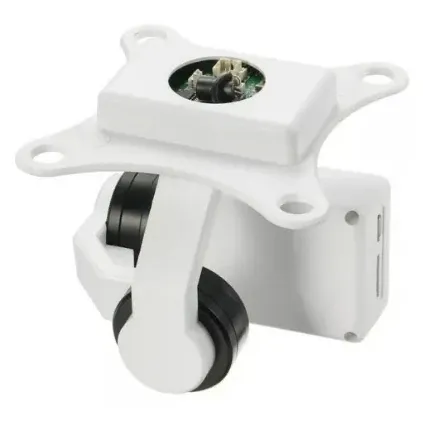

UpAir One Spare 2K/4K Camera with 2-Axis Gimbal

This is the replacement camera and 2-axis motorised gimbal assembly for the UpAir One camera drone, for pilots whose original unit has been damaged in a crash or no longer records properly. It shoots on a Sony 1/2.3-inch CMOS sensor and sends a live view to the controller or a mobile device.

Key features

• 12 MP stills: photos at 12, 8 or 5 MP, saved as JPG; video is saved as MOV.
• Stabilised footage: the 2-axis gimbal holds the camera to +/-0.2 deg, damping vibration and camera shake.
• Remote tilt: pitch is controllable from -30 to 90 deg at up to 15 deg/s.

Specifications

• Sensor: Sony 1/2.3-inch CMOS
• Video, 4K version: 4K 24 fps, 2.5K 30 fps, 1080p 30/60 fps, 720p 60/120 fps
• Video, 2K version: 2K 30 fps, 1080p 30/60 fps, 720p 60/120 fps
• Photo resolution: 12 MP, 8 MP, 5 MP
• Field of view: 112 deg
• Gimbal: 2-axis motorised, +/-0.2 deg control accuracy
• Pitch range: -30 to 90 deg, 15 deg/s max

It fits the UpAir One only. The UpAir One camera comes in 2K and 4K versions with different recording modes, so check which version your drone carries and confirm the match with us before ordering.
