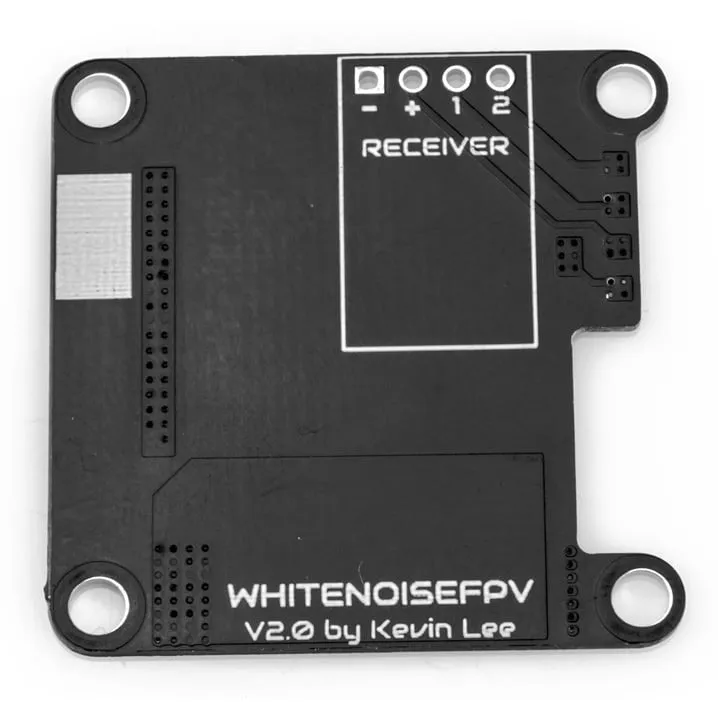

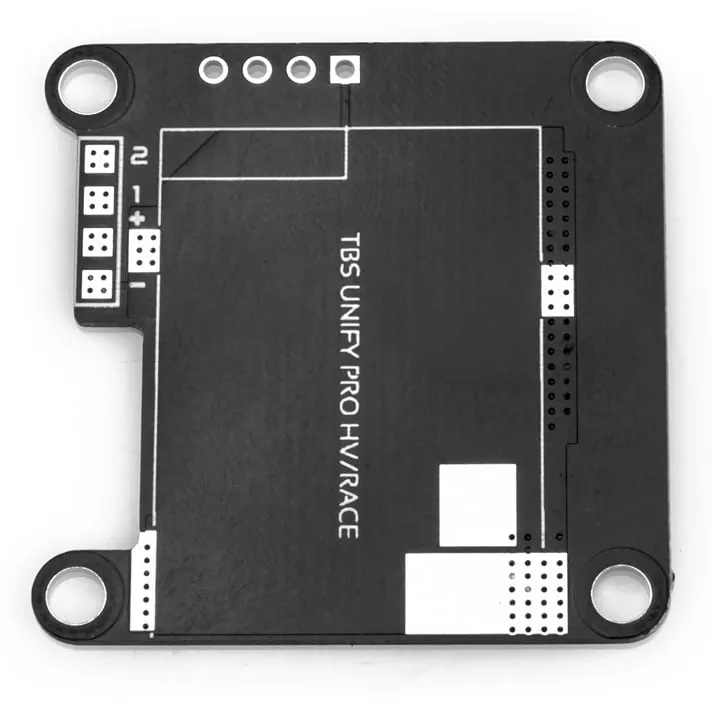

Unify HV/RX Mounting Board V2 for TBS Unify Pro

The Unify HV / RX Mounting Board v2 is a purpose-built integration PCB designed to clean up your FPV drone's wiring and hardware stack. It provides a secure, vibration-resistant platform to mount a Team BlackSheep Unify Pro HV video transmitter alongside a compact radio receiver (such as the TBS Crossfire Nano RX) directly into a standard 30.5x30.5mm flight controller stack.

Key features

• Integrates your VTX and receiver onto a single rigid board for a streamlined build.
• Custom-tailored footprint designed specifically for the TBS Unify Pro HV form factor.
• Adapts RF components to standard 30.5x30.5mm stack mounting holes.
• Eliminates the need for zip-ties or double-sided tape when securing critical electronics.
• V2 layout offers optimised pad placement for shorter, more direct wire routing to the flight controller.

Specifications

• VTX compatibility: TBS Unify Pro HV, Race and MMCX versions (sits flush on the board)
• Receiver compatibility: TBS Crossfire Nano (4-pin header), FrSky XM+, or any other receiver via the signal pass-through pad
• Receiver power: dedicated + pad; an underside solder bridge lets a 5 V receiver share the VTX's 5 V input
• Camera pass-through: CAM pads supply 5 V and bring the camera signal to one point for tidy wiring
• VTX button: side pads for soldering on the Unify's button

Ideal for tight freestyle and racing frames, this mounting board ensures your video and control link hardware remains locked securely in place above your flight controller, preventing components from shifting during hard crashes.
