Tarot TL96034 Quick Release Tripod T-Block for φ25 mm Tube

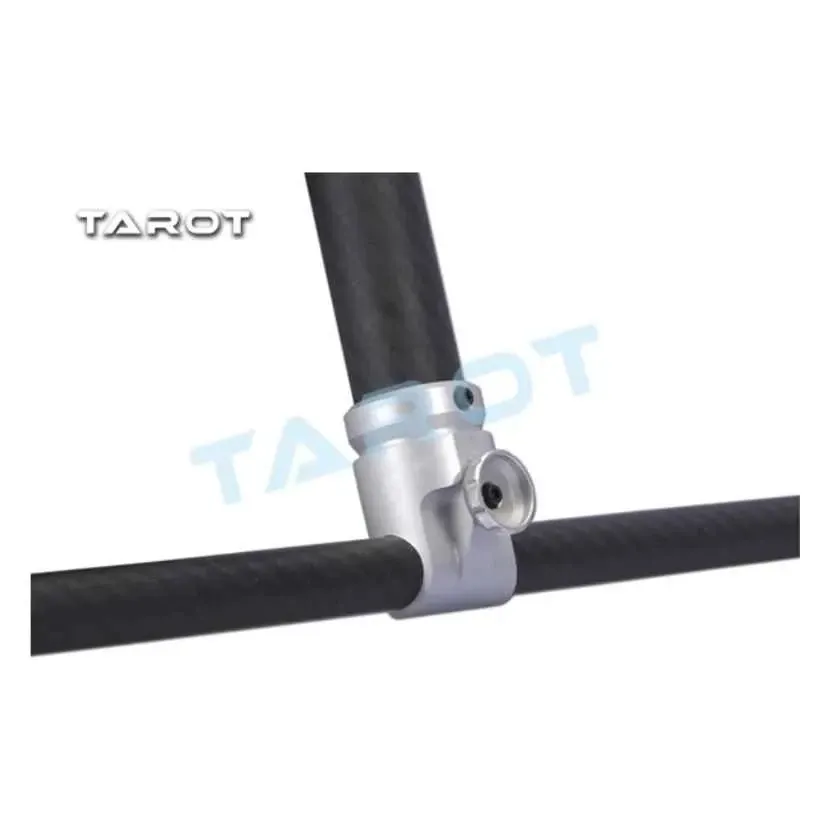

The Tarot TL96034 is a quick-release T-block that joins a 25 mm diameter vertical landing-gear tube to a 16 mm horizontal carbon-fibre cross tube. It is made for industrial, survey, agricultural and heavy-lift multirotor frames built on tube-style landing gear, where the gear has to come off for transport and go back on quickly in the field.

Key features

• Knob-operated quick-release lock: fit or remove the landing gear without tools
• CNC-machined from 6061-T6 aluminium alloy with a black anodised finish for corrosion resistance outdoors
• T-joint layout: the 25 mm tube runs vertically, the 16 mm cross tube horizontally
• Clamps the joint rigid so the gear does not rattle or twist under motor vibration

Specifications

• Model: TL96034
• Material: CNC-machined 6061-T6 aluminium alloy
• Finish: Black anodised
• Vertical tube: 25 mm diameter
• Horizontal tube: 16 mm diameter
• Knob screw: M2.5 x 7 mm

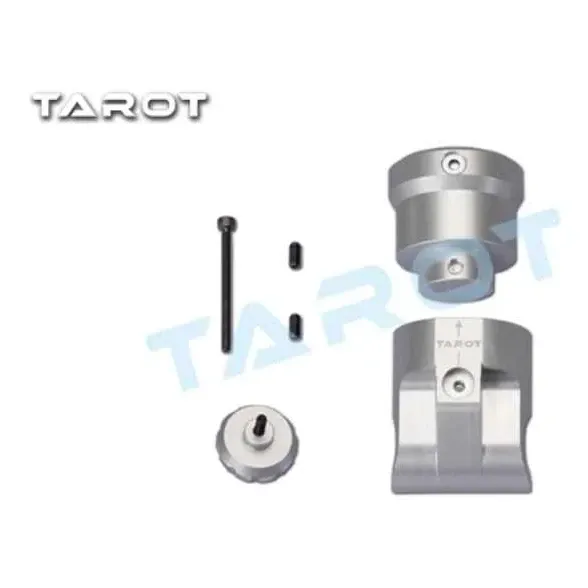

• In the box: 1 x T-block

Measure the outer diameter of both tubes on your frame before ordering: this block fits only 25 mm legs with 16 mm cross tubes. It is sold singly, so count the leg-to-cross-tube joints on your landing gear and order one block per joint.
