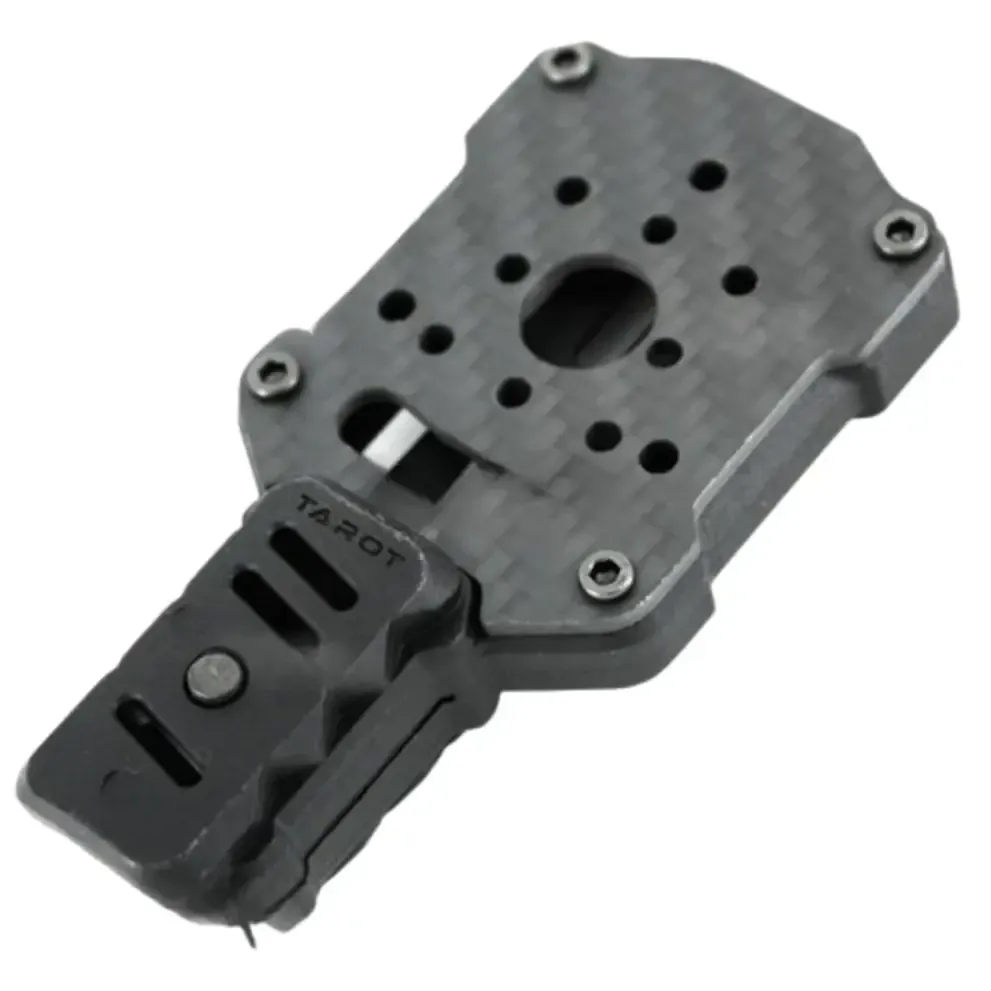

Tarot TL68B19/TL68B20 16mm Motor Mount for Multicopter

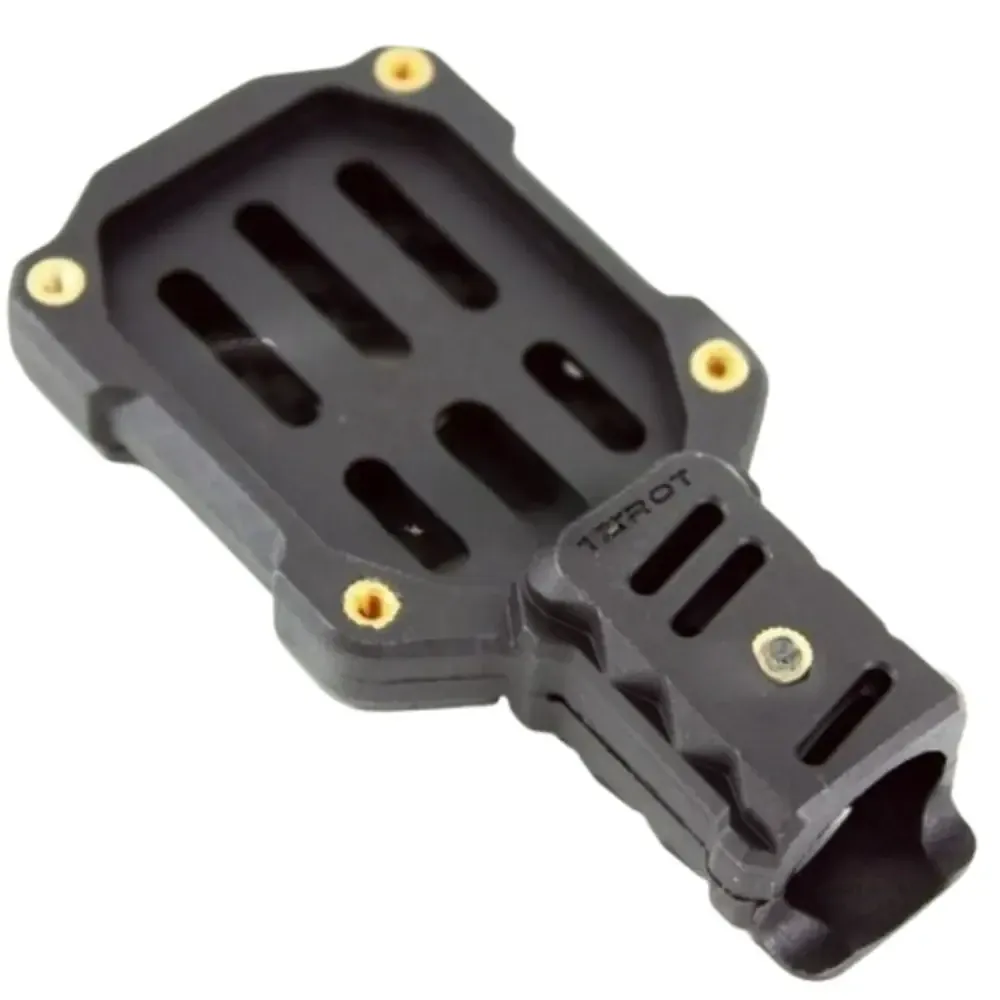

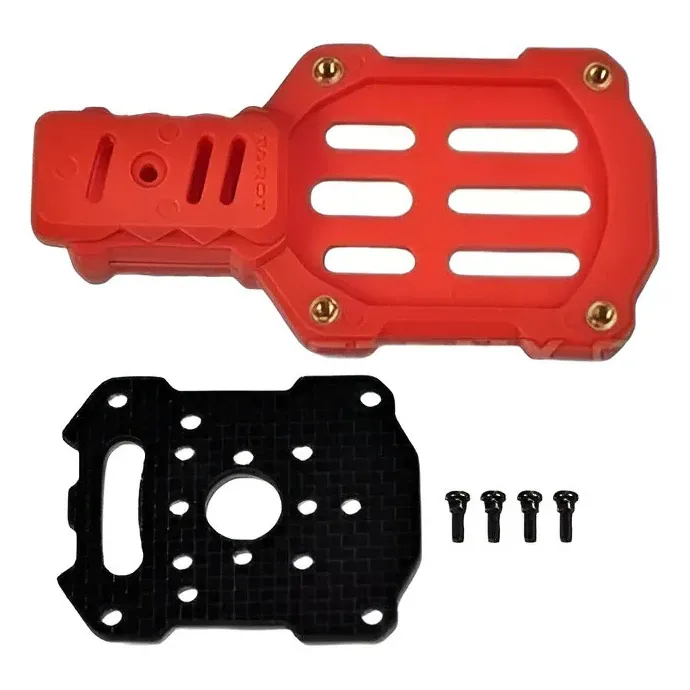

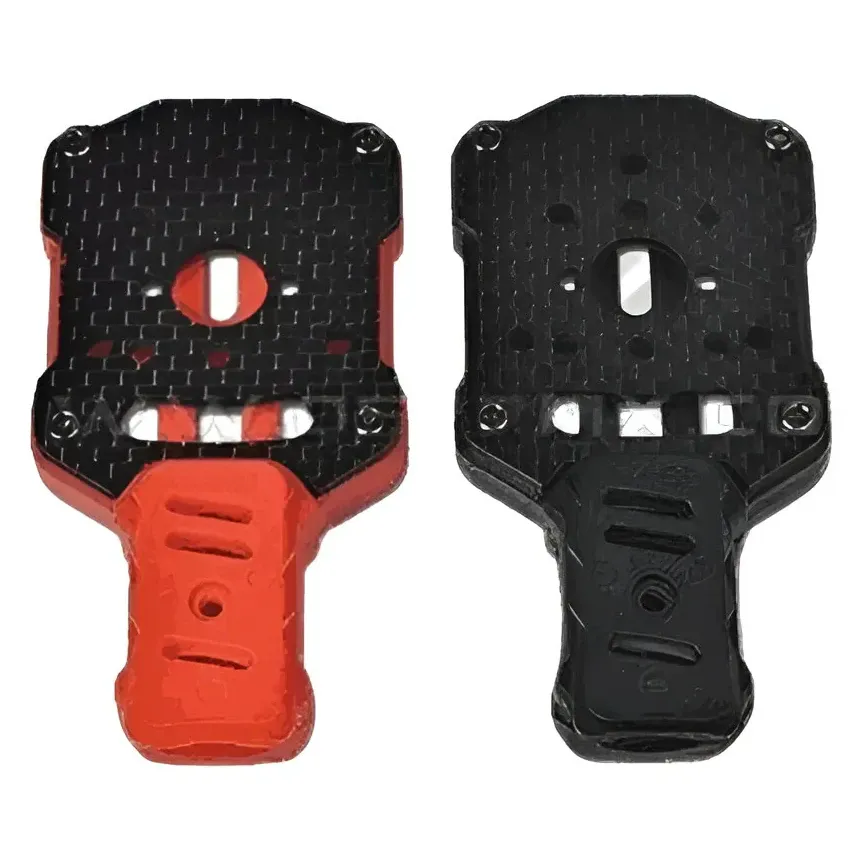

A lightweight Tarot motor mount for multicopters built on 16 mm carbon arm tubes, available in red (TL68B19) or black (TL68B20). It fits the 16 mm tubes of Tarot TL65B01, TL65B02, TL68B01 and TL68B02 frames and suits DIY builds on the same tube size; mixing the two colours front and rear makes orientation easier to read in the air.

Key features

• Reinforced polycarbonate body, high-pressure injection moulded, with a half-carbon motor plate.
• Universal motor holes: 16, 19, 25 and 27 mm equilateral-triangle patterns.
• ESC space on the back lets you tie a brushless ESC directly under the motor.
• Pinned fixing: the mount locks to the tube through a 2.11 mm hole you drill in the carbon tube.

Specifications

• Tube diameter: 16 mm
• Mount dimensions: 87 × 22 × 44 mm
• Motor plate: 54 × 42.5 mm, half-carbon
• Motor hole spacing: 16 / 19 / 25 / 27 mm (equilateral triangle)

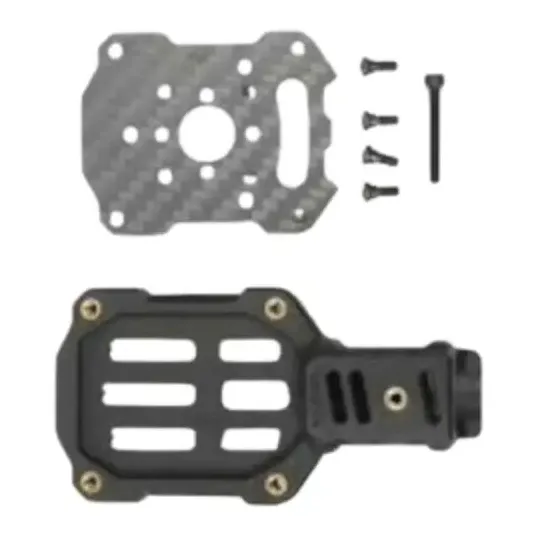

• Hardware: 1 × M2.5 × 20 mm cap-head screw, 4 × M2.5 × 6.5 mm stepped screws

Order one mount per arm, and mark the drilling point on each tube with the mount in position so all motors sit at the same angle.
