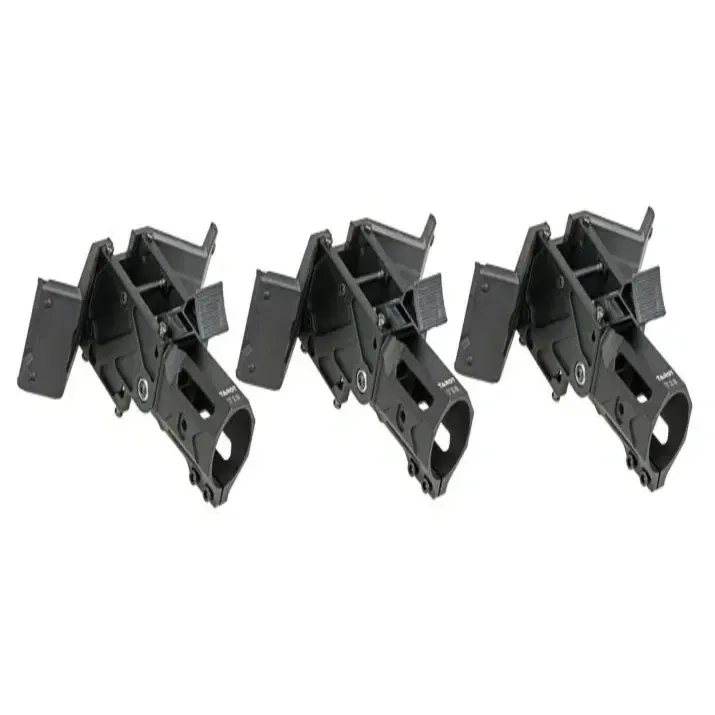

Tarot TL28A1 Z28 Waterproof Folding Arm Mount for 28mm Tubes

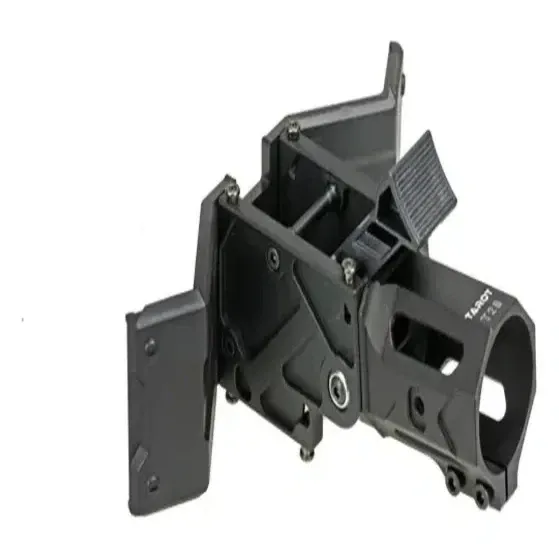

The Tarot Z28 (TL28A1) is a waterproof folding arm mount for 4-, 6- and 8-axis industrial multirotors built on Φ28 mm arm tubes. A single press of the release button unlocks the arm and it folds on its own, which makes large airframes quick to pack. It installs directly on Tarot X4II, X6II and X8II frames and suits spray drones and other builds that work in wet conditions.

Key features

• One-button release with automatic folding
• Self-locking: the arm's own vibration drives the lock home in one direction, keeping the joint shut in flight

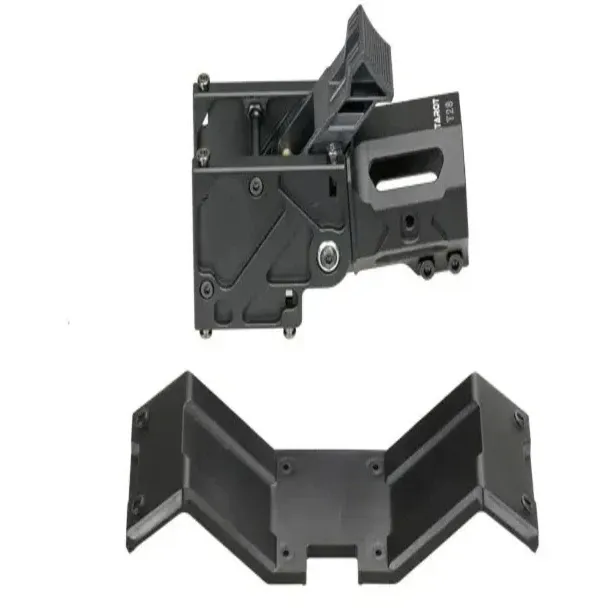

• Waterproof sealing baffle over the joint; coat the edges with waterproof adhesive for full industrial-grade sealing
• 6061-T6 aluminium support plates, multi-axis CNC machined, black finish
• Direct fit on Tarot X4II, X6II and X8II frames

Specifications

• Tube diameter: Φ28 mm
• Support plates: 2 × 54.5 × 40 × 5.5 mm, 19.0 g each
• Waterproof baffle: 132 × 24 × 43 mm plastic, 8.8 g
• Unlock slider: 70 × 15 × 26.5 mm, 10.0 g
• Self-locking brass column: Φ6 × 32.3 mm, 6.5 g
• Springs: 2 × Φ4 × 26 mm
• Posts: 2 × H5 × 27 mm hexagonal aluminium
• Screws: 10 × M3 × 5 mm button-head, 4 × M2 × 5 mm cup-head, 4 × M2 × 5 mm button-head

One mount is supplied, so order one per folding arm: four for a quad, six for a hexacopter, eight for an octocopter. Confirm your frame uses Φ28 mm arm tubes before ordering.
