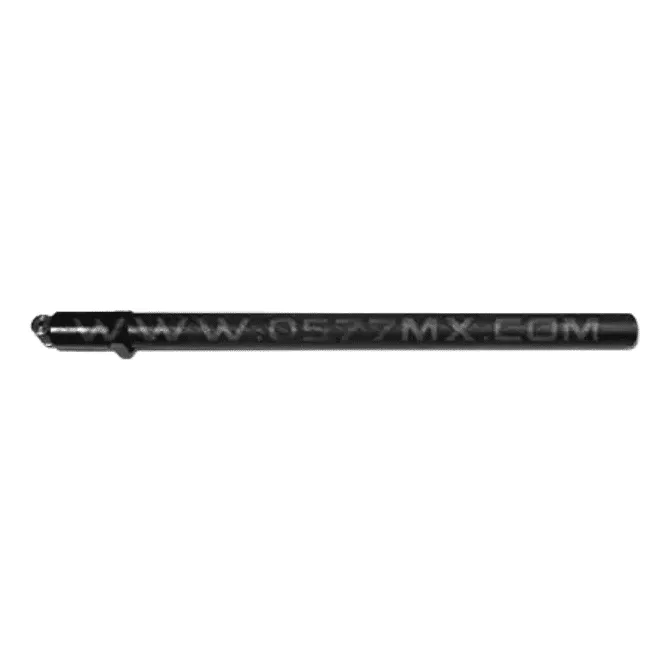

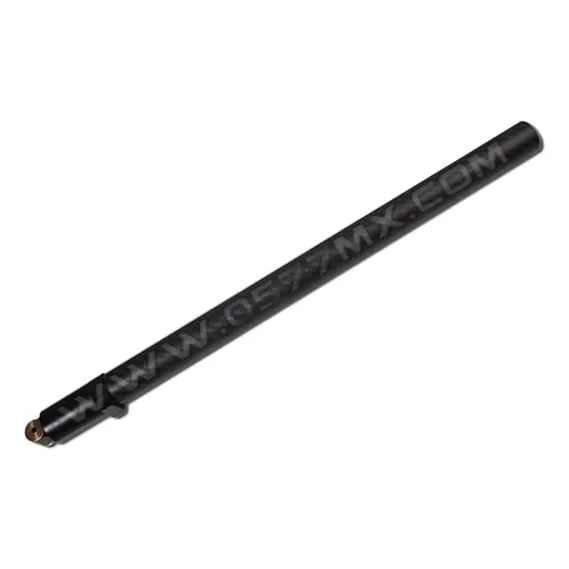

Tarot TL18T02 T18 Pure Carbon Boom

The Tarot TL18T02 is a pure carbon boom for the Tarot T18 foldable octocopter frame, suited to replacing a damaged boom during a compatible airframe rebuild rather than buying a whole new frame kit.

Key features

• Built for the Tarot T18 foldable octocopter platform, an eight-arm layout used on agricultural spray drones.
• 3K pure carbon-fibre tube, not a half-glass, half-carbon structure, for consistent stiffness along its length.
• Includes the metal dovetail-groove tube mount and two damping plates as a set, not just the bare tube.
• Foldable clamping joint uses a damping design to cut vibration transfer into the rest of the frame.
• Sized to match the original T18 boom exactly, so flight geometry and propeller spacing stay unchanged after fitting.

Specifications

• Tube size: 25 mm OD x 23 mm ID
• Length: 560 mm
• Tube-mount weight: 24 g
• Part number: TL18T02

Confirm the boom part number and frame version, and check the surrounding hardware — mount, damping plates and fasteners — before installation, so the rebuilt arm holds the same stiffness and vibration behaviour as the rest of the frame.
