SpeedyBee Mario 5 Upgrade Kit

Official upgrade kits for the SpeedyBee Mario 5 5-inch freestyle frame. Each kit suits a different video system or build, so pick the one that matches your air unit.

Which kit

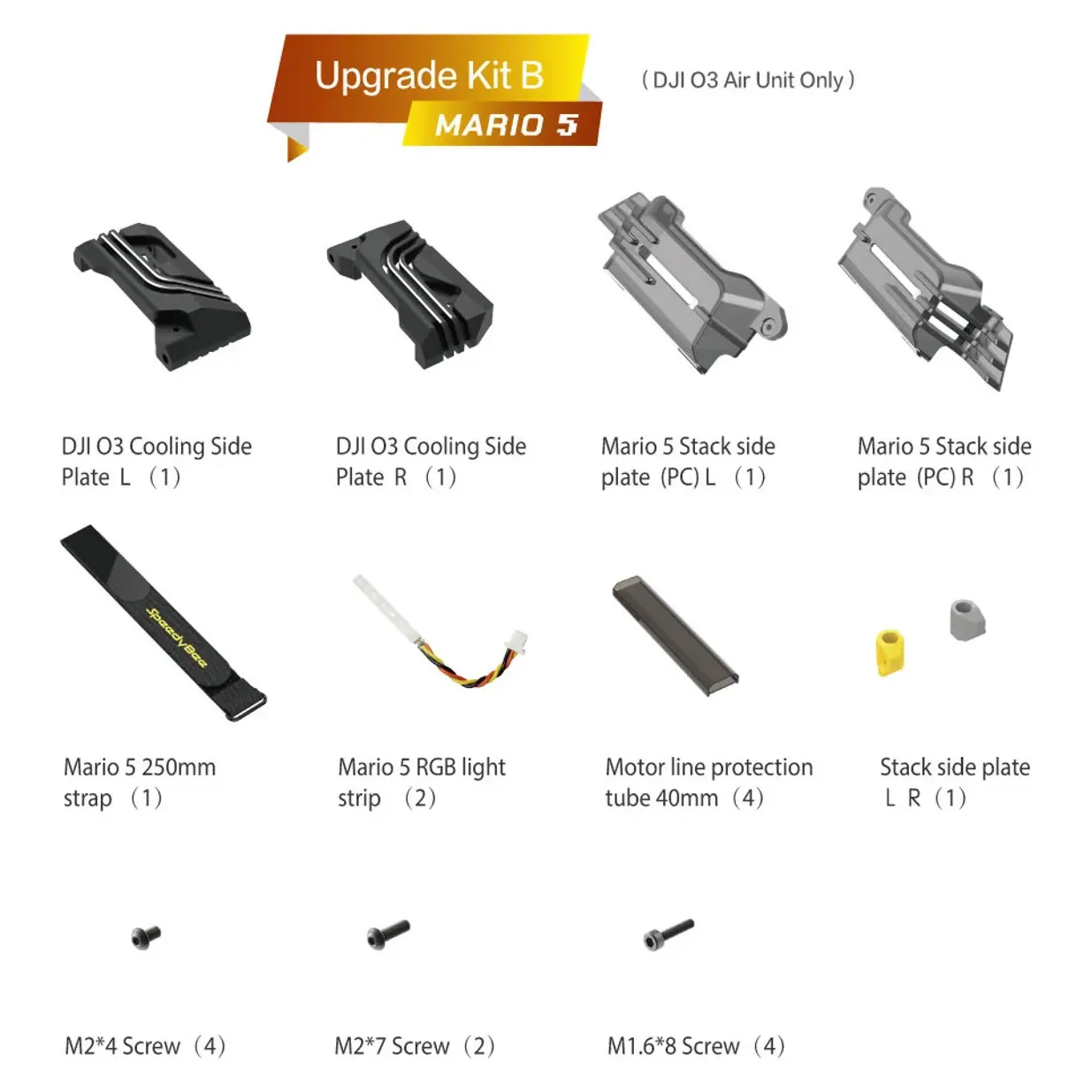

• Kit B (DJI O3 Full Set): aluminium DJI O3 cooling side plates (L/R), stack side plates (L/R), 2 RGB LED lights, 4 motor wire protectors, a 250 mm battery strap and fitting hardware. Turns a Mario 5 DC or XH Advanced frame into the Pro configuration for an O3 build.

• Kit C (DJI O3 Cooling Plates): DJI O3 cooling side plates (L/R), a cable tube and mounting screws.

• Kit D (DJI O4 Full Set): DJI O4 cooling side plates (L/R), polycarbonate stack side plates (L/R), DJI antenna mount, 250 mm strap, 2 Mario 5 RGB light strips, 4 x 40 mm motor wire protection tubes and M2 screws.

• Kit E (DJI O4 Pro Mounts): CNC O4 camera head (L/R), CNC O4 cooling side plates (L/R), DJI antenna mount, TPU lens mounts (L/R) and fitting screws, for the DJI O4 Pro Air Unit.

• Kit F (DJI O4 Mounts): DJI O4 cooling side plates (L/R), DJI antenna mount, 2024-version grey TPU O4 lens mounts (L/R), 4 x M2 x 4 mm screws, 4 x M2 x 3 mm flat-head screws, 4 x M2 x 10 mm cap screws and a 1.3 mm L-shaped hex wrench.

Key features

• Cooling side plates draw heat away from the air unit to reduce thermal throttling on long flights

• Shaped for the Mario 5's own mounting holes and standoffs, so the parts fit without modification

• Kits replace mounting hardware only; the frame, air unit and electronics are not included

Specifications

• Compatibility: SpeedyBee Mario 5 frame

• Video systems: DJI O3 Air Unit (Kits B and C), DJI O4 Air Unit (Kits D and F), DJI O4 Pro Air Unit (Kit E)

Moving a Mario 5 build from O3 to O4? Kit F covers the O4 mounts alone, and Kit D adds the stack plates, strap and lights as well.
