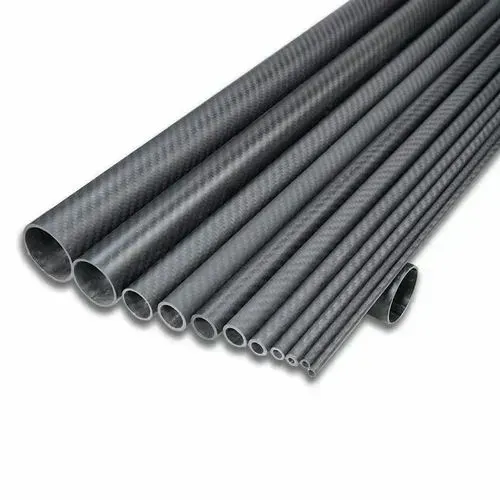

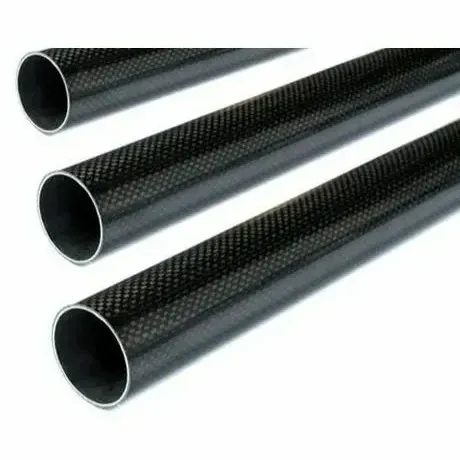

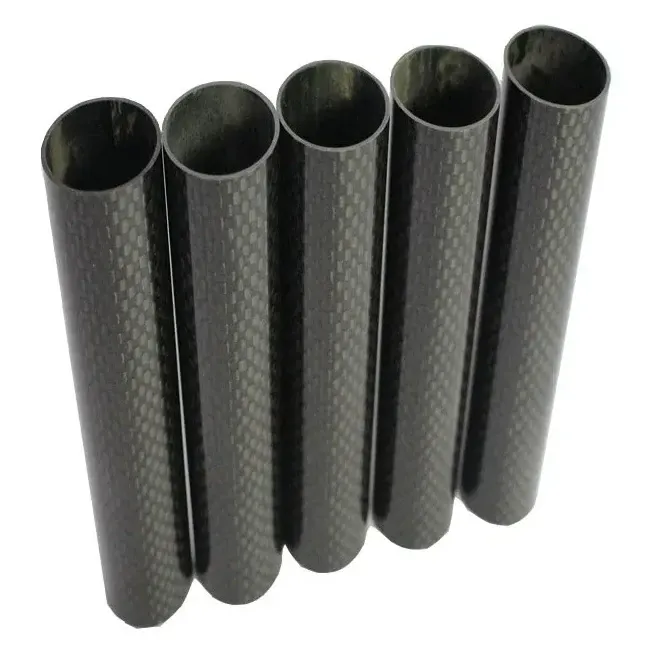

Roll-Wrapped Carbon Fiber Tube 1000mm, 10-50mm OD

Roll-wrapped carbon fibre tube in a full 1000mm length, offered in fifteen outer × inner diameter combinations from 10 × 9mm up to 50 × 46mm. Cut it to length for multirotor arms and booms, landing-gear legs, agricultural spray booms, antenna masts and frame stand-offs where aluminium tube would add weight.

Key features

• High-modulus T700 unidirectional prepreg, laid up on a mandrel in several layers, spiral-wrapped with heat-shrink tape and oven cured.
• Fibres run along the tube for maximum bending stiffness; it is weaker across its diameter, so spread clamp loads with full-width clamps or sleeves instead of point-loading it.
• Wall thickness of 0.5mm, 1mm, 1.5mm or 2mm depending on size: thicker walls for load-bearing arms, thin walls for light booms and masts.

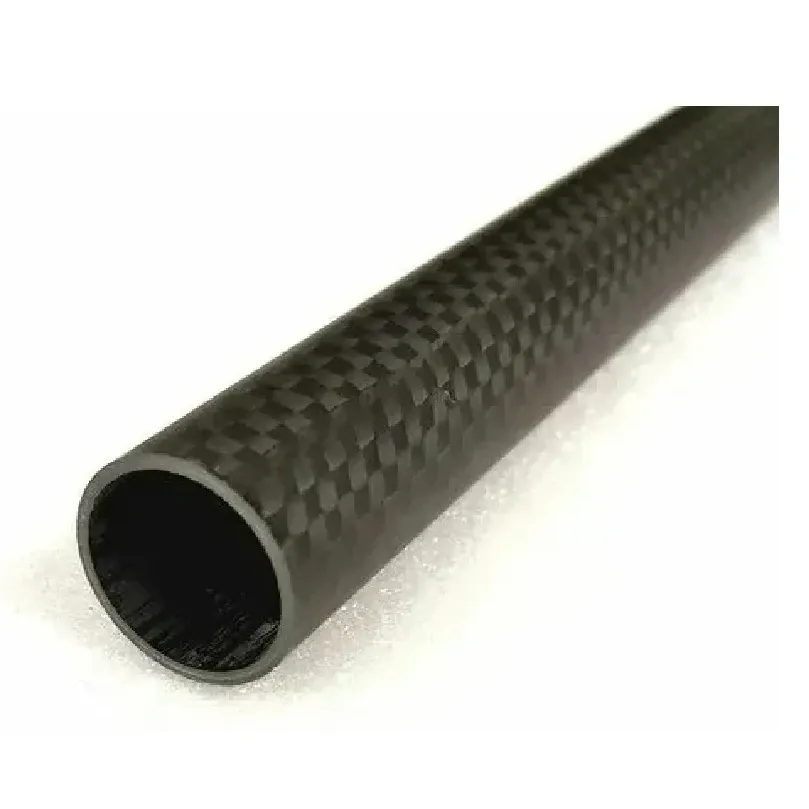

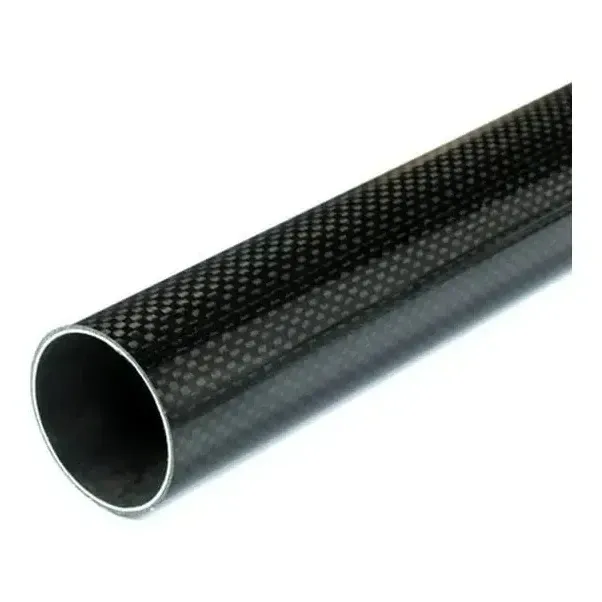

• Woven-pattern outer finish, UV stable and corrosion resistant.
• Can be cut and drilled with suitable carbon-cutting tools; wear a dust mask, as carbon dust is harmful to breathe.

Specifications

• Length: 1000mm
• Construction: roll-wrapped T700 unidirectional prepreg, oven cured
• 0.5mm wall (OD × ID): 10 × 9mm, 12 × 11mm, 14 × 13mm
• 1mm wall (OD × ID): 12 × 10mm, 15 × 13mm, 16 × 14mm, 18 × 16mm, 22 × 20mm, 28 × 26mm
• 1.5mm wall (OD × ID): 16 × 13mm, 30 × 27mm, 35 × 32mm, 50 × 47mm
• 2mm wall (OD × ID): 40 × 36mm, 50 × 46mm
• Profile: round, hollow
• Finish: woven carbon pattern

Carbon fibre conducts electricity, so insulate wiring and antenna leads that run through or along the tube. Check the outer diameter against your motor mounts and tube clamps before ordering.
