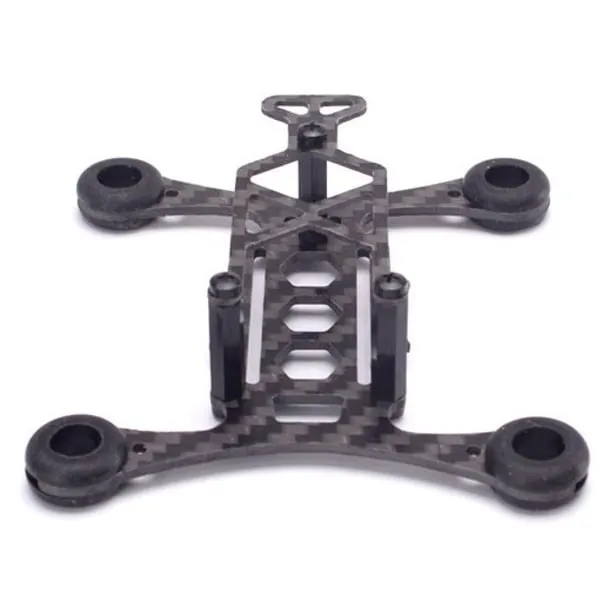

QX95 95mm Brushed Racing Frame

The QX95 is a compact 95 mm frame for brushed micro racing builds. It suits pilots replacing a small whoop frame or assembling a brushed indoor or outdoor quadcopter.

Key features

• Wheelbase: Its 95 mm motor-to-motor span is the key dimension when matching the frame to existing electronics.

• Motor type: The frame is intended for brushed motor builds; do not assume brushless motor compatibility.

• Build use: The compact format suits indoor micro flying and small outdoor repairs.

• Replacement use: Use it when a brushed whoop frame needs replacement, after checking the original mounting layout.

• Selection check: Compare the 95 mm wheelbase and brushed motor mount arrangement with the donor frame before ordering.

Specifications

• Material: Carbon fibre

• Wheelbase: 95 mm

• Top plate thickness: 1 mm

• Bottom plate thickness: 1.5 mm

• Motor size: 8.5 x 20 mm coreless brushed (8520)

• Suggested setup: 55 mm propellers, 1S LiPo, brushed flight controller

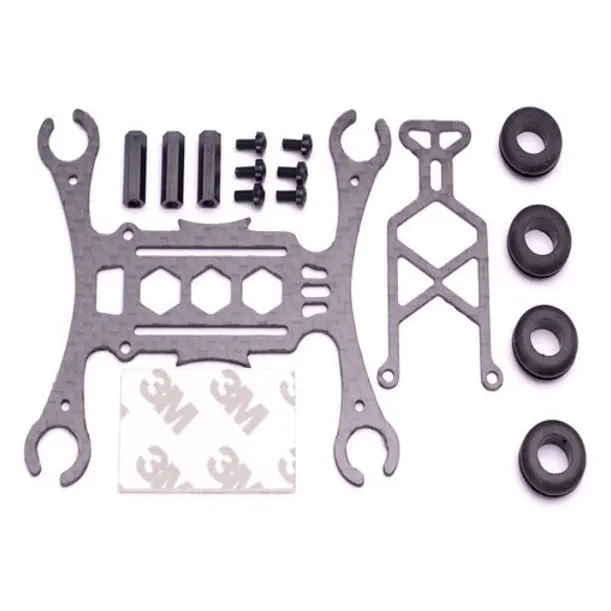

• In the box: Frame only, no electronics
