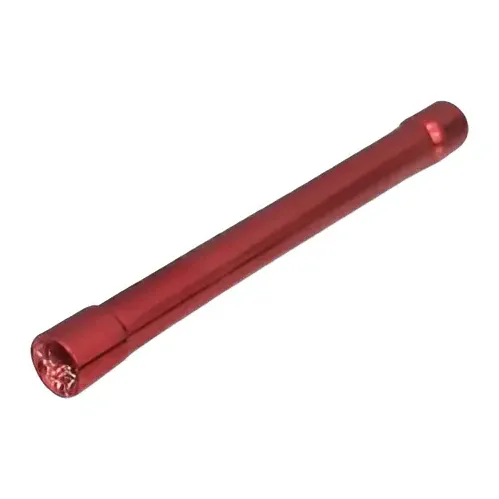

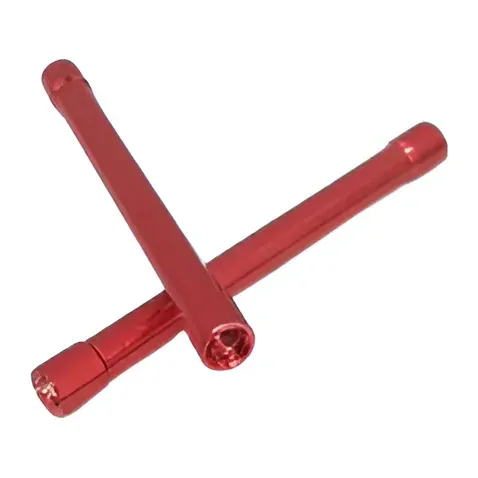

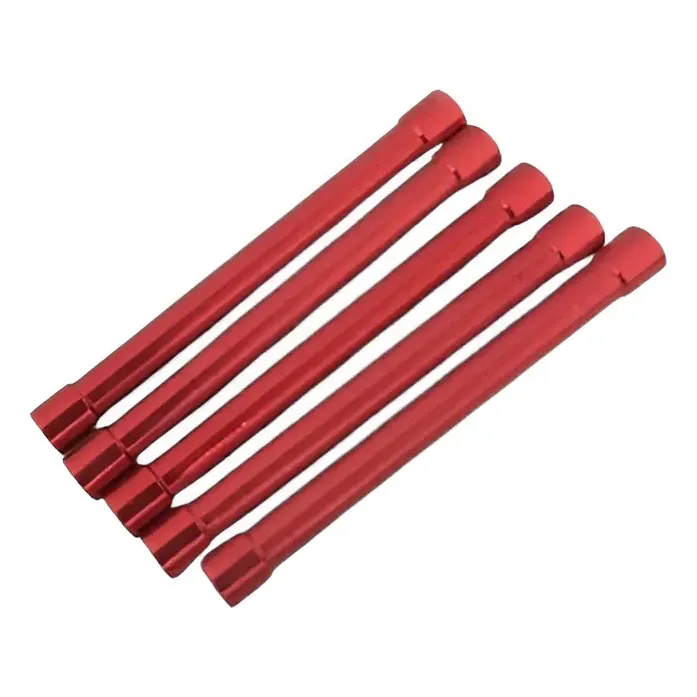

M3 D5 Circular Head Aluminium Standoff Spacer (Pack of 5)

Round M3 aluminium standoffs with a 5 mm (D5) body and female threads, for spacing frame plates, raising flight-controller and PCB stacks, or building top posts on drone and UAV frames. Each pack holds five red-anodised standoffs in the length you choose.

Key features

• M3 female threads take standard M3 frame and stack screws
• Sandblasted, anodised aluminium alloy: light, rigid and corrosion-resistant
• Available in 30 mm and 50 mm lengths, both in red
• Round body gives a neat finish on exposed frame posts
• Aluminium conducts electricity, so keep the standoffs clear of exposed solder pads or add nylon washers where boards mount directly

Specifications

• Thread: M3, female
• Body: round, 5 mm (D5)
• Lengths: 30 mm, 50 mm
• Material: anodised aluminium alloy
• Colour: Red
• Weight: about 1 g (30 mm), 1.4 g (50 mm) each
• Pack: 5 standoffs

Standoff length equals the finished gap between the two plates, so measure plate to plate when choosing a size.
