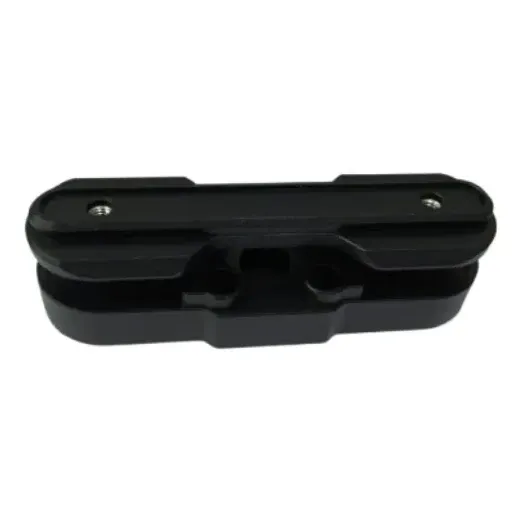

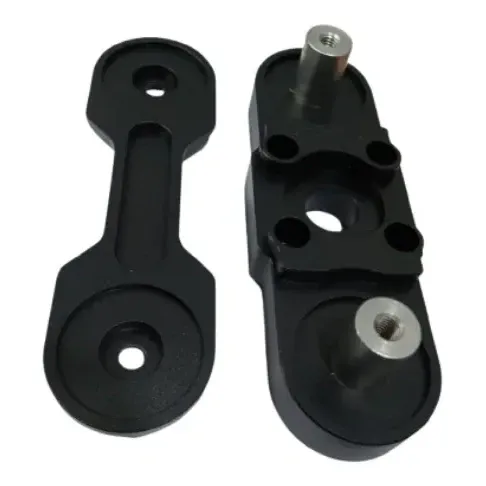

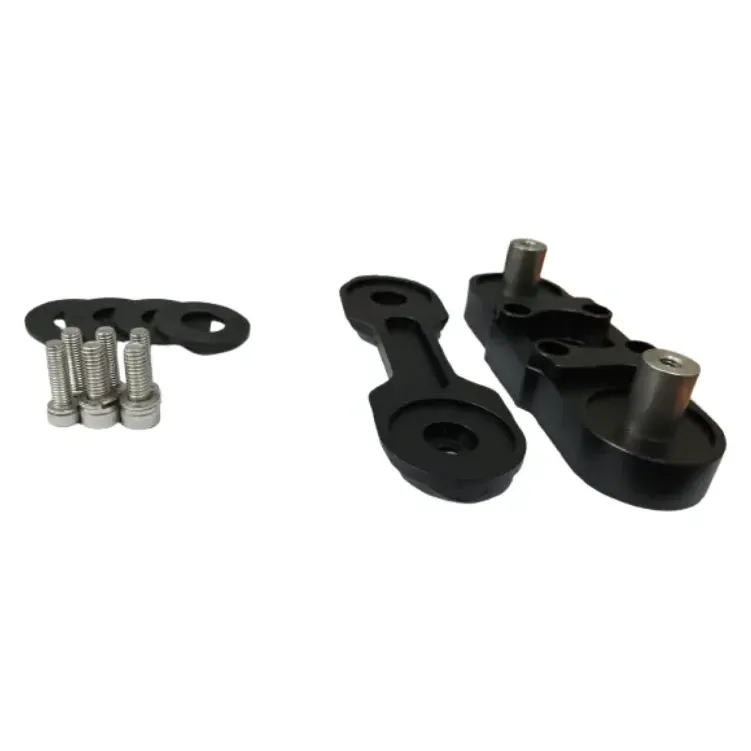

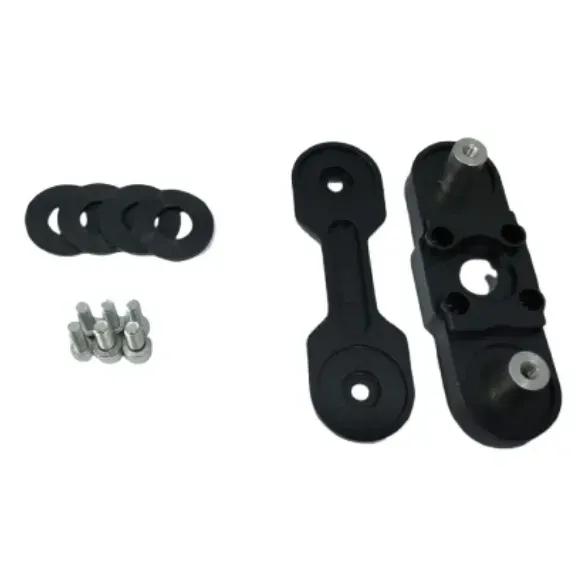

Hobbywing XRotor X13 5620 Folding Propeller Clip

Replacement propeller clip for the Hobbywing XRotor X13 propulsion system: the centre clamp that holds both blades of the MFP 56x20 folding propeller on the motor. It is a field-kit spare for operators and workshops servicing X13-powered spray, cargo and heavy-lift multirotors, where each axis is rated for up to 57 kg of thrust.

Key features

• Fits the MFP 56x20 (56 × 20 in) two-blade folding propeller used across the X13 system
• Rebuild a propeller around undamaged blades after a hard landing instead of replacing the whole assembly
• Holds the blades on their pivots so they fold back for transport and swing out under rotation
• Sold singly, so you can stock exactly the number of spares your fleet needs

Specifications

• Compatible system: Hobbywing XRotor X13
• Propeller: MFP 56x20 folding, 2 blades
• X13 arm tube: 50 mm outer diameter
• Package: 1 × propeller clip

After any prop strike, inspect the clip around the blade pivot bolts. A cracked or bent clamp throws the propeller out of balance and passes vibration into the motor bearings and the flight controller.
