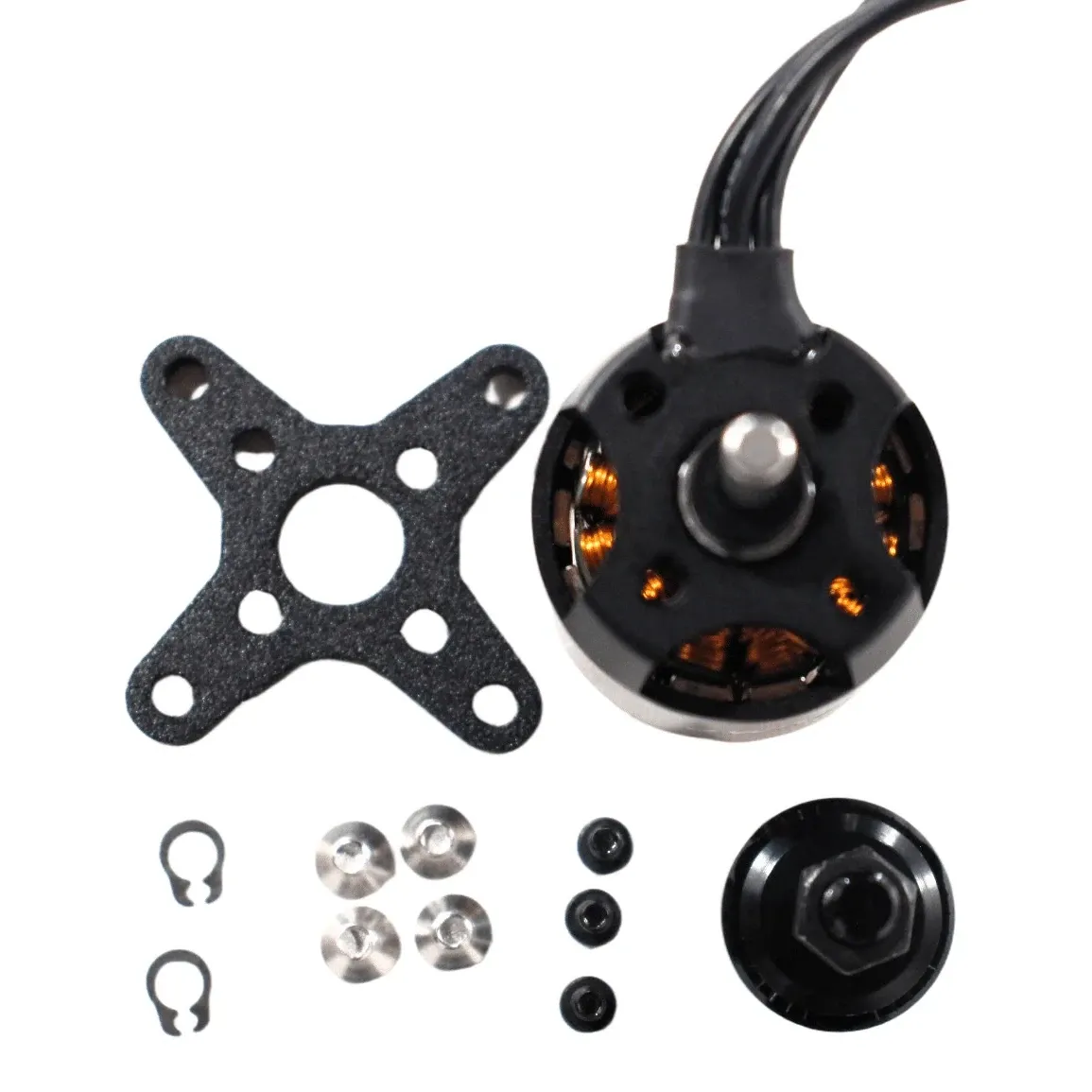

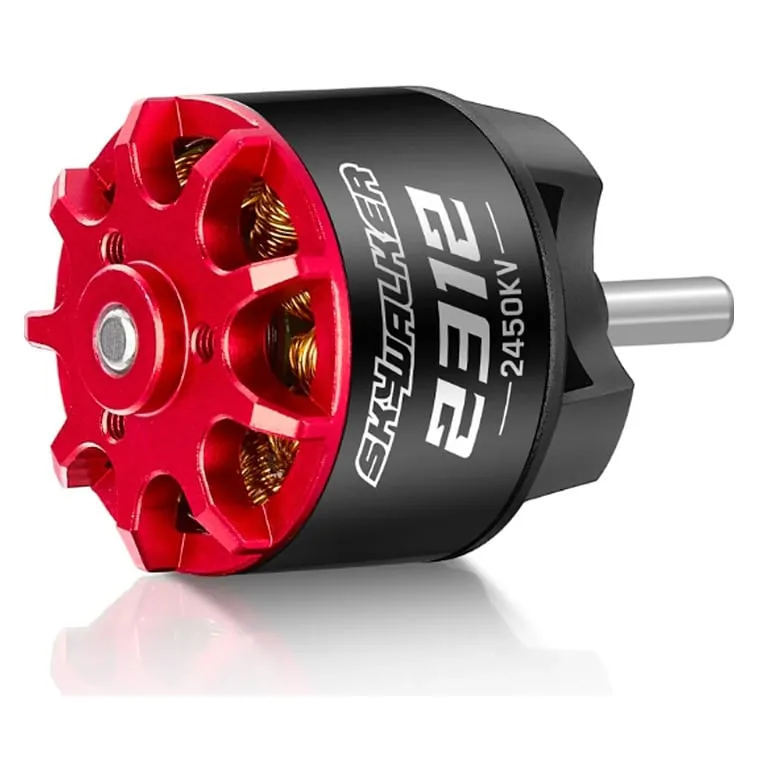

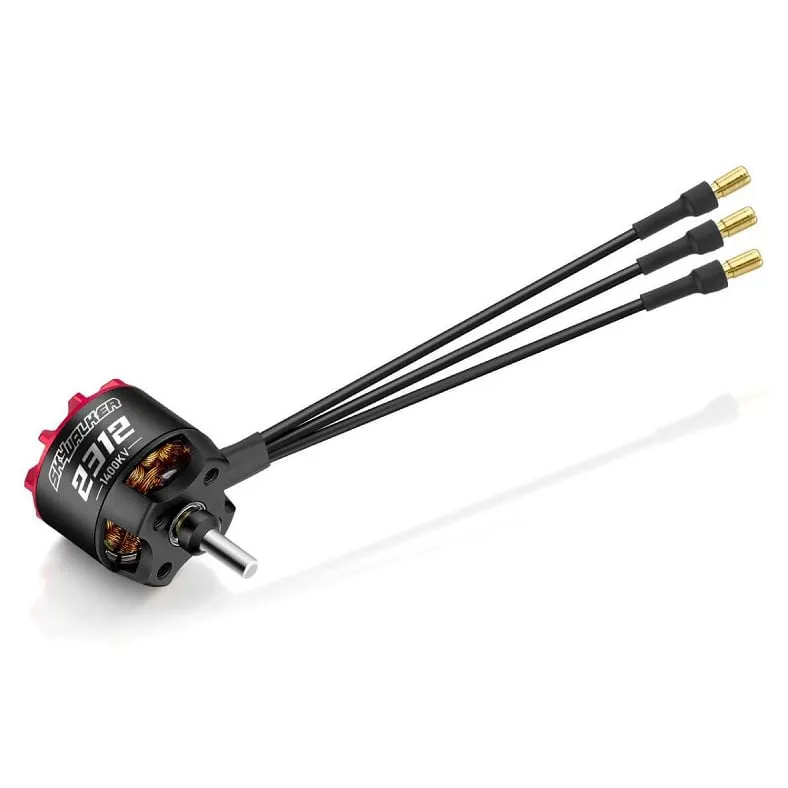

Hobbywing SkyWalker 2312SL Fixed-Wing Motor

Hobbywing SkyWalker 2312SL is a brushless outrunner motor for fixed-wing aircraft, sold in 1250KV, 1400KV and 2450KV windings to suit different plane sizes and flying styles.

Key features

• Brushless outrunner construction for fixed-wing power systems rather than multirotor frames.
• 2312 stator size suits sport planes and FPV fixed-wing builds.
• Available in three KV ratings: 1250KV, 1400KV and 2450KV, so pilots can match the motor to their aircraft size and flying style.
• Lower KV windings suit larger propellers and higher-voltage packs, giving more thrust for bigger airframes; higher KV windings suit smaller propellers and faster flight.
• Black-finish motor case is shared across all three KV options.
• Standard mounting-hole pattern suits common fixed-wing motor mounts.

Specifications

• Stator size: 2312SL
• KV options: 1250KV, 1400KV, 2450KV
• Motor type: Brushless outrunner
• 1400KV version: 3-4S LiPo, 40-50A ESC recommended
• Shaft (1400KV): 4 mm
• Body (1400KV): 28.8 mm diameter x 50 mm long
• Mounting (1400KV): 16/19 mm holes, M2.5/M3
• Max continuous (1400KV): 42 A / 618 W for 135 s
• Leads (1400KV): 18AWG, 100 mm
• Weight (1400KV): 79 g

Match the KV rating to your propeller and battery combination for the target aircraft; a higher-KV motor needs a smaller propeller to stay within a safe current draw.
