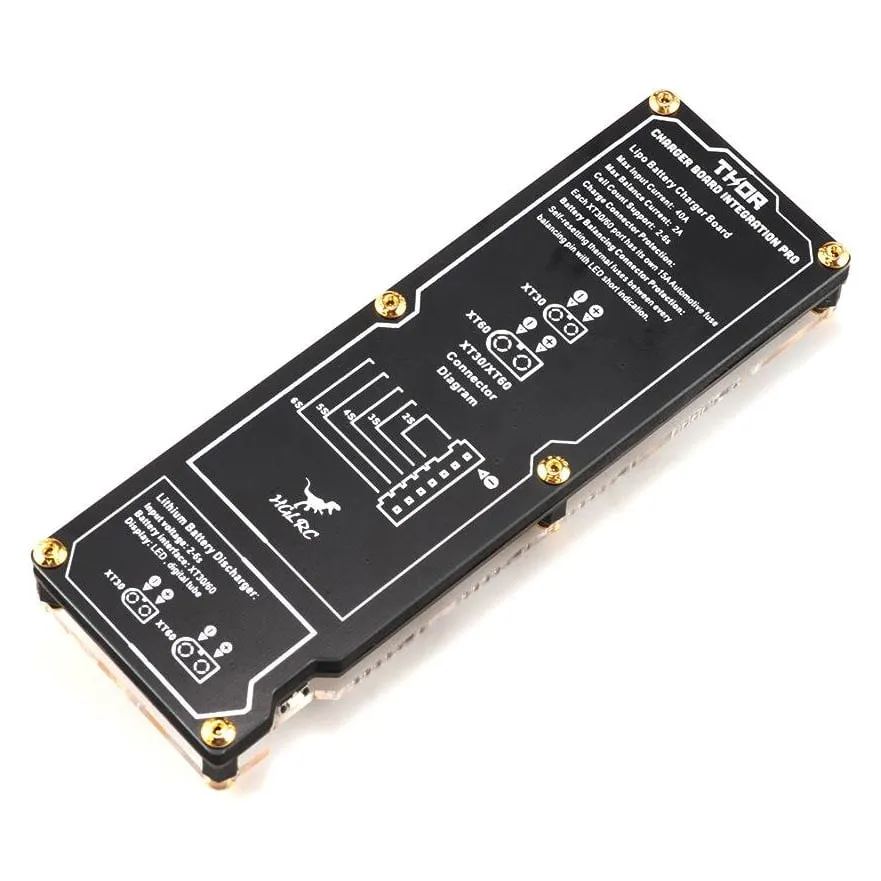

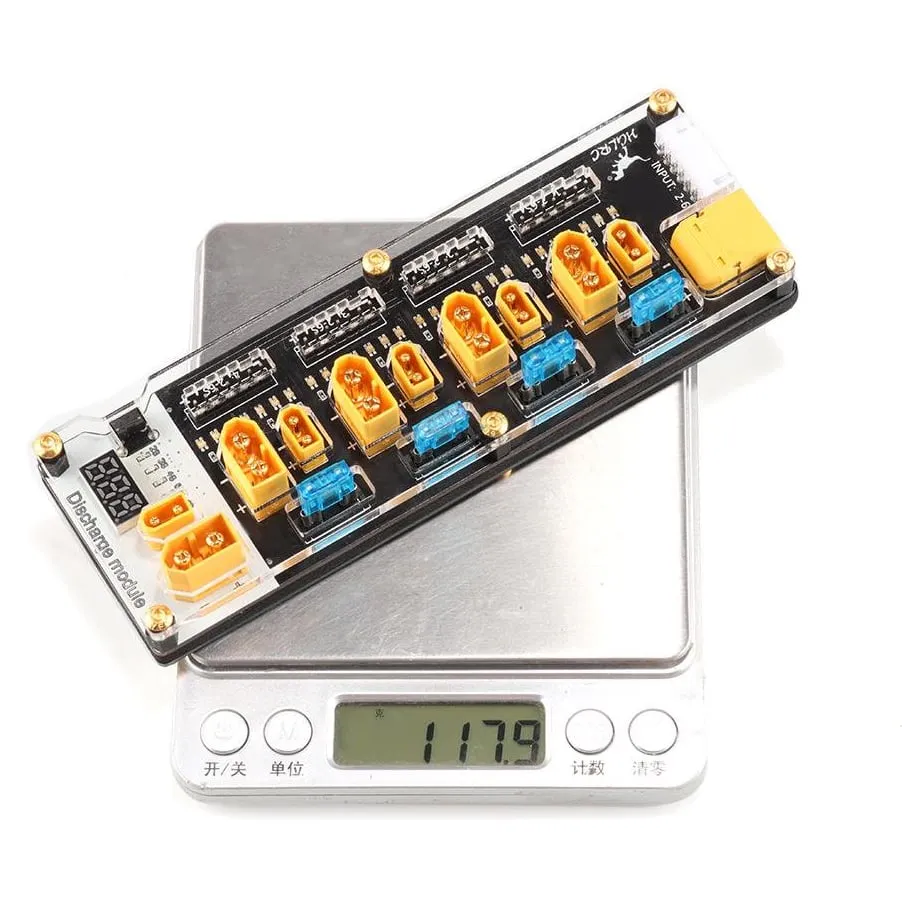

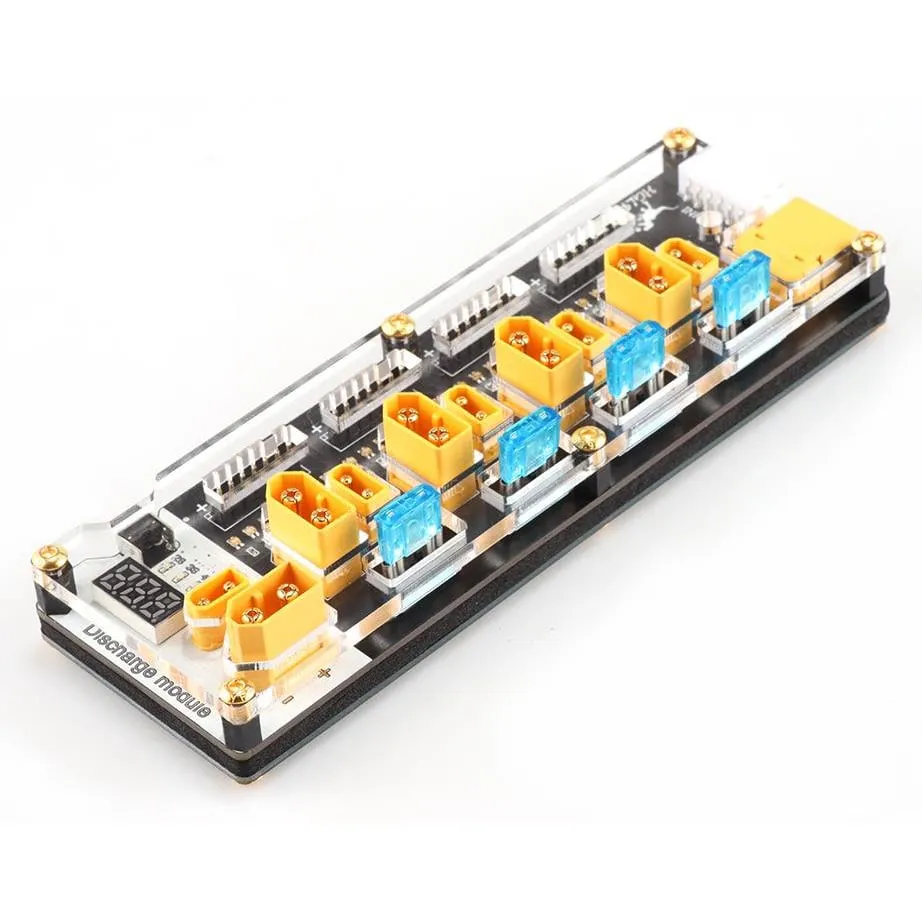

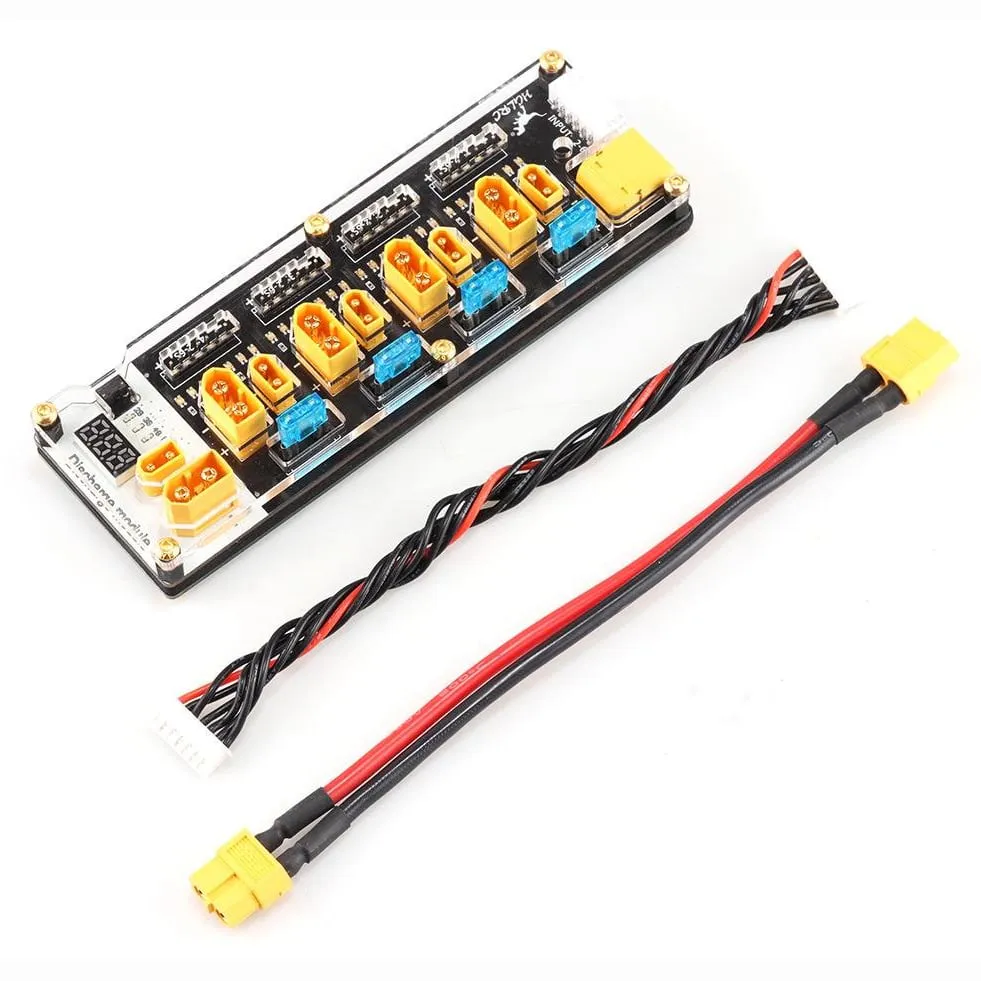

HGLRC Thor 40A LiPo Balance Charging Board (XT60/XT30, 2-6S)

The HGLRC Thor is a high-capacity parallel charging and discharging board designed for FPV pilots managing a mix of XT60 and XT30 LiPo packs. Rated for up to 40A total input current, this board safely handles multiple 2S to 6S batteries simultaneously. Alongside charging, it features an integrated discharging module that automatically brings unused packs down to a safe 3.8V storage voltage, protecting your cells from degradation between flight sessions.

Key features

• Integrated automatic discharger safely drains 2-6S batteries to a 3.8V storage level.

• Dual connector design supports plugging in either XT60 or XT30 packs.

• Individual 15A automotive fuses on each charging port provide robust short-circuit protection.

• Handles high-amperage bulk charging with a maximum 40A total input.

Specifications

• Supported Cell Count: 2-6S

• Connectors: XT60, XT30

• Max Input Current: 40A

• Max Balance Current: 2A

• Port Protection: 15A fuses

• Discharge Target Voltage: 3.8V per cell

When parallel charging, ensure all connected batteries share the exact same cell count and are within 0.1V per cell of each other before plugging them into the board. Never connect an XT60 and an XT30 battery into the same channel simultaneously.
