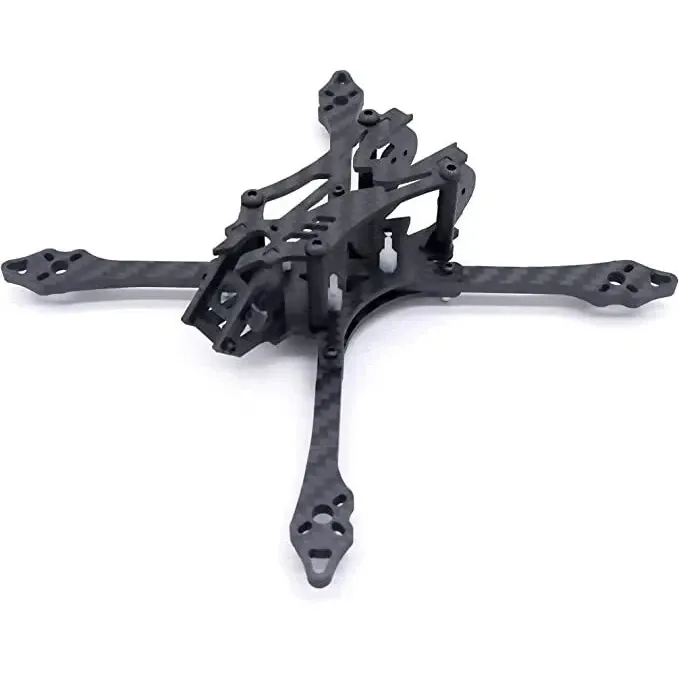

HF150 150mm 3" Carbon Fiber Frame

The HF150 is a 150mm carbon fibre frame for compact 3-inch micro and toothpick FPV builds. It gives builders a small platform for lightweight, agile drone projects, with a body section for the flight-control electronics and camera and arms that carry the motors.

Key features

• 150mm wheelbase built for 3-inch propellers.

• Full carbon fibre construction: 4.0mm arms with 2.0mm top and bottom plates for a lightweight yet durable structure.

• Fits 1306, 1407 and 1105-class motors, including common 13xx and 14xx series options.

• 20x20mm flight-controller mounting hole spacing for standard micro stacks.

• Simple bolt-together structure that is quick to assemble.

Specifications

• Wheelbase: 150 mm

• Propeller size: 3 inch

• Structure: X-type, split arms

• Arm thickness: 4.0 mm; other plates 2.0 mm

• Flight controller mounting: 20x20 mm

• Motor mounting: 9 x 12 mm (13xx/14xx motors)

• Camera width: 19 mm

• Standoff height: 25 mm aluminium

• Weight: 40 g

Choose motors, electronics and battery hardware that match the frame's 3-inch format and 20x20mm stack mounting, and confirm your motors fit the arm's mounting pattern.
