HEEWING F01 Fixed-Wing FPV Drone - PNP (Without Pre-Installed Electronics)

The HEEWING F01 is a compact, high-speed EPP fixed-wing platform built for agile FPV proximity flying. This PNP version ships as an unassembled kit with its motor, ESC, propeller and servos included but not fitted, giving builders a near-complete airframe that still needs a receiver and flight electronics wired in. Its 690mm wingspan and quick-detach wings make it easy to pack into a standard backpack.

Key features

• Aerodynamic EPP foam airframe with a carbon fibre spar in the main wing for high-speed rigidity

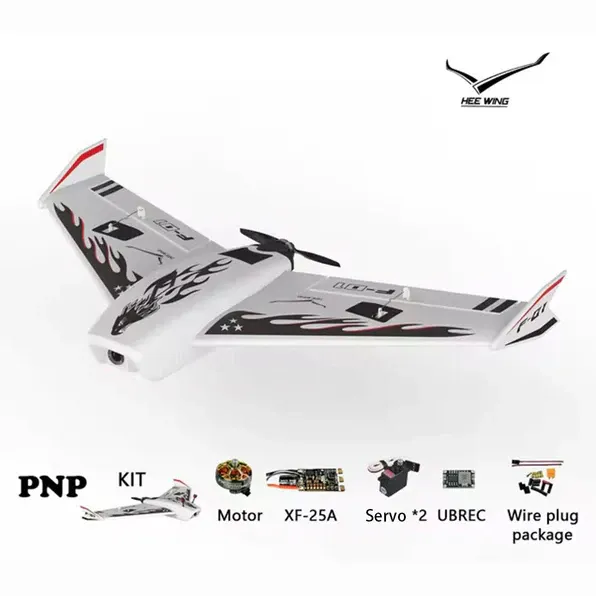

• Ships with an FX-2205 2350KV brushless motor, an FX-25A ESC with 5V 3A UBEC, a 5x5E propeller and two 12 g digital metal-gear servos, all unassembled
• Tool-free, quick-release main wings for rapid field assembly and transport
• Spacious electronics bay accommodates a flight controller and 2S to 4S LiPo packs

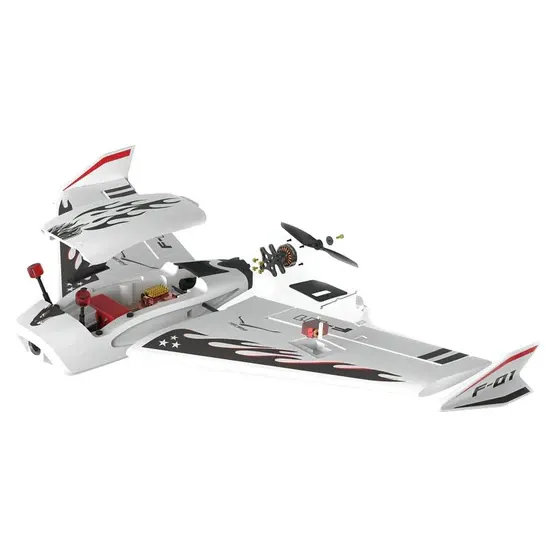

• Dedicated FPV camera nose with a lens protector, plus a magnetic canopy hatch for quick access to the payload bay

Specifications

• Material: EPP, ABS, carbon fibre
• Wingspan: 690mm
• Length: 415mm
• Height: 88 mm
• Airframe weight: 150 g
• All-up weight: 350-850g
• Battery bay: 175 x 75 x 55mm
• ESC bay: 70 x 38 x 20 mm
• Camera bay: 20 x 21 x 30 mm
• Included motor: FX-2205 2350KV
• Included ESC: FX-25A with 5V 3A UBEC
• Included servos: 2 x 12 g digital metal gear
• Included propeller: 5x5E
• Battery connector: XT60
• Recommended battery: 2-4S 1500-3500mAh LiPo

You still need to add a receiver and a fixed-wing flight controller (INAV or ArduPilot) to complete the build; the included motor, ESC, propeller and servos cover the rest of the powertrain.
