Glass Fiber Anti-Vibration FC Damper Kit for APM, Pixhawk & KK

This glass-fibre anti-vibration kit decouples a multirotor flight controller from frame vibration, so the gyro and accelerometer read cleaner data and the craft holds attitude more steadily. It suits open-source boards including APM 2.5/2.6/2.8, Pixhawk 2.4, KK and MWC.

Key features

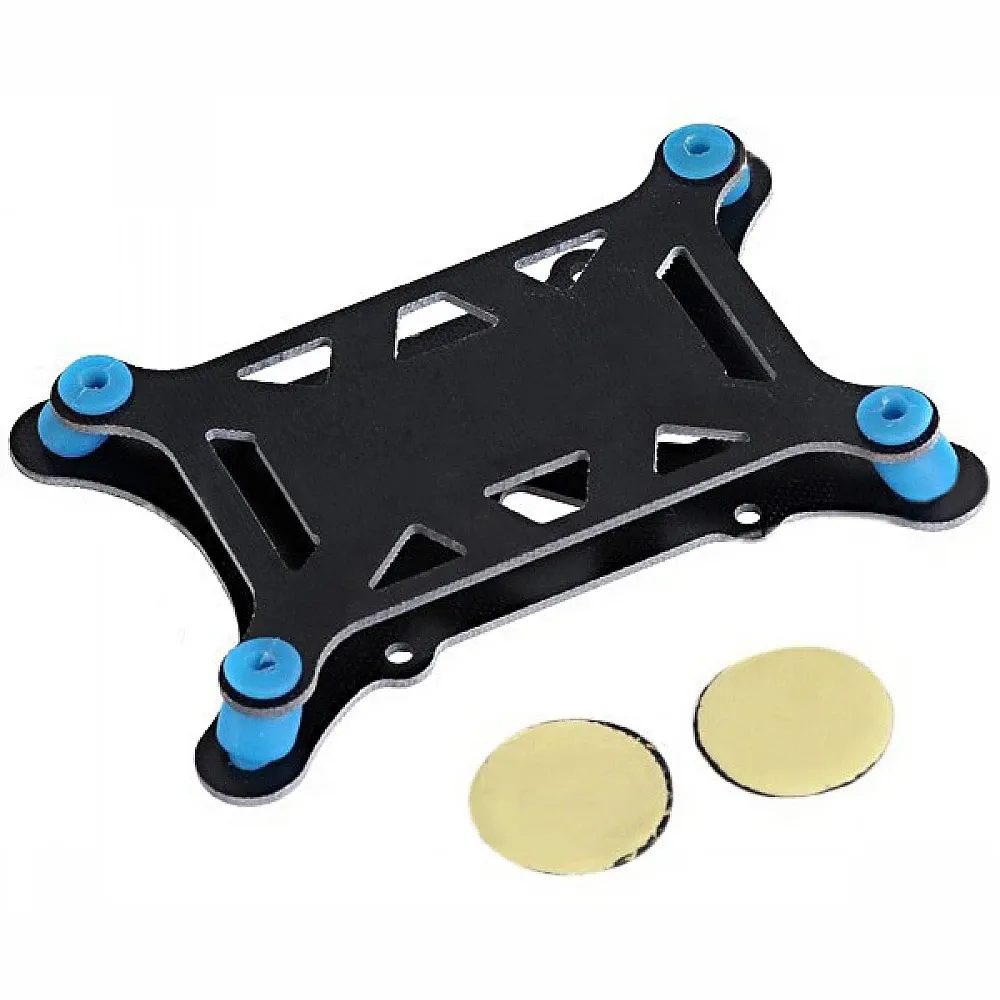

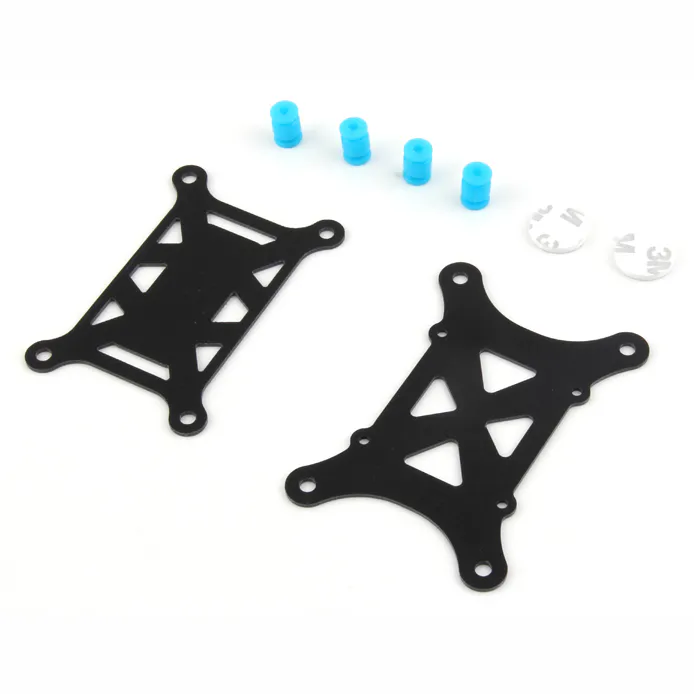

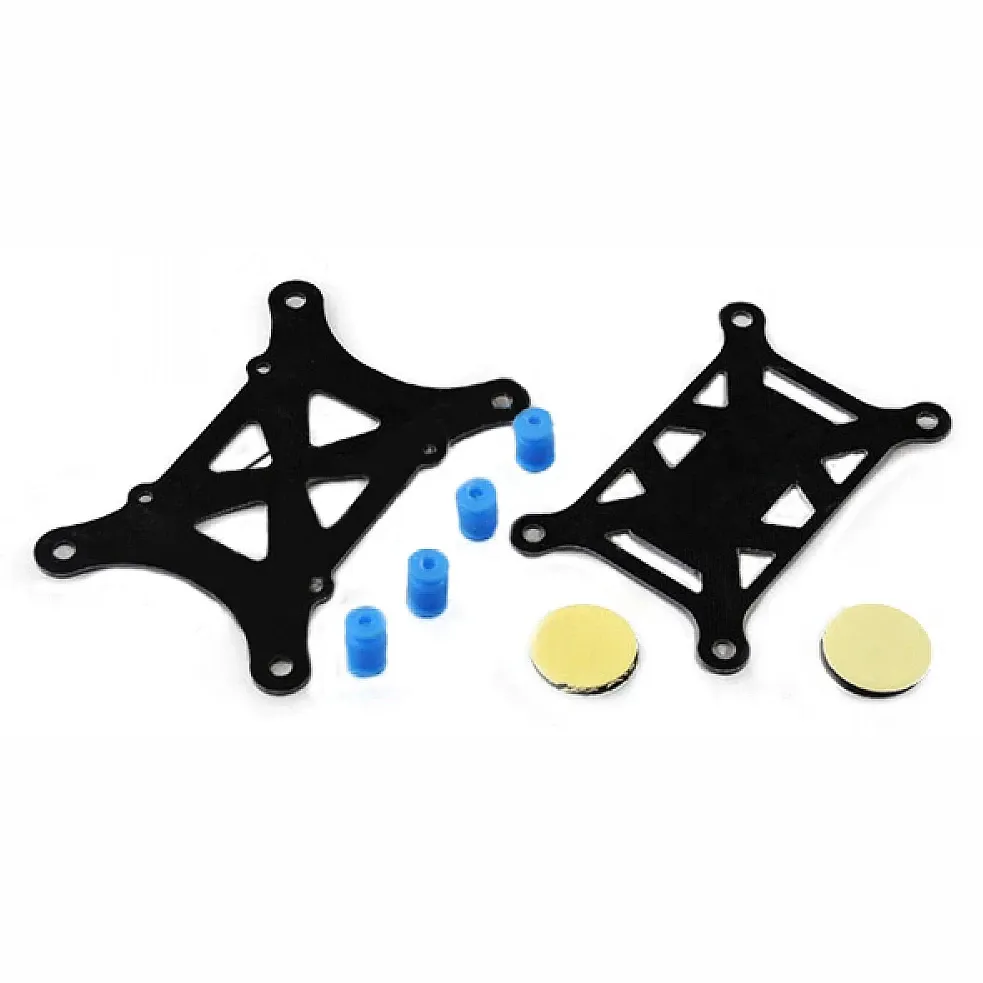

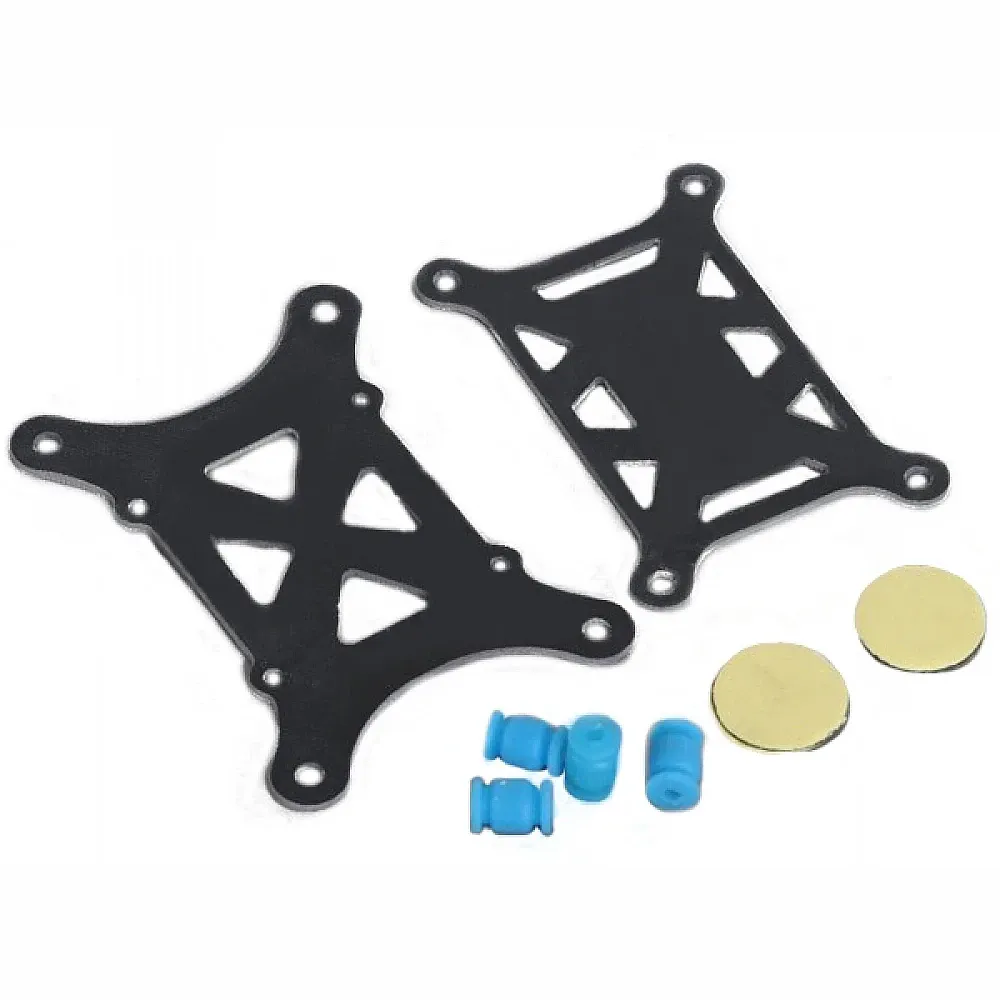

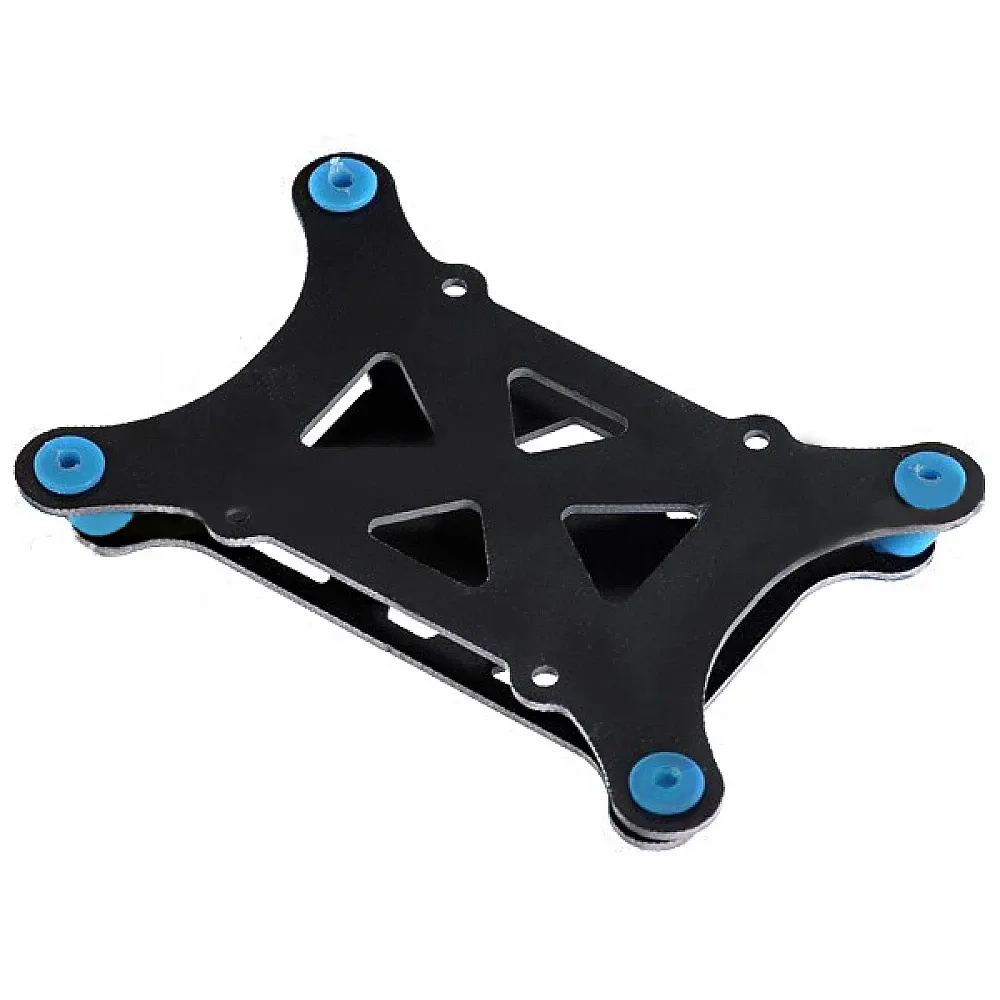

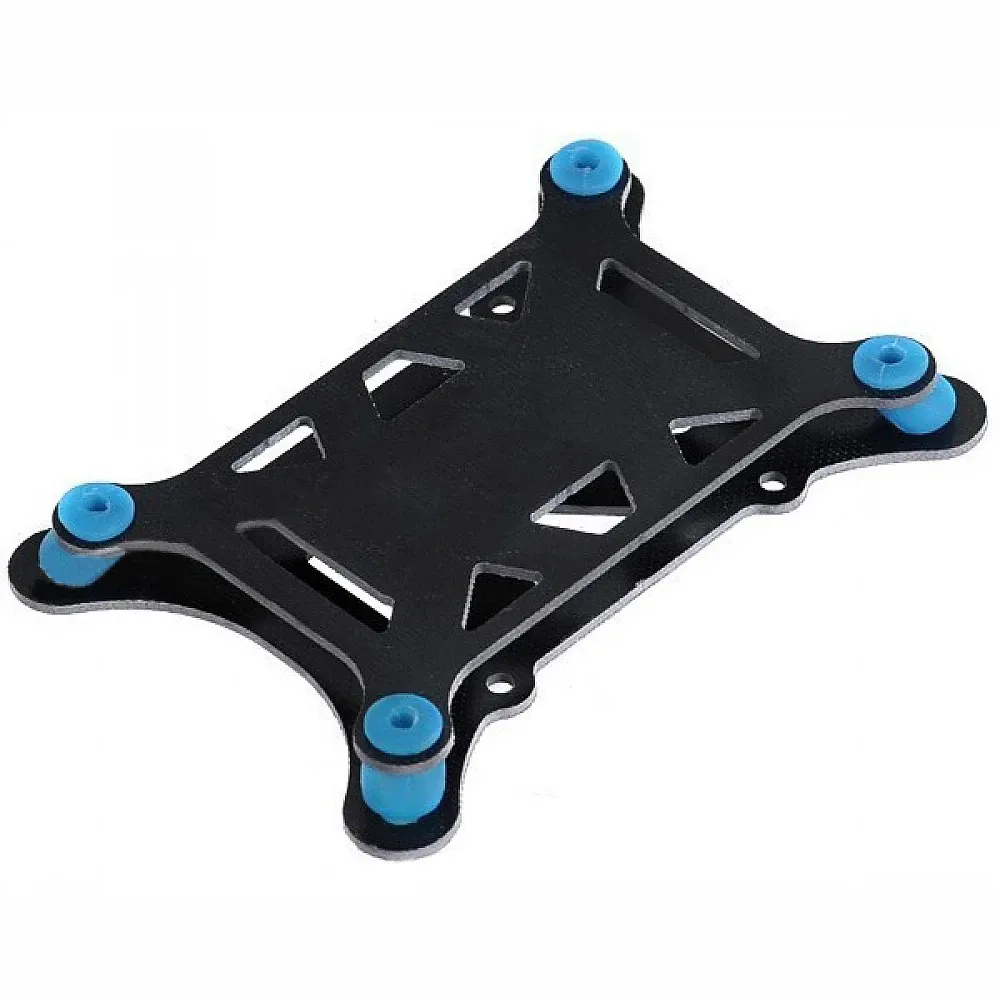

• Two-plate layout: the board rides on the upper plate, separated from the frame-mounted lower plate by shock-absorbing dampers.
• Glass-fibre plates: stiff, light and electrically non-conductive beneath the board, unlike carbon fibre.
• Room for full-size boards: plates of 90 × 60 mm and 100 × 70 mm take a Pixhawk-size controller.
• Light: about 24 g for the complete kit.

Specifications

• Material: Glass fibre
• Colour: Black
• Plate sizes: 90 × 60 × 2 mm and 100 × 70 × 2 mm

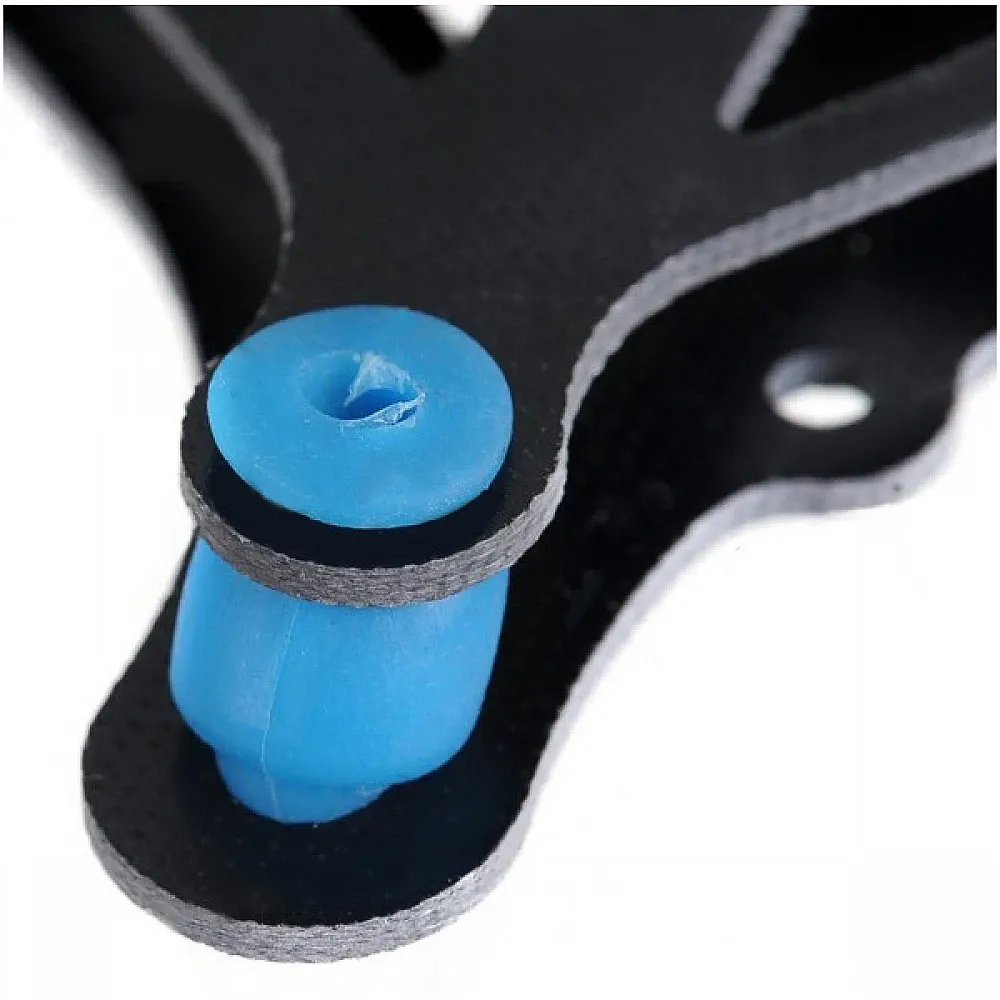

• Damper size: 10 × 12 mm (diameter × height)
• Weight: 24 g
• Compatible boards: APM 2.5/2.6/2.8, Pixhawk 2.4, KK, MWC

Fix the lower plate to the frame, then mount the flight controller on the upper plate with double-sided foam tape or screws. Leave the wiring to the board some slack: tight cables bridge the dampers and pass vibration straight through. Run the accelerometer calibration again after fitting, as the board's level reference changes.
