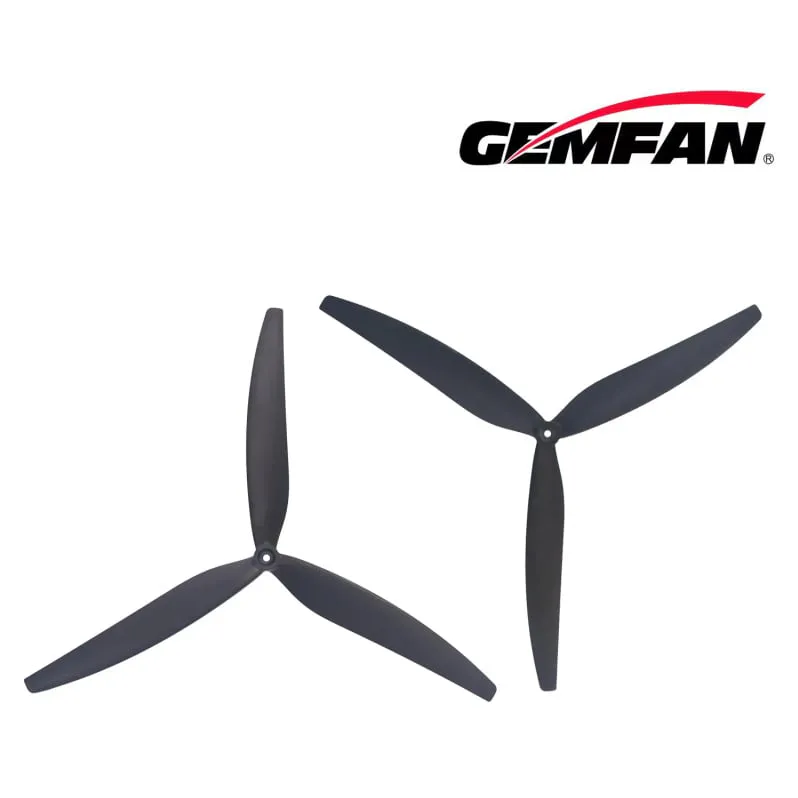

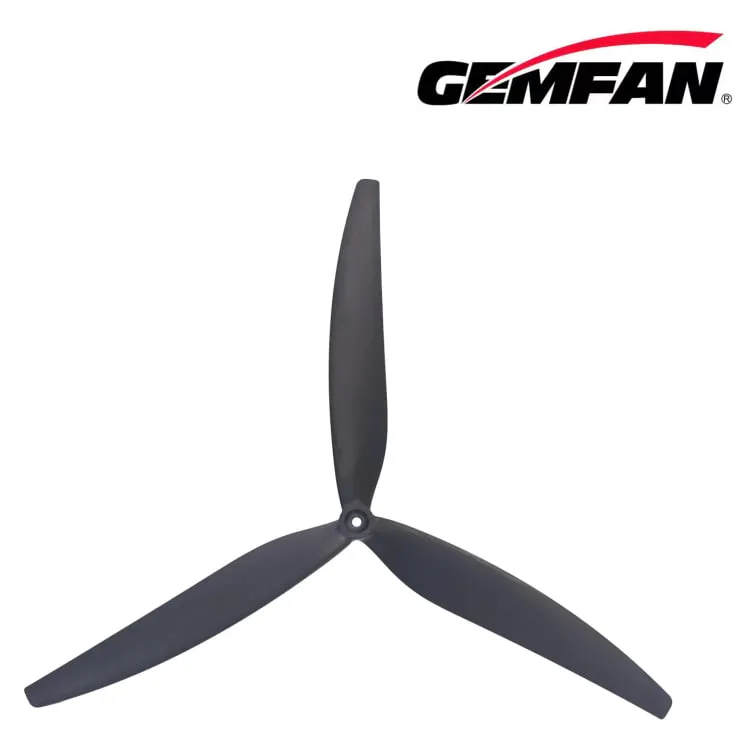

Gemfan 18x10x3 Glass Fibre Nylon 3-Blade Propeller, Black (CW/CCW Pair)

A matched pair of Gemfan 18x10x3 three-blade propellers in black glass fibre reinforced nylon, made for heavy-lift multirotors of about 1300 mm wheelbase. Each pack holds one clockwise and one counter-clockwise prop, so a quadcopter needs two packs and a hexacopter three.

Key features

• 10-inch pitch on an 18-inch disc; the third blade adds thrust within the same diameter, at a small efficiency cost against a two-blade prop

• Glass fibre reinforced nylon keeps the blades stiff under heavy load

• 6 mm centre hole, adapter-compatible for other motor shafts

• Rated for 5330-class motors on quadcopters of 11-13 kg take-off weight

• 119.3 g per propeller

Specifications

• Diameter: 18 inch (457.2 mm)

• Pitch: 10 inch

• Blades: 3

• Material: Glass fibre reinforced nylon

• Colour: Black

• Centre hole: 6 mm, adapter compatible

• Hub thickness: 12.2 mm

• Max blade width: 41.2 mm

• Weight: 119.3 g per propeller

• Recommended motor: 5330 class

• Suggested wheelbase: about 1300 mm

• Quadcopter take-off weight: 11-13 kg

• Pack contents: 1 CW + 1 CCW

Before fitting, check that your motor's prop adapter or clamp hub suits the 6 mm bore and 12.2 mm hub thickness, and balance new props before the first flight on a heavy airframe.
