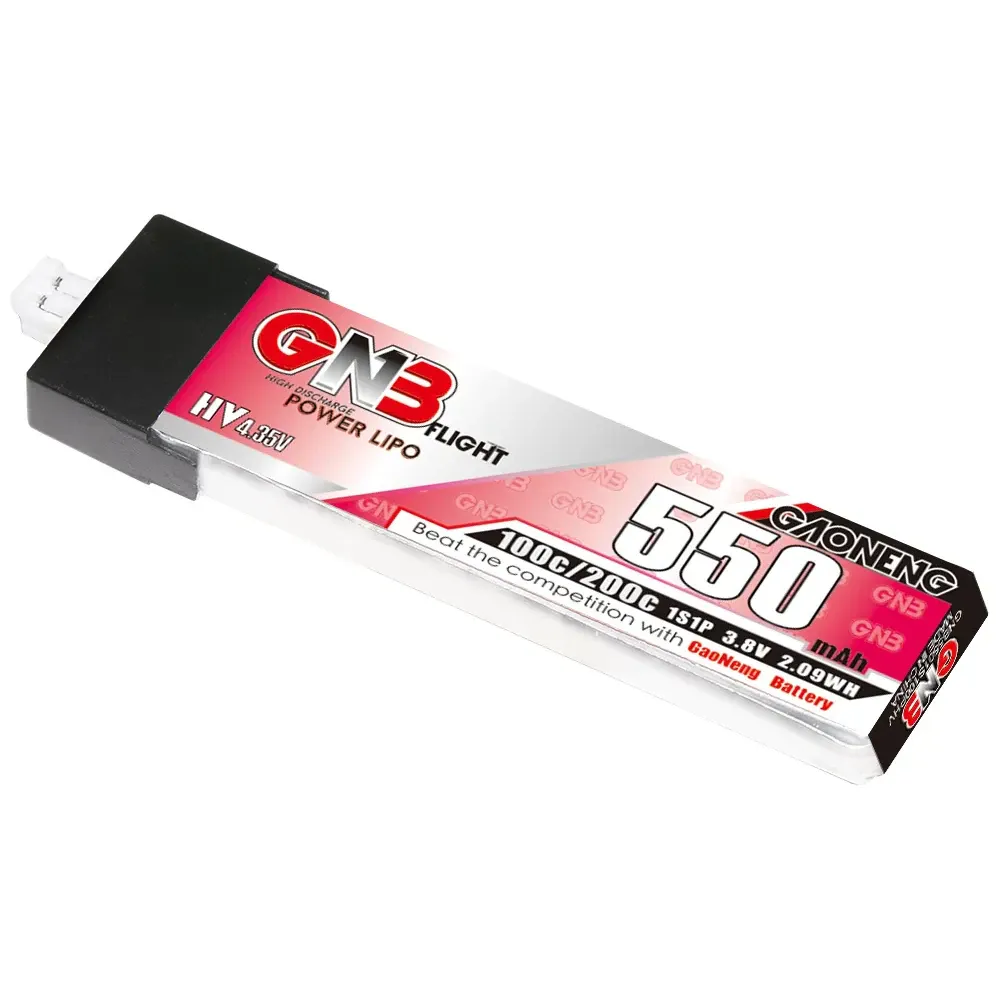

GAONENG GNB 550mAh 1S 3.8V 100C LiHV Battery

A 1S LiHV whoop pack from GAONENG's GNB range: 550mAh in a flat 65 x 18 x 6 mm body weighing 13.5 g. It suits 75 mm brushless whoops and other 1S micros that need more flight time than smaller whoop cells give, provided the battery tray or strap has room for a 65 mm pack.

Key features

• Choice of lead: A30 plastic head (GNB's BT2.0-compatible plug) or PH2.0 plastic head, the long-standing 1S whoop standard; cell and ratings are identical on both
• LiHV chemistry charges to 4.35 V for a higher starting voltage than 4.2 V LiPo cells
• 13.5 g for 550mAh and 2.1 Wh of energy
• 1C to 5C charge rate: 0.55 A standard, up to 2.75 A

Specifications

• Capacity: 550mAh
• Configuration: 1S1P, 3.8 V nominal, 4.35 V full charge
• Chemistry: LiHV
• Discharge rate: 100C
• Charge rate: 1-5C
• Connector: A30 or PH2.0 plastic head, per option
• Dimensions: 65 x 18 x 6 mm
• Weight: 13.5 g (+/-1 g)

Charge on a whoop charger with LiHV (4.35 V) support and a port that matches the lead you choose. A30 and PH2.0 do not plug into each other, so check your quad's pigtail before ordering.
