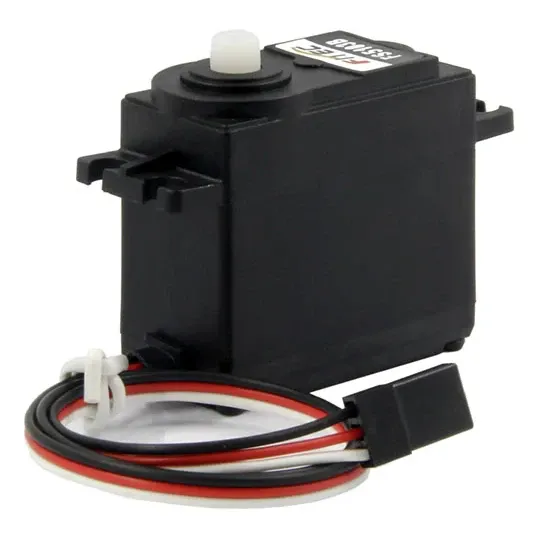

Feetech FS5103B 6V 3.2kg.cm 180° Analog Servo

The Feetech FS5103B is a standard-size analogue servo with 180° of positional travel and 3.2 kg.cm of stall torque at 6V. It fits standard 40 x 20 mm servo mounts and suits control surfaces on trainer and sport planes, pan-tilt heads, robot arms and payload release latches on larger drones.

Key features

• Wide 4-8.4V supply range covers 5-6V BECs and 2S LiPo receiver packs
• Ball-bearing output shaft with a POM plastic gear train

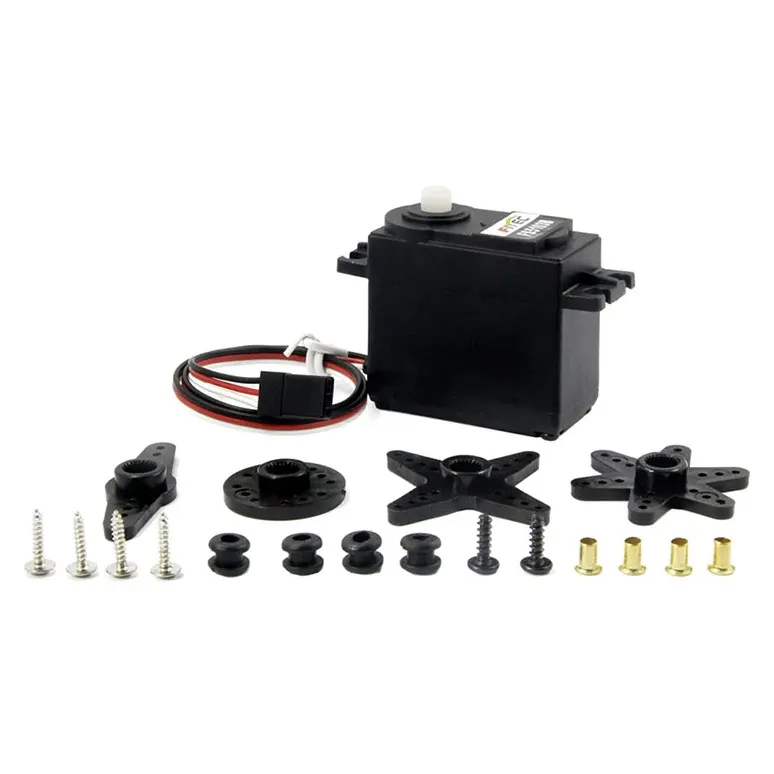

• 25T (5.9 mm) output spline takes standard-size servo horns
• 180° ±5° travel over 600-2400 µs pulses; about 120° over the common 900-2100 µs RC range
• 0.125 s/60° no-load speed at 6V

Specifications

• Operating voltage: 4-8.4V
• Stall torque: 2.6 kg.cm at 4.8V, 3.2 kg.cm at 6V
• Rated torque: 1.0 kg.cm at 6V
• Speed: 0.125 s/60° at 6V (no load)
• Current at 6V: 170 mA no load, 1.1 A stall
• Travel: 180° ±5° (600-2400 µs), 120° ±5° (900-2100 µs)
• Gears: POM plastic, 1:210 ratio
• Bearings: ball bearings
• Output spline: 25T, 5.9 mm
• Lead length: 300 mm
• Dimensions: 40.15 x 20.15 x 37.2 mm
• Weight: 41.5 g
• Operating temperature: -15 to 70°C

To use the full 180°, widen the channel endpoints on your transmitter or controller towards 600-2400 µs; at default endpoints expect roughly 120° of throw.
