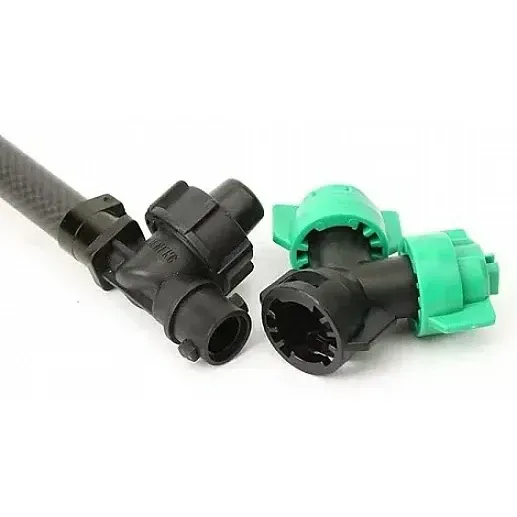

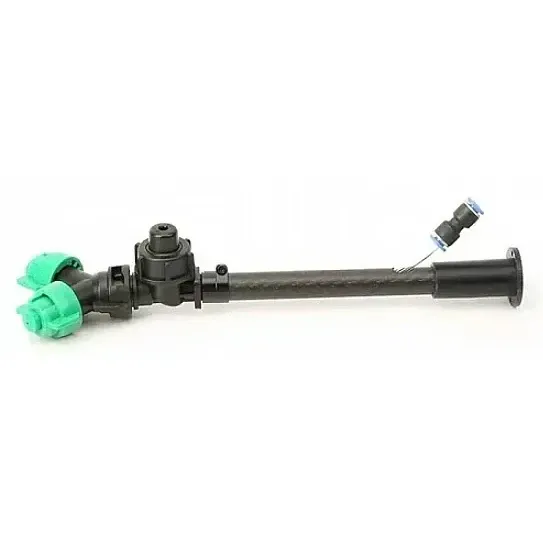

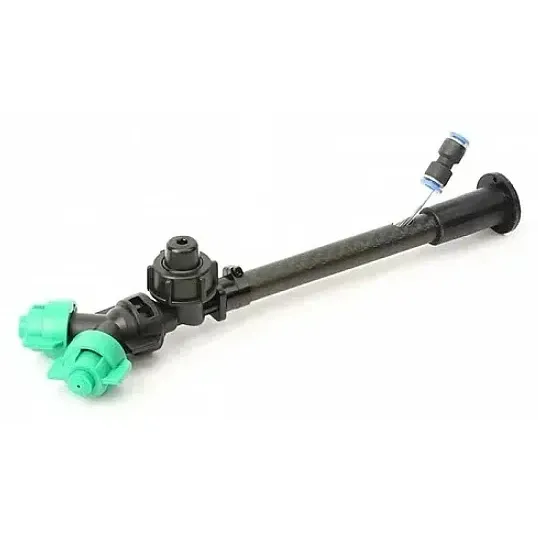

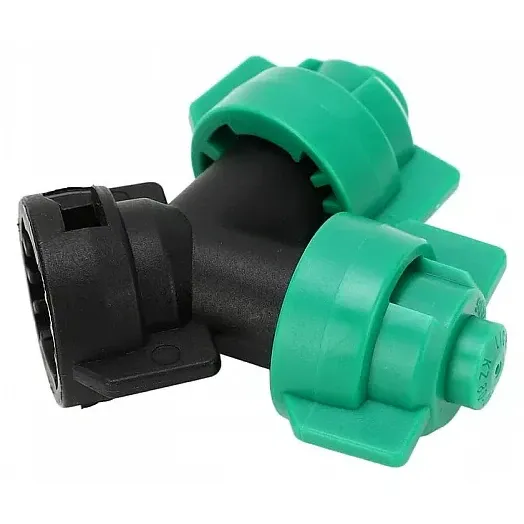

Air Atomising Y-Shape Spray Nozzle for Agri Drones, 8mm Pipe

Air-atomising Y-shape nozzle for agricultural spraying drones. The Y-type body splits the feed from an 8 mm spray pipe into two independent spray streams, widening coverage and reducing overlap between passes on large fields.

Key features

• Twin-outlet Y design delivers two separate streams from one feed for wider, more even coverage
• Takes an 8 mm spray pipe for steady, reliable flow to both outlets
• Rated for 1–3 bar working pressure with a 0.5–1 mm orifice
• ABS plastic body with a 1/8-inch BSPT thread
• Suits Hobbywing X6, X8 and X9 arm-mounted spray setups

Specifications

• Type: Air-atomising, Y-shape twin outlet
• Pipe size: 8 mm
• Thread: 1/8-inch BSPT
• Working pressure: 1–3 bar
• Orifice diameter: 0.5–1 mm
• Material: ABS plastic
• Package: 1 nozzle

Confirm that your pump works within the 1–3 bar range and that the boom uses 8 mm line before ordering. Fit the same nozzle at every spray point so each one delivers the same rate.
